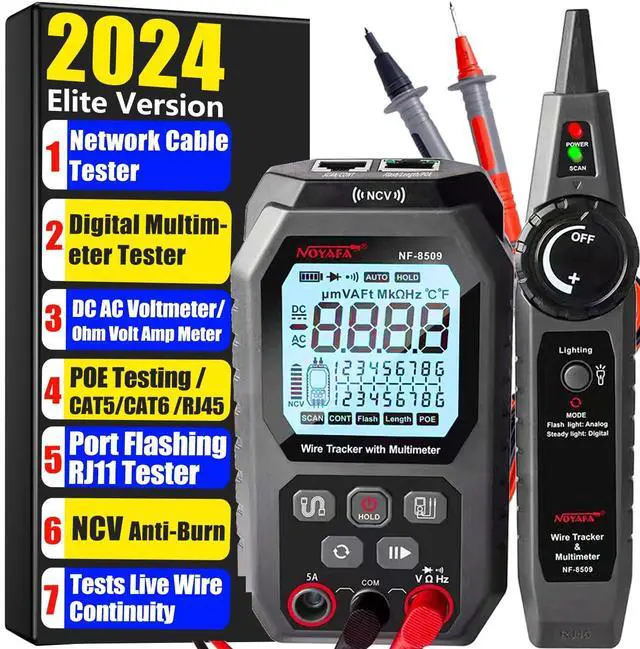

NOYAFA NF-8509 Network Cable Tester with Multimeter Tester, POE/RJ45 RJ11 CAT5 CAT6 LAN/Ethernet Port Flashing, Anti-Interference TDR Network Tester/NCV Anti-Burnout AC DC Voltmeter Network Tool

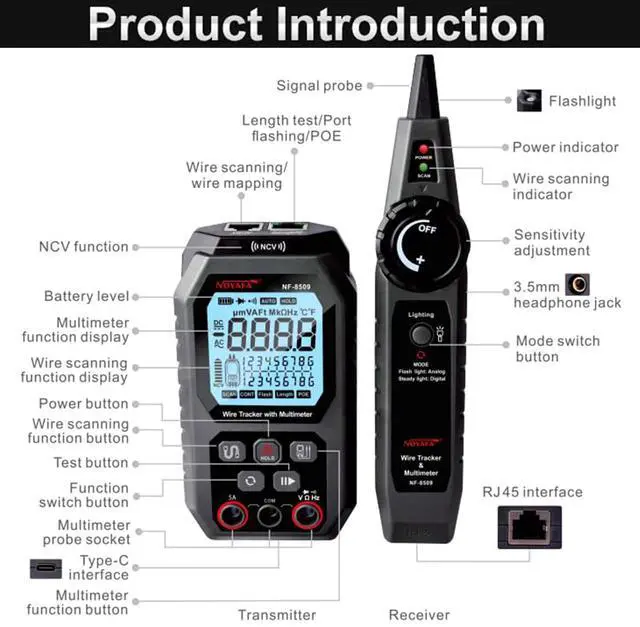

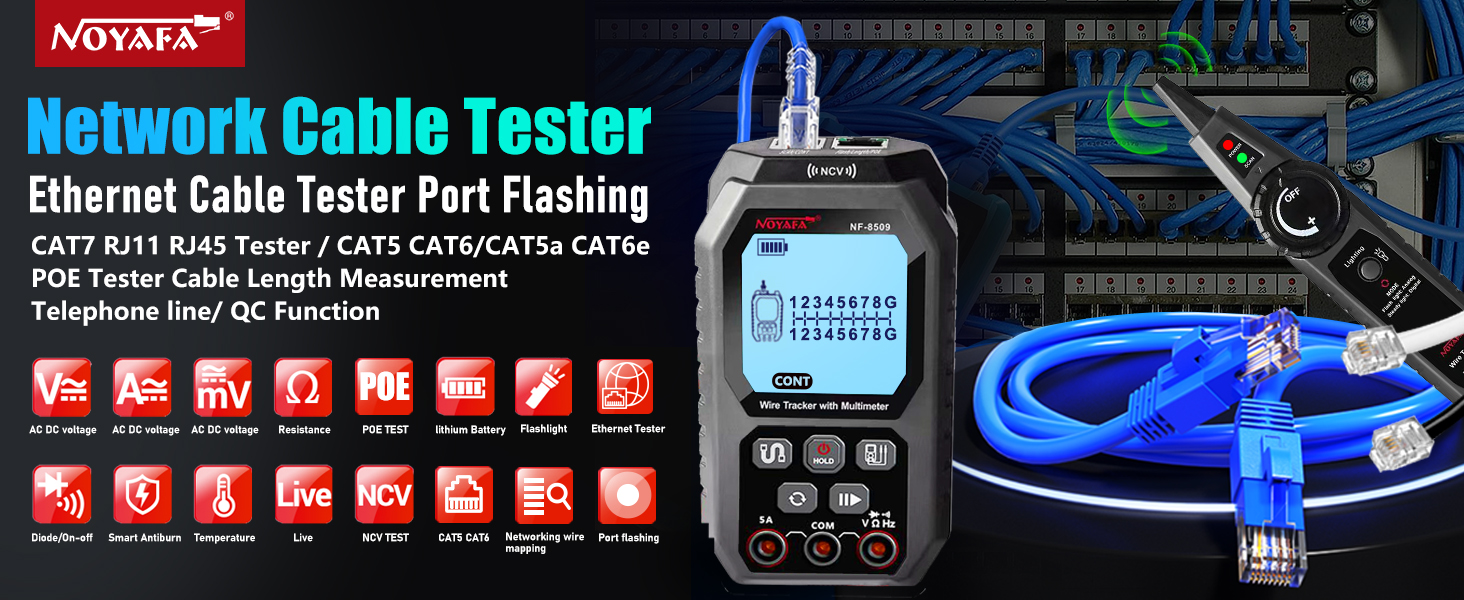

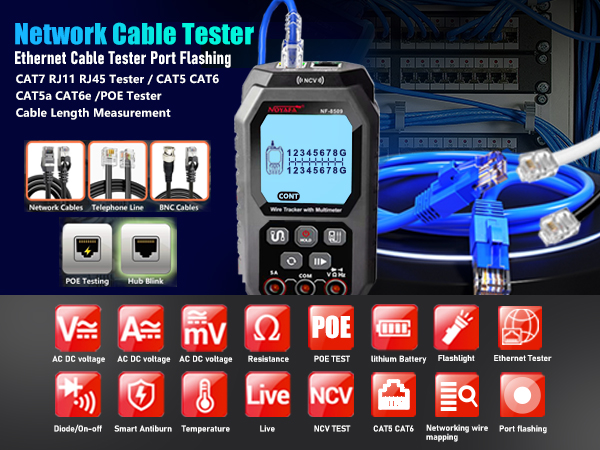

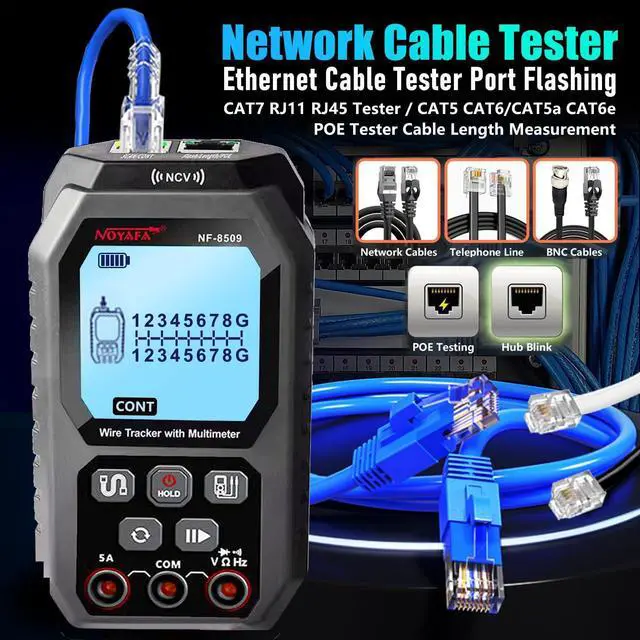

ETHERNET CABLE TESTER: NOYAFA NF-8509 Network Tester Combines network and cable tester and multimeter functions. The multimeter functions include DC/AC current, DC/AC voltage, resistance, NCV, continuity, diode, temperature measurement. This cable toner has functions of POE tester, anti-jamming RJ45/RJ11 CAT5 CAT6 cable tester, continuity tester, port flashing. Cat5 cable tester is easy to accurately locate the target cable, widely used in engineering wiring, network and equipment maintenance

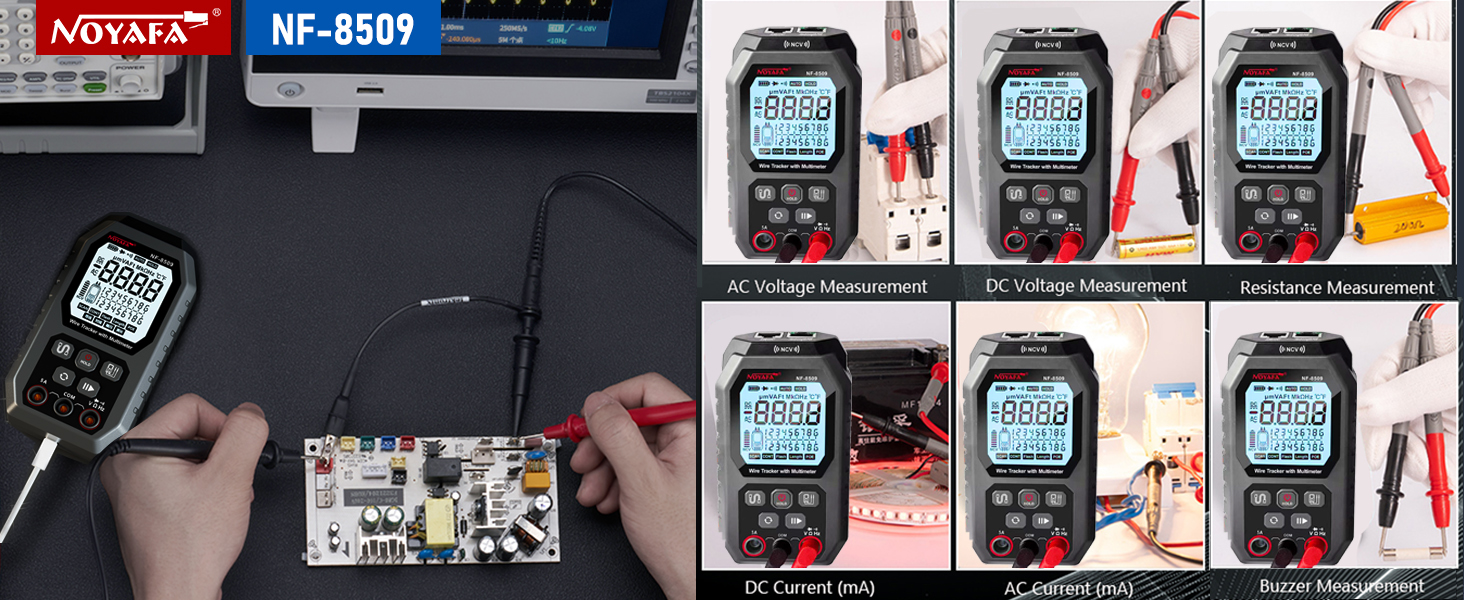

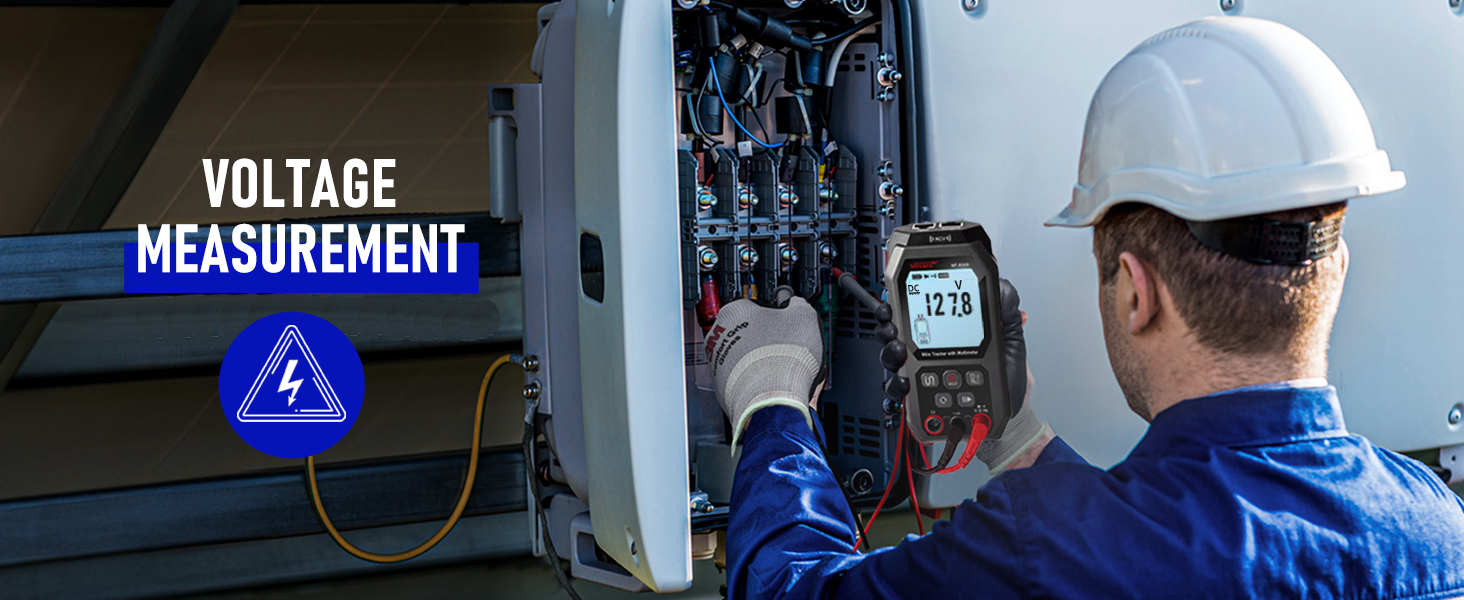

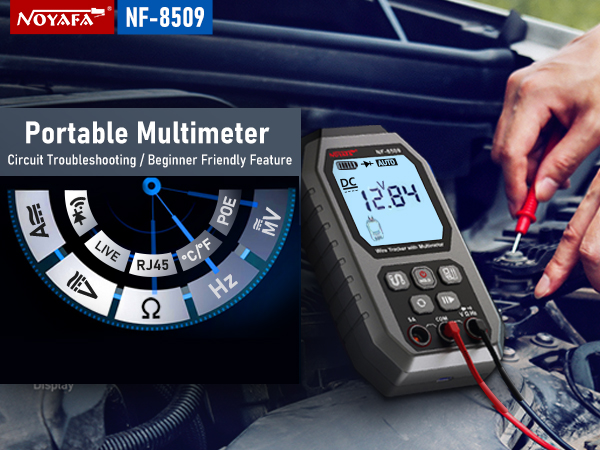

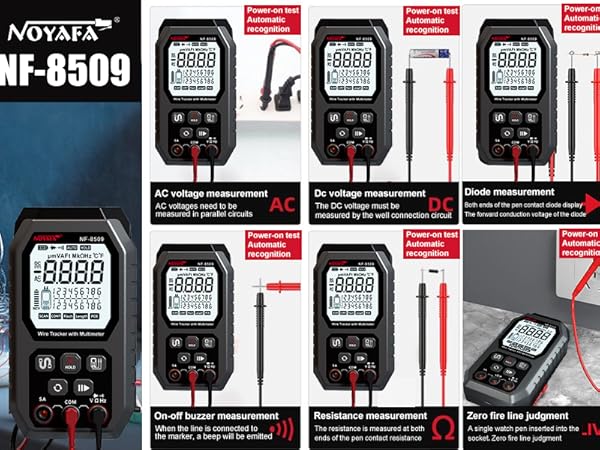

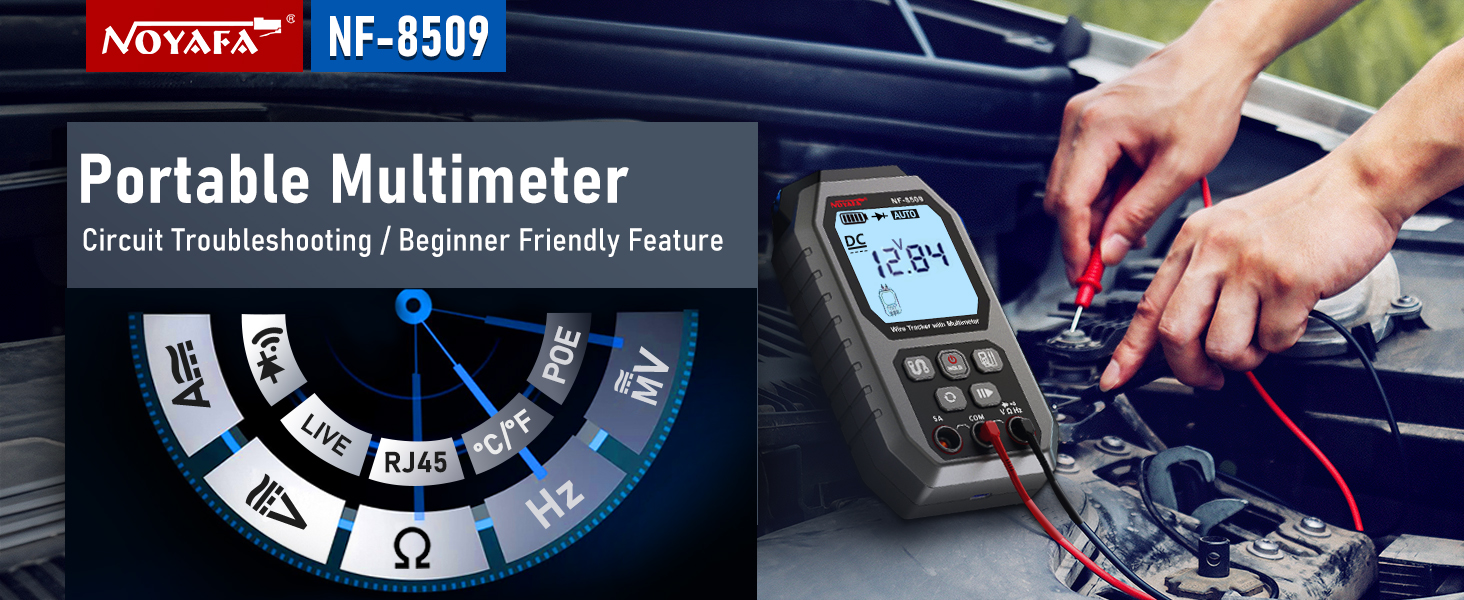

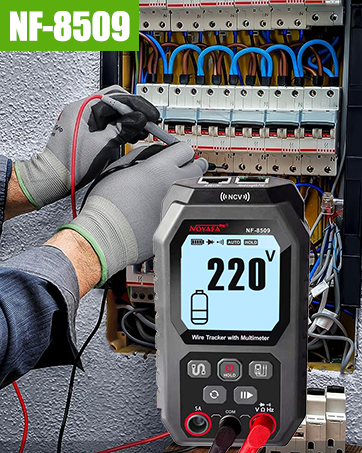

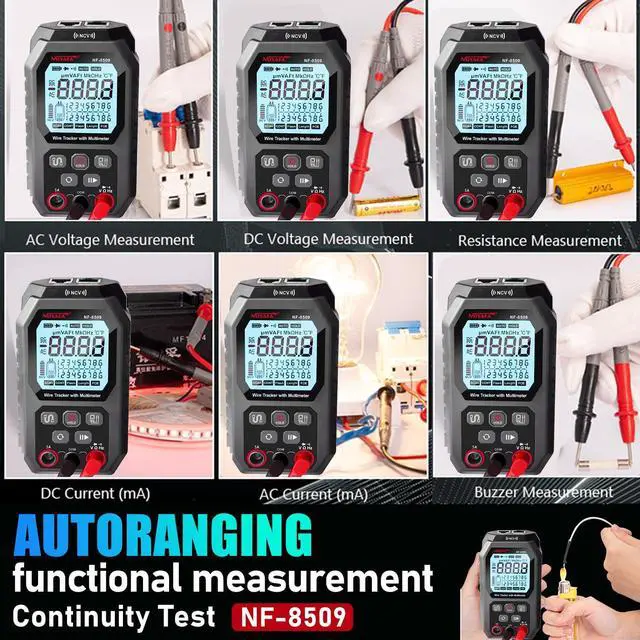

MULTIMETER TESTER: Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. NF-8509 Multimeter is a useful tool for solving industrial and household electrical issues. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging System, Testing electronics in Cars etc

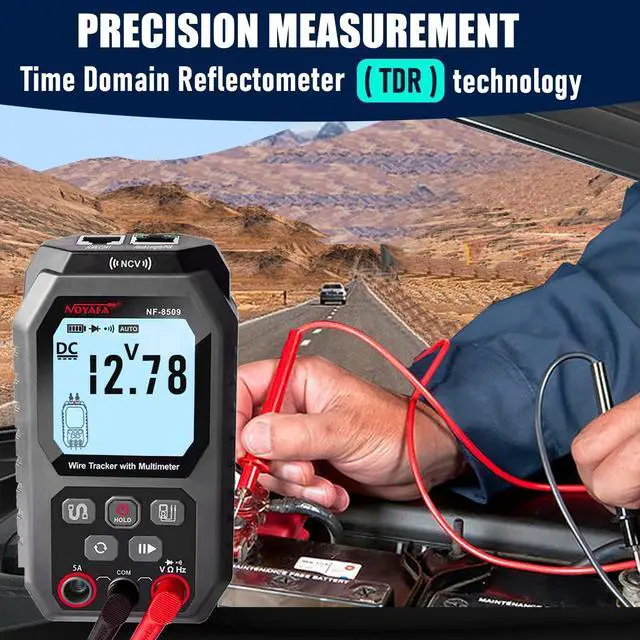

RJ45 CABLE TESTER: NF-8509 Cable Tester is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length in the range of 5 meter to 200 meter. When measures cable length, It can calibrates Velocity of Propagation (VoP) values

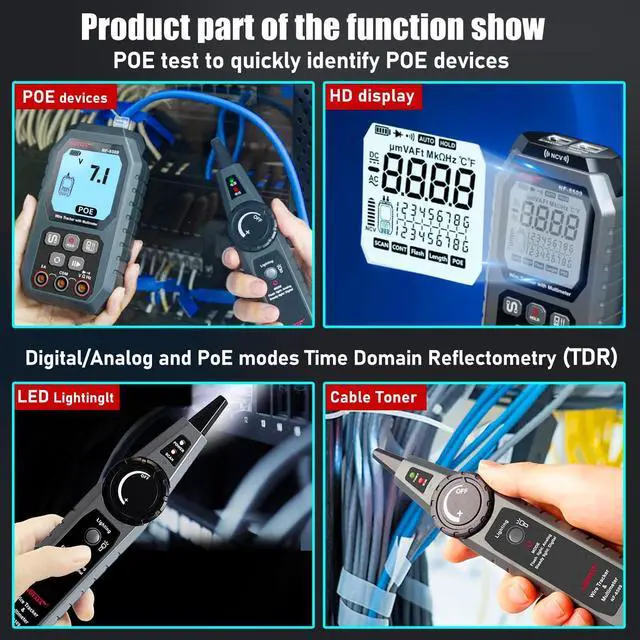

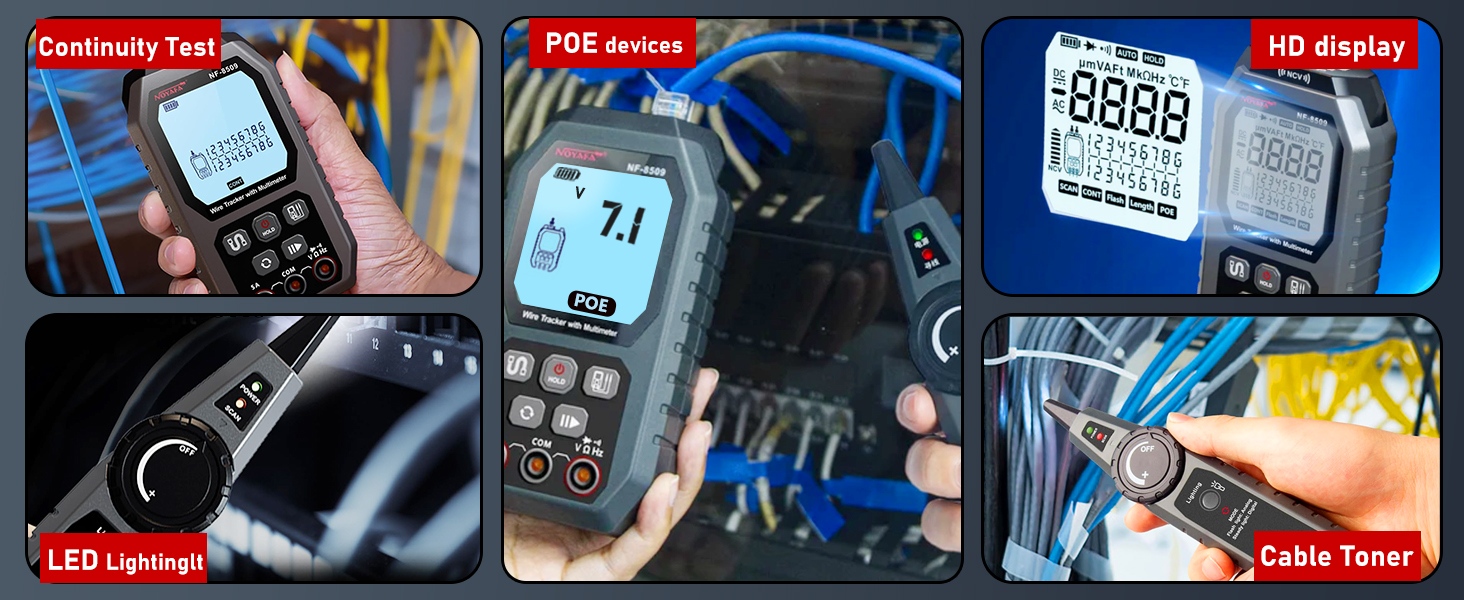

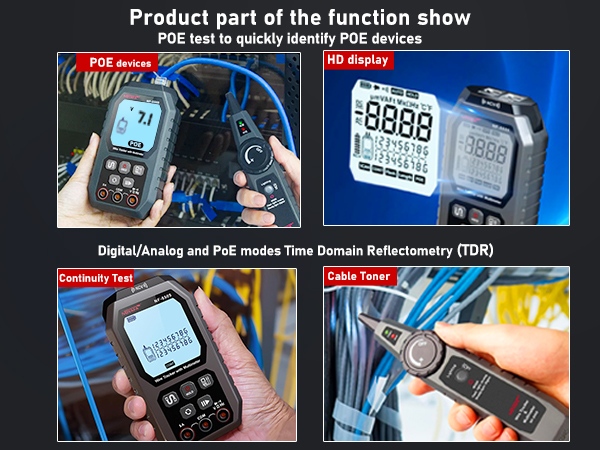

POE TESTER AND PORT BLINKING: Quickly identify PoE device, Poe tester can test the information of standard PoE device such as POE voltage, power supply polarity, power supply mode and also the type of PSE (af or at standard). Automatically detects and switches between 10M/100M/1000M modes. Locate network ports by the flashing port light (blinking every 3 seconds) on Hubs and Switches

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

NOYAFA Network Cable Tester
Network cable tester
- NOYAFA is committed to providing high quality, cost-effective instruments and tools, multimeters, CCTV testers, professional tracing cable testers to meet the needs of professionals and amateurs. We hope our products can make your life and work safer and easier.
- "Quality, Innovation, Reliability" is our goal. We constantly focus on the needs of life, innovate, discover new products and verify the quality and accuracy of each product.
NOYAFA Network Cable Tester
NOYAFA Network Cable Tester
Network Cable Tester
Network Cable Tester
Network Cable Tester

Network cable tester

Merchant Video

Wire mapping test	Max. distance of 2,000m
Wire scanning	RJ45 600m
Wire length test	5 - 200m (±3m)
Port flashing test	10M/100M/1,000M
POE	4-core/8-core powersupply detection ,POE voltage detection
Continuity test	DetectThe connectivity performance ofofwires andvarious conductors,The buzzewillsound when resistance is below 50O,Identify the polarity and forward voltagedrop ofdiodes(0-3.3V)
Resistance measurement	600O-60MO ( accuracy: ±1.0% +5 )
NCV function	Inductive voltage detector (0-4 levels)

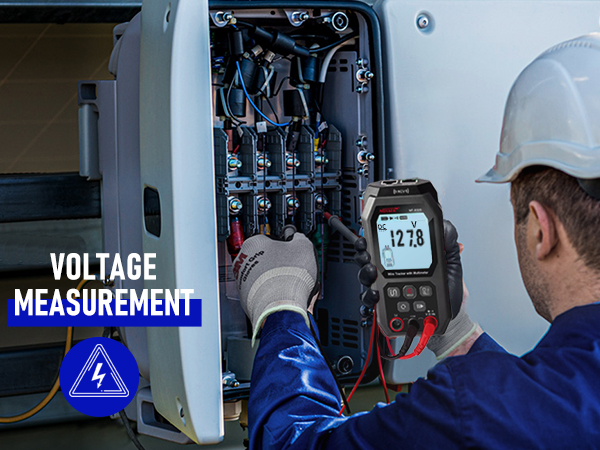

AC/DC voltage measurement	600mV-610V ( DC accuracy: ±0.5%+3: AC accuracy: ±0.5%+3 )
AC/DC measurement	1mA - 3A DC ( accuracy: ±0.8%+3 )
Frequency	0-10MHz ( accuracy: ±1.0%+3 )
Power	3.7V / 1,500mA lithium battery
Ambient temperature display	v
Telephone function	v
Power	DC 9V (exclusive)
Maximum working current	=150mA

Network cable tester

Merchant Video

Wire mapping test	Max. distance of 2,000m
Wire scanning	RJ45 600m
Wire length test	5 - 200m (±3m)
Port flashing test	10M/100M/1,000M
POE	4-core/8-core powersupply detection ,POE voltage detection
Continuity test	DetectThe connectivity performance ofofwires andvarious conductors,The buzzewillsound when resistance is below 50O,Identify the polarity and forward voltagedrop ofdiodes(0-3.3V)
Resistance measurement	600O-60MO ( accuracy: ±1.0% +5 )
NCV function	Inductive voltage detector (0-4 levels)
AC/DC voltage measurement	600mV-610V ( DC accuracy: ±0.5%+3: AC accuracy: ±0.5%+3 )
AC/DC measurement	1mA - 3A DC ( accuracy: ±0.8%+3 )
Frequency	0-10MHz ( accuracy: ±1.0%+3 )
Power	3.7V / 1,500mA lithium battery
Ambient temperature display	v
Telephone function	v
Power	DC 9V (exclusive)
Maximum working current	=150mA

NOYAFA Network Cable Tester
Network cable tester
- NOYAFA is committed to providing high quality, cost-effective instruments and tools, multimeters, CCTV testers, professional tracing cable testers to meet the needs of professionals and amateurs. We hope our products can make your life and work safer and easier.
- "Quality, Innovation, Reliability" is our goal. We constantly focus on the needs of life, innovate, discover new products and verify the quality and accuracy of each product.
NOYAFA Network Cable Tester
NOYAFA Network Cable Tester
Network Cable Tester
Network Cable Tester
Network Cable Tester

NF-8509 Network Cable Tester (with Multimeter Tester), POE/RJ45 RJ11 CAT5 CAT6 LAN/Ethernet Port Flashing, Anti-Interference TDR Network Tester/NCV Anti-Burnout AC DC Voltmeter Network Tool

Product information

Measurement Type	Multimeter
Included Components	NO
Item Weight	0.65 pounds
Specification Met	FCC
Item Package Quantity	1
Item Dimensions	6 L x 2.5 W x 2 H inches
Brand Name	NOYAFA
Number of Items	1
Item Package Dimensions	5.588 L x 16.51 W x 26.8986 H centimeters
Size	NF-8509
Style Name	Industrial
Color	Black
Measurement Accuracy	0.003m
Package Weight	0.608 kilograms
Manufacturer	NOYAFA
Model	NF-8509
Are batteries required?	false
Power Source	No
Unit Count Type	Count
Unit Count	1
Are batteries included?	false

Additional Features

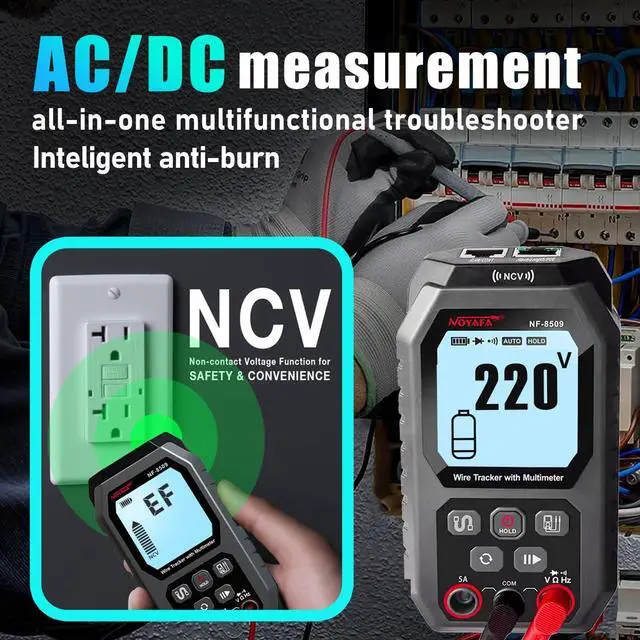

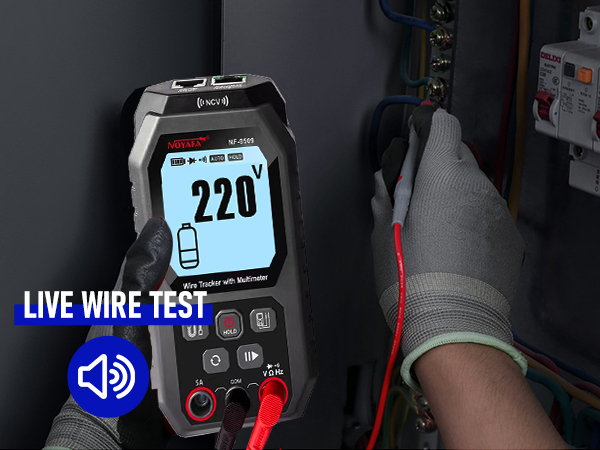

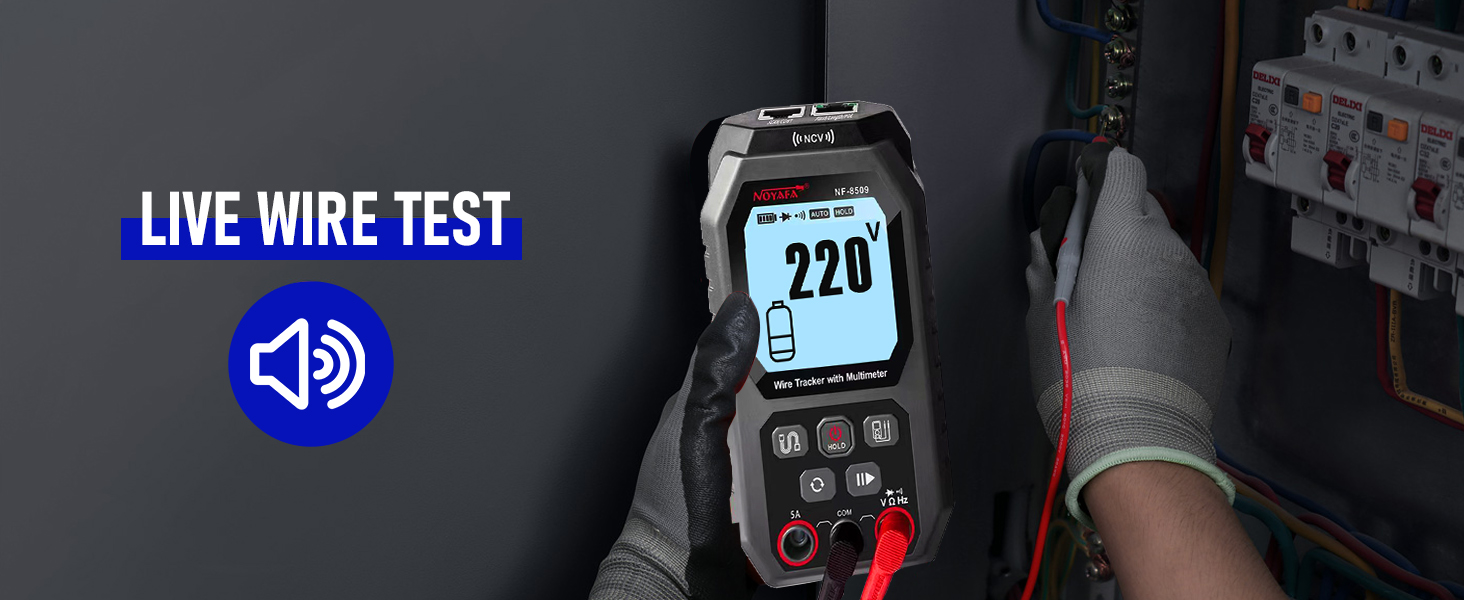

NCV NON-CONTACT MEASUREMENT: Ethernet toner is close to the place where there is an AC signal, and the multimeter will send out an alarm. The Ethernet tester automatically recognizes the measurement object, and can intelligently prevent burning at 250v voltage to prevent the wrong operation from burning out the element Devices, more secure and safe to use
NETWORK MAPPER: Anti-jamming digital mode wire scanning and normal analog mode wire scanning can be switched. Proofread the network line sequence and use wire scanning to test the continuity of the network wires when the CAT5 CAT6 RJ45 Plug is ready
