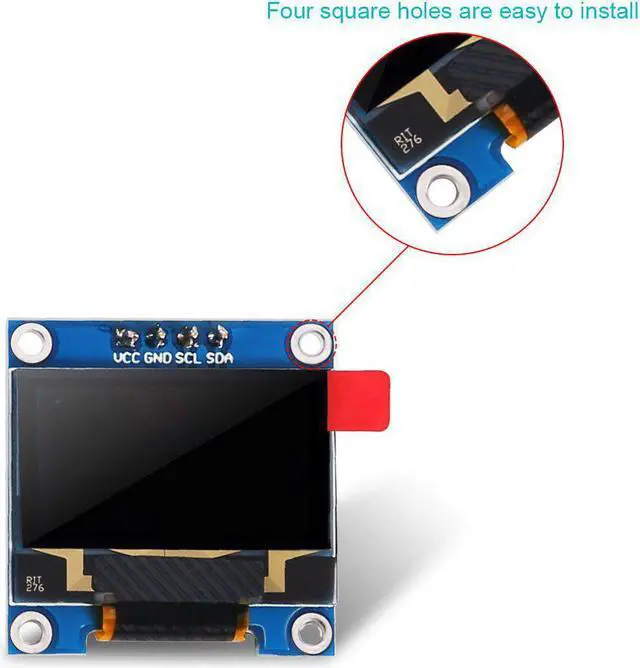

6PCS 0.96 OLED Display Module 128 x 64 I2C Display 0.96inch 12864 Blue OLED Module OLED Display IIC Serial Compatible with Raspberry Pi Ardu-ino Display and Microcontroller - Blue

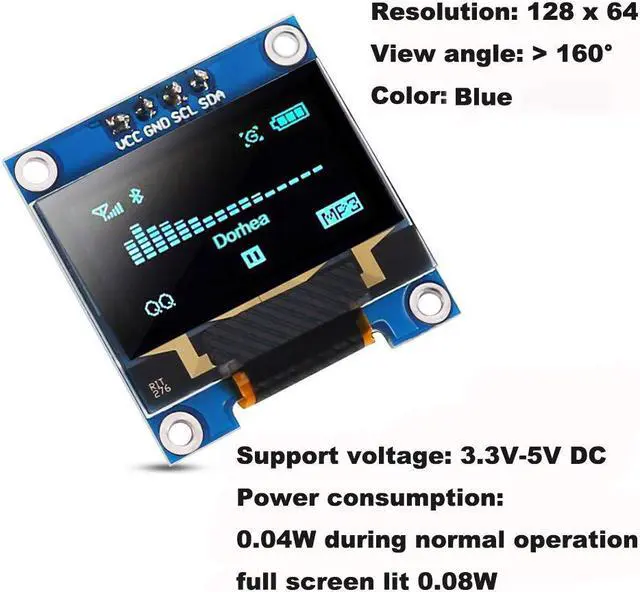

- This OLED display module is 0.96 inch diagonal,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, Full screen lit 0.08W, Color : Blue
- Communication: I2C/IIC Interface, only need two I / O ports.This oled display arduino can be used with different machine easily.
- 0.96 Inch OLED Module for showing graphical & textual information directly on your micro-controller projects. It compatible with many chips: Arduino UNO and Mega, Raspberry pi, 51 MCU, STIM 32, etc.
- Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable
- No embedded fonts inside the OLED controller, user can create the fonts through the font generation software
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
OLED self-luminous, no backlight
Size: 0.96 inch
Color: Blue
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Interface Type: IIC / I2C-4PIN
Working Temperature: -30°C~70°C
Screen material: glass, need good protection
GND: Ground
VCC: 3.3V~5V

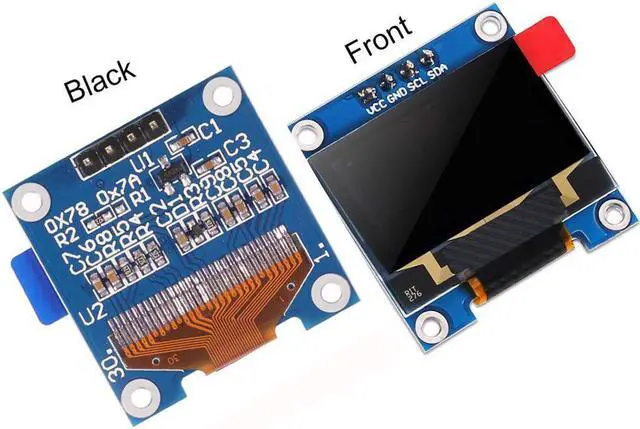

Pin Definition:
GND: OLED Power Ground
VCC: OLED Power Positive 3.3-5 V
SCL: OLED IIC Clock
SDA: OLED IIC Data Line
Applications:
MP3, MP4, watch
Head-mounted displays
Meters and other intelligent instruments
Package include :

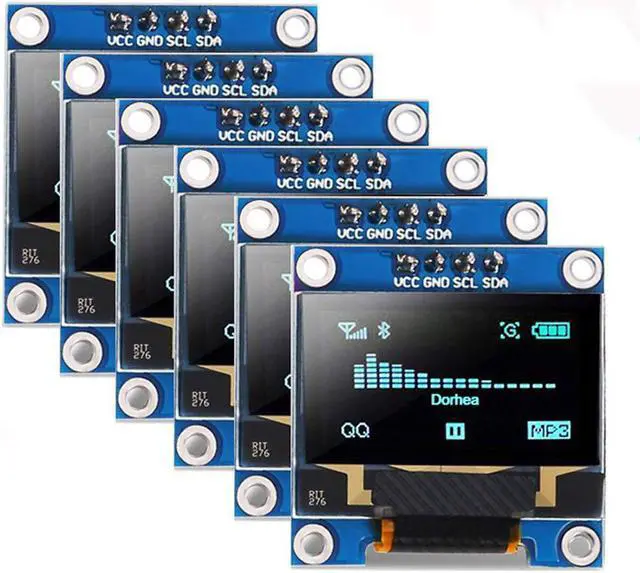

6 X 0.96 Inch 128X64 Blue OLED Display Module
OLED self-luminous, no backlight
Size: 0.96 inch
Color: Blue
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Interface Type: IIC / I2C-4PIN
Working Temperature: -30°C~70°C
Screen material: glass, need good protection
GND: Ground
VCC: 3.3V~5V
Pin Definition:
GND: OLED Power Ground
VCC: OLED Power Positive 3.3-5 V
SCL: OLED IIC Clock
SDA: OLED IIC Data Line
Applications:
MP3, MP4, watch
Head-mounted displays
Meters and other intelligent instruments
Package include :
6 X 0.96 Inch 128X64 Blue OLED Display Module
