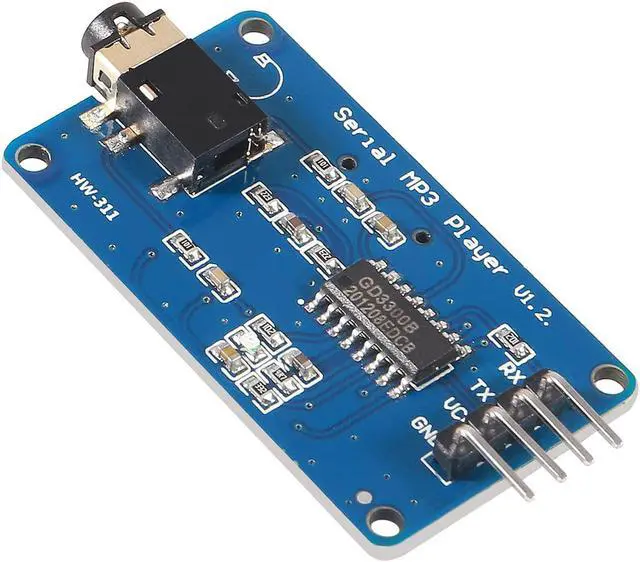

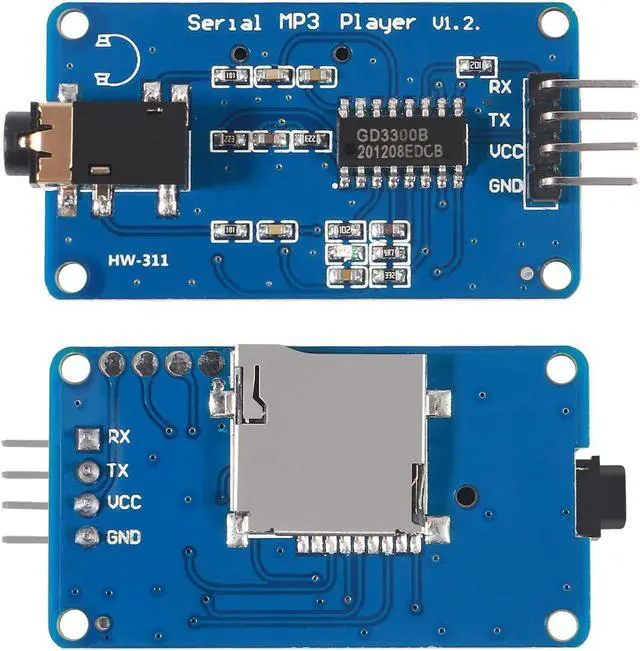

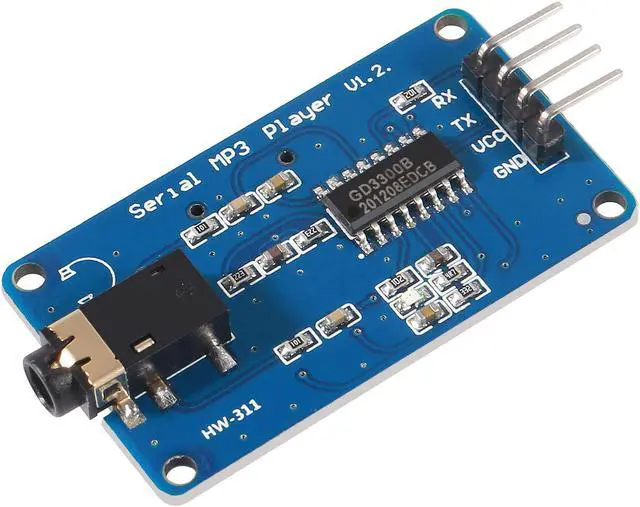

DORHEA 5Pcs YX5300 UART Control Serial MP3 Music Player Module Voice Serial Port UART Control Module with TF Card Slot for Ardu ino/AVR/ARM/PIC
Limited time offer, ends 07/19 By Nexus3C
- YX5300 is a voice module that provides a serial port, supported file formats: MP3/WAV
- The software supports the industrial-level serial communication protocol, using SPIFLASH, TF card or U disk as the storage medium
- No need for any burner, no software, USB directly burn FLASH, support micro SD card, micro SDHC card
- Through the simple serial port designation, you can complete the playback of the specified voice, and how to play the voice and other functions, without the cumbersome underlying operation, easy to use.
- Support sampling frequency (kHz):8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48, UART TTL serial control playback mode, baud rate is 9600bps. 30 class adjustable volume
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
Supported sampling frequency (kHz):8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
Support file format:MP3/WAV
Support Micro SD card, Micro SDHC Card
Level 30 class adjustable volume
UART TTL serial port control play mode, baud rate is 9600bps
The power supply can be 3.3V/5V TTL
This module is a simple MP3 player device based on high quality MP3 audio chip MH3028M.
It can support MP3 and WAV file formats with sampling frequencies ranging from 8kHz to 48kHz.

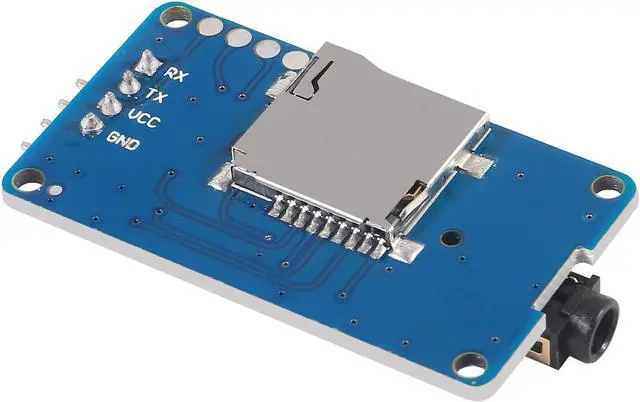

On-board TF card slot, so you can insert a micro SD card that stores audio files.
MCU can send commands to module through UART port to control MP3 playback status, such as switching songs, changing volume and playback mode.
You can also debug the module from USB to UART module.
It is compatible with Arduino/AVR/ARM/PIC
Applications: Car navigation voice broadcast, road transport audit, toll station voice prompts, train station / bus station security check voice prompts,
vehicle access channel verification voice prompts, mechanical and electrical equipment failure automatic alarm, fire voice alarm prompts, etc.
Package include:

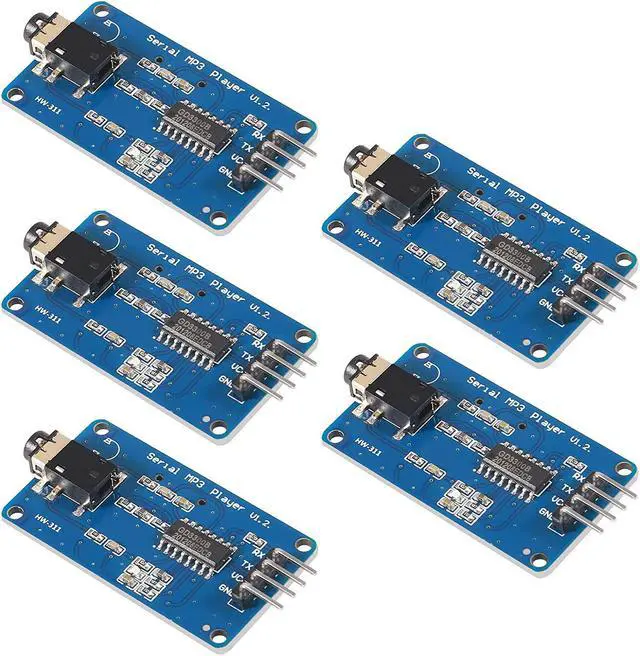

5 x YX5300 serial MP3 music player module
Supported sampling frequency (kHz):8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
Support file format:MP3/WAV
Support Micro SD card, Micro SDHC Card
Level 30 class adjustable volume
UART TTL serial port control play mode, baud rate is 9600bps
The power supply can be 3.3V/5V TTL
This module is a simple MP3 player device based on high quality MP3 audio chip MH3028M.
It can support MP3 and WAV file formats with sampling frequencies ranging from 8kHz to 48kHz.
On-board TF card slot, so you can insert a micro SD card that stores audio files.
MCU can send commands to module through UART port to control MP3 playback status, such as switching songs, changing volume and playback mode.
You can also debug the module from USB to UART module.
It is compatible with Arduino/AVR/ARM/PIC
Applications: Car navigation voice broadcast, road transport audit, toll station voice prompts, train station / bus station security check voice prompts,
vehicle access channel verification voice prompts, mechanical and electrical equipment failure automatic alarm, fire voice alarm prompts, etc.
Package include:
5 x YX5300 serial MP3 music player module
