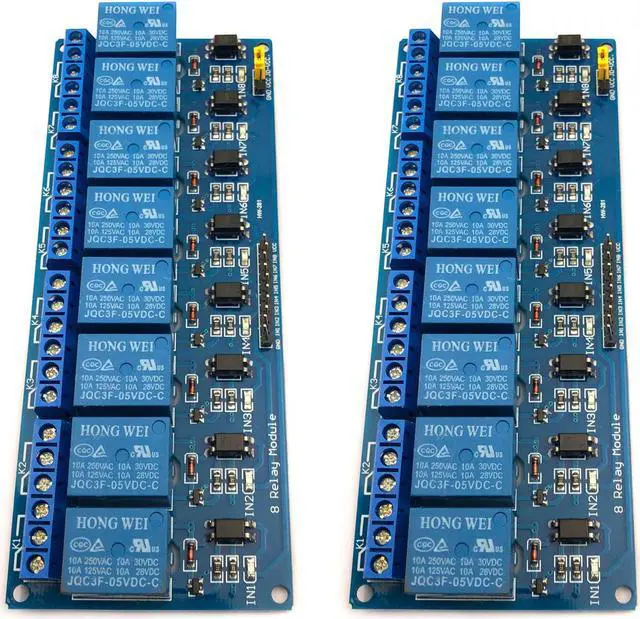

FainWan 2pcs 8 Channel DC 5V Relay Module with Optocoupler for UNO R3 MEGA 2560 1280 DSP ARM PIC AVR STM32 Rasp-Berry Pi
- 5V 8-Channel Relay interface board, each one needs 15-20mA Driver Current;Relay output maximum contact is AC250V 10A and DC30V 10A
- Each relay has normally open and normally closed contact. Can be selected by jumper relay and TTL or ground.
- Standard interface that can be controlled directly by microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
- With power indicator,8-way road has a status indicator. With a relay coil to absorb the diode protection.
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

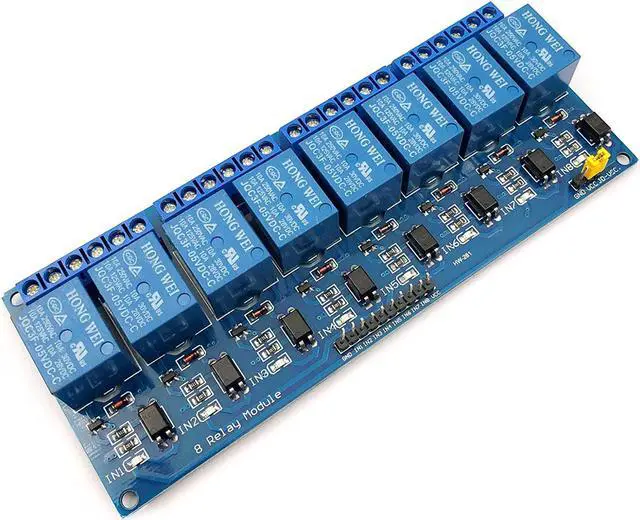

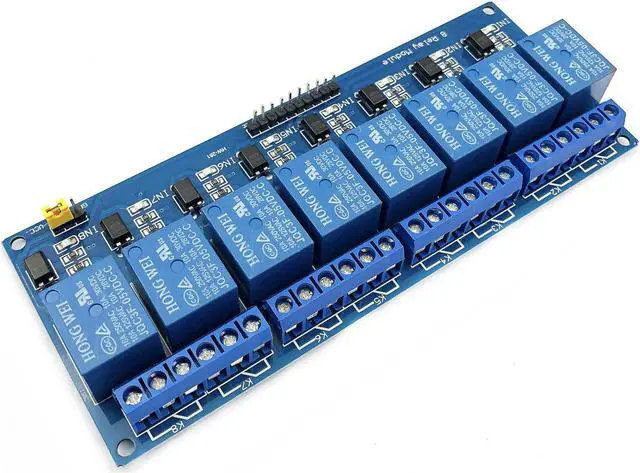

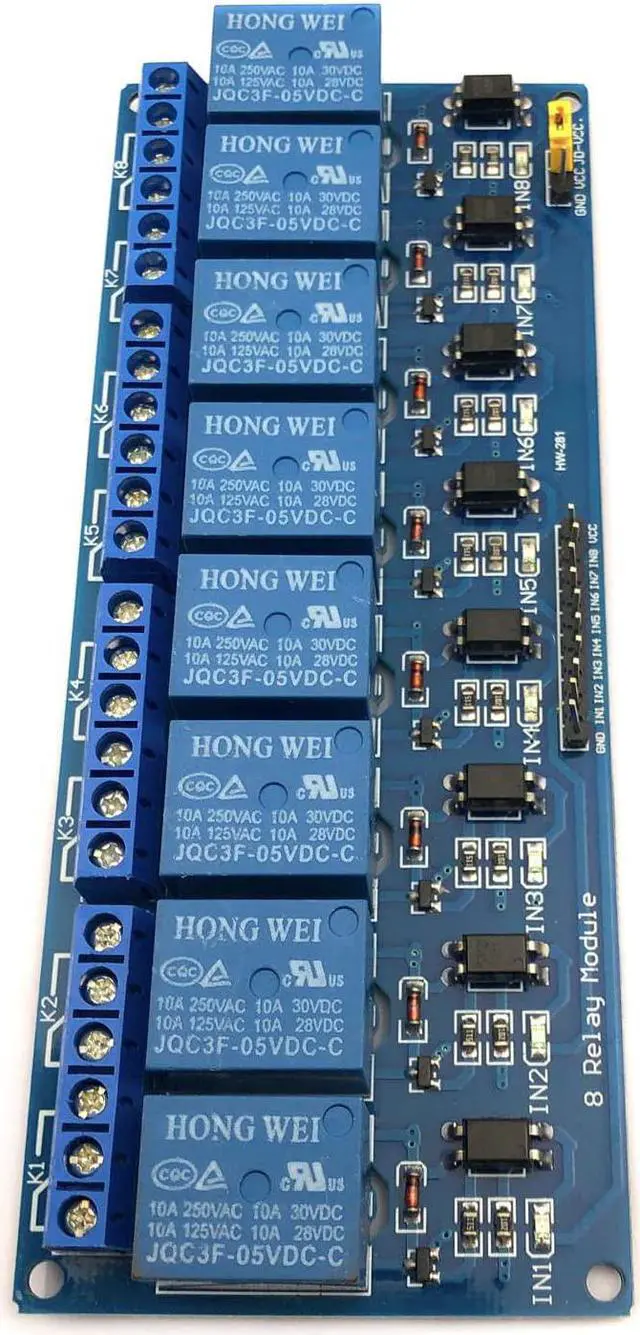

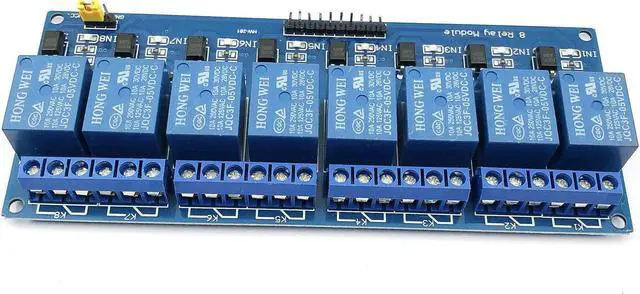

8-Channel Relay Module
It is also able to control various appliances and other equipments with large current.Standard interface can be directly connected with microcontrollers.
Red working status indicator lights are conducive to the safe use.

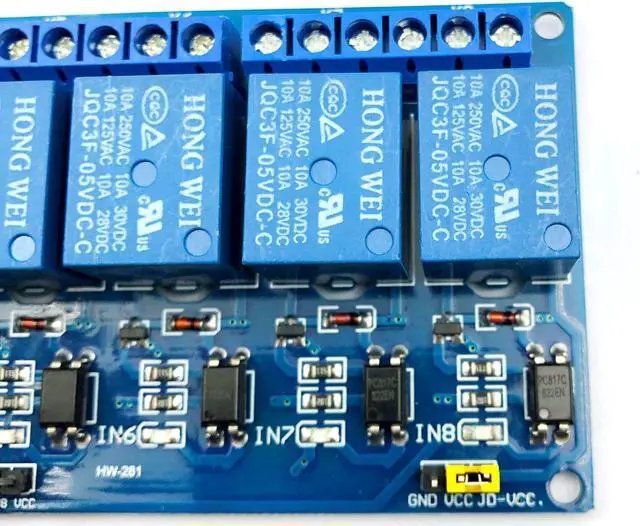

8 Channel DC 5V Relay Module with Optocoupler
Feature:
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance
The control pin has a pull-down circuit to prevent malfunction relay vacant
Specifications:
Product Name: 8-Channel Relay Module
Output Channel: 8
Power Supply: 5V
Load Voltage: AC 250V 10A, DC 30V 10A
Total Size: 137mm x 56mm x 17mm/ 5.4" x 2.2" x 0.7" (L*W*H);
Mounted Hole Size: 3mm/ 0.12"
Mounted Hole Center Distance: 132 x 50mm/5.2" x 2"(L*W);
Material: Electric Part
Package Content :
2 x 8-Channel Relay Module
Relay
Find answers in product info, Q&As, reviews
It is also able to control various appliances and other equipments with large current.Standard interface can be directly connected with microcontrollers.
Red working status indicator lights are conducive to the safe use.
8 Channel DC 5V Relay Module with Optocoupler
Feature:
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance
The control pin has a pull-down circuit to prevent malfunction relay vacant
Specifications:
Product Name: 8-Channel Relay Module
Output Channel: 8
Power Supply: 5V
Load Voltage: AC 250V 10A, DC 30V 10A
Total Size: 137mm x 56mm x 17mm/ 5.4" x 2.2" x 0.7" (L*W*H);
Mounted Hole Size: 3mm/ 0.12"
Mounted Hole Center Distance: 132 x 50mm/5.2" x 2"(L*W);
Material: Electric Part
Package Content :
2 x 8-Channel Relay Module
Relay
Find answers in product info, Q&As, reviews
