Bewinner Expansion Board for Raspberry Pi 3 Model B / 2B /B+/A+/ Raspberry Pi Zero W, PiFi/DAC+ / HiFi/Full-HD Audio Expansion Board

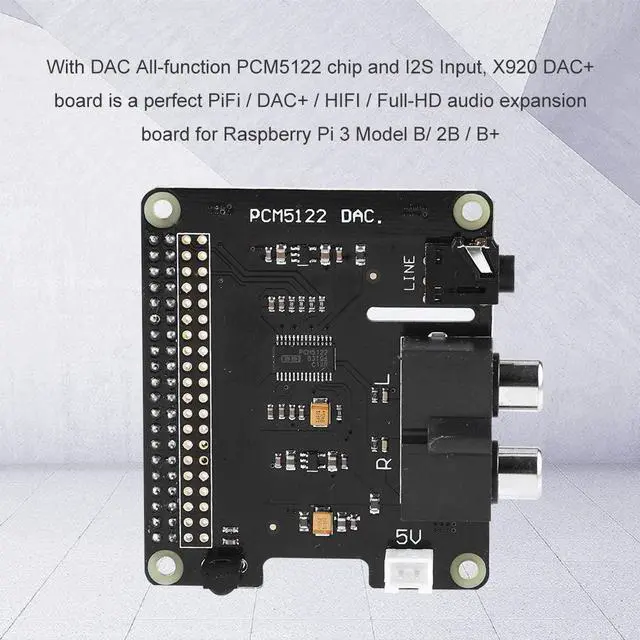

- Expansion Board With DAC All-function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect PiFi / DAC+ / HIFI / Full-HD audio expansion board for Raspberry Pi 3 Model B/ 2B / B+

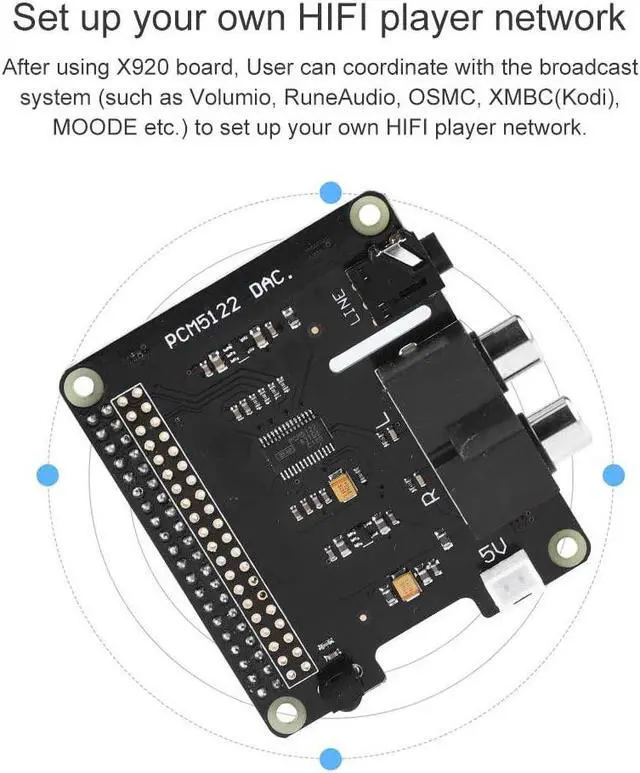

- After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.

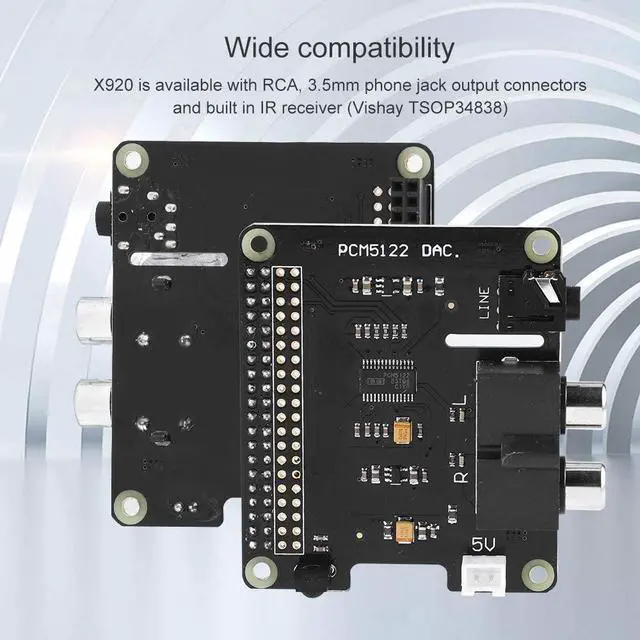

- X920 is available with RCA, 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838);

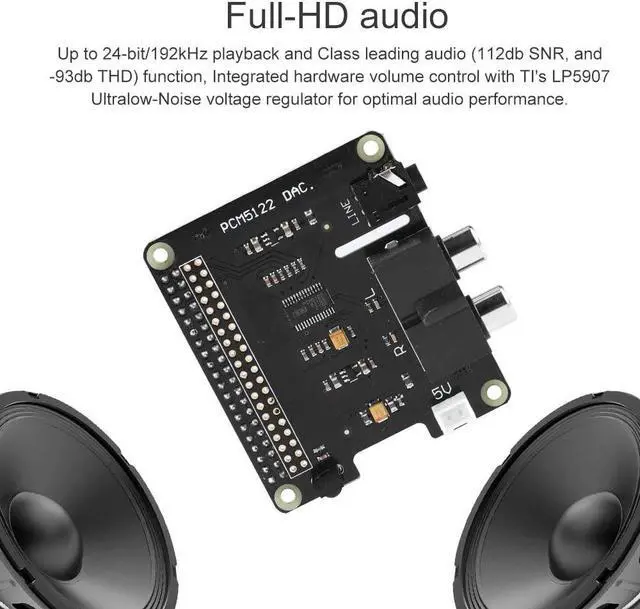

- Full-HD audio up to 24-bit/192kHz playback and Class leading audio (112db SNR, and -93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance.

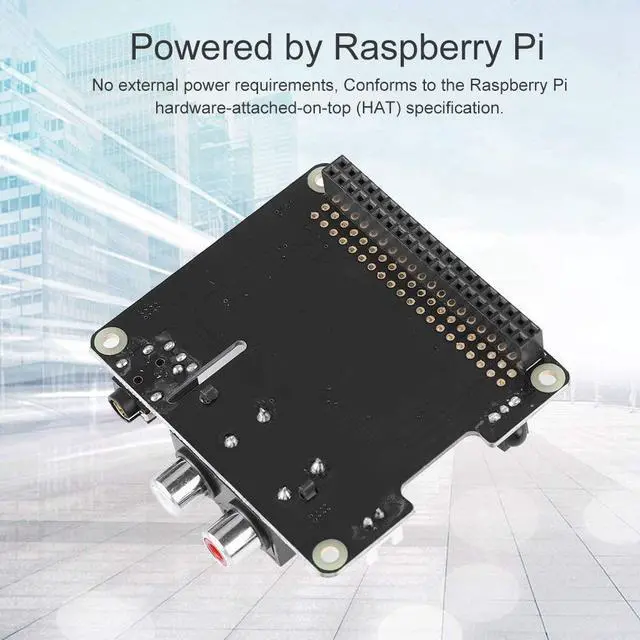

- Powered by Raspberry Pi, no external power requirements, Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND)

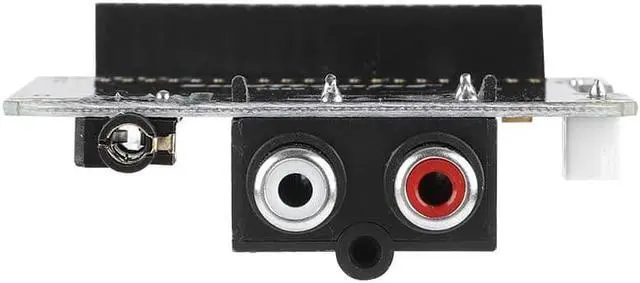

Output Ports: 1 x 3.5mm phone jack, 2 x RCA connectors
Analog audio output level: 2.0VRMS
Resolution/Sampling Rate: upto 24bit / 192KHz (Raspberry Pi I2S)
IR receiver: GPIO17, 38KHz
Operating System:
Moode Audio Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, RuneAudio
Support: Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.
Full-HD audio: up to 24-bit/192kHz playback
Built in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio: 112db SNR, and -93db THD
Integrated hardware volume control
TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance
Built in IR receiver :Vishay TSOP34838)
Available with RCA and 3.5mm phone jack output connectors
Powered by Raspberry Pi, no external power requirements
Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification
Access to GPIO pins on HAT

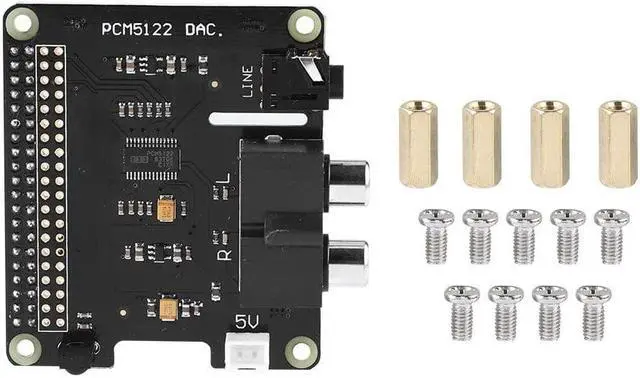

Packing List:
1 x Expansion Board
Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND)
Output Ports: 1 x 3.5mm phone jack, 2 x RCA connectors
Analog audio output level: 2.0VRMS
Resolution/Sampling Rate: upto 24bit / 192KHz (Raspberry Pi I2S)
IR receiver: GPIO17, 38KHz
Operating System:
Moode Audio Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, RuneAudio
Support: Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.
Full-HD audio: up to 24-bit/192kHz playback
Built in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio: 112db SNR, and -93db THD
Integrated hardware volume control
TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance
Built in IR receiver :Vishay TSOP34838)
Available with RCA and 3.5mm phone jack output connectors
Powered by Raspberry Pi, no external power requirements
Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification
Access to GPIO pins on HAT
Packing List:
1 x Expansion Board
