TOP1 IMX219-83 Stereo Camera Module Binocular Camera Lens for Jetson Nano RPi CM3/3+/4 Expansion Boards Dual IMX219 8 Megapixels Stereo/Depth Vision
Limited time offer, ends 02/08 By VoltSync
- This is a binocular camera module which features dual IMX219 cameras onboard, 8 Megapixels of each camera.
- It is suitable for AI vision applications like depth vision and stereo vision.
- The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
- Lens specifications: CMOS size: 1/4inch; Focal Length: 2.6mm; Angle of View: 83/73/50 degree (diagonal/horizontal/vertical); Distortion: <1%; Baseline Length: 60mm
- Sensor: IMX219; Resolution: 3280 × 2464 (per camera)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision
Overview

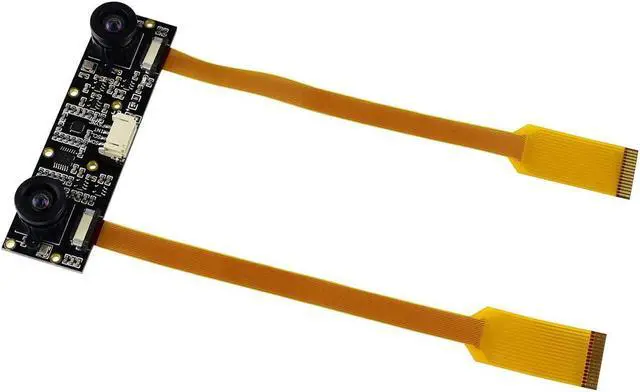

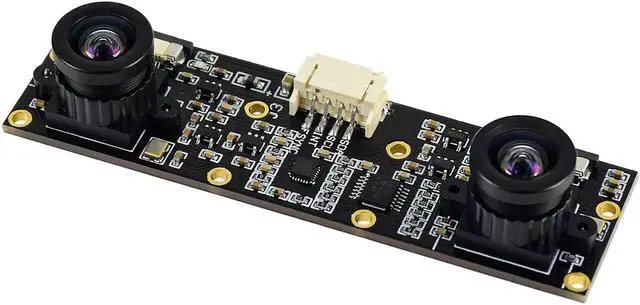

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.
The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
Specifications
8 Megapixels
Sensor: IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications:
CMOS size: 1/4inch
Focal Length: 2.6mm
Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
Distortion: <1%
Baseline Length: 60mm
ICM20948:
Accelerometer: Resolution: 16-bit; Measuring Range (configurable): ±2, ±4, ±8, ±16g; Operating Current: 68.9uA
Gyroscope: Resolution: 16-bit; Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec; Operating Current: 1.23mA
Magnetometer: Resolution: 16-bit; Measuring Range: ±4900T; Operating Current: 90uA

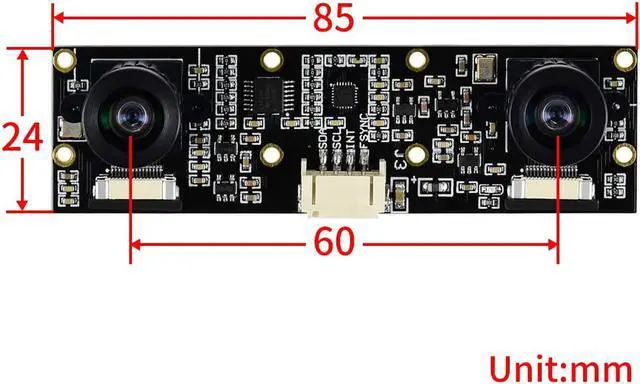

Dimension: 24mm × 85mm
Applications
AI vision applications like depth vision and stereo vision.
Development Resources
Please contact us or visit the official website of Waveshare
PACKAGE CONTENT
IMX219-83 Stereo Camera x1
FPC 15pin 2PCS x1
FPC 15pin to 20pin 2PCS x1
PH2.0 4PIN wire x1
Overview
This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.
The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
Specifications
8 Megapixels
Sensor: IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications:
CMOS size: 1/4inch
Focal Length: 2.6mm
Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
Distortion: <1%
Baseline Length: 60mm
ICM20948:
Accelerometer: Resolution: 16-bit; Measuring Range (configurable): ±2, ±4, ±8, ±16g; Operating Current: 68.9uA
Gyroscope: Resolution: 16-bit; Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec; Operating Current: 1.23mA
Magnetometer: Resolution: 16-bit; Measuring Range: ±4900T; Operating Current: 90uA
Dimension: 24mm × 85mm
Applications
AI vision applications like depth vision and stereo vision.
Development Resources
Please contact us or visit the official website of Waveshare
PACKAGE CONTENT
IMX219-83 Stereo Camera x1
FPC 15pin 2PCS x1
FPC 15pin to 20pin 2PCS x1
PH2.0 4PIN wire x1
