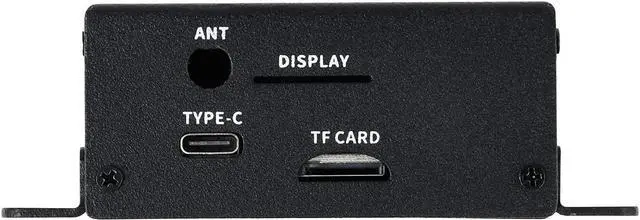

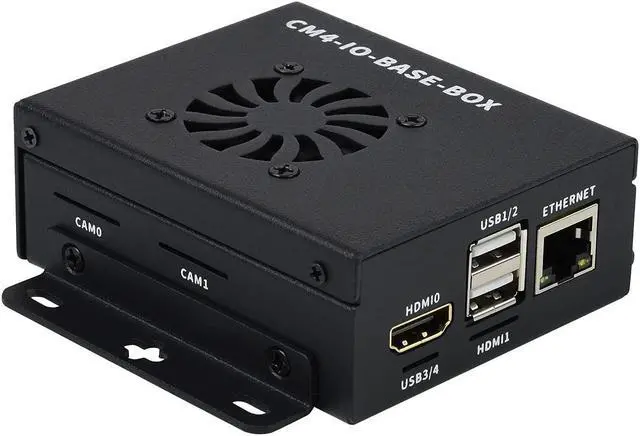

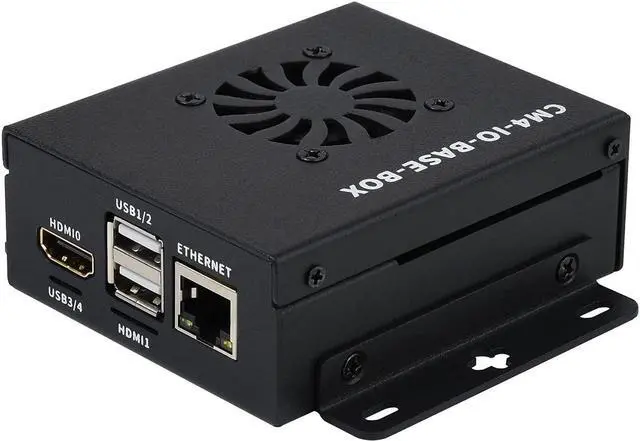

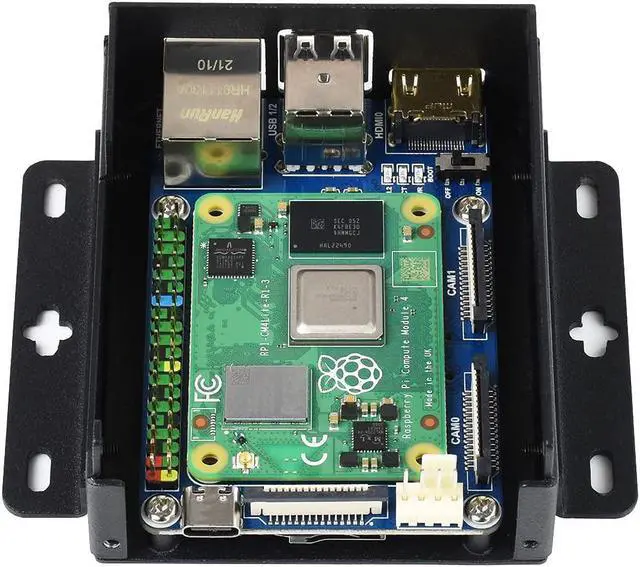

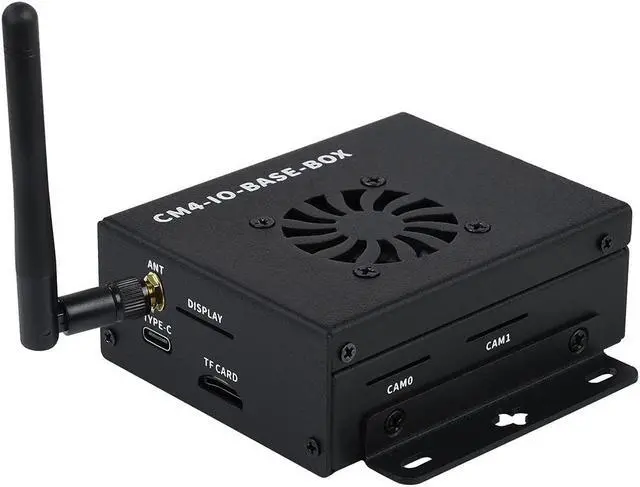

TOP1 Mini-Computer for Raspberry Pi Compute Module 4 Basic Expansion Board Lite Edition Mini IO Board Lite Ver with Metal Case and Cooling Fan
- Waveshare Mini IO Board (Lite Ver.) Inside: make it easy to build your own Raspberry Pi CM4 Mini PC
- Rich Peripheral Connectors: onboard connectors including CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot
- Precise Cut-Out With Clear Label: each cut-out is completely aligned with the connector
- Cooling Fan Included: comes with cooling fan, combined with the airflow vent, better heat dissipation
- Application Examples: binocular vision Raspberry Pi projects, or other industrial context
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dual Gigabit Ethernet 5G/4G Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), Metal Case, with Cooling Fan
Notices
DO NOT hot-plug any devices except the USB and HDMI.
Please check the FAN voltage before connecting the cooling fan. The BASE board supports a 12V cooling fan by default, if you want to use a 5V cooling fan, please change the FAN_VCC resistor.
DO NOT connect other devices while writing CM4 via Type C interface for stable working.
5V/2.5A or higher power supply is recommended for proper working.
Base Board Specifications
CM4 Socket: suitable for all variants of Compute Module 4
Networking:
Dual Gigabit Ethernet RJ45
M.2 B KEY, for connecting 5G / 4G module
Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB: USB 3.2 Gen1 × 2
PIN Header: Raspberry Pi 40PIN GPIO header
Display: MIPI DSI port (15pin 1.0mm FPC connector)
Camera: MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
Video: HDMI × 2, supports 4K 30fps output
RTC: Real-time clock with a battery socket and ability to wake Compute Module 4
Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan Header: 5V/12V (12V by default), allows speed adjustment and measurement
Power Input: 5V/2.5A
Dimensions: 99.6 × 87.0mm
Application Examples
Suitable For Raspberry Pi Telecommunication Projects, Or Other Industrial Applications
Package Content
CM4-DUAL-ETH-4G/5G-BASE x1
Metal case (top and bottom) x1
Fan-4010-PWM-12V x1
5V 3A Type-C power adapter x1
Screwdriver x1
Antenna connector rubber plug 4pcs x1
Screws pack x1
Notices
DO NOT hot-plug any devices except the USB and HDMI.
Please check the FAN voltage before connecting the cooling fan. The BASE board supports a 12V cooling fan by default, if you want to use a 5V cooling fan, please change the FAN_VCC resistor.
DO NOT connect other devices while writing CM4 via Type C interface for stable working.
5V/2.5A or higher power supply is recommended for proper working.
Base Board Specifications
CM4 Socket: suitable for all variants of Compute Module 4
Networking:
Dual Gigabit Ethernet RJ45
M.2 B KEY, for connecting 5G / 4G module
Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB: USB 3.2 Gen1 × 2
PIN Header: Raspberry Pi 40PIN GPIO header
Display: MIPI DSI port (15pin 1.0mm FPC connector)
Camera: MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
Video: HDMI × 2, supports 4K 30fps output
RTC: Real-time clock with a battery socket and ability to wake Compute Module 4
Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan Header: 5V/12V (12V by default), allows speed adjustment and measurement
Power Input: 5V/2.5A
Dimensions: 99.6 × 87.0mm
Application Examples
Suitable For Raspberry Pi Telecommunication Projects, Or Other Industrial Applications
Package Content
CM4-DUAL-ETH-4G/5G-BASE x1
Metal case (top and bottom) x1
Fan-4010-PWM-12V x1
5V 3A Type-C power adapter x1
Screwdriver x1
Antenna connector rubber plug 4pcs x1
Screws pack x1
