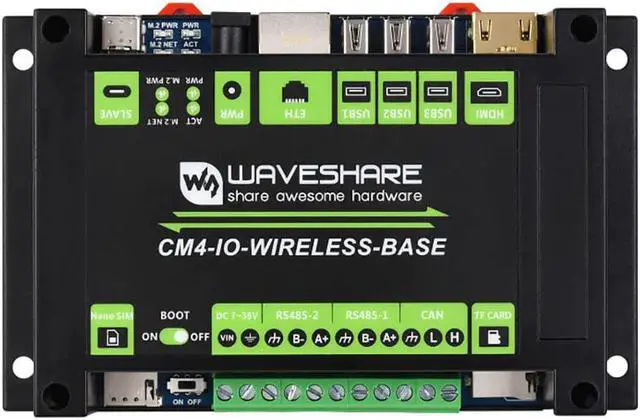

Industrial IoT Wireless Expansion Module Based Raspberry Pi Compute Module 4 (CM4),Support 4G/5G/LoRa, Multi Interfaces
- Industrial IoT Module Based On CM4: Suitable For IoT Applications Like IoT Getaway, Wireless Router, Intelligent Data Acquisition...

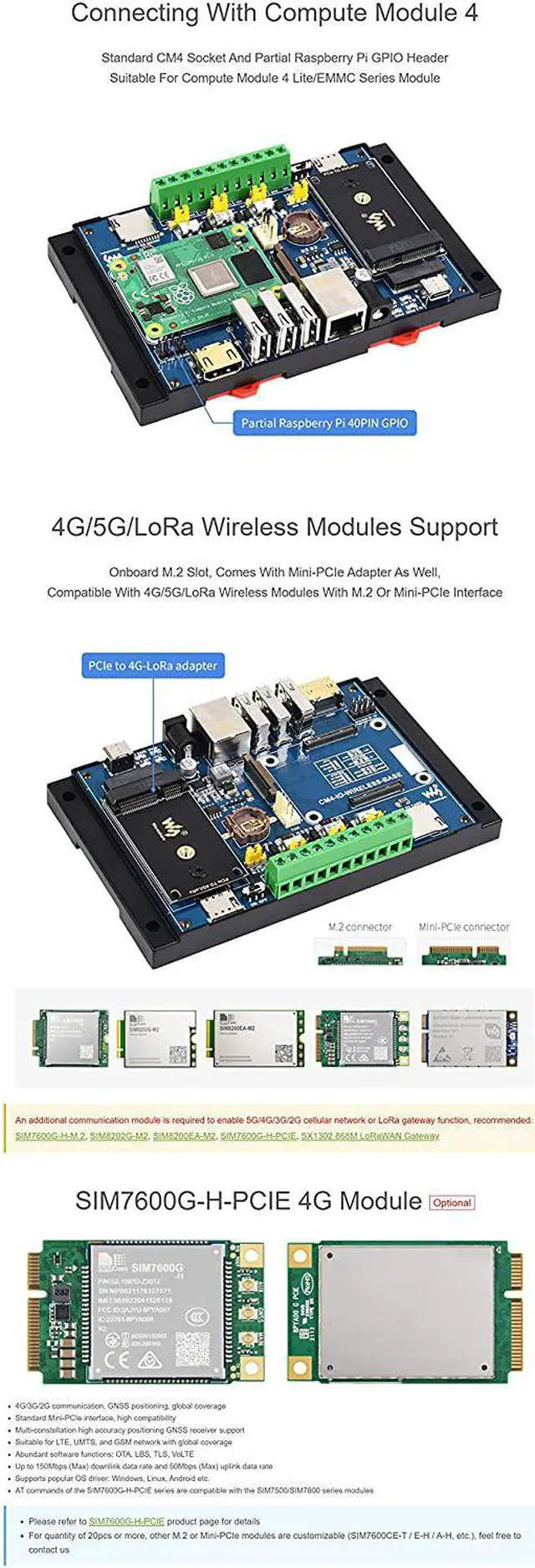

- Connecting With Compute Module 4: Standard CM4 Socket And Partial Raspberry Pi GPIO Header;Suitable For Compute Module 4 Lite/EMMC Series Module
- 4G/5G/LoRa Wireless Modules Support: Onboard M.2 Slot, Comes With Mini-PCIe Adapter As Well,Compatible With 4G/5G/LoRa Wireless Modules With M.2 Or Mini-PCIe Interface

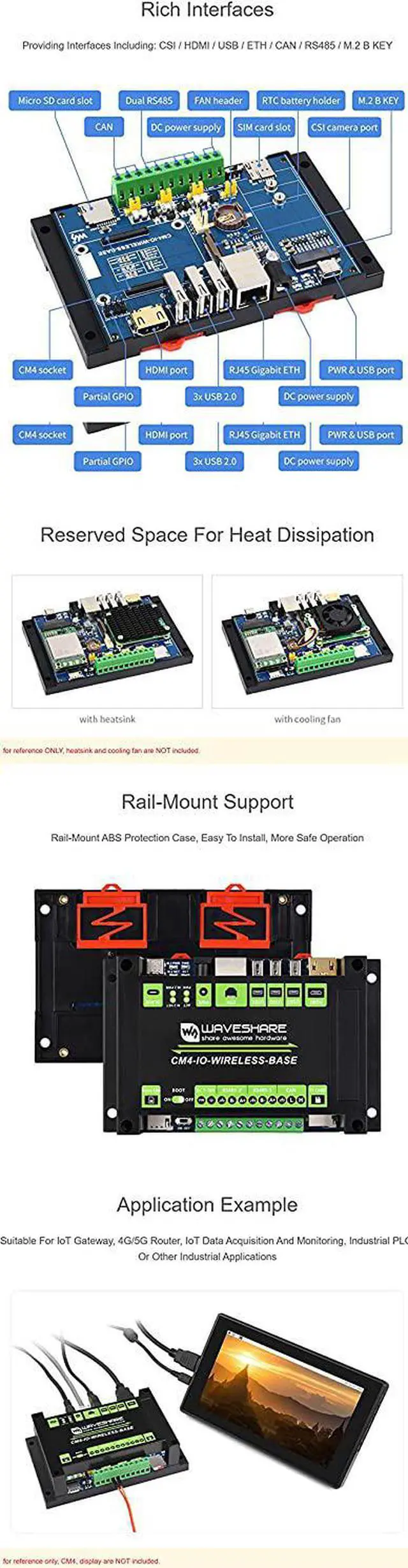

- Rich Interfaces: Providing Interfaces Including: CSI / HDMI / USB / ETH / CAN / RS485 / M.2 B KEY
- Rail-Mount Support: Rail-Mount ABS Protection Case, Easy To Install, More Safe Operation
- Application Example: Suitable For IoT Gateway, 4G/5G Router, IoT Data Acquisition And Monitoring, Industrial PLC, Or Other Industrial Applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa
wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial
automatic control system, and more.

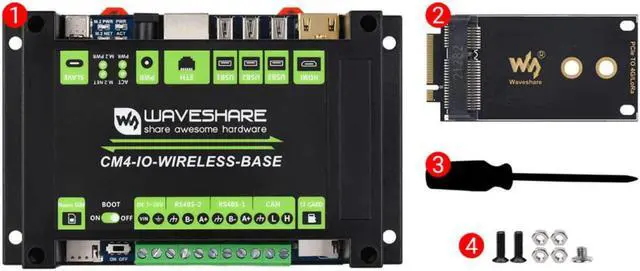

Part List
1. CM4-IO-WIRELESS-BASE x1
2. PCIe to 4G/LoRa adapter x1
3. Screwdriver x1
4. Screws pack x1
This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa
wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial
automatic control system, and more.
Part List
1. CM4-IO-WIRELESS-BASE x1
2. PCIe to 4G/LoRa adapter x1
3. Screwdriver x1
4. Screws pack x1
