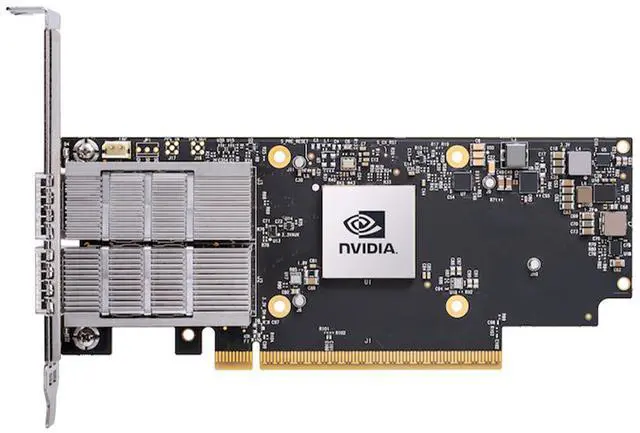

NVIDIA ConnectX-7 VPI adapter card, 200GbE/HDR IB, Dual-port QSFP112, Mu lti Host or Socket Direct capable, PCIe 5.0 x16, Crypto and Secure boot, Thumbscrew (Pull Tab) Bracket | MCX753436MC-HEAB

Be the first to review this product...

Part: MCX753436MC-HEAB

MCX75310AAC-NEAT
MCX75310AAS-HEAT
MCX75310AAS-NEAT
MCX753436MS-HEAB
MCX755106AC-HEAT
MCX753436MC-HEAB

Data Rate: 200GbE/NDR200

200GbE/NDR200
400GbE/NDR
NDR/400GbE

Network Interface: QSFP112 / Dual Ports

OSFP / Single Port
QSFP112 / Dual Ports

Part# 900-9X760-0018-MB2 / Legacy OPN: MCX753436MC-HEAB
Port Type: Dual-port QSFP112
Supported Speed: InfiniBand: NDR200/HDR / Ethernet: 200GbE (Default Mode)
Form Factor: Small Form Factor (SFF)
PCIe Express: PCIe 5.0 x16

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

NVIDIA CONNECTX-7 VPI ADAPTER CARD, 200GBE/HDR IB, DUAL-PORT QSFP112, MU LTI HOST OR SOCKET DIRECT CAPABLE, PCIE 5.0 X16, CRYPTO AND SECURE BOOT, THU

Model
Brand	NVIDIA
Model	ConnectX-7
Part Number	MCX753436MC-HEAB

Details
Speed	InfiniBand: NDR200/HDR/HDR100/EDR/FDR/SDR Ethernet: 200/100/50/25/10 Gb/s
Connectors	Dual-Port QSFP112 InfiniBand and Ethernet
Interface	PCI Express Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) Networking Port: Dual-Port QSFP112 InfiniBand and Ethernet
Temperature	Operational: 0 degree Celsius to 55 degrees Celsius Non-operational: -40 degrees Celsius to 70 degrees Celsius
Humidity	Operational: 10% to 85% relative humidity Non-operational: 10% to 90% relative humidity

Features
Features	PHYSICAL Small Form Factor (SFF) Bracket Type: Thumbscrew (Pull Tab) Bracket PROTOCOL SUPPORT InfiniBand: IBTA v1.5 Auto-Negotiation: NDR200 ( 2 lanes x 100Gb/s per lane ), HDR (4 lanes x 50Gb/s per lane), HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane), FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane) Ethernet : 200GAUI-4 C2M, 200GAUI-4 C2C, 200GBASE-CR4, 200GBASE-KR4, 200GBASE-CR4, 200GBASE-KR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR CAPABILITIES Secure Boot Enabled, Crypto Enabled, Support for Multi-Host and Socket Direct POWER Voltage: 12V_EDGE, +3.3V_EDGE Maximum power available through QSFP112 port: 17W per port (Not thermally supported) Typical power with passive cables in PCIe Gen 5.0 x16: 25.9W

Dimensions & Weight
Dimensions	Adapter Card Size: Small Form Factor (SFF) , 4.52 in. x 2.99 in (115.00mm x 76.00mm) Adapter Card Height: 0.59 in. (15.1mm)

Additional Information
First Listed on Newegg	January 09, 2026
