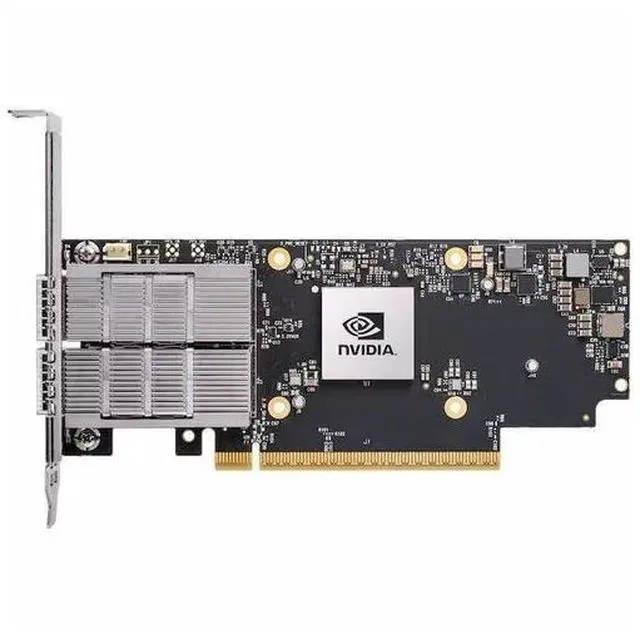

NVIDIA ConnectX-7 HHHL Adapter card | MCX75310AAC-NEAT

Be the first to review this product...
  • MCX75310AAC-NEAT
  • MCX75310AAS-HEAT
  • MCX75310AAS-NEAT
  • MCX753436MS-HEAB
  • MCX755106AC-HEAT
  • MCX753436MC-HEAB
  • 200GbE/NDR200
  • 400GbE/NDR
  • NDR/400GbE
  • OSFP / Single Port
  • QSFP112 / Dual Ports
  • The PCI Express 5.0 x16 interface provides smooth data transfer and outstanding performance
  • To fulfill your need this infiniband/ethernet host bus adapter is a perfect choice
View Data Sheet Details
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the NVIDIA ConnectX-7

Model
Brand Nvidia
Model ConnectX-7
Part Number MCX75310AAC-NEAT
Details
Speed InfiniBand (Default): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet
Interface PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port: Single OSFP InfiniBand and Ethernet
Features
Features PROTOCOL SUPPORT

InfiniBand: IBTA v1.5:
Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane).

Ethernet Protocols supported by the electrical interface:
400GAUI-4 C2M, 400GBASE-CR4 , 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI


ELECTRICAL SPECIFICATIONS

Voltage: 12V, 3.3VAUX
Maximum current: 100mA
Typical power with passive cables in PCIe Gen 5.0 x16: 25.9W
Dimensions & Weight
Dimensions Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Disclaimer
Disclaimer REGULATORY

Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM / KC
RoHS: RoHS Compliant
