How many ports does the NVIDIA Spectrum SN2201 Ethernet Switch have?

The NVIDIA Spectrum SN2201 Ethernet Switch has 48 RJ45 ports and 4 QSFP28 ports.

What is the data rate of the NVIDIA Spectrum SN2201 Ethernet Switch?

The data rate of the NVIDIA Spectrum SN2201 Ethernet Switch is 1GbT/100GbE.

$3,085^.99

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

antonline

Top Rated

4.5 (17,965 total ratings)

$3,162^.05
+ FREE SHIPPING

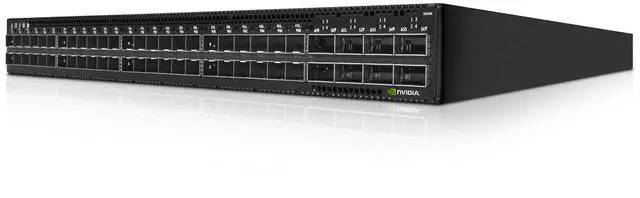

Main image of NVIDIA Spectrum based 1GBase-T/100GbE 1U Open Ethernet switch w/ Cumulus Linux, 48 RJ45 ports and 4 QSFP28 ports, Dual Power Supply (AC), x86 CPU, short depth, C2P airflow, 4-post Rail-kit | MSN2201-C

Shop All NVIDIA Products

NVIDIA Spectrum based 1GBase-T/100GbE 1U Open Ethernet switch w/ Cumulus Linux, 48 RJ45 ports and 4 QSFP28 ports, Dual Power Supply (AC), x86 CPU, short depth, C2P airflow, 4-post Rail-kit | MSN2201-C

Be the first to review this product...

NVIDIA Part# 920-9N110-00F1-0C0 / Legacy OPN: MSN2201-CB2FC
Data Rate: 1GbT/100GbE
Ports: 48 RJ45 + 4 QSFP28
Operating System: Cumulus Linux/ONIE
Network Interface: RJ45/QSFP28

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Nvidia Spectrum based 1GBase-T/100GbE 1U Open Ethernet switch with Cumul us Linux, 48 RJ45 ports and 4 QSFP28 ports.

Model
Brand	NVIDIA
Series	Spectrum SN2000 series
Model	SN2201
Part Number	MSN2201-CB2FC

Format & Standards
Format	Rackmount
Network Management Type	Managed

Ports & Interface
Primary Ports	48 x RJ45 + 4 x QSFP28
Primary Port Speed	1/10/25/40/50/56/100GbE per QSFP28 port 10/100/1000Mbase-T per RJ45 port

Power Supply
Power	Input Voltage: 100-127Vac, 50/60Hz 4A (x2), 200-240Vac, 50/60Hz 2A (x2) Global Power Consumption: Typical power with passive cables (ATIS): 98W

Dimensions & Weight
Dimensions	43.9mm (H) x 428mm (W) x 432mm (D) 1.72" (H) x 16.84" (W) x 17" (D)
Weight	7.410kg

Environmental
Temperature	Operational: 0 degree Celsius to 40 degrees Celsius Non-Operational: -40 degrees Celsius to 70 degrees Celsius
Humidity	Operational: 10% - 85% non-condensing Non-Operational: 10% - 90% non-condensing

Features
Features	MAIN DEVICES CPU: Intel x86 Dual Core PCIe: 4x Gen2.0 Switch: NVIDIA Spectrum Memory: SDRAM: 8GB ECC DDR4 SO-DIMM Storage: 20GB SSD M.2 PCIe Gen Throughput: 448GB/s

Disclaimer
Disclaimer	REGULATORY Safety/ EMC: CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC RoHS: RoHS complaint

Additional Information
First Listed on Newegg	October 14, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
