Question 1

Does this come with liquid inside the radiator or do I need to add liquid?

Accepted Answer

It is completely filled and sealed by the manufacturer, never need nor should open the device.

Think Turn-key, never have to worry about maintenance. If the device isn't working properly, replace the entire unit instead of troubleshooting each component like you would a custom built job.

I would still power it up before install to ensure there are no leaks, I wouldn't trust my rig to any manufacturer ;p

Question 2

Does this come with thermal compund, or do I have to buy it?

Accepted Answer

It comes with some, but you really should buy some separately. A good thermal compound can make a difference of more than 5 degrees Celsius if it's applied right. IC-Diamond 7, Arctic MX-4, and Arctic Silver 5 are my personal favorites.

Question 3

I would like to know for the fan connectors will i have to have 3 CPU fan headers on the Motherboard or will the Sata do all the work with controlling fans and such?

Accepted Answer

You only need 1 fan header and 1 USB connection .. USB is to control pump and all it's features , and I use a fan splitter to hook up the fans and plug them into CPU fan header , so they will be monitored by the motherboard..and controlled by the Kracken software/control panel...I have just 2 fans in pull config exhausting from the case.. CPU i7 980X @ 4.35 Ghz .. With fans set on silent , it runs at about 93 degrees feirenheight , while playing BF4 . With 3 GTX , FTW 4 gig 680's in 3 way SLI... I case ,, works extremely well..

Question 4

What would be a safe overclock using this with a i7-4770k & a phantom 820 tower with fans everywhere? (im new to overclocking and built my first pc)

Accepted Answer

That's difficult to say, as every processor that's made can have its own quirks and limits. The best thing you can do is some research. There are lots of overclocking guides all over the internet that can teach you how to tell how hard you can push a processor, and how to tell when you are pushing too far. Please be aware, though, that no manufacturer warranties cover overclocking. This means that if you toast your processor, you have to pay out of pocket to replace it... and possibly other components.

Question 5

Will I need any accessories or devices besides this package?

Accepted Answer

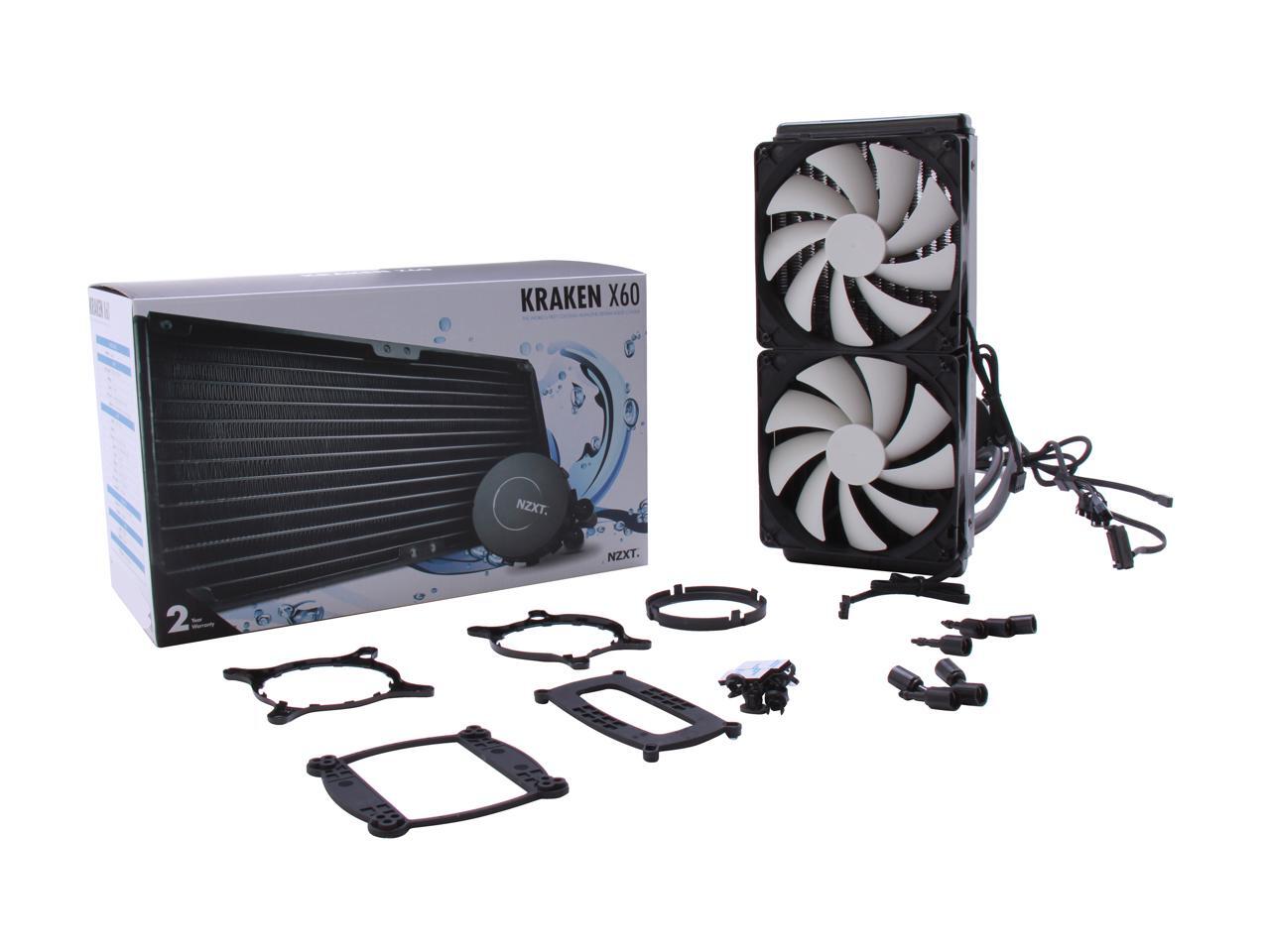

You will most likely not need anything else.  It comes with a hardware kit with screws, etc as well as fans.  If you want push/pull, you will need two more 140mm high-static-pressure fans.  Some people also avoid using the supplied fans even in just push configuration (two fans total), replacing them with higher quality aftermarket fans.  I used the Vantec 15mm thick 140mm fans to get it to fit neatly in by compact micro atx case.  I also added a DEMCIFLEX filter because my case did not have a filter on the intake i was using to build my positive air pressure case.

Question 6

Will it fit Corsair Carbide Series 500R case?
I tried to measure but cannot say exactly will it fit or not.

Accepted Answer

I didn't look into measurements either, and mine ended up not being able to fit in my case. The radiator/fans could not fit comfortably inside with all of the hardware already in my case. I ended up mounting it onto the side with some stainless steel where the opening panel to my case used to be. Your case appears to be bigger than mine, so I would assume it could fit as long as you have room for it to breathe outside. If that isn't possible you could always build some kind of rig to mount it in place like mine.

Question 7

can this rad be mounted on the bottom of a case and still work properly?

Accepted Answer

Depends on how much room you have and what case you are using. I mounted mine on the top of my case (I have a bottom psu in a cooler master  haf 922) but as long as you have a big enough grille in the bottom for air flow and your case will fit full size video cards you should be fine. If you still arent 100% positive make sure to measure it out. Its much bigger than it looks in the pictures and keep in mind you have another inch in thickness for the fans that will mount to it.

Question 8

Will this cooler fit in a Coolermaster HAF-X Case?

Accepted Answer

If you have 2 140 mm fans in the roof or in the front and in between the two fans where they come together the mounting screw holes have to be " 15mm " apart ... Most cases are 15mm , however some are 22 like some corsair cases... So my best guess seeing as I have a Antec DF85 case and it screwed right in the roof with no modification ,, I would say yes it should work for you ... At the most if the screw holes are 22mm you will just have to drill new mounting screw holes... It is a EXCELLENT cooler I run mine on silent and it keeps my I7 980X ,overclocked to 4.5 Ghz , running BF4 for hours all on ultra pushing 2 GTX 780's at a cool 96 Feirenheight !! Great product...

Question 9

Will this work with an LGA 1150 socket? I know it's not listed but just wanting a little confirmation.

Accepted Answer

It will, but this radiator is 200mm. Which is not a common size for most mounting brackets. Even cases that come with radiator mounting slots will not fit this radiator.  You will also need to by a exterior mounting bracket or custom  the inside of the case to make this fit. It is however an amazing cooler. It also comes with its own fluid which I don't like because it leaves a sticky residue that will clog up your hosing

Question 10

I hate to ask but what if this Products leaks and kills my system what would NZXT do you resolve the problem?

Accepted Answer

Roger, that's a good question but I think you should ask NZXT.  You do take a risk when installing liquid cooling.  If you question the quality of the cooling rig or just somewhat nervous about the idea, test it!  Temporally install it in an empty case and let it run for a couple of days or so.  Just buy a PSU adapter for the motherboard power slot and you'll be able to run power to any device you want to test before you install it for good.  I've since moved on to a "DIY" cooling setup which I tested a full week for leaks before it was permanently installed but as far as my Kraken goes, it never leaked.
