 USB C to RJ45 console cable |  DB9 to RJ45 Console Cable |  USB-C to DB9 |  USB to DB9 |  USB to RJ45 Console Cable |  USB to DB9 Serial Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Chip | FTDI | ? | FTDI | FTDI | FTDI | FTDI |
| length | 6ft/10ft/12ft | 6ft | 6ft/10ft | 6ft/10ft | 6ft | ? |
| System | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista |
| Linux | Linux | Linux | Linux | Linux | Linux | |
| Mac OS | Mac OS | Mac OS | Mac OS | Mac OS | Mac OS |
OIKWAN Creative Team With Own Factory Manufacturing which Focus on the Ideal Design of All of Our Quality Cables
CONSOLE CABLE USB TO RJ45
Advantages
- No more DB-9 Adaptersneeded to get it working
- Help network engineers to solve the computer's usb port directly connected to console port and rs232 port of switches, routers and other equipment
- Our oikwan console cable has 6ft, 10ft and 12ft for you to choose
- Plug and play, save more time. Most new systems will automatically install the driver, or select the appropriate driver directly on the FTDI official website
- OIKWAN usb to rj45 console cable chooses the most stable and reliable FT232RL serial chip,Compatible with multiple devices, compatible with multiple operating systems,Unparalleled connection stability, no need to worry about data loss
OIKWAN 6ft/10ft/12ft USB-A to RJ45 Console Cable
Does it need to download driver ?
- Select the driver that matches the operating system directly on the official website of ftdi
console cable troubleshooting you need to pay attention to the following points:
Data communication fails,
- Check whether the USB interface wiring is correct
- Check whether the RS-232 output port wiring is correct
- Check whether the power supply and the computer network are normal
- Check whether the interfaces of the connectors are well connected.
If it is data loss or error,
- Check whether the data rate and format at both ends of the data communication device are consisten
How to use the product?
The usb port connect the computer's USB port,the RJ45 port connect to the console port of the Cisco modem,router,firewall,switch or other serial based Cisco device.Use USB transfer to RS-232 converter to realize data transfer between PC and RS-232 device, allows your PC to connect RS-232 serial device

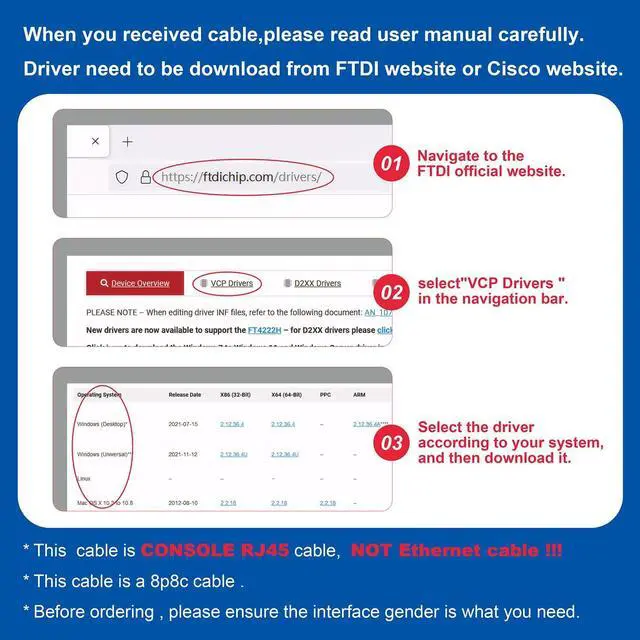

Installation GuidesIf
About this console cable driver you need to download from the FTDI website.Choose the right driver for your operating system and device.

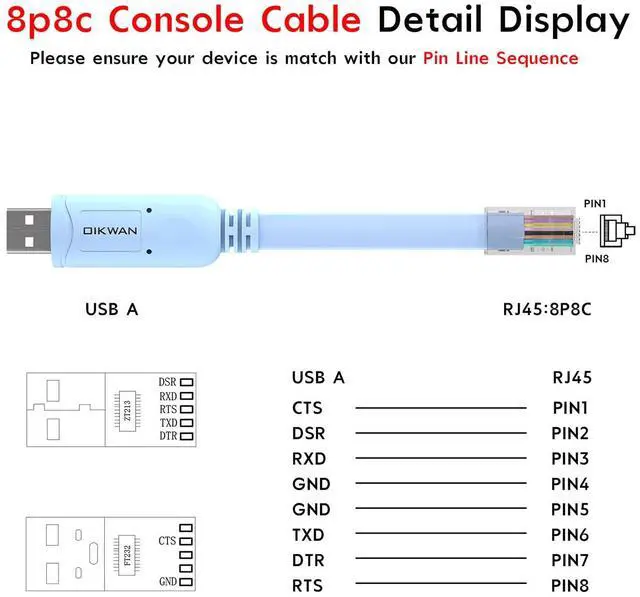

the pinout names on the console RJ45.
USB2.0 (1.1 compatible); CONSOLE's DTE Pinouts: RTS(1), DTR(2), TXD (3), GND(4), GND(5), RXD (6), DSR(7), CTS(8); so The console RJ45's pinout names is 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS. Cable length 1.8m/6ft, Maximum RS232 speed 500kbaud
Original FTDI chip
FTDI USB to RJ45 Console cable
FT232R chip + ZT213LEEA, Compatible with any computer/PC with a USB 2.0 Port.
1.FT232 series chip of ftdi company can realize the communication between USB and RS232. It has high market share and is widely used
2.FT232 chip with wide compatibility, self powered after plug in, without external power supply
3.Compatible with multiple devices and more operating systems
4.More stable signal transmission, no need to worry about data loss

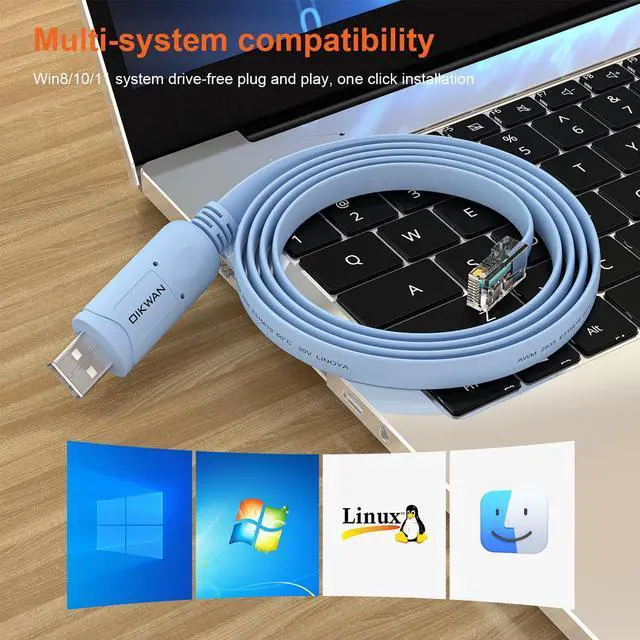

Support system
Operating system support
Drivers are available which allow FTDI devices to work with the following operating systems
Full support for 32-bit and 64-bit Windows, MAC OS, Linux and Android,except Chrome OS
- Windows operating systems (such as Windows 7/8/10/11)
- MacOS operating systems (such as MacOS X)
- Linux operating systems (such as Ubuntu, Fedora, CentOS, etc.)
These operating systems generally have universal support for USB devices, so a USB to console cable typically works well on these systems.

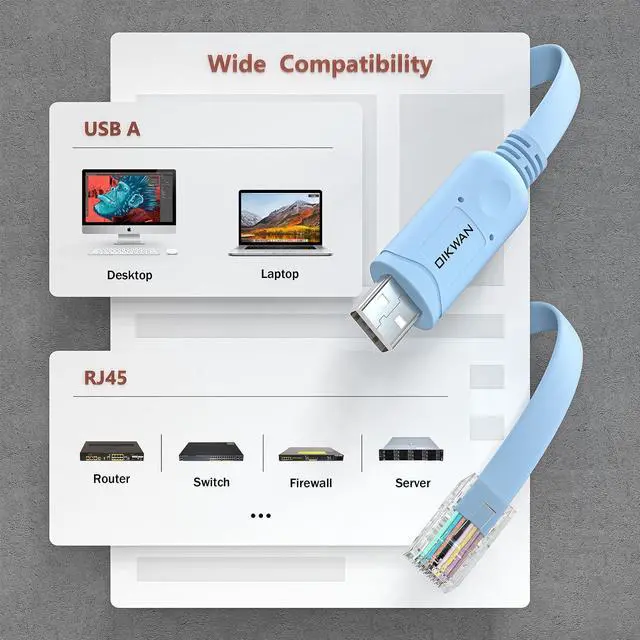

Compatible with Nearly all brand

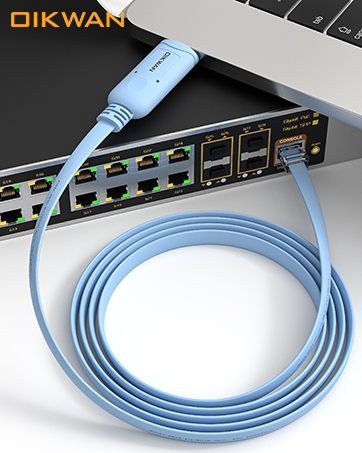

USB to RJ45 console cable, connects to any USB port on your laptop directly to a Cisco console port. No adapters needed. It is for Cisco console port for Cisco 1000, 1600, 2500, 2600, 3600 series routers, Catalyst 3560 switch pinout, and more
OIKWAN console cable to RJ 45 compatible with Almost All Brand Switches/Routers.
Such as :Cisco, Ubiquiti, Juniper, Fortigate, Mikrotik, TP-Link, Huawei, HP ProCurve,etc.
USB to Console Cable
It's used for debugging and configuring network equipment ,not ethernet cable
Console Cable
USB to RS232 Serial Cable
USB to RS232 Versatile in application, meeting various needs, suitable for connecting computers to a wide range of RS232 devices.
USB to RS232 DB9 Serial Cable
USB to RS232 DB9 Serial Cable
