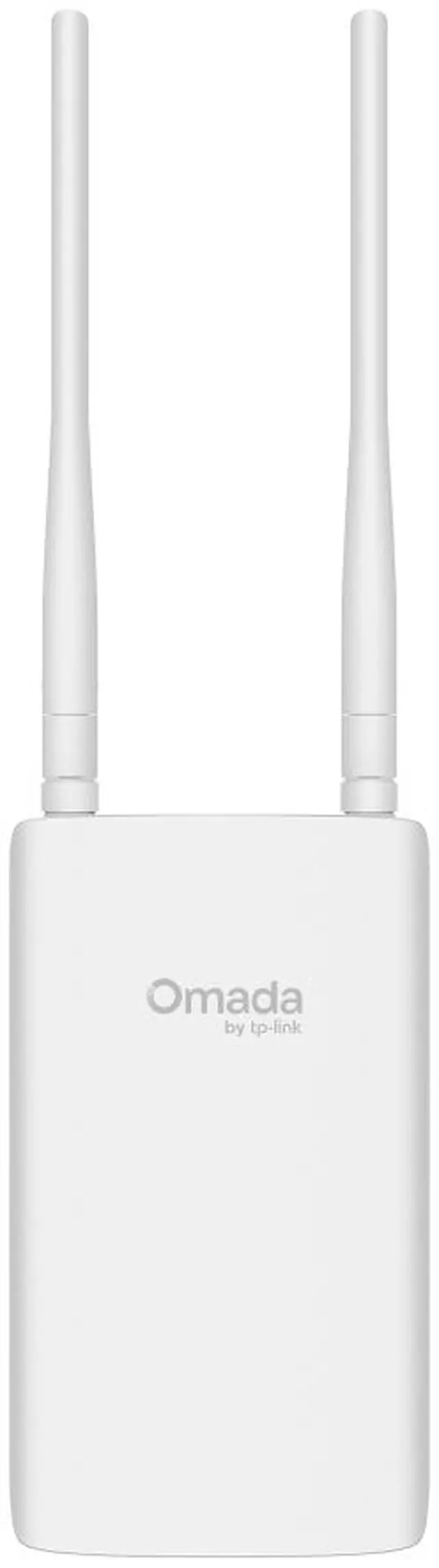

    TP-Link Omada EAP603-Outdoor AX1800 Wi-Fi 6 Access Point

    Be the first to review this product...
    • Wi-Fi 6 (802.11ax)
    • 2.4 GHz / 5 GHz (Dual-Band)
    • Up to 1800 Mb/s Throughput
    • Cover up to 3200 ft
    • 1 x RJ45 Gigabit Ethernet PoE+ in
    • Pole /Wall Mounting (Kits included)
    • IP65 Protection
    • Works with Omada controller, Cloud and software platforms
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TP-Link EAP603-Outdoor

    Model
    Brand Omada by TP-Link
    Model EAP603-Outdoor
    Details
    Color White
    # of Users 250+
    Standards 5 GHz: IEEE 802.11a/n/ac/ax
    2.4 GHz: IEEE 802.11b/g/n/ax
    WiFi Generation Wi-Fi 6
    Wireless Data Rates AX1800 / Up to 1.8Gbps
    Security ACL
    MAC Filter
    802.1X Authentication
    MAC-Based Authentication
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
    Radius Accounting
    PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
    Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
    EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
    Frequency Band 2.4 GHz / 5 GHz
    Antenna Wi-Fi
    - 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas
    - 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
    *Note: The gains above are the single-antenna peak gains.

    IoT
    - Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
    Transmitted Power Maximum transmit power:
    CE (ERIP)
    - 2.4 GHz: 20 dBm
    - 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power)
    - 2.4 GHz: 25 dBm
    - 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3

    Minimum transmit power
    CE (ERIP)
    - 2.4 GHz: 7 dBm
    - 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3
    FCC (Conducted Power)
    - 2.4 GHz: 4 dBm
    - 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3

    Adjustable power increment: 1 dBm

    *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations

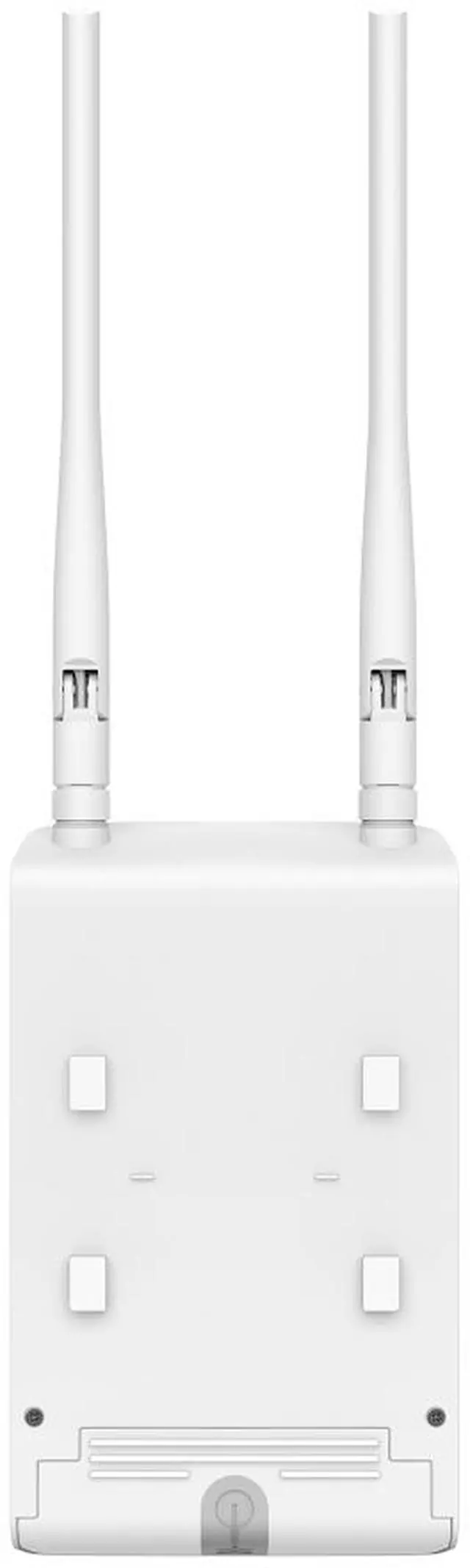

    Mounting Location Pole Mount (Kits included)
    Wall Mount (Kits included)
    Buttons 1 x Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.

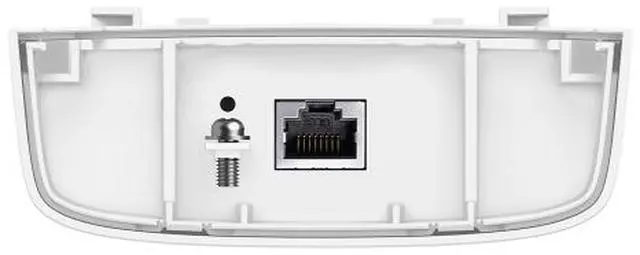

    LAN Ports 1 x 10/100/1000M
    Multiple SSIDs 16 (8 on each band)
    Power Supply Input: 802.3at PoE+: 42.5 - 57 V, 0.36A
    Max Power Consumption 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc.
    Idle mode: 4.8W(PoE)
    Environmental
    Temperature Operating Temperature: -30 °C - 70 °C (-22 °F - 158 °F)
    Storage Temperature: -40 °C - 70 °C (-40 °F - 158 °F)
    Humidity Operating Humidity: 10% - 90% non-condensing
    Storage Humidity: 5% - 90% non-condensing
    Dimensions & Weight
    Dimensions 9.06" x 8.17" x 2.74"
    Features
    Features Maximum number of BSSIDs: 16 (8 on each band)
    Maximum number of associated STAs: 250+
    Guest Network
    ACS (Automatic Channel Selection)
    Airtime Fairness
    Band Steering
    802.11 Rate Control
    Rogue AP Detection
    URL Filtering
    WLAN Optimization
    Lock to AP
    SSID/Client Rate Limit
    Load Balance
    Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§
    Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
    QoS (Quality of Service)
    Packaging
    Package Contents EAP603-Outdoor
    Passive PoE Adapter
    Power Cord
    Installation Guide
    Mounting Kit
    Waterproof Kit
