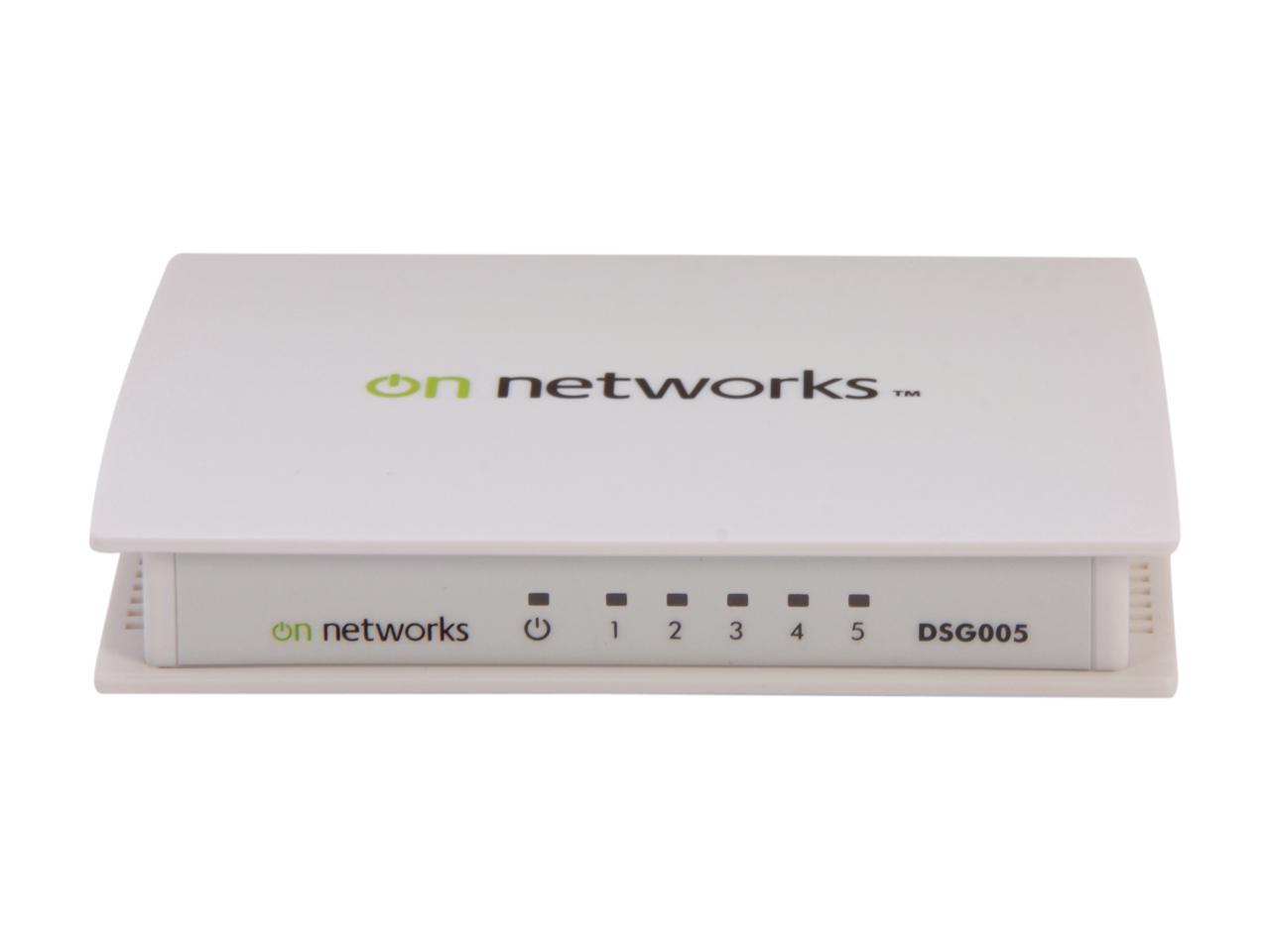

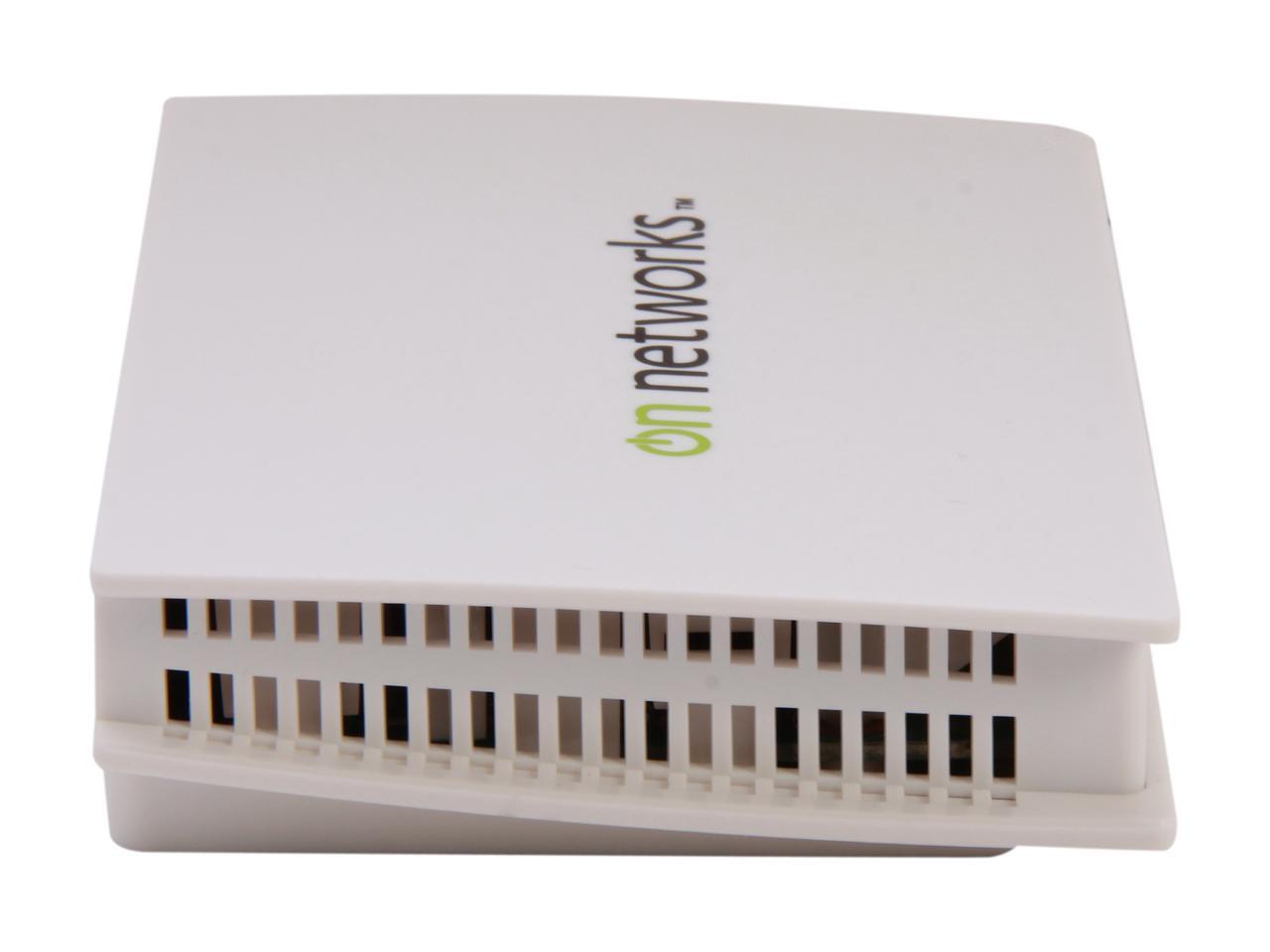

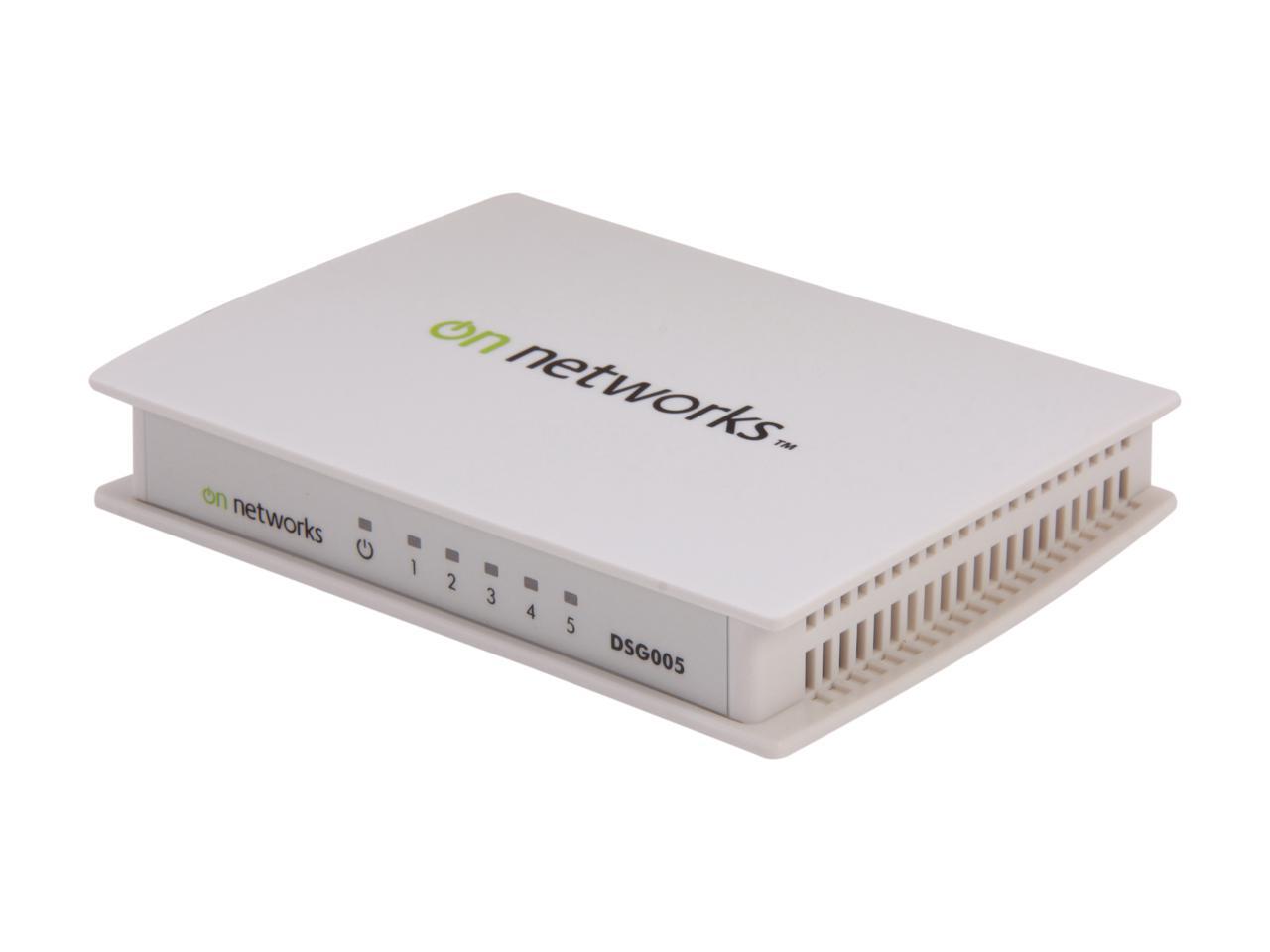

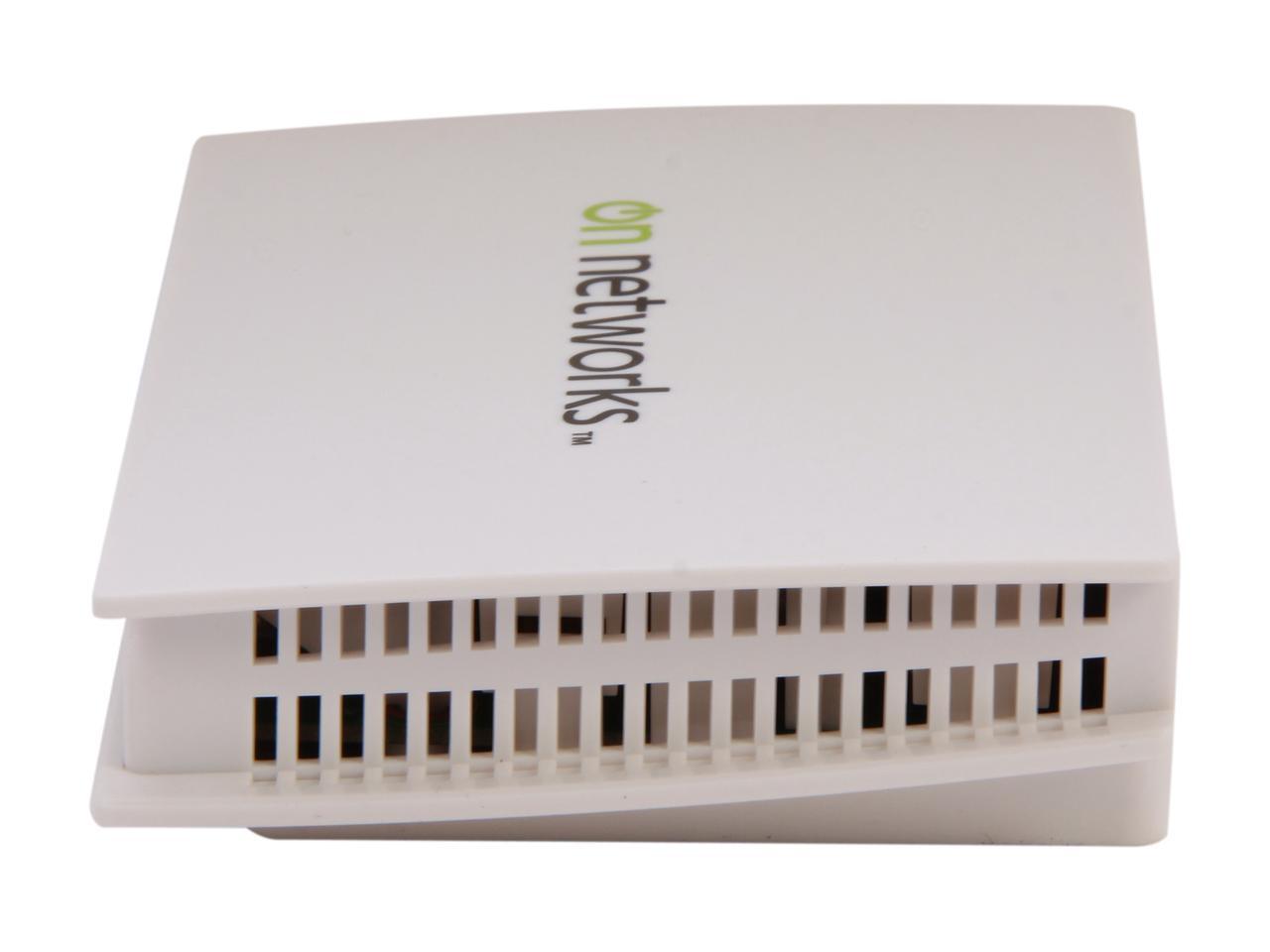

Five-Port Gigabit Ethernet Switch DSG005

Expand your network and connect up to five wired devices with wired Ethernet speed of up to 1000Mbps. The switch features easy plug and play connection, five gigabit Ethernet auto-sensing ports and auto-power down mode which save energy on unused ports. Perfect for adding computers, printers or network storage.

Highlights

Gigabit Ethernet Speed
Auto-power down saves energy on unused ports
Supports Energy Efficient Ethernet for optimal power savings

Tech Specs

Standards

IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3x Flow Control
IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Network Interface

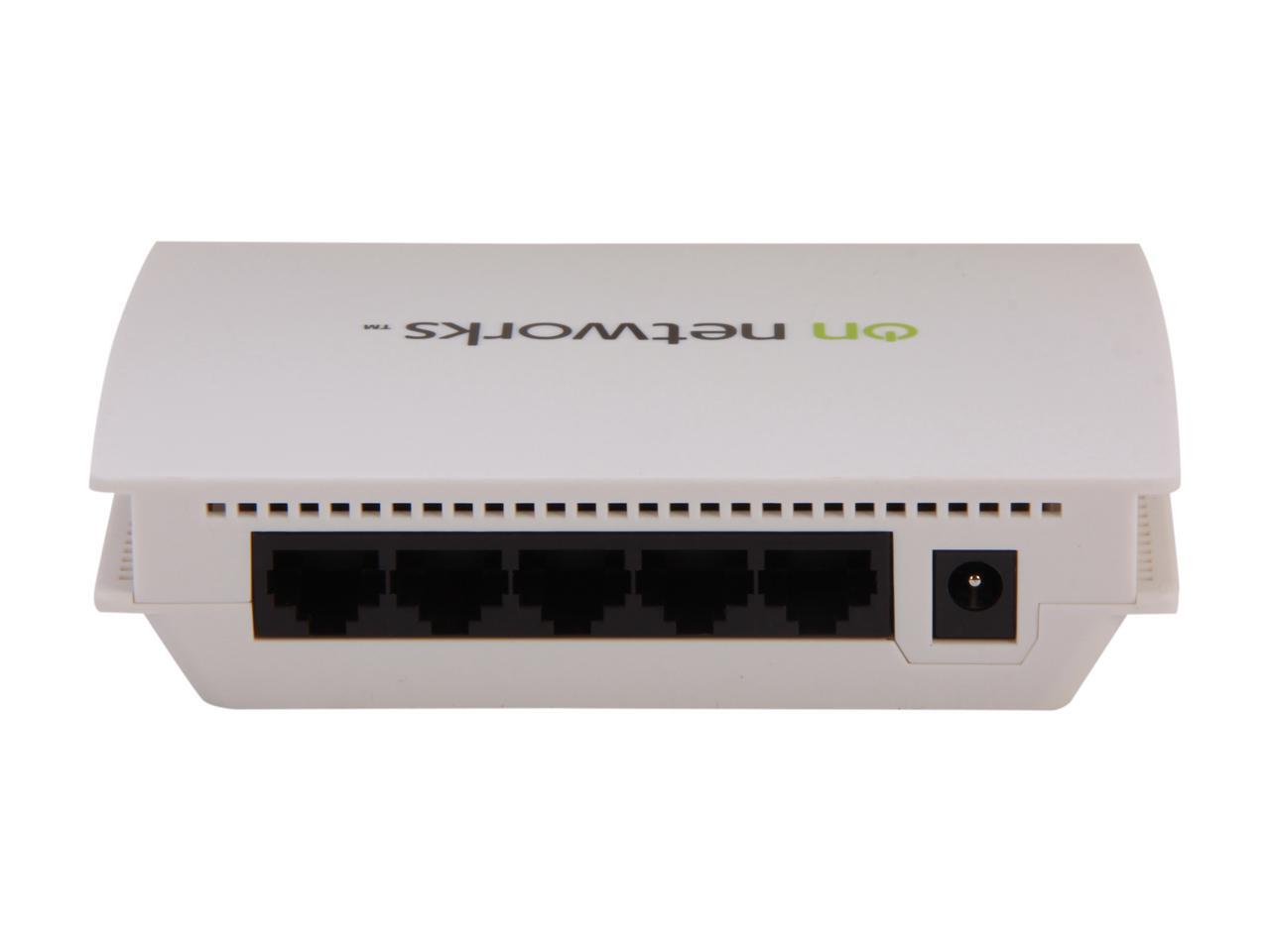

RJ-45 Connector for 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet interface

Power and Power Consumption

Power: 12W and 12V @ 1ADC input
Power consumption: 3.56W (max)

Power and Power Consumption

Power: 12W and 12V @ 1ADC input
Power consumption: 3.56W (max)

Physical Specifications

Dimensions: 5.0 x 3.43 x 1.14in. (127 x 87 x 29mm)
Weight: 0.33lbs (0.15kg)
Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 90% maximum relative humidity, non-condensing

How to Connect

Connecting is simple. Use the diagram to easily and securely connect your On Networks product to the Internet or to other devices. For more information visit the product support page.

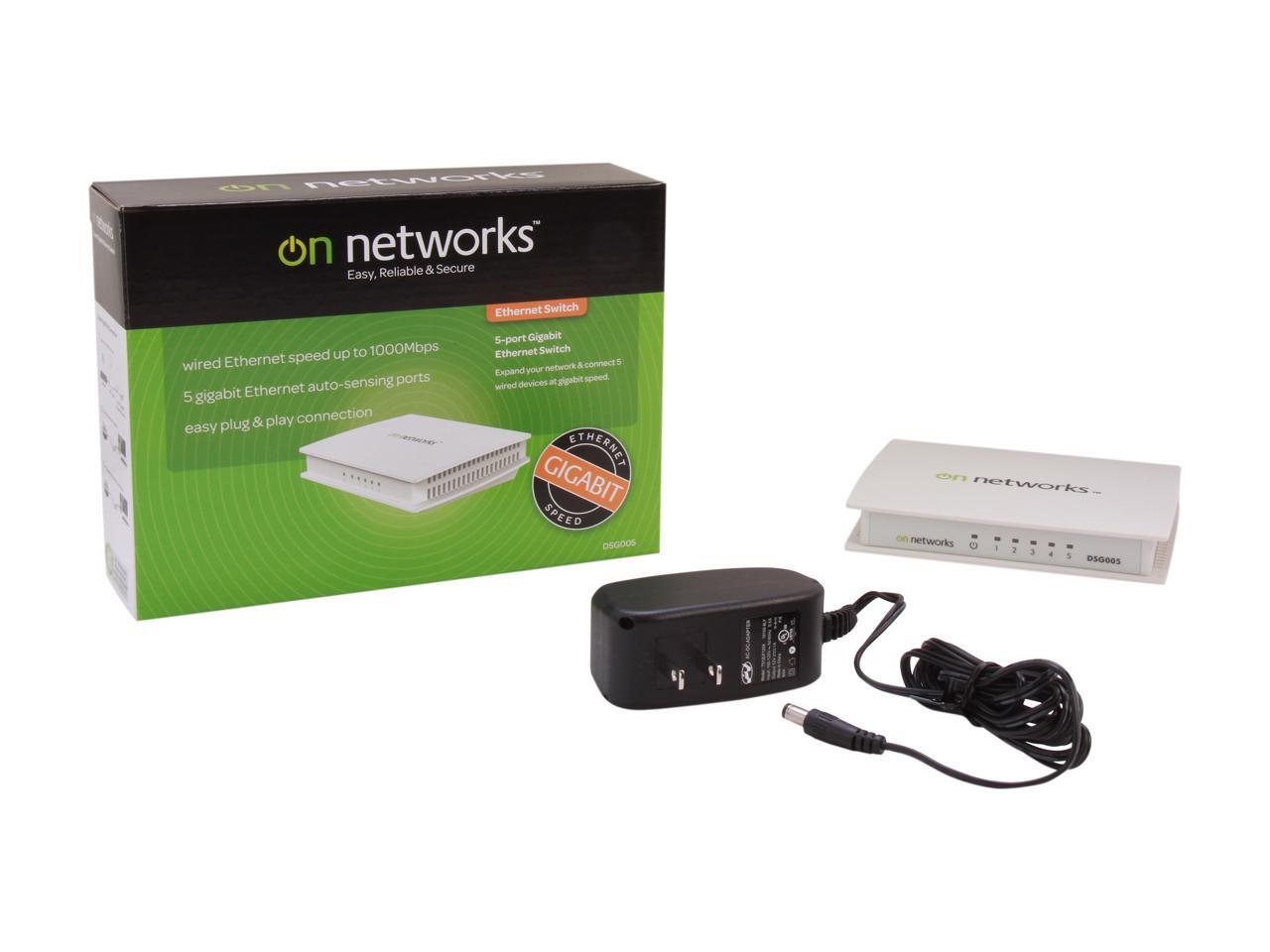

Package Includes

Five-port Gigabit Ethernet Switch (DSG005)
Power Adapter
Installation Guide

Choose the Right Switch

Product	Speed	Number of Ports	Computers / Printers
	Features		Applications
DSF005	Up to 100Mbps	5
DSF008	Up to 100Mbps	8
DSG005	Up to 1000Mbps	5
DSG008	Up to 1000 Mbps	8
