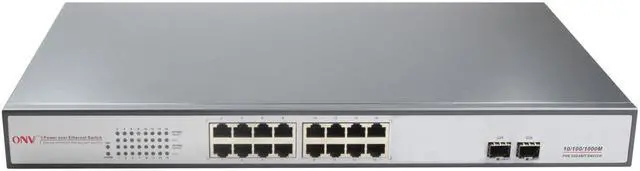

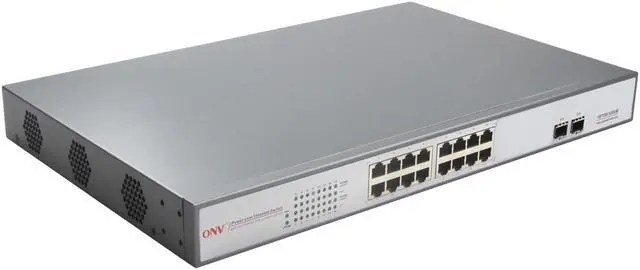

ONV-POE33016PF 18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports with IEEE 802.3af Standard 15.4W

Features:

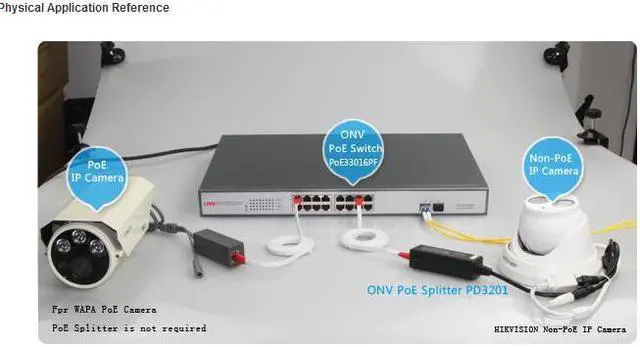

?Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
?Port1 to Port16 compatible with IEEE802.3af standard
?Maximum power of each port is 15.4W, 250W for total
?16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports
?Meets the standards of the IEEE 802.3af/ IEEE 802.3 10i and IEEE 802.3u standard
?The packet forwarding speed of the wire-speed port is 1.488Mbps
?Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
?All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

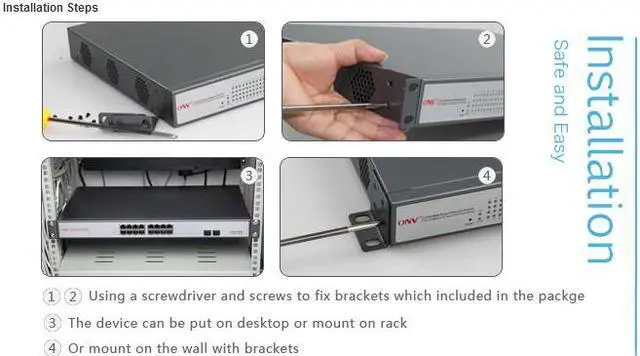

?1U Rack mounted design, easy to install and use
? Automatic adjustment, plug and play, no need software and protocol conversion

Features:
?Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
?Port1 to Port16 compatible with IEEE802.3af standard
?Maximum power of each port is 15.4W, 250W for total
?16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports
?Meets the standards of the IEEE 802.3af/ IEEE 802.3 10i and IEEE 802.3u standard
?The packet forwarding speed of the wire-speed port is 1.488Mbps
?Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
?All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
?1U Rack mounted design, easy to install and use
? Automatic adjustment, plug and play, no need software and protocol conversion

Technical Specification
Product Name 18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports 15.4W
Product Model POE33016PF
Connector Type
16x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX
automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports
Forwarding Mode 1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M
Network Medium
10BASE-T: Cat3,4,5 UTP(=100 meters)
100BASE-TX: Cat5 or more UTP(=100 meters)
1000BASE-TX: Cat5 or more UTP(=100 meters)
Performance
Specifications
Backplane Bandwidth: 52Gbps
Network Delay: less than 20 microsecond
Packet Buffer: 96KB
Address Address Database: 8K
MTBF: 190,000 hours (about 21 years)
PoE Description
IEEE 802.3af, each port power is 15.4W; Port1 to Port16 support PoE power;
The even number Port(1/3/5/7/9/11/13/15) is end-span(1/2+, 3/6- line pair)
power supply, the odd number port(2/4/6/8/10/12/14/16) is mid-span(4/5+,
7/8- line pair) power supply
PoE Power Port output power is 15.4W (IEEE802.3af)
Power Supply Type End-span type(Mid-span optional)
Network Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.3af
LED Indicator Status Power, Network, PoE working status
Power IEEE802.3af standard, each port power is 15.4W, total power is 250W

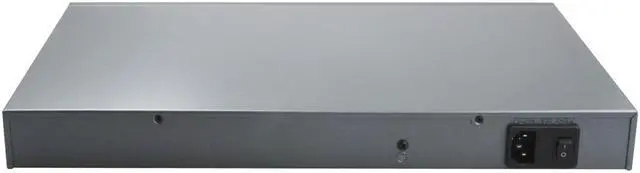

Voltage Input: AC100~240V 50/ 60Hz

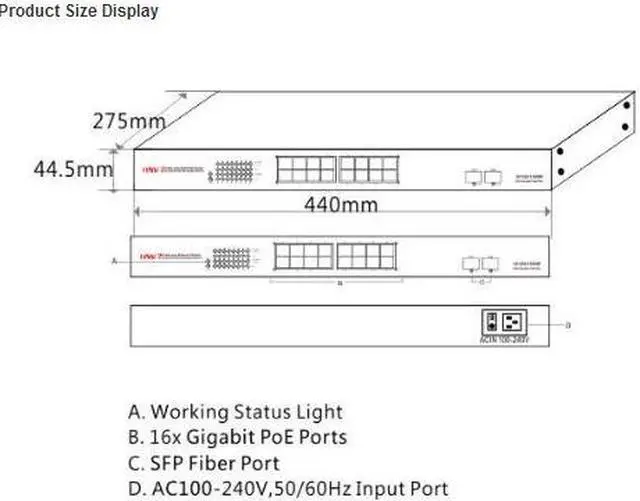

Dimension Dimension (LxWxH): 440 x 275 x 44.5mm
Working
Environment
Working temperature: -20°C ~ 75°C; Storage temperature: -40° ~ 85°C;
Working Humidity: 10% ~ 90%, no condensation; Storage Humidity: 5% ~
90%, no condensation; Working Altitude: 3000 meters (10,000ft); Storage
Altitude: 3000 meters (10,000ft)
Radiation
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial
CE/LVD EN60950,RoHS
Warranty 1 Year Warranty, Life-time Maintenance
