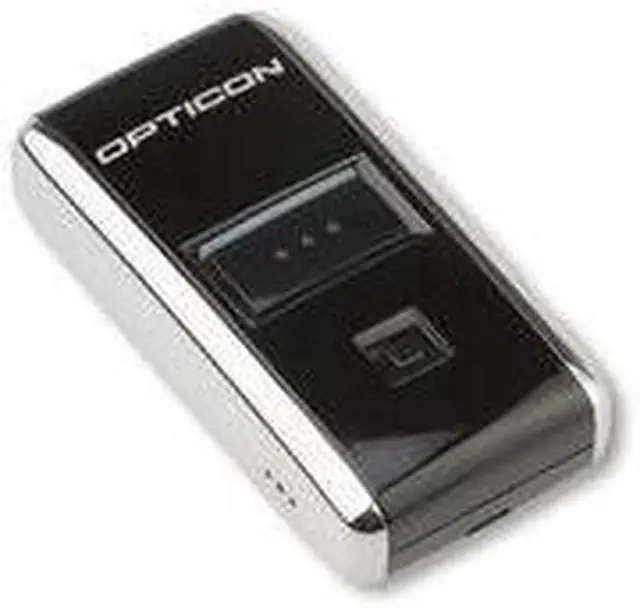

    Opticon OPN2004-00 OPN2004 Scanner, USB

    Be the first to review this product...
    • 1D Laser sensor
    • USB
    • Color: Black
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Opticon Inc. OPN-2004

    General
    Brand Opticon
    Model OPN-2004
    Part Number OPN2004-00
    Form Factor Handheld
    Connectivity Corded
    Scan Engine 1D
    Connectivity
    Interfaces Supported USB: Mini USB-B, Ver 2.0 (HID, VCP)
    Scan Performance
    Light Source Visible Red (650 nm) Laser
    Depth of Scan Field 39 mil (1.0 mm): 2.95 - 22.44 in (75 - 570 mm)
    19.69 mils (0.5 mm): 2.17 - 13.78 in (55 - 350 mm)
    9.84 mils (0.25 mm): 2.17 - 7.87 in (55 - 200 mm)
    5.91mils (0.15 mm): 2.17 - 4.33 in (55 - 110 mm)
    5 mils (0.127 mm): 2.56 in - 3.54 in (65 - 90 mm)
    Pitch ±30 degree
    Electrical
    Battery Battery: 3.7V 140mAh, Lithium Polymer, Rechargeable Internal Battery
    Operating Time: 8 hours or more at 1 scan/5 seconds
    Charging Method: Enclosed USB cable
    Mechanical
    Color Black
    Dimensions 1.26" x 2.44" x 0.69"
    Weight 0.06 lb.
    Features
    Features Operation
    CPU: STR7 32 bit, 96 MHz
    OS: Proprietary
    Software: Programmable in C-language. Ansi-C cross compiler obtainable. Free downloadable software development kit available
    RTC: Accurate to ±90 seconds per month. Leap year supported

    Memory:
    FlashROM: 512 KB (Program Storage) + 1 MB (Storage) + time/date stamps
    RAM: 96 KB

    Operating Indicators:
    Visual: 2 dual red/green LED's
    Audible: Multi-Tone speaker

    Operating Keys:
    1 Trigger Key
    1 Multi-Function Key

    Barcode Scanner Optics:
    Scan Method: Vibrating Mirror
    Scan Rate: 100 scans/sec
    Minimum Barcode Resolution: 0.127 mm
    Reading Tilt Angle: Tilt: ± 20°
    Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
    Minimum PCS value: 0.45

    Supported Symbologies:
    Barcode (1D):
    EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on, UPC-A, UPC-A Add-on, UPC-E, UPC-E1, UPC-E Add-on, Code 39, NW-7 (Codabar), Industrial 2 of 5, Interleaved 2 of 5, Code 93, Code 128, MSI/Plessey, IATA, UK/Plesseym, Telepen, Matrix 2 of 5, NW-7 ABC Code, NW-7 CX Code, S-Code, Tri-Optic, Code 39 Full ASCII, Code 39 It.Pharmaceutical, EAN 128, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1
    DataBar Expanded, Code 11

    Barcode (Postal Codes):
    Korean Post, Chinese Post Matrix 2 of 5

    Durability:
    Temperature:
    Operation: 32 to 122 °F (0 to 50 °C)
    Storage: -4 to 140 °F (-20 to 60 °C)

    Humidity:
    Operation: 20 - 85% (noncondensing)
    Storage: 20 - 85% (non-condensing)

    Ambient Light Immunity:
    Fluorescent: ~ 4,000 lx
    Incandescent: ~ 4,000 lx
    Sunlight: ~ 80,000 lx

    Vibration Test: 10 - 100 Hz with 2G for 1 hour
    MTBF: 10,000 hours
    Drop 4 ft (1.2 m) onto concrete surface
