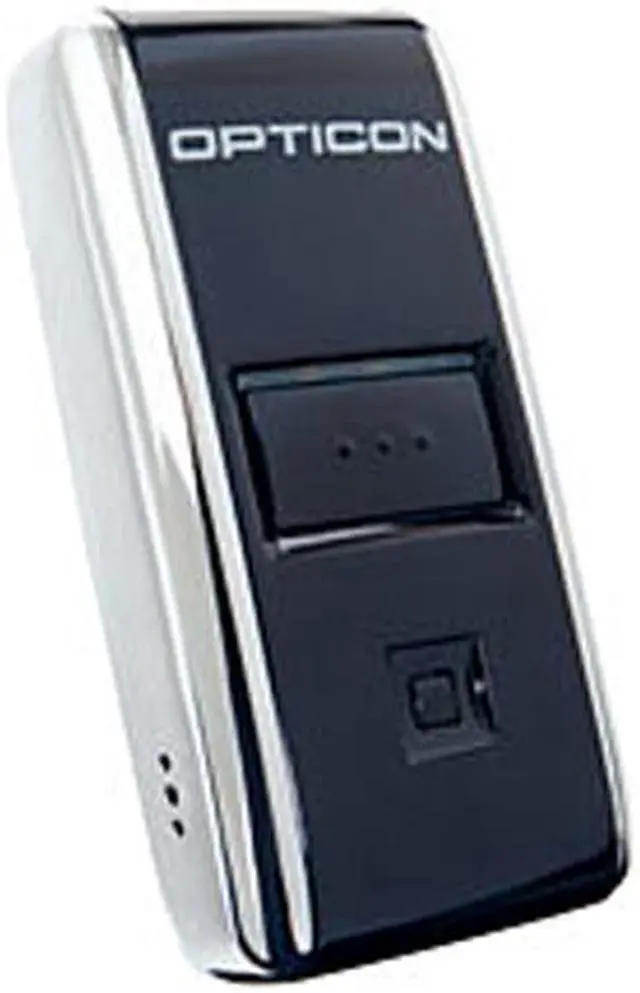

    Opticon OPN2006-00 OPN2006 Scanner, Bluetooth/Batch Memory Scanner

    Be the first to review this product...
    • 1D Laser sensor
    • Scanner, USB cable and Neck Strap
    • Mini USB, Bleutooth, MFi chip
    • Supports Android, Apple, Blackberry or Windows Mobile
    • Color: White
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    Learn more about the Opticon Inc. OPN-2006

    General
    Brand Opticon
    Model OPN-2006
    Part Number OPN2006-00
    Form Factor Handheld
    Connectivity Cordless
    Connectivity
    Included Cables Scanner, USB cable and Neck Strap
    Interfaces Supported USB: Mini USB, Version 1.1, USB-VCP (USB-HID and USB-MSD on request)
    Bluetooth: Version 3.0, SPP, HID, 1 to 1 connection, master and slave mode, authentication and encryption
    Cordless Type Bluetooth
    Scan Performance
    Light Source 650 nm visible laser diode
    Depth of Scan Field 39 mil (1.0 mm): 3.15 - 11.81 in (80 - 300 mm)
    20 mil (0.5 mm): 2.36 - 9.84 in (60 - 250 mm)
    10 mil (0.25 mm): 2.36 - 7.87 in (60 - 200 mm)
    6 mil (0.15 mm): 2.36 - 5.12 in (60 - 130 mm)
    5 mil (0.127 mm): 2.36 - 4.33 in (60 - 110 mm)
    Pitch ±25 degree
    Yaw -40 to -8°, +8 to +40°
    Electrical
    Battery Rechargeable Battery: Lithium-Ion Polymer 3.7V 240mAh

    Operating Time:
    Batch: 1.000 scans (1 scan / 5 sec)
    Idle: 1-2 months
    Bluetooth: Ca. 12 hours RAM

    RAM Data Retention Time:
    Empty: Ca. 72 hours
    Full: 1-2 months

    Charging Method: Enclosed USB cable
    Mechanical
    Color White
    Dimensions 2.44" x 1.26" x 0.63"
    Weight 0.06 lb.
    Features
    Features Operation:
    CPU: 32-bit
    OS: Proprietary
    Software: 4 applications available (also programmable in C-language. Free software development kit with free RX compiler)
    RTC: Supports year, month, day, hour, minute, second (leap year supported)

    Memory:
    FlashROM: 512 kB
    RAM: 96 kB
    External FlashROM: 1 MB

    Operating Indicators:
    Visual: Multi color LED (red/green/orange/blue)
    Audible: Buzzer

    Operating Keys:
    Entry Options: 2 keys total, 1 function key, 1 scan key

    Barcode Scanner Optics:
    Scan Method: Vibrating mirror
    Scan Rate: 100 scans/sec
    Reading Tilt Angle: -20 to 0°, 0 to +20°
    Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Min. PCS value: 0.45

    Supported Symbologies:
    Barcode (1D):
    JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey UK / Plessey, S-Code, Telepen, Tri-Optic

    Barcode (Postal Codes):
    Chinese Post, Korean Postal Authority code

    Durability:
    Temperature:
    Operation: 32 to 104 °F (0 to 40 °C)
    Storage: -4 to 140 °F (-20 to 60 °C)

    Humidity:
    Operation: 20 - 85% (noncondensing)
    Storage: 20 - 85% (non-condensing)

    Ambient Light Immunity:
    Fluorescent: ~ 4,000 lx
    Incandescent: ~ 4,000 lx
    Sunlight: ~ 80,000 lx

    Vibration Test: 10 - 100 Hz with 2G for 30 min
    Protection Rate: IP 42
    Drop 5 ft (1.5 m) onto concrete surface
    Additional Information
    First Listed on Newegg February 08, 2017

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

    Manufacturer Contact Info

    LOADING...
    LOADING...

    The Opticon OPN2006-00 is a compact handheld 1D laser barcode scanner with Bluetooth and batch-memory scanning, suited to retail, inventory, and other workflows that need to capture barcodes using a compatible mobile device or store scans for later transfer.

    Recommended For

    • Amazon and other online-marketplace resellers who scan 1D product barcodes while sourcing or managing inventory, and want a pocket-size scanner that can send scans to a phone or other Bluetooth host.
    • Retail or mobile point-of-sale staff who need to scan UPC/EAN and other 1D codes into a Bluetooth-connected phone or tablet instead of using a full-size counter scanner.
    • Small inventory or asset-audit teams that walk between items and record 1D barcode IDs, either transmitting scans to a paired device or collecting them for later transfer in batch mode.
    • Field-service or event staff who need a lightweight scanner for occasional 1D barcode check-ins or service records and can use a compatible Bluetooth device as the data-entry host.

    Spec Summary

    AttributeValue
    Best ForHandheld 1D barcode capture using Bluetooth or batch-memory workflows
    Scanning Performance650 nm visible laser with vibrating-mirror scanning at 100 scans/sec; scan distance varies by barcode width from 2.36–11.81 in (60–300 mm). Supports ±25° pitch, specified yaw and reading tilt angles, and curved EAN labels
    Barcode CompatibilityReads the listed 1D symbologies, including JAN/UPC/EAN, Code 39, Code 128, GS1 DataBar, and Chinese and Korean postal codes
    ConnectivityBluetooth 3.0 with SPP and HID profiles, one-to-one connections, master/slave modes, authentication, and encryption; Mini USB 1.1 with USB-VCP, with USB-HID and USB-MSD available on request
    Memory And Software32-bit CPU with proprietary OS; 512 kB FlashROM, 96 kB RAM, and 1 MB external FlashROM. RAM retention is approximately 72 hours when empty and 1–2 months when full. Four applications are available, with C-language programmability and a free software development kit and RX compiler; RTC supports date, time, and leap years
    Battery And PowerRechargeable 3.7 V, 240 mAh lithium-ion polymer battery; approximate operating time is 1,000 batch scans at one scan every 5 seconds, 1–2 months idle, or 12 hours over Bluetooth. Charges via the enclosed USB cable
    Physical DesignWhite handheld scanner measuring 2.44 × 1.26 × 0.63 in and weighing 0.06 lb
    Indicators And ControlsMulticolor red/green/orange/blue LED and buzzer; two keys, including one function key and one scan key
    Environmental DurabilityIP42 protection; tested for a 5 ft (1.5 m) drop onto concrete and vibration at 10–100 Hz with 2G for 30 minutes. Operating range: 32–104 °F (0–40 °C), 20–85% noncondensing humidity; storage range: −4–140 °F (−20–60 °C), 20–85% noncondensing humidity. Ambient-light immunity: approximately 4,000 lx fluorescent or incandescent and 80,000 lx sunlight
    Included AccessoriesUSB cable and neck strap
    Model IdentifiersOpticon OPN-2006; part number OPN2006-00
