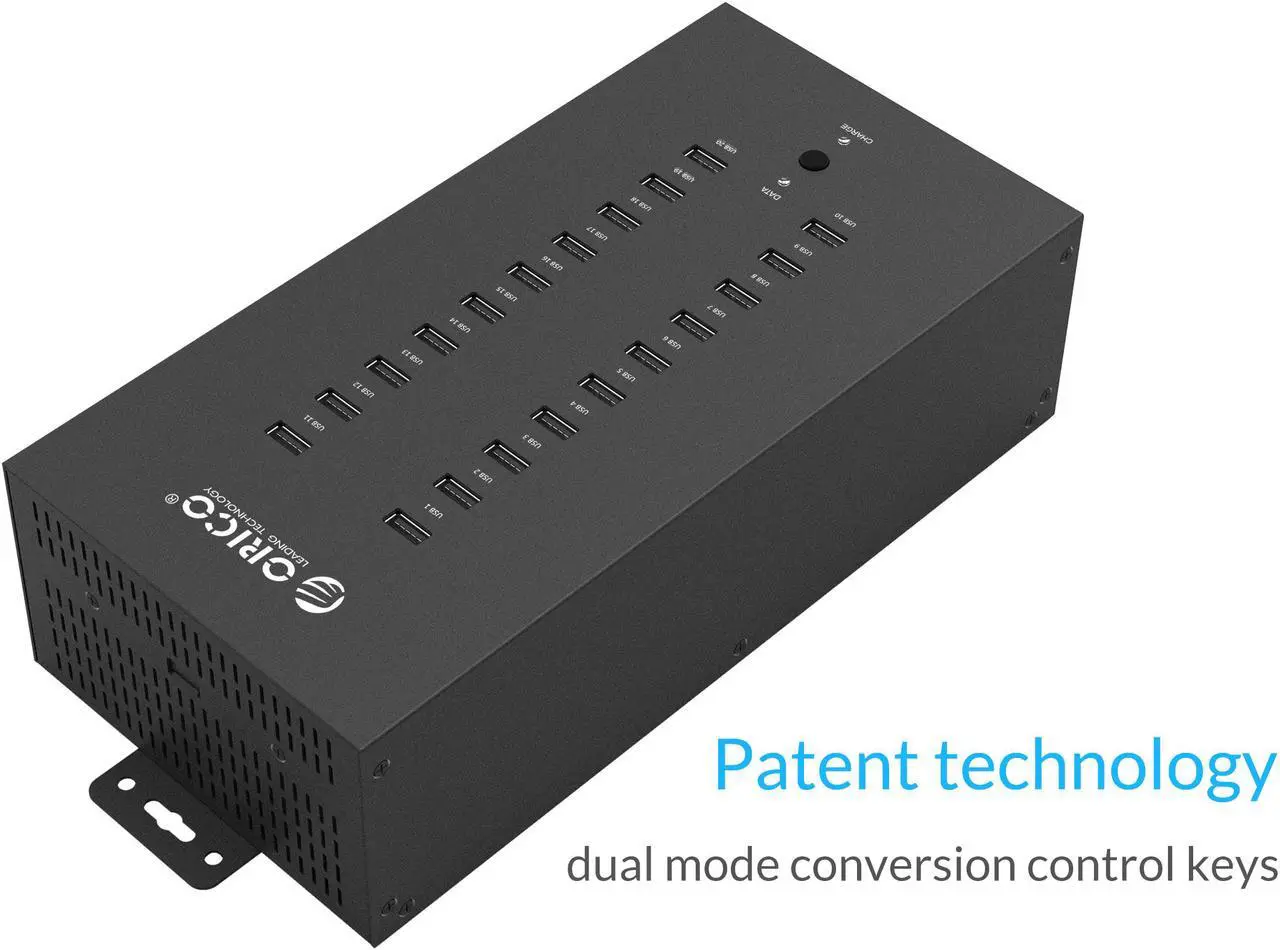

Supports Simultaneous Connection of up to 20 USB Devices Plug and play, efficient transmission. Expands your computer to 20 USB interfaces, especially suitable for desktop use, no need to bend down to plug, easily connect multiple USB devices. Reminder: whether it is connected to U disk or hard disk, when this 20 port HUB connected to the computer, it needed to connect the external power supply to start up properly. Two Modes for You to Choose, Press the Button to Switch at Any Time Most of the equipments can charge and sync in Charge mode, while a small number of devices can not be identified in Charge mode, which need to switch to the Data mode. Data mode is standard USB 2.0 speed, each USB port can be used to provide 5V/500mA sufficient current. Charge mode 20 USB ports can be used to provide 5V 1.5A output max, support 20 USB devices data syncs and charging to a computer with 150W integrated power supply. With 20 Ports HUB USB 2.0 Data Transfer Rate Supports High Speed 480Mbps, full speed 12Mbps and low speed 1.5M bps operation. Industrial USB 2.0 20-Port Fast Charge/Hub features a rugged metal enclosure with USB charger features 20 powered USB ports that allow you to plug in multiple devices with just a USB cable. Supports Multiple USB Devices Connections Powerful expansibility allows transmission to be possible.

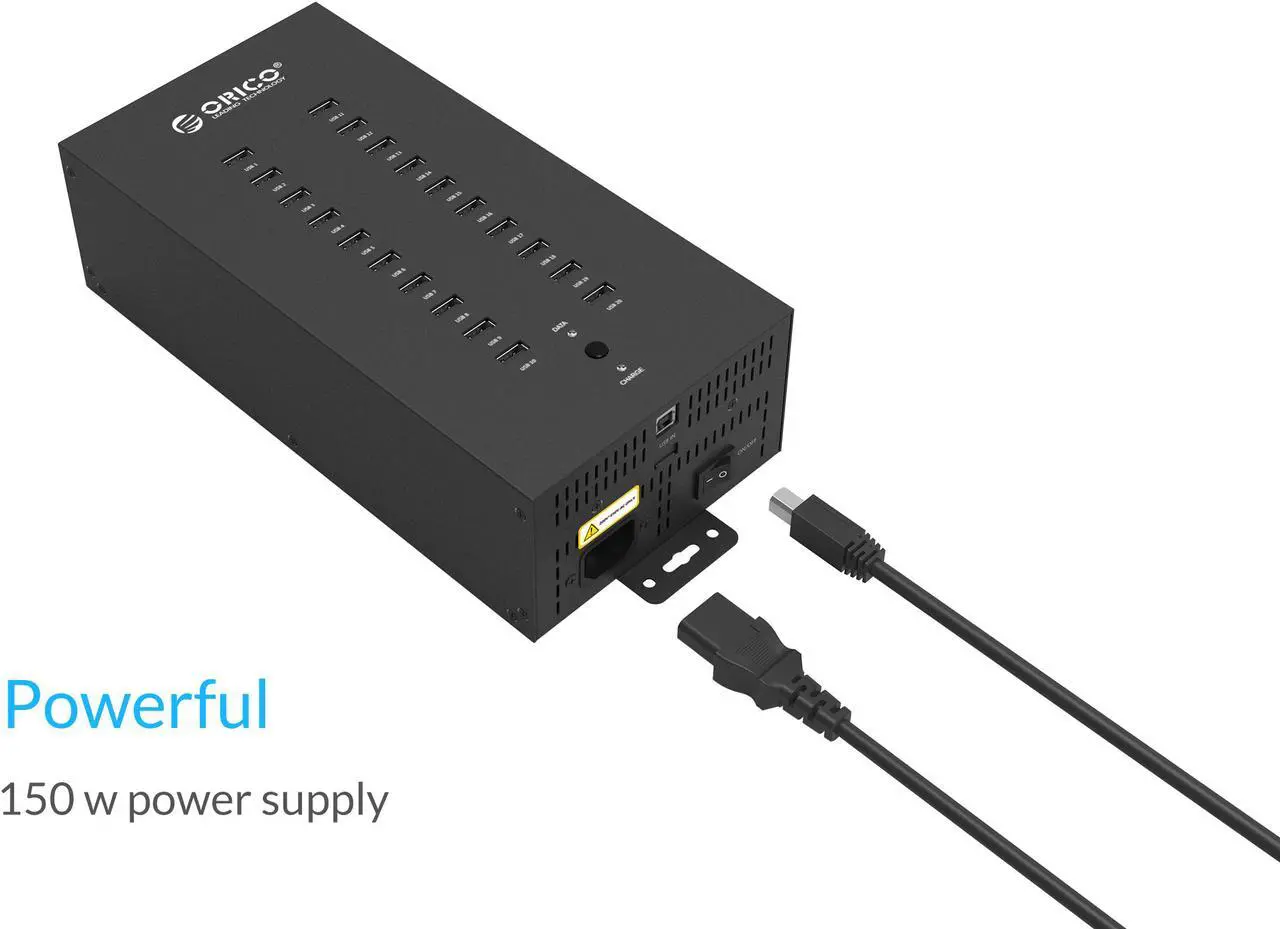

Support external hard drive, keyboard, mouse, U disk, card reader, USB radiator, power bank, printers, mobile phones, tablet and etc. Be Strict from the very Beginning Multi-hole mesh design better for dissipation. Using multiple devices at the same time may cause heat accumulation, thus the product adopts multi-hole mesh design, which makes better heat-dissipation. Industrial art, Iron Casting Molding High-quality steel materials, spraying processing, can effectively prevent the erosion of impurities in the air to extend the lifespan, and make it beautiful. Removable Hangers, Multi-scene Applicable Both ends of the product are designed with removable hangers, which can be fixed to the wall or mounted on the desktop or can be placed in the charging cabinet or other centralized equipments. One-click Main Control Switch More user-friendly light-touch design. The independent switch integrated with the product, a light touch to turn off or turn on the power, comfortable light-touch design, brings you a more convenient experience. Strong Power Supply, Safety Certification Integrated 150W independent power modules, the power plug is certified under 3C system, the HUB is CE, RoHS and safety certified, safety and reliable.
Selected Thick cable core, lossless transmission Adopts oxygen-free copper core, aluminum foil and braided shield to prevent data interference, reduce wear and tear, to ensure data transmission stability. Multiple protections, protect computer and other devices Supports overload voltage protection function, effectively protect the device and the HUB. Individual circuit protection design per port
Supports Simultaneous Connection of up to 20 USB Devices Plug and play, efficient transmission. Expands your computer to 20 USB interfaces, especially suitable for desktop use, no need to bend down to plug, easily connect multiple USB devices.
Features:
High quality LED, Each LED corresponds to the corresponding USB working status
Constructed of high quality aluminum alloy shell, ensuring effectively cooling and improve product anti-interference ability.

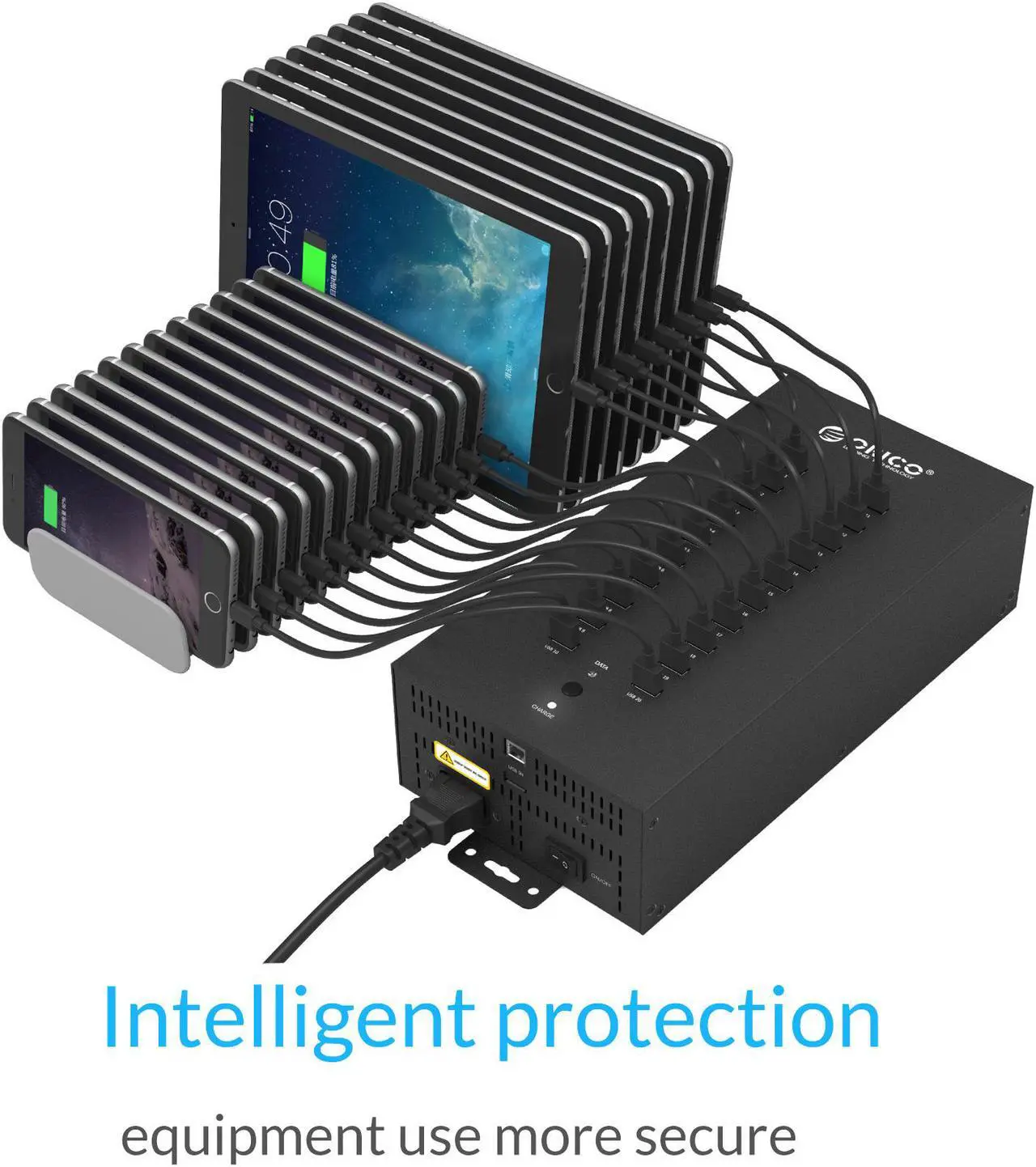

20-Port USB Charging Station charges and syncs up to 20 tablets, smart phones and other USB-equipped devices at the same time.
Each individual port capable of delivering up to 5V/900mA, enough for charging battery-intensive devices like the Apple Pad.
Fully compatible with USB 1.1 and USB 2.0, support hot-swappable, no drive, easy to use and carry.

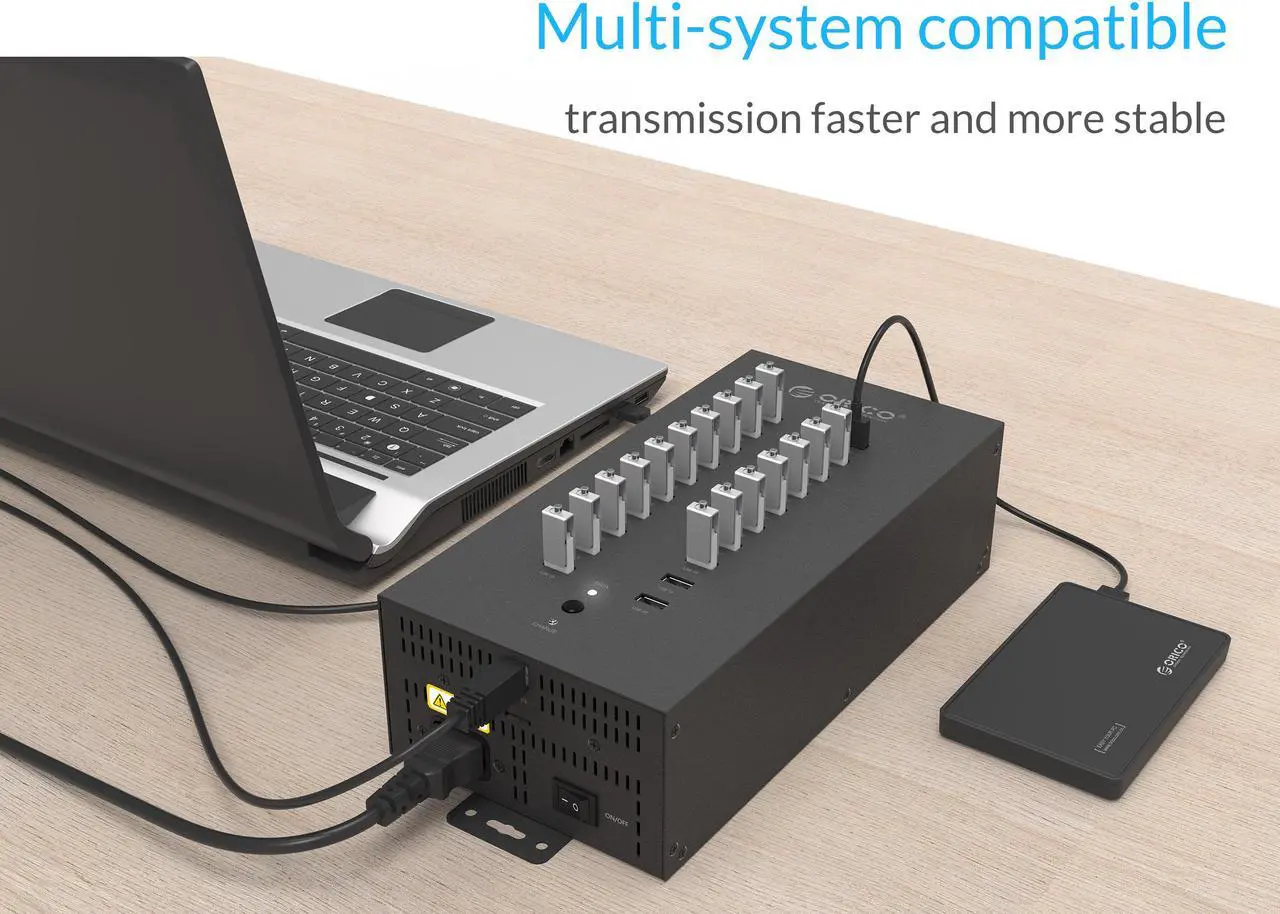

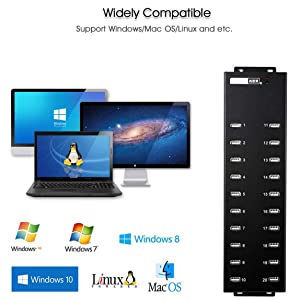

Support Win7, Window Vista, Windows XP Professional/Home Edition, Window98/ME/2000 Professional/Home Edition, MACOS 9.0 and higher editions.
Applications:
Connect the AC cord to the DC 12V/8A power adapter, and then connect to the power outlet.
Connect the USB cables to computer and Hub
The AC power line connects to the Hub, makes sure the power switch is ON, and the power LED light indicates Red. At this point each USB port outputs 5V, and you can read and write.
After use, please store them properly.
Specifications:
Material: Aluminum Alloy
Port: 20 Port
Input: USB 2.0 Type-A
Output: 5V/900mA (Per Port)
Power Supply: 96W (12V 8A desktop power supply)
Support System: WindowsXP/Vista/7/8 & Mac with USB support
