How many PCIe 3.0 lanes can this use?

The device uses a dual-channel PCIe Generation 3 interface for M.2 M-KEY SSDs.

1) Can I install this in the second M.2 slot of my mobo? (2) When installed, does it use up, or replace, one of the PCI slots?

The answer to (1) is yes, and for (2) it depends on your motherboard. On mine I can use all of the m.2 and pci slots and have no issues. However, using the second m.2 on my PC disables one of the onboard SATA ports. it depends on your motherboard though

Questions & Answers: ORICO M.2 PCIe M Key to 6 x SATA 6Gbps Adapter Card for Desktop PC Support RAID-PM2TS6

(17)

double click image to zoom in

Top Rated Visit ORICO Official Store

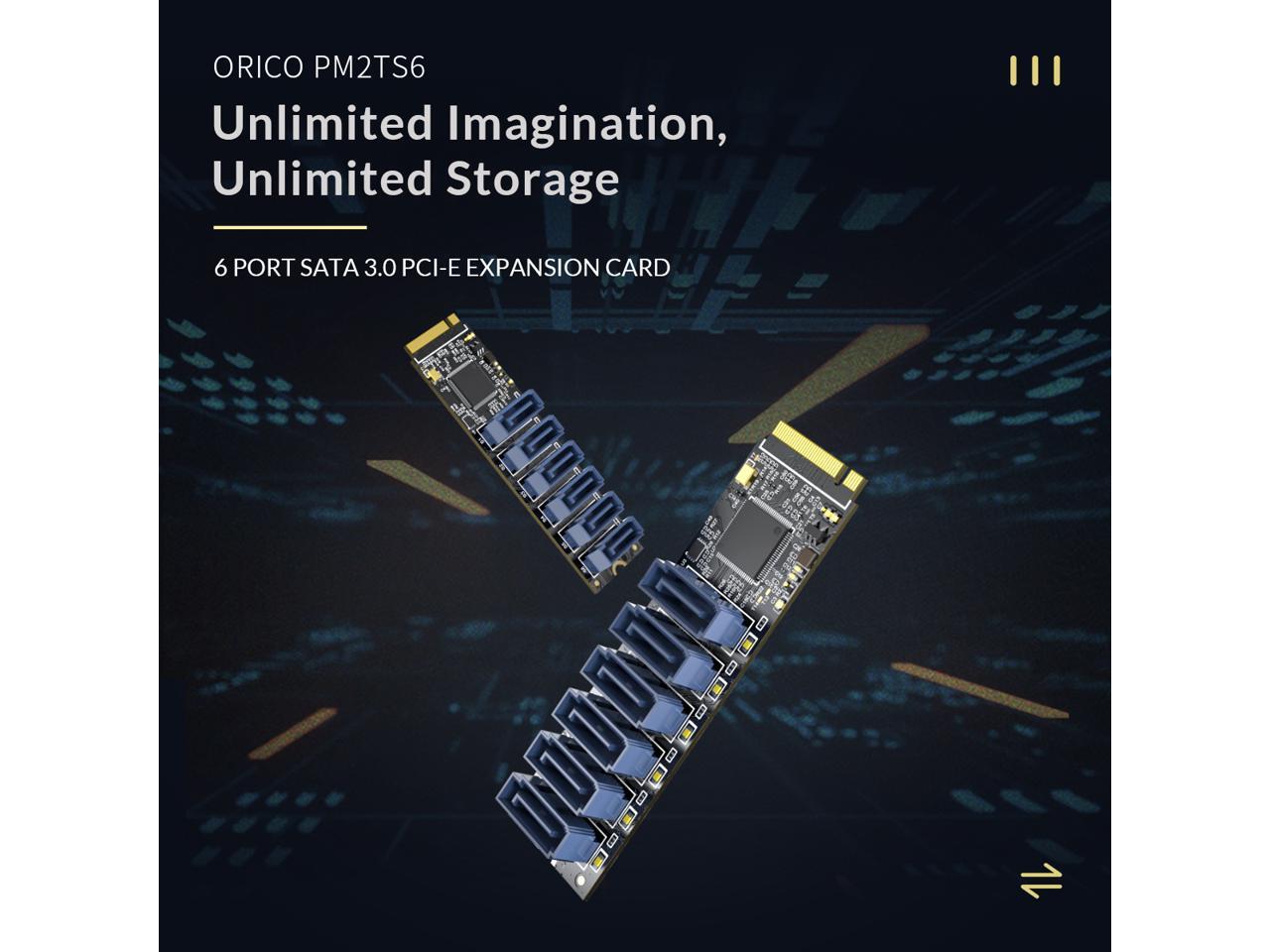

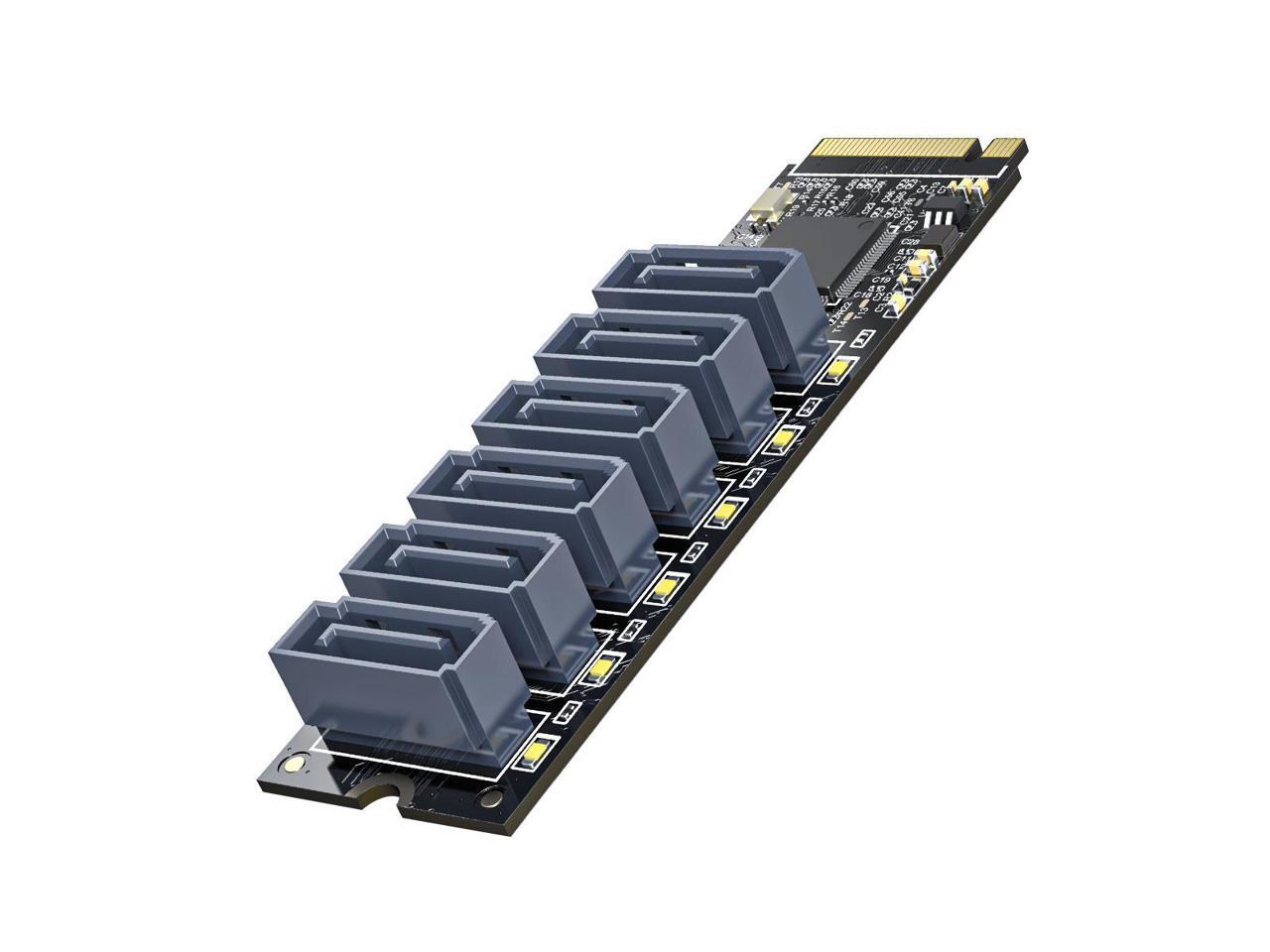

ORICO M.2 PCIe M Key to 6 x SATA 6Gbps Adapter Card for Desktop PC Support RAID-PM2TS6

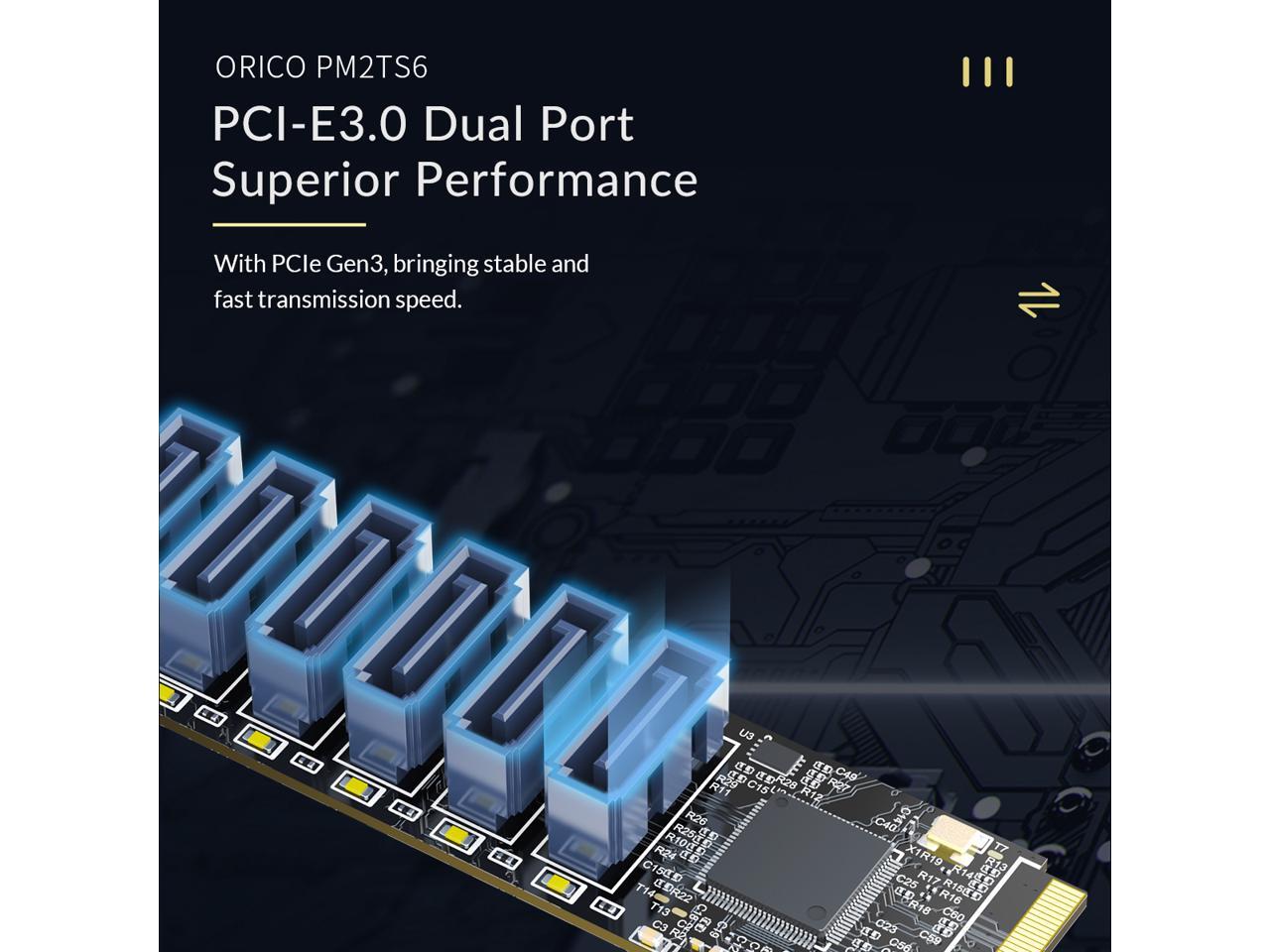

Dual-channel PCIe Gen3 interface (M.2 M-KEY), compliant with PCI Express 3.0 standards, designed for M.2 SSDs.

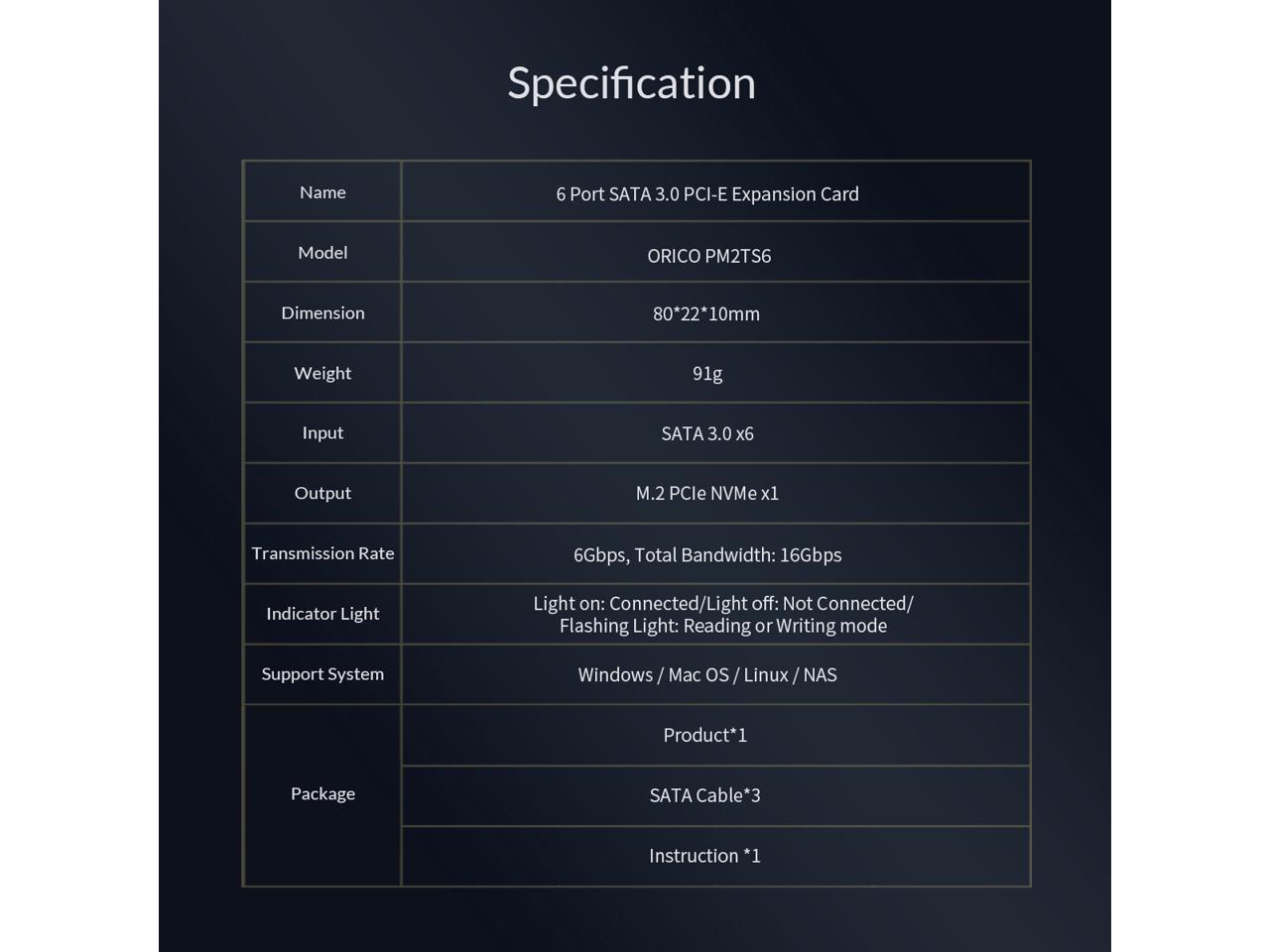

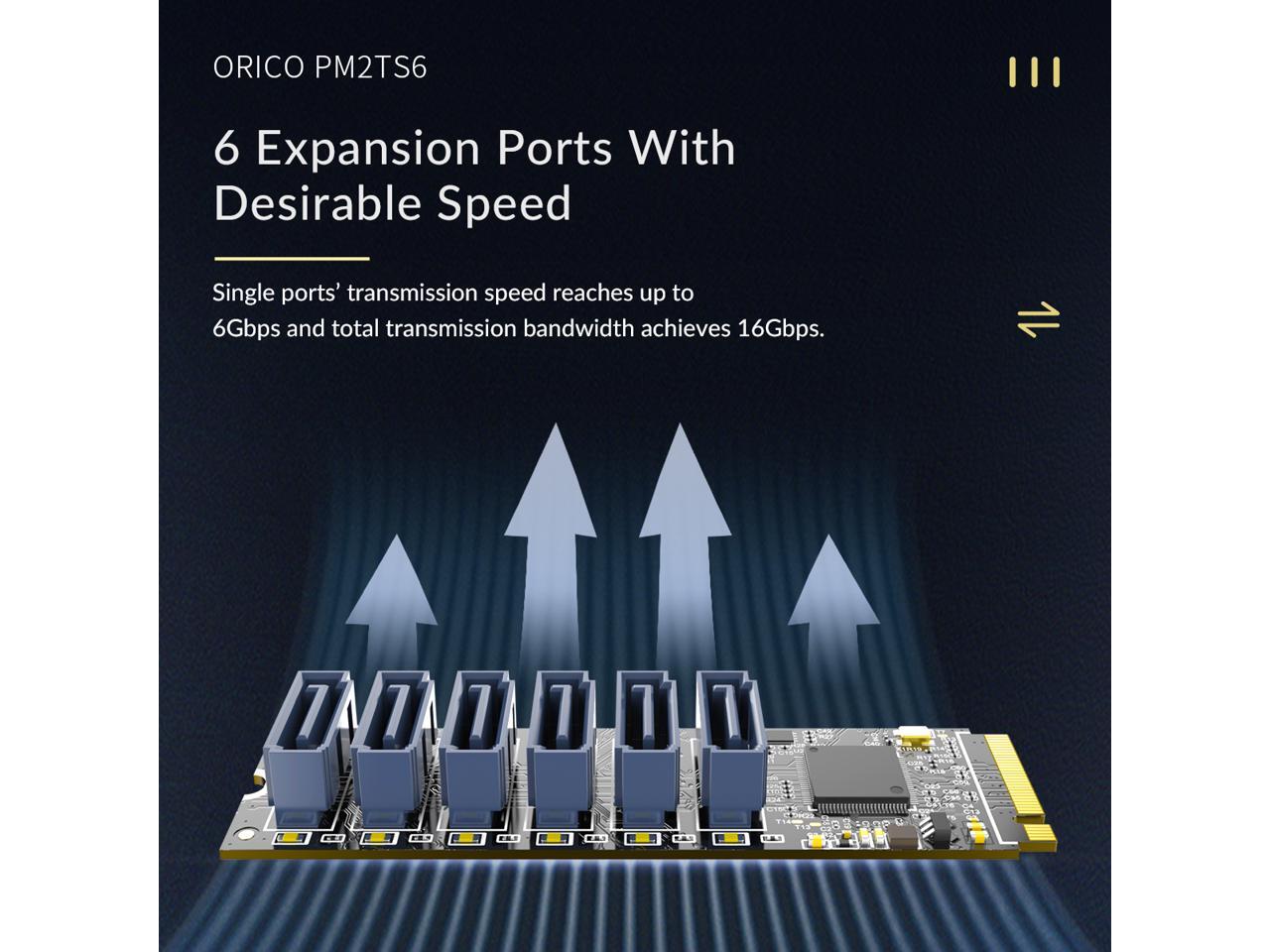

Six ports, each supporting 6Gbps, theoretically offering a total of 36Gbps bandwidth. The mentioned 16Gbps may refer to bandwidth under specific configurations.
Plug-and-play capability without the need for driver installation, supports AHCI mode for system booting, enhancing user convenience.

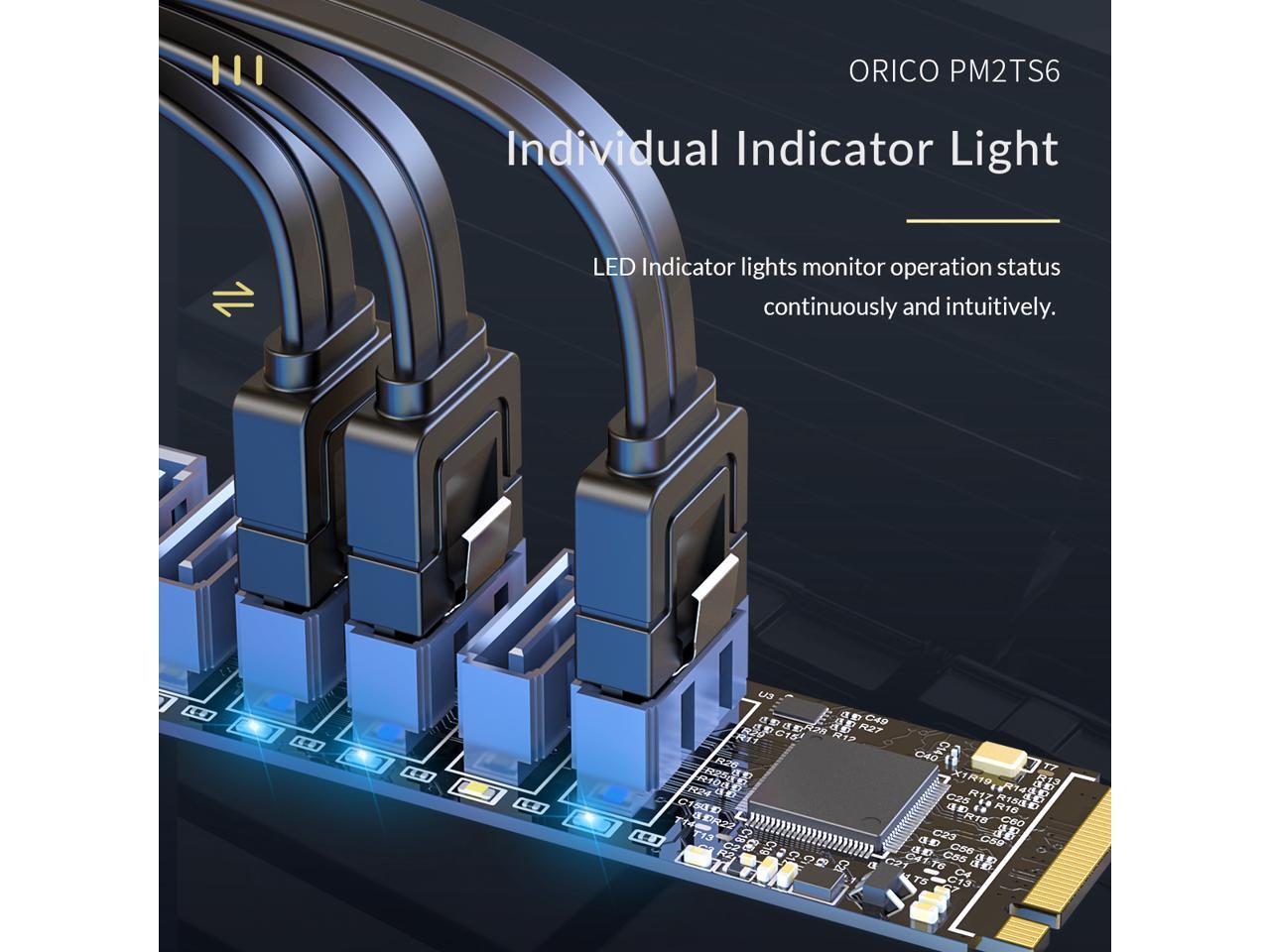

LED indicator for real-time monitoring of hard disk working status.
Supports soft RAID formation via built-in system RAID tools, catering to different storage needs and ideal for expanding built-in multi-bay SATA mass storage.
Broad compatibility, supporting SATA interface mechanical hard drives, SSDs, optical drives, etc., and compatible with Windows, Mac OS, Linux, FreeNAS, Synology, and other NAS operating systems.

$29^.99 –
