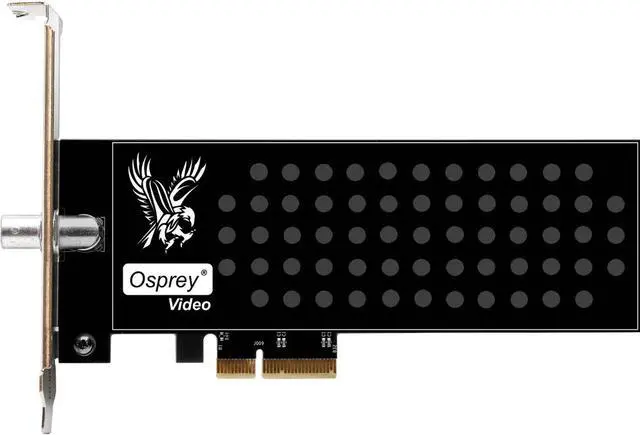

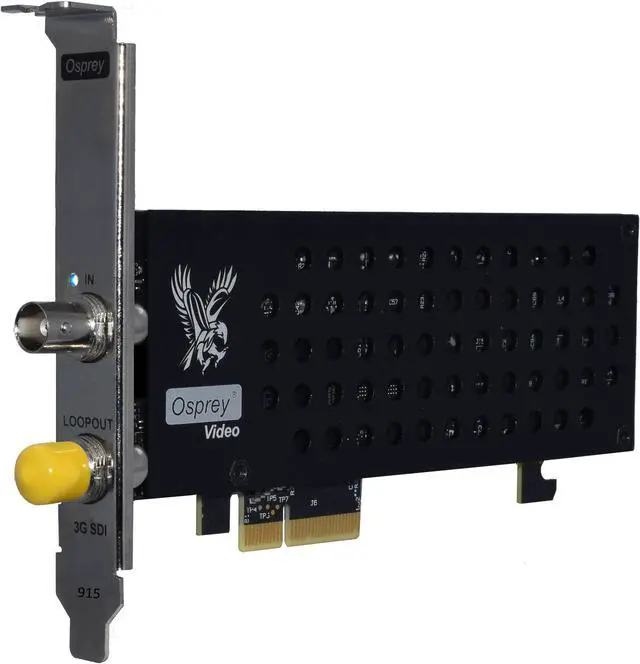

Osprey Raptor Series 915 PCIe Capture Card with 1 x SDI Input Channel & Loopout 95-00499

Be the first to review this product...
  • PCI Express Gen2 x4
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Osprey Video 95-00499

Model
Brand Osprey
Model 95-00499
Interface PCI Express Gen2 x4
Performance
Resolution Support 3G/HD:
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
720p 50, 59.94, 60

SD:
525i 59.94 NTSC
625i 50 PAL
SDI Compliance SMPTE 259/292/296/424/425
3G-SDI Level A Only
Audio Sampling Television Standard Sample Rate of 48 kHz at 24-Bit
Connection
Other Connector 1 x 3 Gb/s SD/HD/3G-A Input (BNC)
1 x Loopout
Power
Power Consumption 4.7 W Approx.
Feature
Feature Capture and play back one channel of SDI video at up to 60 fps with the Raptor Series 915 PCIe Capture Card from Osprey. This capture card offers one SDI input, which is rated at 3 Gb/s, works with SD, HD, and 3G frame sizes, and supports 16 embedded audio channels (eight stereo channels). Additionally, the card provides one loopout channel. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.

Seamless adaption to input signal changes
Cropping
Custom loss of signal insertion
Watermarking
MediaLooks SDK support
CC overlay
VBI extraction
CC extraction
Automatic signal detection
Image control (Procamp)
De-interlacing
Scaling
Frame rate conversion
Multiple cards per host computer
Text overlay or system time and date
Dual mono audio
Unified driver for all Raptor cards
Fanless design
Dimensions & Weight
Weight 4.30 oz.
Additional Information
First Listed on Newegg July 11, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

Manufacturer Contact Info
