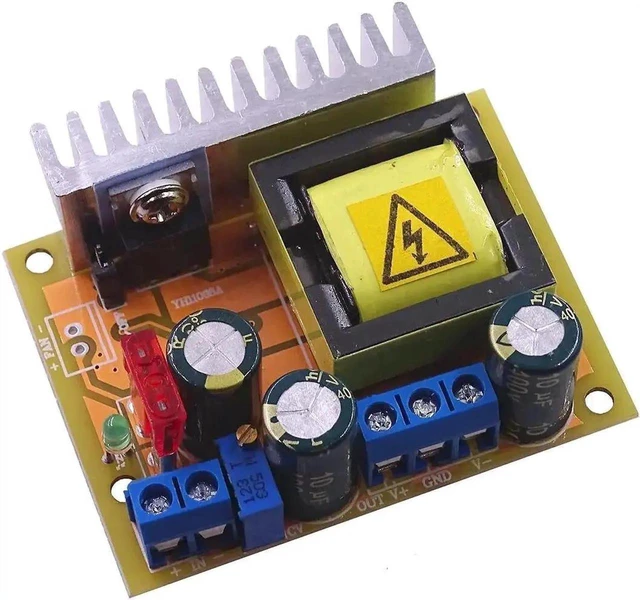

8-32V to 45-390V DC-DC Boost Converter Step Up Power Supply Module High Voltage ZVS Capacitor Charging Board(dual output)

Module Name: High Voltage boost module

Module Properties: non-isolated step-up module

Input voltage: 10-32V input (Suitable for width voltage input range)

Input Current: 5A (MAX)

Quiescent current: 15mA(when 12V to 50V, the higher the output voltage, the greater the static current. )

Output voltage: 45-390V780VDual Output continuously adjustable.

Output Current: 0.2A MAX(With the input, output, pressure related.. The higher the voltage, the smaller the output current. )

Output Power: 40W (peak 70W)

Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 75KHz

Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)

Short circuit protection: Yes. (The input fuse 10A, please do not short circuit output, otherwise damage to the rectifier. )

Overcurrent protection: yes. If the input current is more than 4.5A, reduce the output voltage.

Overvoltage protection: yes. If the output voltage is more than 410V, reduce the output voltage.

Input reverse polarity protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect. )

Installation: four 3mm screws

Connection: solderless terminals output (with shell welding output)

Module dimensions: 60 x 50 x 22 mm

The capacitor charging time measured data:

470uF 390V full time to 2 seconds
