AOSTIRMOTOR is committed to the design, production and sales of electric bicycles, motorcycles, electric vehicles and peripheral products.
Our electric bicycles have strong power and complete equipment. You can easily ride on the beach, snow, gravel, rain, dirt, sand or even ice and enjoy the ultimate electric bike adventure.

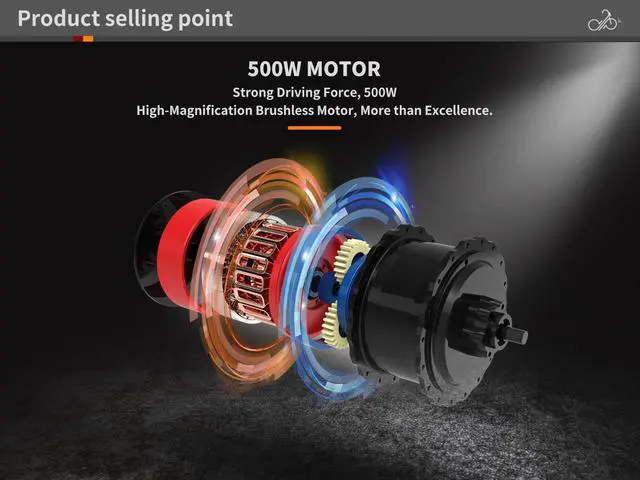

500W Motor
500W peak power high speed brushless motor
High efficiency
Quieter, lighter, smoother
With speeds up to 25 mph

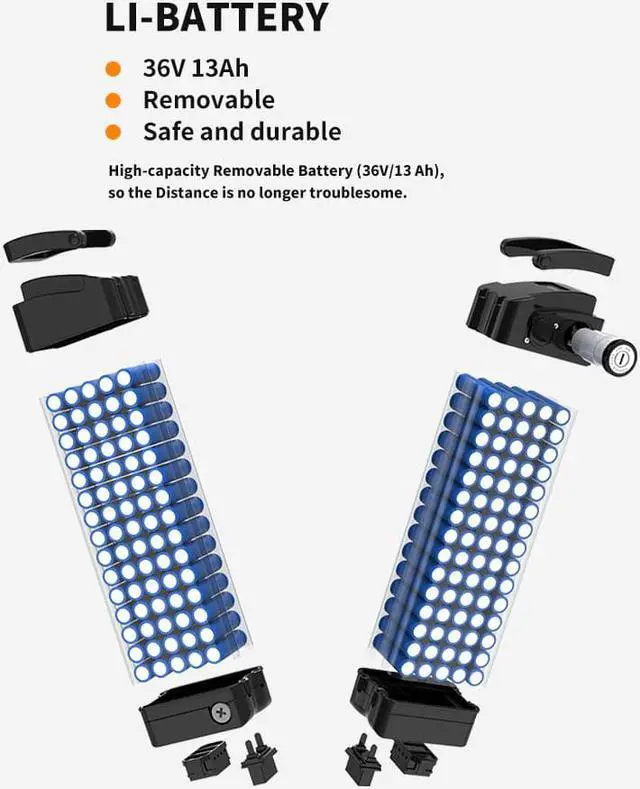

36V 13AH Removable Lithium Battery
Easy to remove
It only takes 4-6 hours to fully charge
Reach a range of up to 15-20 miles per charge
886 Display
LCD Display Panel-battery power, speed, mileage, gear, wattage, etc.

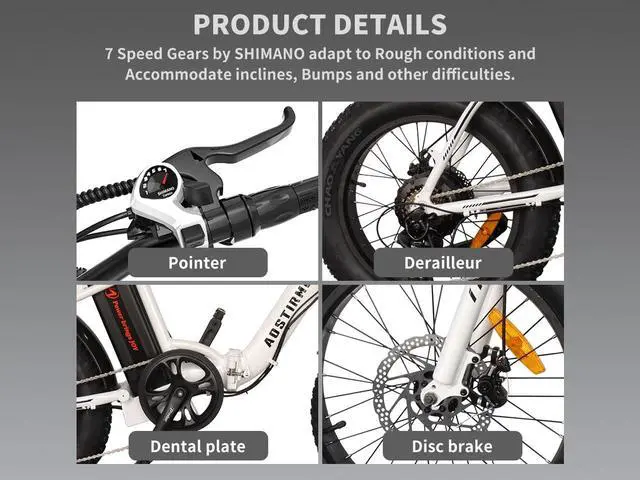

7-Speed Gears&Dual Disc Brakes
Shift between seven gears to help you conquer a variety of terrain.
This electric bike comes with dual disc brakes that put control and safety at your fingertips

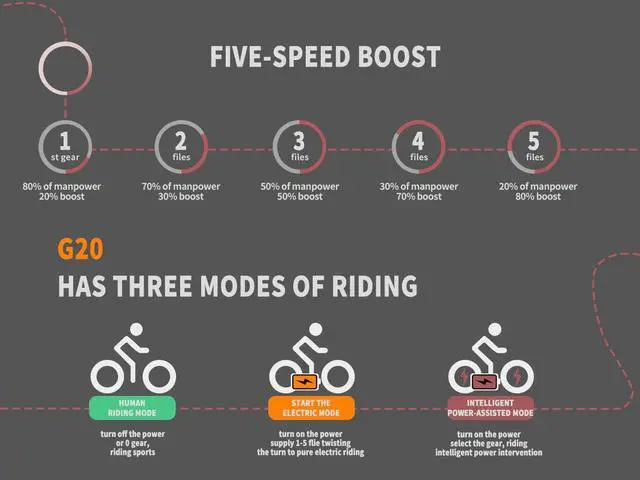

Three Modes of Riding
Electric mode-suitable for long-distance travel
Pedal assisted mode-provides a personalized riding experience
Fitness mode-easy to exercise
6061 Aluminum Alloy Frame
The enhanced ergonomics and improved handling promise a smoother, more confident ride
Fat Tire
20*4 fat tire
Anti-skidding,adapt to snow, sand and other complex topography

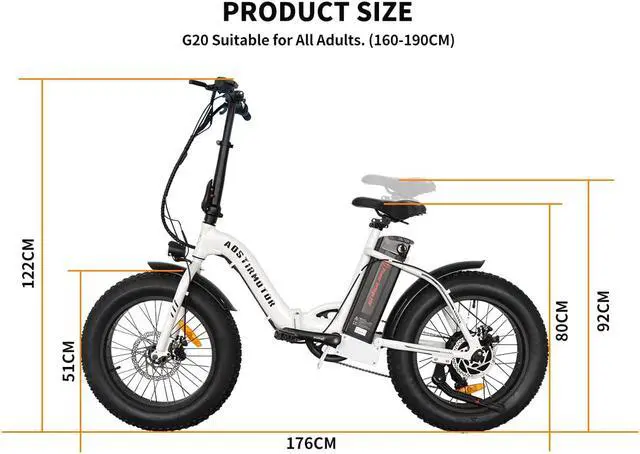

Size
Suitable for people 5'4 - 6'2 in height
Weight less than 270LBS
| Handlebar |
31.8*660mm |
| Stem |
28.6*31.8*110mm |
| Disc Brake |
Front 180 & Rear 160 |
| Derailleur |
7 Speed SHIMANO/Sunrace |
| Light |
With Front light |
| Products |
|
|
|
|
| Motor |
750W |
750W |
1500W |
750W |
| Battery |
48V 13AH |
48V 15AH |
48V 15AH |
48V 13AH |
| Size |
26*4inch |
26*4inch |
26*4inch |
26 *4inch |
MOTOR ,BATTERY CAPACITY &CONTROLLER
Motor
500 Watt brushless gear motor.
In the fully charged and pure power mode, the riding distance is 25-35km
Battery size
36V 13Ah Lithium Battery
Controller
36V 22A Intelligent Controller Built In
TIRE ,CHARGER &DISPLAY
Tire
20x4.0 inch Fat Tire.It can adapt to snow, sand and other complex topography.
Charger
110-220V (It takes 4-6 Hours to fully charge the battery,Recharge regularly to extend the life of battery)

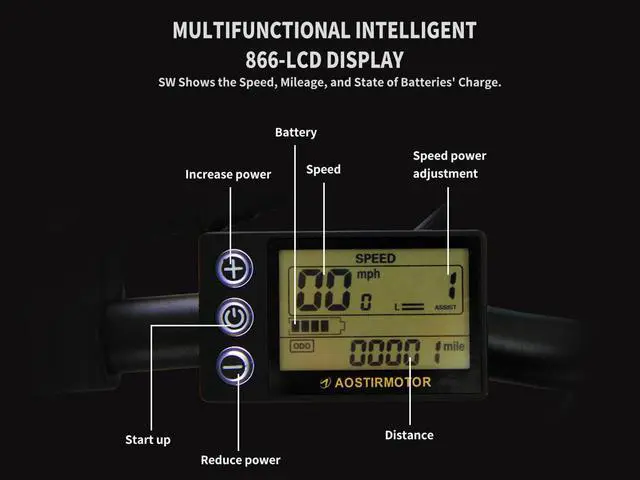

Display
886-LCD
You can set the wheel diameter, speed, backlight, mileage unit, riding mode, PAS gear.LED screen displays battery power, speed, mileage, gear, wattage.
RIDING MODE & MAX SPEED
Riding mode
Three riding modes:Pedal Mode / Boost Mode / Power Mode
Max Speed
In the fully charged state, the maximum speed can reach 25mp/h
Please Note:
Top Speed Test conducted with a 165 lbs (75 kg) rider going on a flat and dry road surface with no headwind at maximum tire pressure.Many other factors will affect range especially if riding at Top Speed and Climbing Steep Road or Trail.
This Ebike is not recommended for riders under the age of 16. Given the high speed that this Ebike can travel, wearing a helmet is highly recommended.
OPTIMAL USE & CLIMBING ANGLE
Optimal use
Ideal Conditions:
Regular Street Roads as well as Fireroad Trails and Snow/Muddy Trails/Soft Sandy Beaches (Thanks to the Fat Off Road Tires)
Non-Ideal Conditions:
Consistent Icy Roads and Slippery/Rocky Trails
(Due to the Fat, Floating Tires. To enhance grip in these non-ideal situations with your Fat Tire bike, we recommend to lower the tire pressure to about 10 PSI for maximum traction)
Climbing angle
0-10 Degree
Please Note:10 Degree Slope. Anything beyond that angle will cause the motor to burnout/overheat (void warranty due to misuse/abuse). If you have lots of steep hills in? your area, we recommend any Fat Tire Ebike with a Mid Drive Motor.
OTHER INFORMATION
Turn-Handle:Rotary
Power sensor:PAS intelligent pedal assistant system
Fork:Aluminum Alloy Rigid Fork
Frame:6061 Aluminum Alloy
Handlebar:31.8*660mm
Stem:28.6*31.8*110mm
Rear Rack:NO (Optional)
Brake:F/R Mechanical Brake (With 4pcs Brake Pads)
Disc Brake:Front 180 & Rear 160
Brake lever:Universal
Rim form:Spoke wheel
Rim Material:Aluminum alloy
Gear Shift Lever:7 Speed Dial SHIMANO/Sunrace
Derailleur:7 Speed SHIMANO/Sunrace
Throttle:With
Front suspension:NO
Rear suspension:NO
Structure shock absorption:Lightweight Aluminum Alloy Frame
Saddle:Folding Saddle AL6061 T4T6 27.2*250mm
Tube Clamp:D1=30mm D2=38mm
Light:With Front light
Pedal:Folding Pedal
Footrest:Dedicated
Fender:With
Saddle Height:80-92cm
Weight Capacity:300 LB
PACKAGE CONTENTS & ACCESSORIES
Electric Bike*1
Li-ion Battery*1
Tool Kit*1
Manual*1
Charger*1
Pedal*1
FACTORY PRODUCTION, SHIPPING &WARRANTY INFO
Production Terms
This 20" Fat Ebike is a"IN STOCK"and ready for shipment.??We can process your order within 24 hours
Shipping Terms
We usually use FEDEX or UPS logistics providers to transport packages, and the delivery time is about a week
Specific Warranty Info
All of electric bikes are guaranteed and backed by our technical assistance and considerate service.
During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof. We can also offer training
Frame/Battery/Motor:1 Year
All Other Parts:1 Year
Please Note:
Warranty Only applies against Manufacturer Defect. The following are NOT covered under Manufacturer Warranty: Ebike that has extensive water damage, broken parts sustained from misuse.
