AOSTIRMOTOR is committed to the design, production and sales of electric bicycles, motorcycles, electric vehicles and peripheral products.
Our electric bicycles have strong power and complete equipment. You can easily ride on the beach, snow, gravel, rain, dirt, sand or even ice and enjoy the ultimate electric bike adventure.

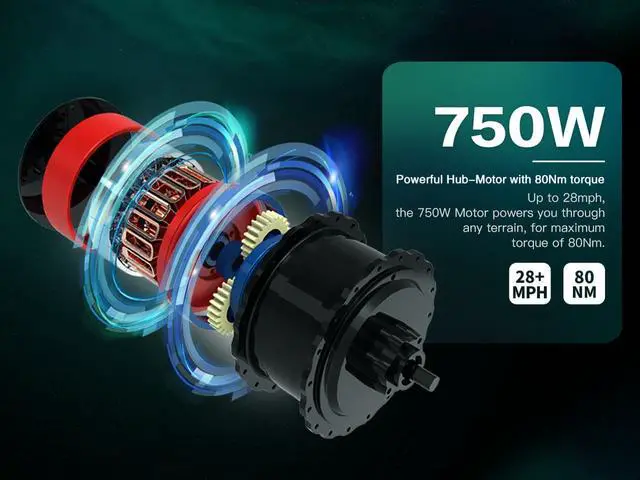

750W Motor
750W peak power high speed brushless motor
Longer life span and faster starting speed
With speeds up to 28 mph
48V 13AH Removable Lithium Battery
Easy to remove
It only takes 4-6 hours to fully charge
Reach a range of up to 20-30 miles per charge
SW-LCD Display
LCD Display Panel-battery power, speed, mileage, gear, wattage, etc.
Headlight switch-press "up" key for 3 seconds
A USB port under the meter

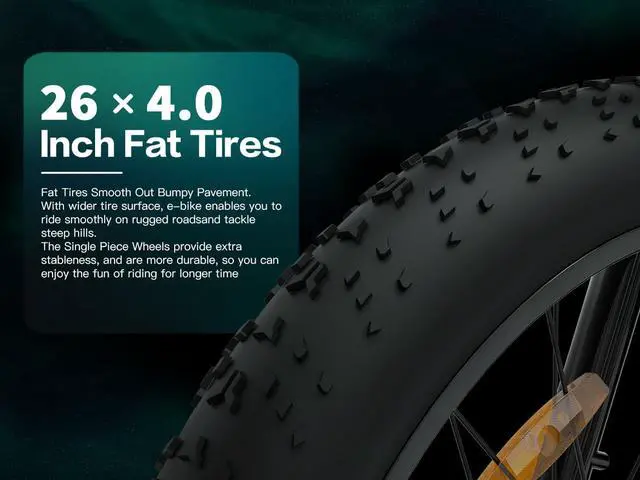

Fat Tire
26*4 fat tire
Anti-skidding,adapt to snow, sand and other complex topography
Comfort Shock Absorption
High-performance, shock-absorbing
Take your original riding comfort to the next level
Better handling, improved cornering capabilities, and an overall smoother riding experience
Three Modes of Riding
Electric mode-suitable for long-distance travel
Pedal assisted mode-provides a personalized riding experience
Fitness mode-easy to exercise
6061 Aluminum Alloy Frame
The enhanced ergonomics and improved handling promise a smoother, more confident ride

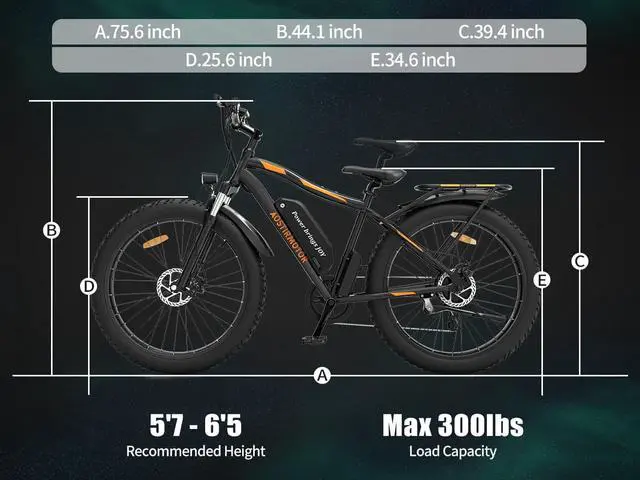

Size
Suitable for people 5'7 - 6'5 in height
Weight less than 300LBS
| Products |
|
|
|
|
| Motor |
500W |
750W |
1500W |
750W |
| Battery |
36V 13AH |
48V 13AH |
48V 15AH |
48V 15AH |
| Size |
20*4inch |
26*4inch |
26*4inch |
26*4inch |
1.Any problem after receiving our goods,please contact us before leaving Neutral/Negative feedback.We promise to help you solve it asap,and make you feel satisfactory absolutely.
2.Please DO NOT leave negative feedback without asking for help.
MOTOR,BATTERY CAPACITY &CONTROLLER
Motor
750 Watt brushless gear motor. In the fully charged and pure power mode, the riding distance is 25-35km
Battery size
48V 13Ah Lithium Battery
Controller
48V 22A Intelligent Controller Built In
TIRE,CHARGER &DISPLAY
Tire
26x 4.0 inch Fat Tire. It can adapt to snow, sand and other complex topography.
Charger
110-220V (It takes 4-6 Hours to fully charge the battery, Recharge regularly to extend the life of battery)
Display
SW-U-LCD
You can set the wheel diameter, speed, backlight, mileage unit, riding mode, PAS gear.LED screen displays battery power, speed, mileage, gear, wattage.
RIDING MODE & MAX SPEED
Riding mode
Three riding modes: Pedal Mode / Boost Mode / Power Mode
Max Speed
In the fully charged state, the maximum speed can reach 28mp/h
Please Note
Top Speed Test conducted with a 165 lbs (75 kg) rider going on a flat and dry road surface with no headwind at maximum tire pressure. Many other factors will affect range especially if riding at Top Speed and Climbing Steep Road or Trail. This Ebike is not recommended for riders under the age of
16. Given the high speed that this Ebike can travel, wearing a helmet is highly recommended.
FRONT SUSPENSION FORK & SHIMANO 7-SPEED GEARS
Front suspension fork
Brand: ZOOM/MOZO.
A high-performance, shock-absorbing, front suspension fork can be yours to take your original riding comfort to the next level. You can expect better handling, improved cornering capabilities, and an overall smoother riding experience.
Shimano 7-speed gears
Shimano7-Speed gear increases stronger hill-climbing power, further range variation, and greater terrain adaptability.
OTHER INFORMATION
Turn-Handle: Rotary Power sensor: PAS intelligent pedal assistant system
Frame: 6061 Aluminum Alloy Handlebar: 31.8 *660mm
Stem: 28.6 * 31.8 *110mm Rear Rack: With
Brake: F/R Mechanical Brake (With 4pcs Brake Pads) Disc Brake: Front 180 & Rear 160
Brake lever: Universal Rim form: Spoke wheel
Rim Material: Aluminum alloy Derailleur: 7 Speed SHIMANO/Sunrace
Throttle: With Front suspension: Fork shock absorption
Rear suspension: No Saddle: City type; AL6061 T4T6 27.2 *250mm
Structure shock absorption: Lightweight Aluminum Alloy Frame Tube Clamp: D1=30mm D2=38mm
Light: With Front light Pedal: Universal
Footrest: Universal Fender: With
Saddle Height: 88-100cm Weight Capacity: 300 LB
PACKAGE CONTENTS & ACCESSORIES
Electric Bike*1,Li-ion Battery*1,Tool Kit*1 Manual*1,Charger*1 Pedal*1
FACTORY PRODUCTION,SHIPPING &WARRANTY INFO
Production Terms
This 26" Fat Ebike is a "IN STOCK" and ready for shipment.We can process your order within 24 hours
Shipping Terms
We usually use FEDEX or UPS logistics providers to transport packages, and the delivery time is about a week
Specific Warranty Info
All of electric bikes are guaranteed and backed by our technical assistance and considerate service.During the one-year warranty, any of the parts could be replaced upon receipt of your photos for proof.
Please Note:
Warranty Only applies against Manufacturer Defect. The following are NOT covered under Manufacturer Warranty: Ebike that has extensive water damage, broken parts sustained from misuse.
