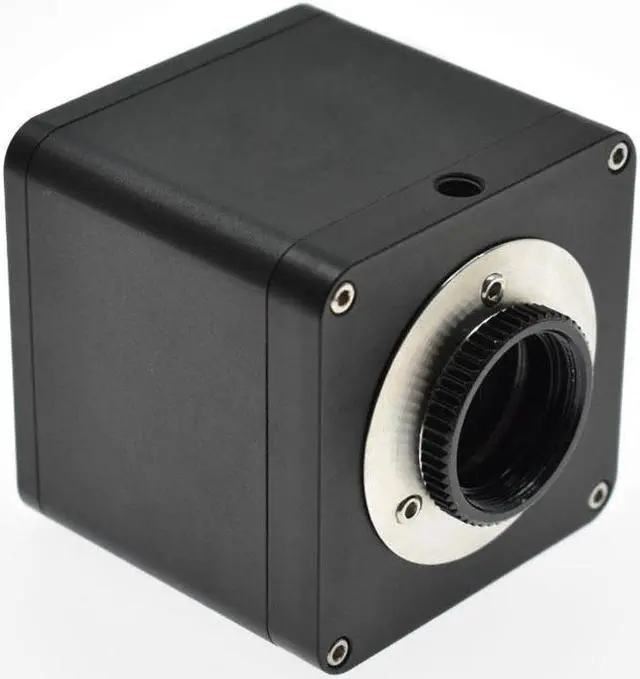

2019 NEW 1080P 2K 60fps Electronic Industry Microscope C Mount Video HD Microscope HDMI Camera For Phone Repair

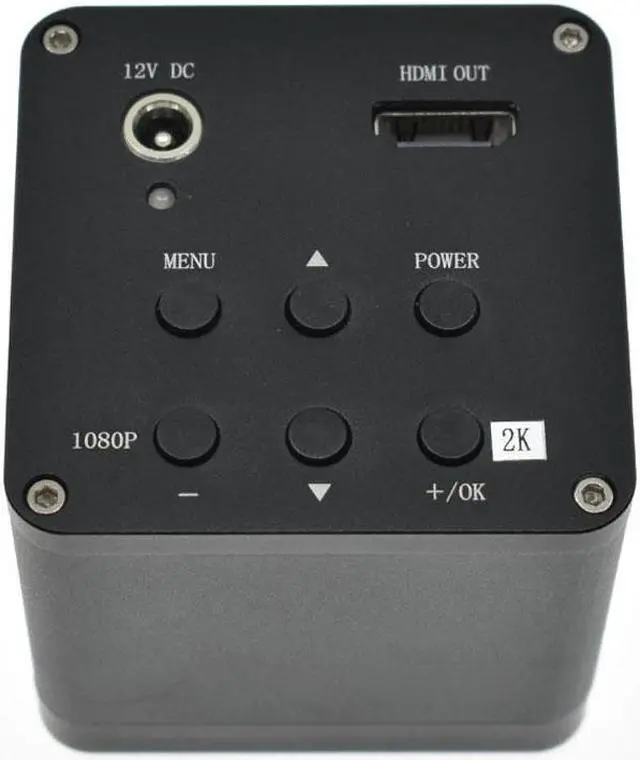

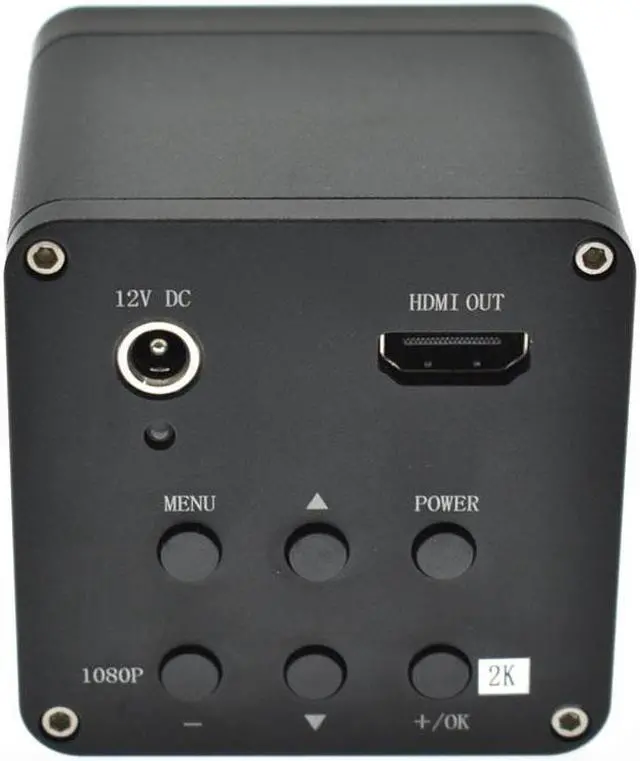

Menu function:1.60 frames / sec @1080P2. Wide Dynamics (WDR)3. Crosshair: 1-8 sets, color optional, adjustable sizeMenu operation: Pressing the MEMU button once will open the main menu, and pressing the MEMU button again will close the main menu. After opening the main menu, you can see submenus such as exposure, white balance, digital noise reduction, and marker lines. Use the / keys to move the cursor to select the submenu to enter, and press +/OK to enter the submenu pointed to by the cursor. If you enter the exposure submenu, you will see a lot of menu items: mode (auto), shutter speed, auto gain control, sensitivity, auto exposure brightness, etc.; use the +/- keys to adjust the value. If you enter the White Balance submenu, you can see that the menu items are: Mode (Auto White Balance), Do a White Balance, Blue, Red, Speed, etc.; use the +/- button to select or deselect This option. To go back to the main menu just enter the return item. Crosshairs move and change color: After the menu is closed, use the / keys to select the line to move. The movable line is the dotted line. Use the +/- keys to move the movable line up or down or left and right. Change color: Line number -> Select the line to change the color (1-8) -> Line color -> Select color. Several ways to adjust the best image effects: 1. Adjust the brightness of the LED light source to make the brightness of the image reach a comfortable state. 2. If the object is a non-ferrous metal or feel color deviation, change the auto white balance mode to manual white balance mode. Put a blank sheet of paper under the lens, open the main menu, white balance -> mode select "manual white balance" -> point to "do a white balance" -> press + / OK. 3. If you pay attention to the details of the object, go to the "Image Adjustment" item -> find "Edge Enhancement" and use the +/- keys to adjust the value. 4. Note: When the 2K display is shipped from the factory, the whole picture will be brighter. It is recommended to find a familiar industrial camera for reference and change the display mode or brightness. Common problems and solutions: 1. If the indicator light is green, but the display has no image, please press and hold the 1080P/- button for 5 seconds, then start the monitor. 2. The parameters are disordered and restored to the factory state: "Settings" -> "Factory Reset" 3. The LCD display is incomplete and has black edges. Please press the AUTO button on the display. 4, switch to 2K resolution 2560X1440 30H, can not display properly on the 2K display, from time to time will appear black screen or flash line appears on the screen. If the monitor has two HDMI connectors, try changing to another HDMI connector or changing an HDMI cable, preferring the original HDMI cable for the 2K monitor. 5, "Settings" -> "Video Output Mode" After selecting the resolution, the display can not be displayed, long press and hold the 1080P / - button for 5 seconds. Camera parameters:Sensor type: 4 megapixels, 1/2.8" CMOS colorEffective pixels: 1920H*1080VNumber of data bits: 12bitPixel size: 2.9m*2.9mFrame rate: 60 frames / secClarity: Maximum resolution above 900TV lineScanning method: progressiveShutter type: electronic shutterDynamic range >90dBSignal to noise ratio: 55dBSensitivity: 2.0 V/lux-sec (550 nm)Exposure mode: manual / automaticWhite balance: automatic / manualLens interface : C/CSVideo interface: standard HDMI interfaceOutput resolution: 1920*1080Power supply : DC 12V/1ASize: 63*63*63mm
