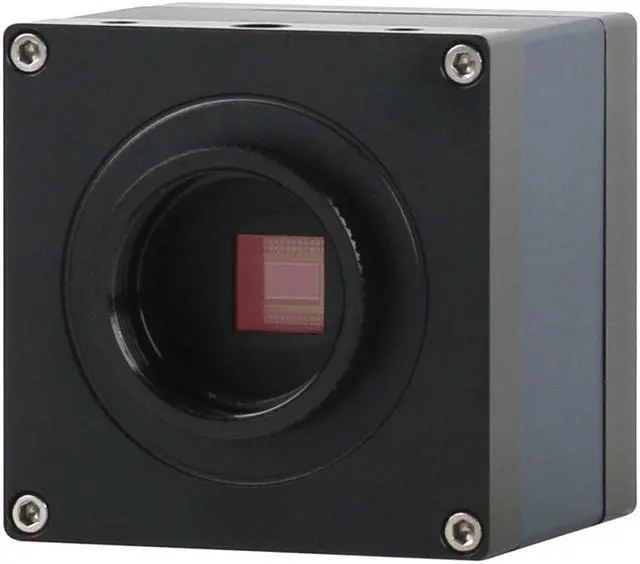

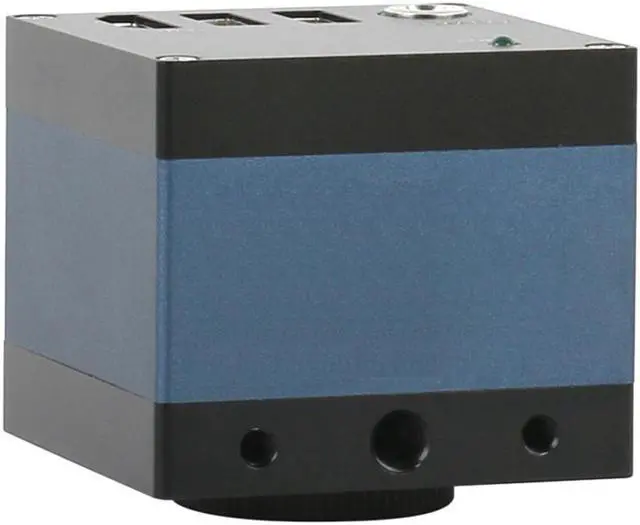

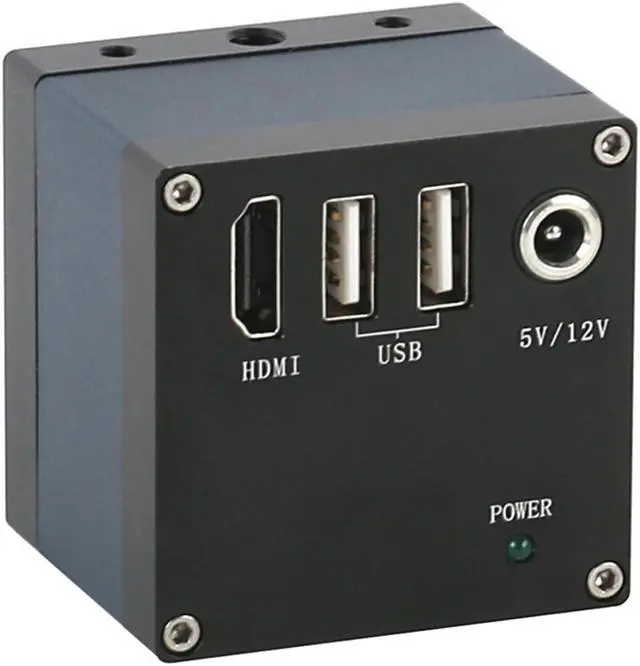

HD 2K HDMI Measurement Video Microscope Camera U Disk Storage Video Recorder 300X C-Mount Lens For Phone PCB Soldering
- Specification:Model:Camera with HDMI outputSensor:4 million pixelsEffective Pixels: 2560H*1440VOutput:HDMI portOutput:U disk storage portPicture Video Storage:SupportData Bits:12bitpixel size:2.0m*2.0mFrame rate:30F/SDefinition:1200TV linesScanning mode:Line by lineShutter Type:Electronic ShutterDynamic Range:90dBSignal-to-noise ratio:55dBSensitivity:2.0 V/lux-sec (550nm)Exposure:Manual Exposure,automatic exposureWhite balance:automatic / manualOutput resolution:1920*1080 /2560*1440 (2k)Lens Mount:C/CSSize:53*53*45mmPower supply: 12V/1AOSD: English/Chinese
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

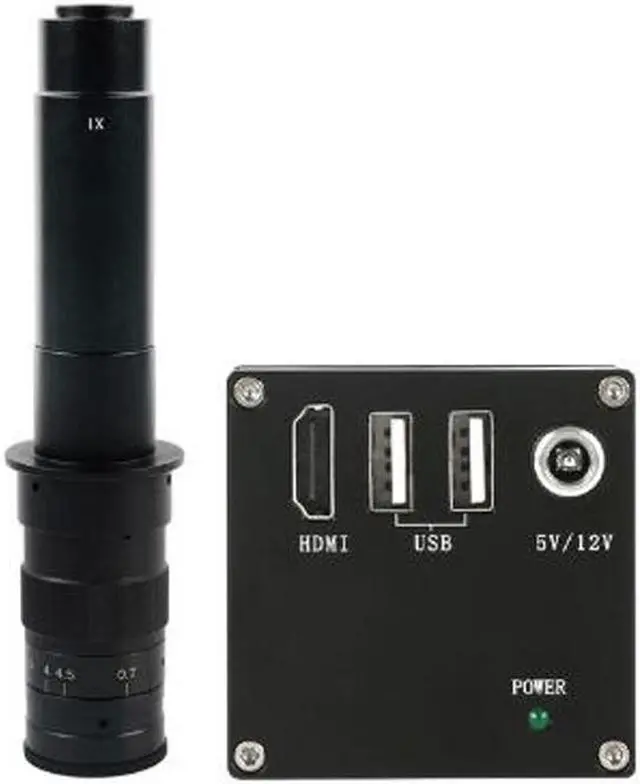

300X
C-MOUNT Lens: Working
distance: 100mm
-105mmConnector: C
mountZoom: continouasly variable zoomObjective
Magnification: 0.7X - 5X(about 10 - 300X)
Eyepiece lens adapter: 1XVisual
field:
2mm-100mmSize: 240mm (L) * 50mm (DIA)
C-mount lens: 630gMenu

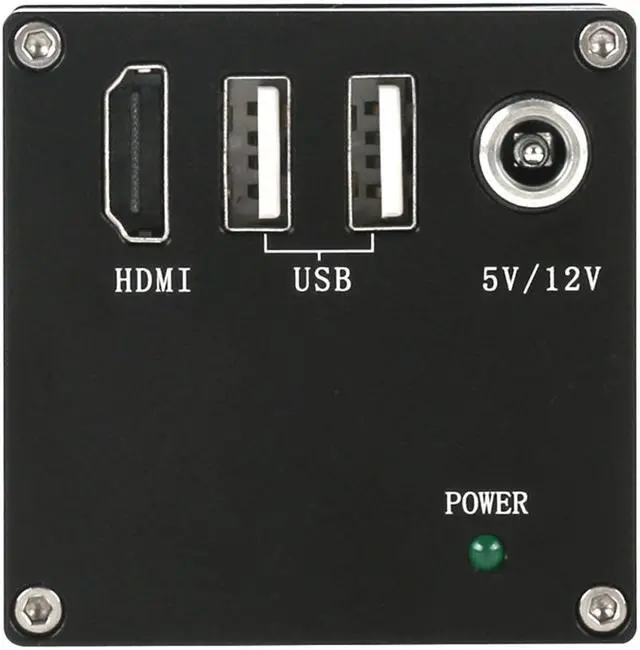

features: 1. Two USB ports (one for USB mouse, one for U disk)2. Save the picture to the U disk, or browse the pictures and videos in the U disk3.
Crosshair: 1-12 groups, optional colors, adjustable size4.
Freeze function: two split screen, four split screen5.
Scale: The number of scale pixels in each interval can be adjusted arbitrarily6.
Measurement function: the distance between two points, rectangle, circle, angle, etc.
Specification:
Model: Camera with
HDMI outputSensor: 4 million pixelsEffective
Pixels:
2560H*1440VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportData
Bits: 12bitpixel
size: 2.0
m* 2.0 mFrame rate:
30F/SDefinition: 1200TV
linesScanning mode: Line by lineShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: automatic
/ manualOutput resolution: 1920*1080 /2560*1440 (2k)
Lens Mount:
C/CSSize: 53*53*45mmPower
supply:
12V/1AOSD: English/Chinese
C-MOUNT Lens: Working
distance: 100mm
-105mmConnector: C
mountZoom: continouasly variable zoomObjective
Magnification: 0.7X - 5X(about 10 - 300X)
Eyepiece lens adapter: 1XVisual
field:
2mm-100mmSize: 240mm (L) * 50mm (DIA)
C-mount lens: 630gMenu
features: 1. Two USB ports (one for USB mouse, one for U disk)2. Save the picture to the U disk, or browse the pictures and videos in the U disk3.
Crosshair: 1-12 groups, optional colors, adjustable size4.
Freeze function: two split screen, four split screen5.
Scale: The number of scale pixels in each interval can be adjusted arbitrarily6.
Measurement function: the distance between two points, rectangle, circle, angle, etc.
Specification:
Model: Camera with
HDMI outputSensor: 4 million pixelsEffective
Pixels:
2560H*1440VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportData
Bits: 12bitpixel
size: 2.0
m* 2.0 mFrame rate:
30F/SDefinition: 1200TV
linesScanning mode: Line by lineShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: automatic
/ manualOutput resolution: 1920*1080 /2560*1440 (2k)
Lens Mount:
C/CSSize: 53*53*45mmPower
supply:
12V/1AOSD: English/Chinese
