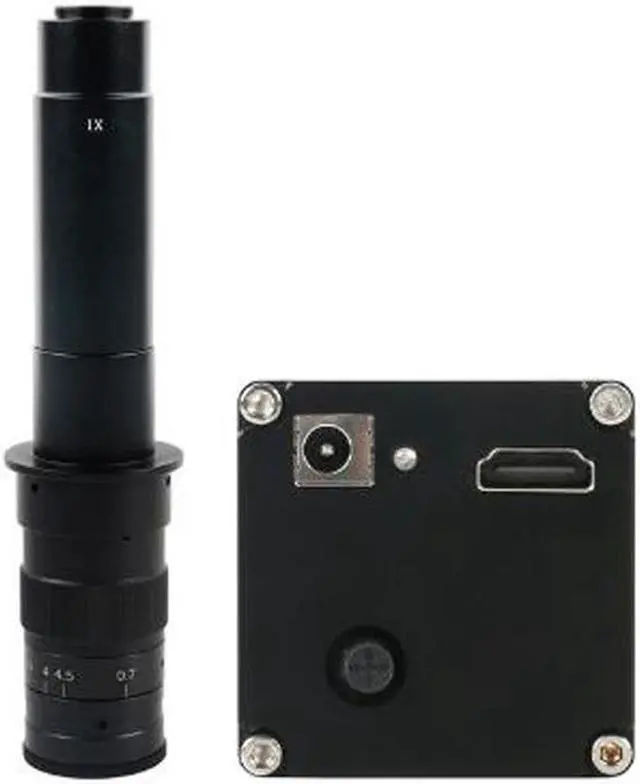

2020 NEW 1080P HDMI Electronic Digital Industrial Video Microscope & 300X C-Mount Lens For Phone Repair Soldering

300X
C-MOUNT Lens: Working
distance: 100mm
-105mmConnector: C
mountZoom: continouasly variable zoomObjective
Magnification: 0.7X - 5X(about 10 - 300X)Eyepiece lens adapter: 1XVisual
field:
2mm-100mmSize: 240mm (L) * 50mm (DIA)
C-mount lens: 630gNavigation key operation definition1. Up and down (or back and forth) push button: the main function menu cursor moves up and down. 2.
Left and right push button: Sub-function switch, sub-function operation.
Center push button: Function confirmation, sub-function operation, etc. Connect the camera 1. Connect the camera to the monitor with an HDMI cable. Since the camera video resolution is 1920*1080, it is required that the LCD screen should be more than 22 inches. 2.12V DC power supply. 3.
Color correction (White Balance): Take a blank sheet of white paper and place it in front of the camera. Operate the navigation key to select the menu cursor to the P bar, left push button, WB with white color, the camera start white balance automatically. After the correction, the menu box will automatically revertto the original color.
Note: Be sure this operation must after other parameters to be set; otherwise it may affect the color. 4.
Auto Exposure: Operate the navigation key to select the menu cursor to the P bar, right push button, AE with white color. After the correction, the menu box will automatically revert to the original color. FunctionCMOS Resolution2 million pixelsResolution1920*1080Pixel Size 2.75 mOptical Size1/3"Color
Depth 12:12: 12 RGB
Frame Rate60 fpsColor AdjustManual / AutoLuminance AdjustManual / Autoreference line8 (customizable)
Grid line: 8 horizontal lines, 8 vertical linesThey can be changed six colorsLens jack: C-mountOSD menuHavePower InputDC 12V, 2ADimension70mm x 52mm x 52mmOperation Moisture5%85%Operation Temperature0~60COutput InterfaceHDMI Output
