$187.87
Make an offer
Ships from China.
Meet Your Seller
16MP 1080P HDMI Industrial Electronic Digital Video Microscope & 300X C-Mount Lens Support U disk Storage Video
- Specification:Model: Camera with HDMI outputEffective Pixels: 1920H*1080VOutput:HDMI portOutput:U disk storage portPicture Video Storage:SupportHDMI Image resolution:1280X1024 60Hz1366X768 60Hz1440X900 60Hz1920X1080 60HzData Bits:12bitpixel size:2.8m*2.8mFrame rate:60F/SDefinition:900TV linesScanning mode:Advance graduallyShutter Type:Electronic ShutterDynamic Range:90dBSignal-to-noise ratio:55dBSensitivity:2.0 V/lux-sec (550nm)Exposure:Manual Exposure,automatic exposureWhite balance:AUTOLens Mount:C/CSSize:53*53*45mmPower supply: 12V/1AMenu features:Brightness, contrast, color saturation, brightness, exposure, automatic exposure, vertical mirror, horizontal mirror, Ink, freezer, negative, black and white, the number of cross line (8), line colorOSD: English/Chinese
+
+
Overview
Specs
Reviews
300X

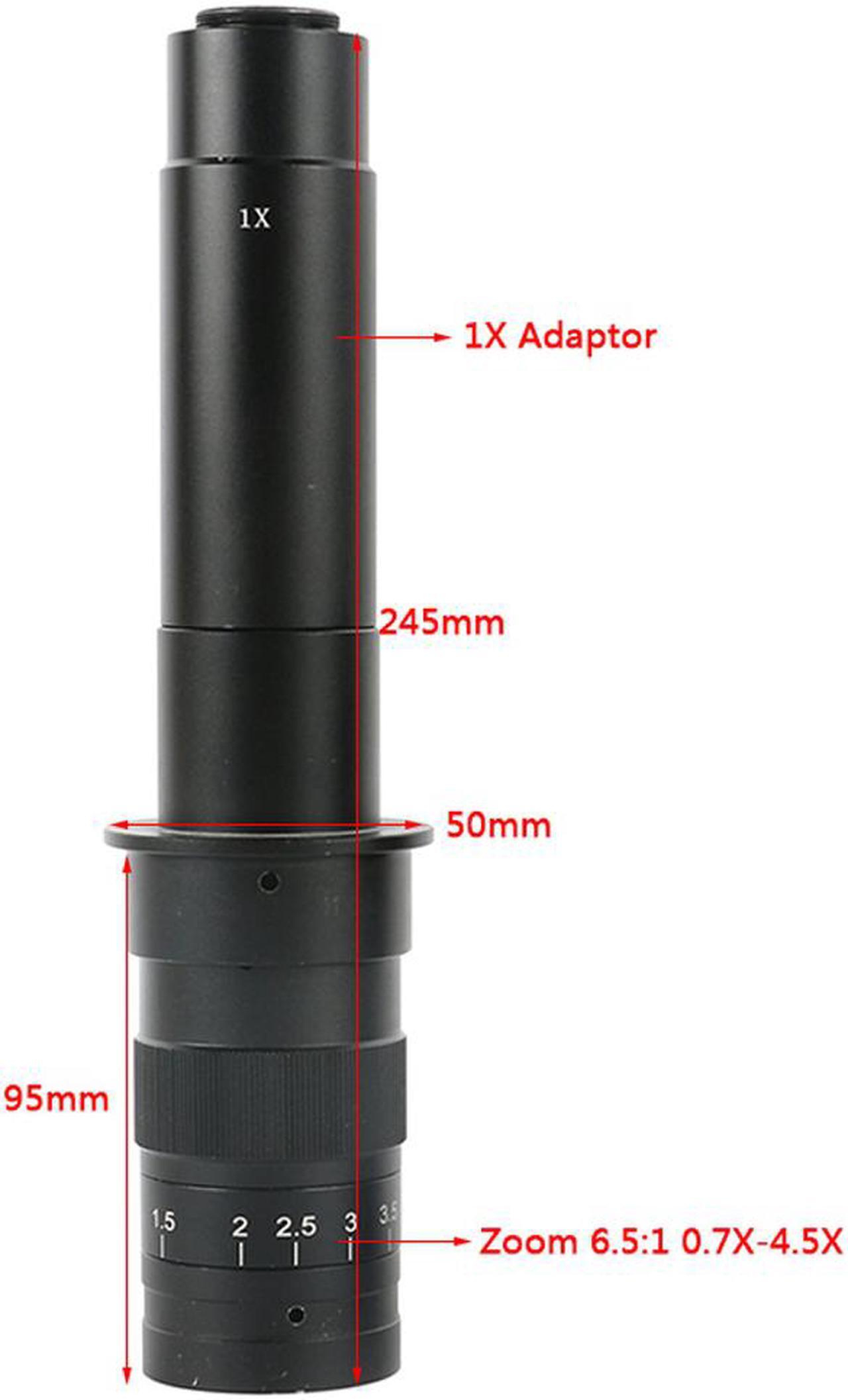

C-MOUNT Lens: Working
distance: 100mm
-105mmConnector: C
mountZoom: continouasly variable zoomObjective
Magnification: 0.7X - 5X(about 10 - 300X)
Eyepiece lens adapter: 1XVisual
field:
2mm-100mmSize: 240mm (L) * 50mm (DIA)
C-mount lens: 630g
Specification:
Model: Camera with
HDMI outputEffective Pixels:
1920H*1080VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportHDMI
Image resolution: 1280X1024 60Hz1366X768 60Hz1440X900 60Hz1920X1080 60HzData
Bits: 12bitpixel
size: 2.8
m* 2.8 mFrame rate:
60F/SDefinition: 900TV
linesScanning mode: Advance graduallyShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: AUTO
Lens Mount:
C/CSSize: 53*53*45mmPower
supply: 12V/1AMenu
features: Brightness, contrast, color saturation, brightness, exposure, automatic exposure, vertical mirror, horizontal mirror, Ink, freezer, negative, black and white, the number of cross line (8), line
colorOSD: English/Chinese
C-MOUNT Lens: Working
distance: 100mm
-105mmConnector: C
mountZoom: continouasly variable zoomObjective
Magnification: 0.7X - 5X(about 10 - 300X)
Eyepiece lens adapter: 1XVisual
field:
2mm-100mmSize: 240mm (L) * 50mm (DIA)
C-mount lens: 630g
Specification:
Model: Camera with
HDMI outputEffective Pixels:
1920H*1080VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportHDMI
Image resolution: 1280X1024 60Hz1366X768 60Hz1440X900 60Hz1920X1080 60HzData
Bits: 12bitpixel
size: 2.8
m* 2.8 mFrame rate:
60F/SDefinition: 900TV
linesScanning mode: Advance graduallyShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: AUTO
Lens Mount:
C/CSSize: 53*53*45mmPower
supply: 12V/1AMenu
features: Brightness, contrast, color saturation, brightness, exposure, automatic exposure, vertical mirror, horizontal mirror, Ink, freezer, negative, black and white, the number of cross line (8), line
colorOSD: English/Chinese
