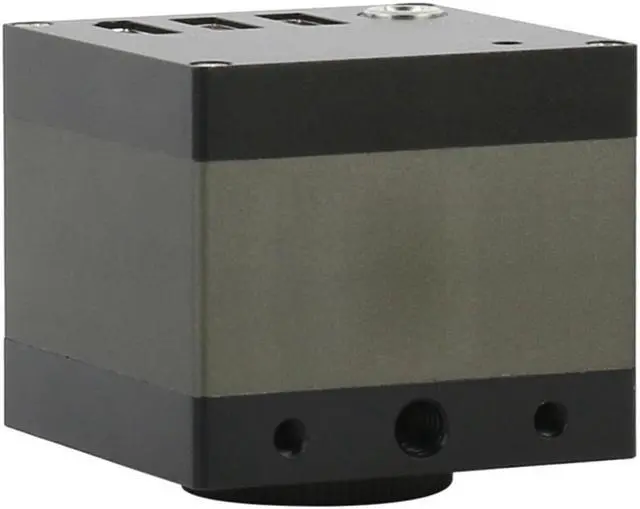

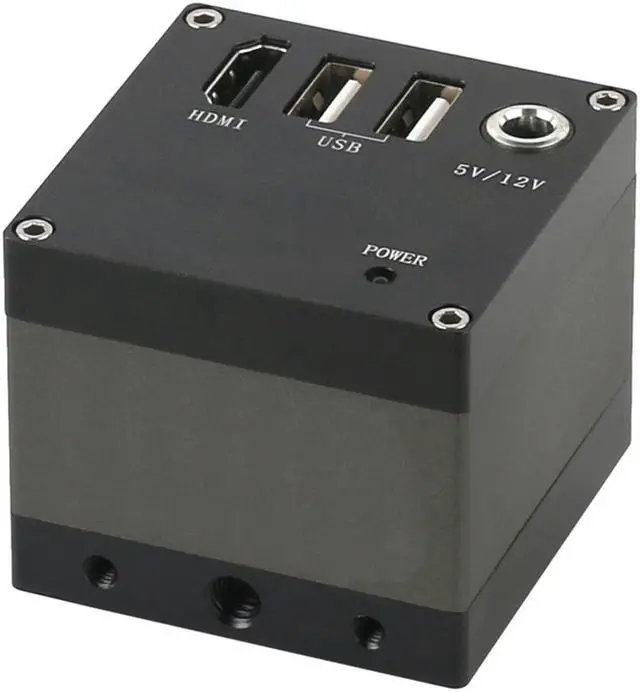

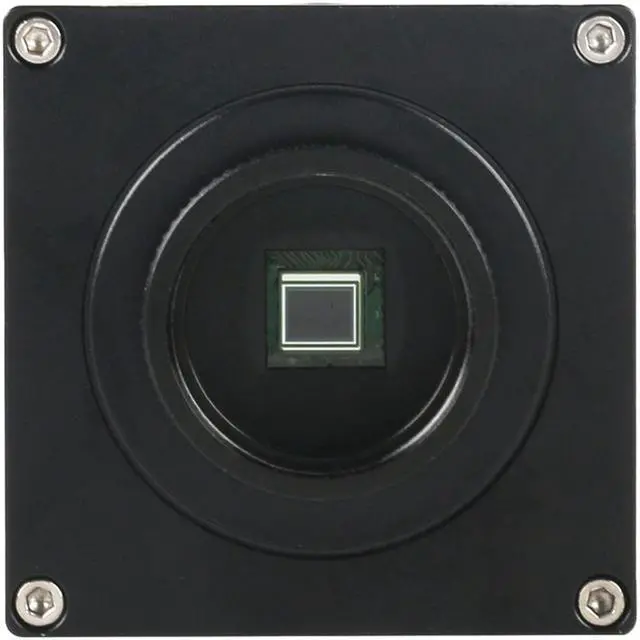

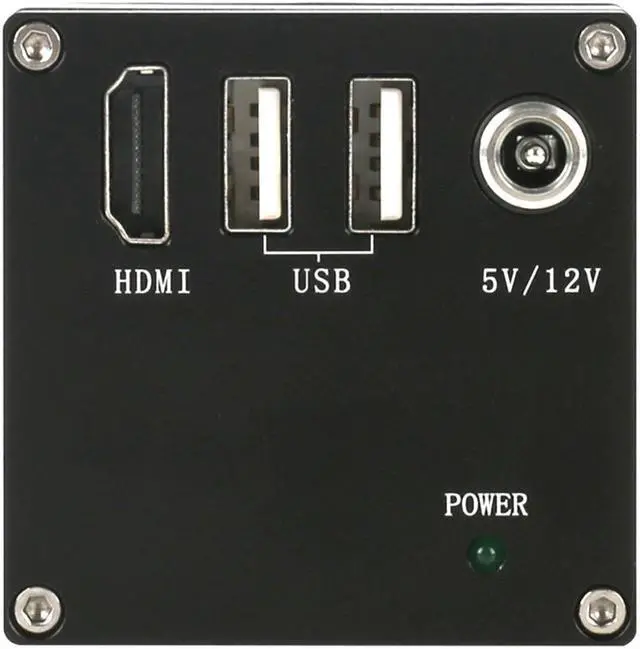

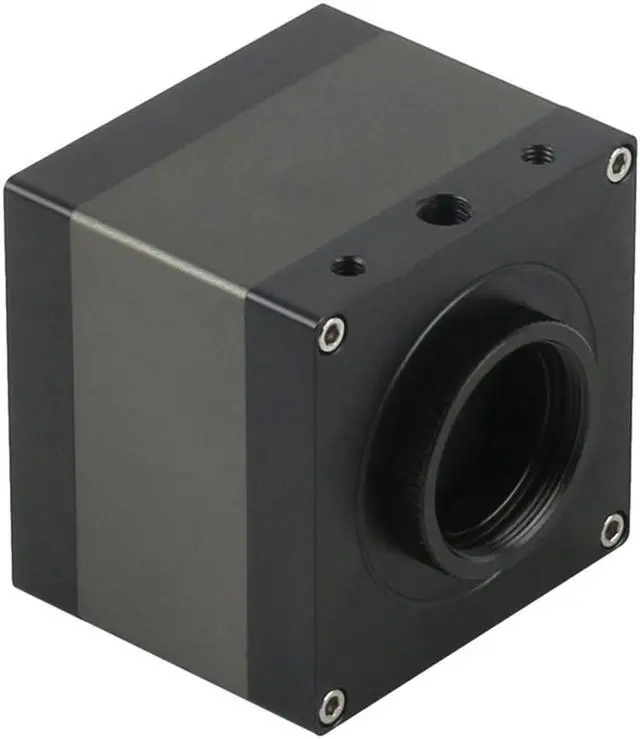

2MP 1/2.8" 1080P 60F/S HDMI Industrial Video Microscope Camera & 180X C-Mount Lens For Phone Tablet PC PCB IC Observe Soldering
- Menu features:1. Two USB ports (one for USB mouse, one for U disk)2. Save the picture to the U disk, or browse the pictures and videos in the U disk3. Crosshair: 1-12 groups, optional colors, adjustable size4. Freeze function: two split screen, four split screen5. Scale: The number of scale pixels in each interval can be adjusted arbitrarily6. Measurement function: the distance between two points, rectangle, circle, angle, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
180X

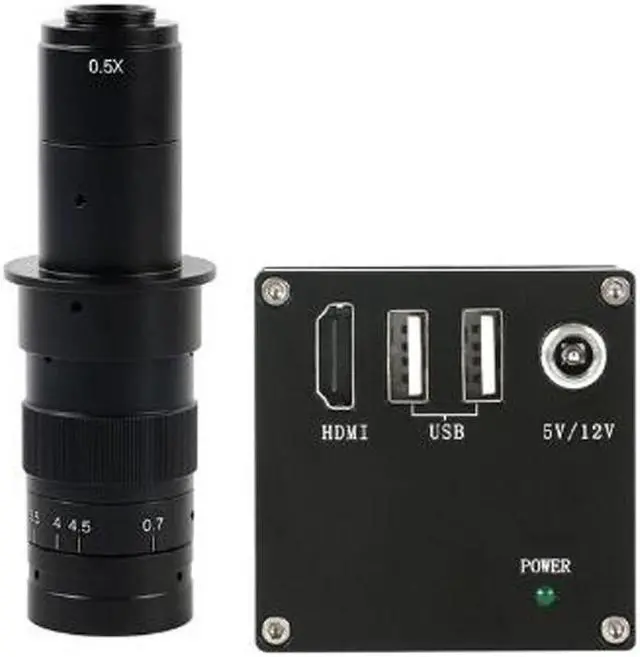

C-MOUNT Lens: Working
distance: 100mmzoom c-mount Lens 0.5X
C-mount adapterzoom ratios:
6.5: 1Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)Size: 180mm (L) * 50mm (DIA)
Weight:
500gSpecification:
Model: Camera with
HDMI outputSensor: 2 million pixelsEffective
Pixels:
1920H*1080VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportData
Bits: 12bitpixel
size: 2.9
m* 2.9 mFrame rate:
60F/SDefinition: 900TV
linesScanning mode: Advance graduallyShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: automatic
/ manualOutput resolution: 1920*1080Lens
Mount:
C/CSSize: 53*53*45mmPower
supply:
12V/1AOSD: English/Chinese
Menu features: 1. Two USB ports (one for USB mouse, one for U disk)2. Save the picture to the U disk, or browse the pictures and videos in the U disk3.
Crosshair: 1-12 groups, optional colors, adjustable size4.
Freeze function: two split screen, four split screen5.
Scale: The number of scale pixels in each interval can be adjusted arbitrarily6.
Measurement function: the distance between two points, rectangle, circle, angle, etc.
C-MOUNT Lens: Working
distance: 100mmzoom c-mount Lens 0.5X
C-mount adapterzoom ratios:
6.5: 1Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)Size: 180mm (L) * 50mm (DIA)
Weight:
500gSpecification:
Model: Camera with
HDMI outputSensor: 2 million pixelsEffective
Pixels:
1920H*1080VOutput: HDMI
portOutput: U disk storage portPicture
Video Storage: SupportData
Bits: 12bitpixel
size: 2.9
m* 2.9 mFrame rate:
60F/SDefinition: 900TV
linesScanning mode: Advance graduallyShutter
Type: Electronic
ShutterDynamic Range: 90dBSignal-to-noise
ratio:
55dBSensitivity: 2.0 V/lux-sec (550nm)
Exposure: Manual Exposure, automatic
exposureWhite balance: automatic
/ manualOutput resolution: 1920*1080Lens
Mount:
C/CSSize: 53*53*45mmPower
supply:
12V/1AOSD: English/Chinese
Menu features: 1. Two USB ports (one for USB mouse, one for U disk)2. Save the picture to the U disk, or browse the pictures and videos in the U disk3.
Crosshair: 1-12 groups, optional colors, adjustable size4.
Freeze function: two split screen, four split screen5.
Scale: The number of scale pixels in each interval can be adjusted arbitrarily6.
Measurement function: the distance between two points, rectangle, circle, angle, etc.
