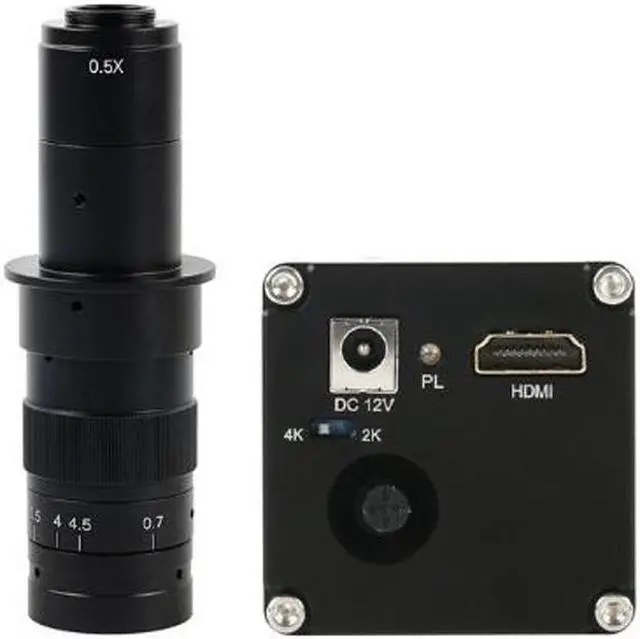

2K 4K 1080P HDMI Digital Industrial Video Microscope Camera & 180X C-Mount Lens For Lab Phone PCB Soldering

180X
C-MOUNT Lens: Working
distance: 100mmzoom c-mount Lens 0.5X
C-mount adapterzoom ratios:
6.5: 1Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)Size: 180mm (L) * 50mm (DIA)
Weight: 500gColor

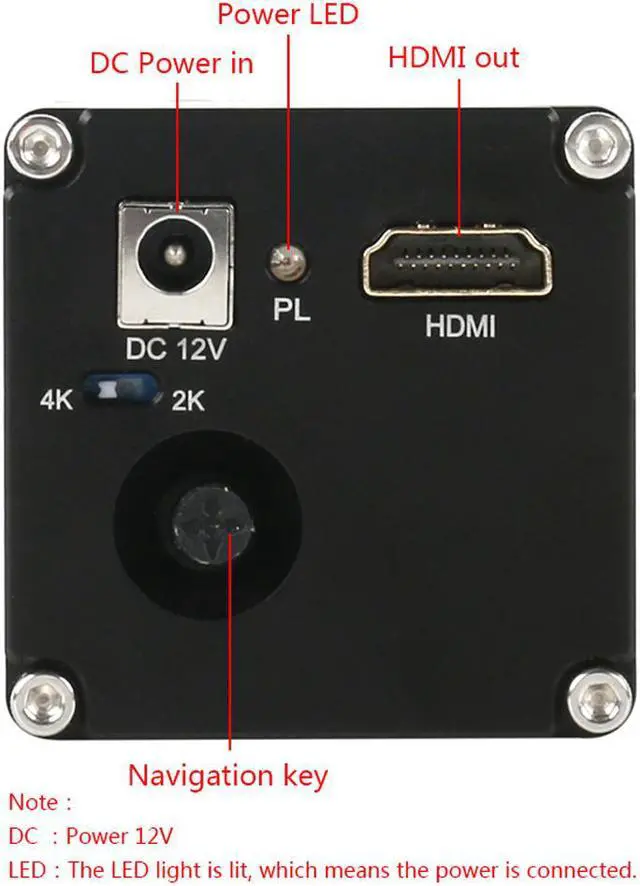

correction (White Balance): Take a blank sheet of white paper and place it in front of the camera. Operate the navigation key to select the menu cursor to the P bar, left push button, WB with white color, the camera start white balance automatically. After the correction, the menu box will automatically revertto the original color.
Note: Be sure this operation must after other parameters to be set; otherwise it may affect the color.
Auto Exposure: Operate the navigation key to select the menu cursor to the P bar, right push button, AE with white color. After the correction, the menu box will automatically revert to the original color.
Note: In order to obtain the best image effect, the brightness or exposure value should generally be below 80; High dynamic contrast, this function is to observe low contrast objects. Generally, it is recommended to be 0 (closed). FunctionResolution3840*2160Pixel Size 1.62 mOptical Size1/ 2.5"C olor
Depth 12:12: 12 RGB
Frame Rate60 fpsBrightness: 1100
AdjustableContrast: 1100
AdjustableSaturation: 1100
AdjustableExposure: one-button exposureWhite
Balance: one-key white balance, support
R/G/B 1100adjustableHDR: 15
AdjustableSE: 13 Adjustablereference line8 (customizable)
Grid line: 8 horizontal lines, 8 vertical linesThey can be changed six colorsLens jack: C-mountOSD menuHavePower InputDC 12V, 2ADimension51mm x 51mm x 60mmOperation Moisture5%85%Operation Temperature0~60COutput InterfaceHDMI Output
