faria dress white 4" tachometer w/systemcheck indicator 7,000 rpm gas johnson/evinrude outboard 54665

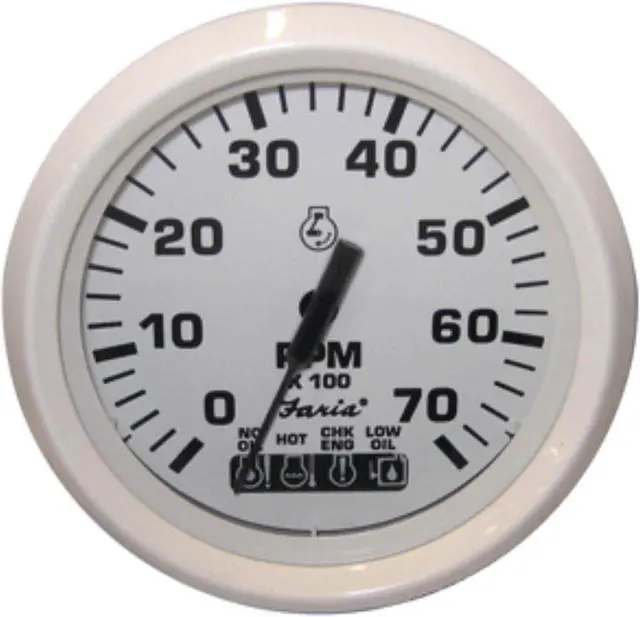

Dress White 4" Tachometer w/Systemcheck Indicator - 7000 RPM (Gas) (Johnson /Evinrude Outboard)

Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.

Tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.

By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.

These tachometers have a warning light system built into the dial that show off warning indicators when a fault is detected from the engine.

4" - Hole size: 3.375" (85mm)

SystemCheck Warnings

• No Oil
• Engine Overheat
• Check Engine
• Low Oil

For Engine Types:

• (Johnson/Evinrude Outboard)

Specifications:

• Anti-scratch glass lens
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N TC9887

*Sold as an Individual

**Gauge Cover not Included
