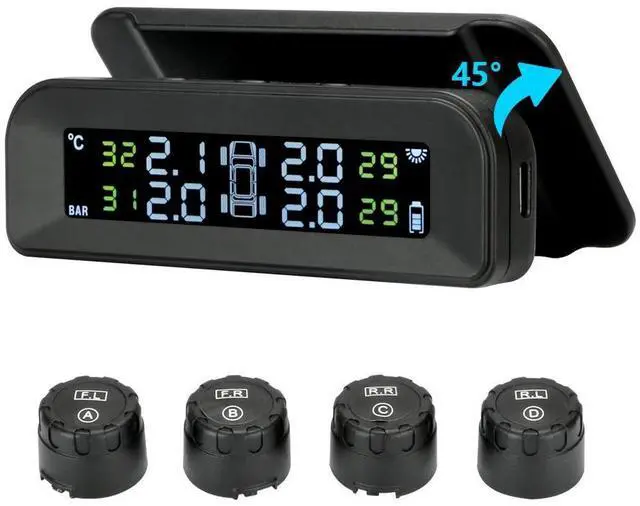

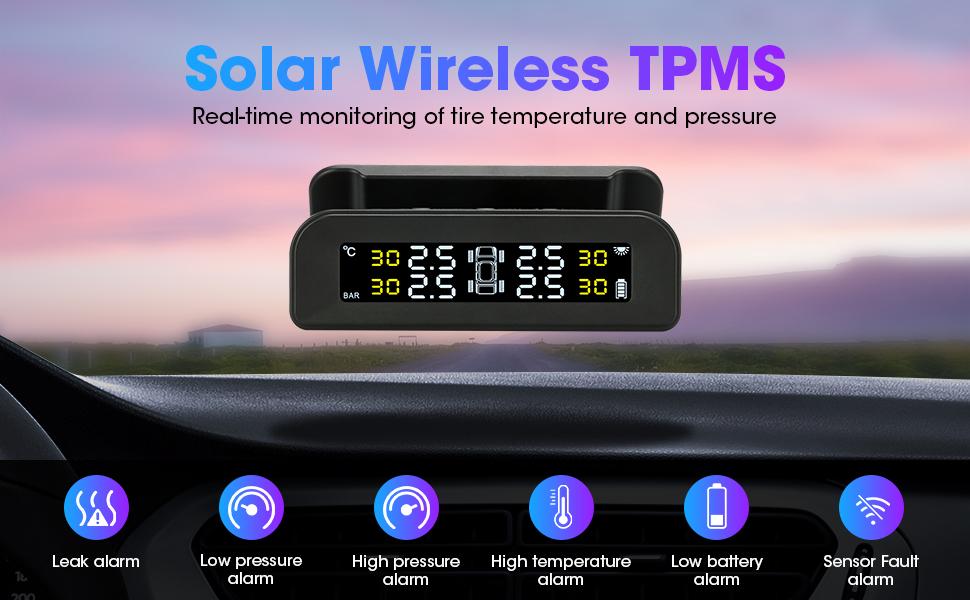

Jansite Solar Tire Pressure Monitoring System Universal Wireless TPMS
Tire safety is vital to life, and most high-speed traffic accidents are caused by abnormal tire pressure. Using TPMS, when the tire condition is dangerous, the driver can immediately receive an audio-visual alert,real-time monitoring of tire conditions,extend the tire life and ensure safe driving.
(It is not recommended to install it on a trailer, as it may work abnormally. For trailers, please choose a device that supports a longer working distance, such as other devices with external antennas.)
Specification:
- Receiver Voltage:5V
- Receiver Working temperature:-20?- 80?/ -4? - 176?
- Receiver RF transmits frequency: 433.92 MHz±50 KHz.

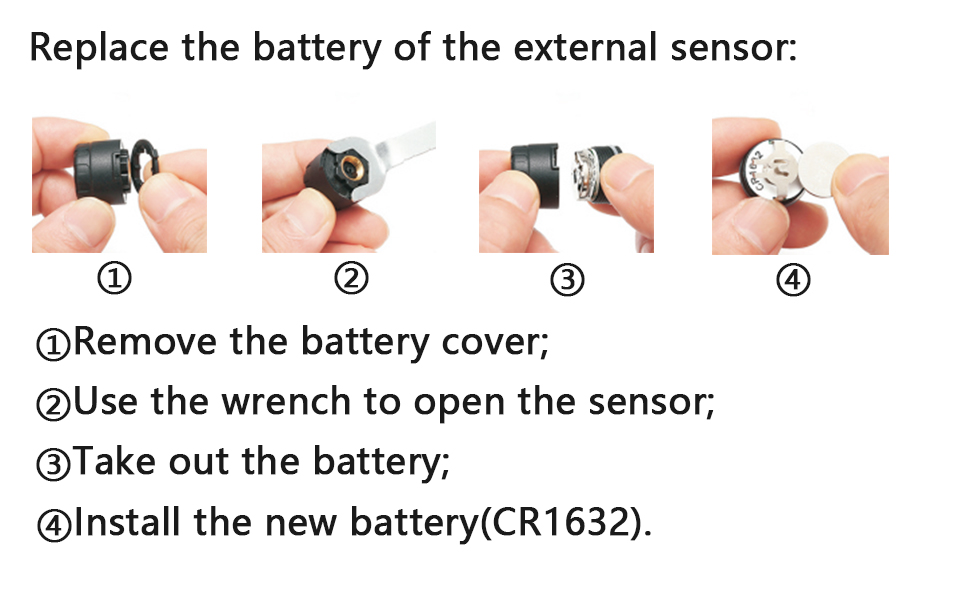

- Sensor Battery Life:2 Years, replaceable
- Sensor Working Temperature: -30?- 80? / -22?- 176?
- Sensor Voltage: 2.1-3.6V
- Pressure range: 1.5- 6.0 Bar / 22- 87Psiensor
- Pressure resolution: ±0.1 Bar / ±1.45 Psi

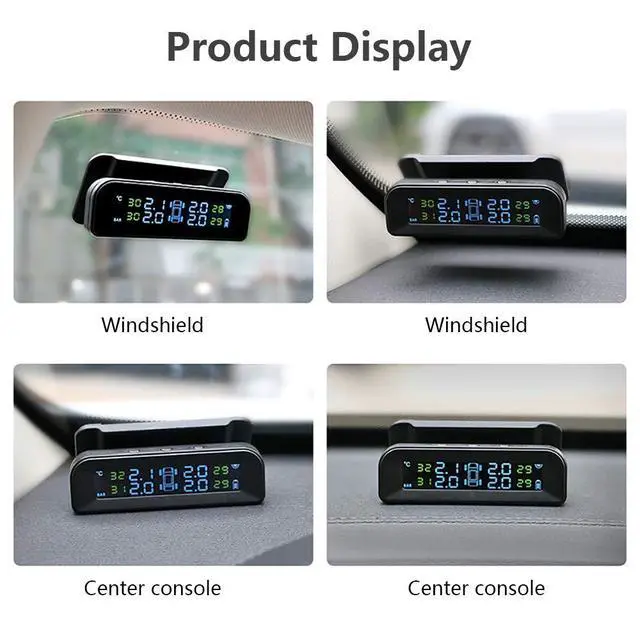

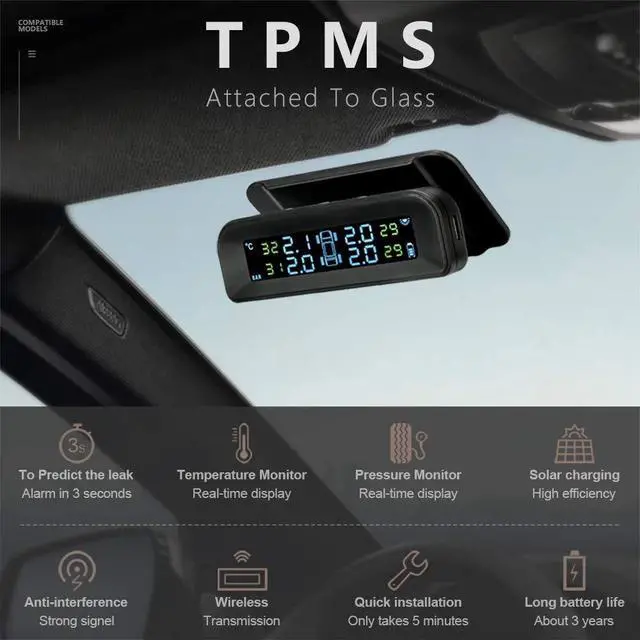

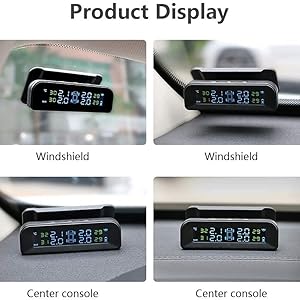

Place on Windowshield or Center Console
The tire pressure monitor can be placed on the windshield ,you don't need look down when driving, it doesn't block your vision and save space,which offer you a safer way to view on tire pressure monitor
Important tips
1.It takes few minutes to sensor and display the tire's pressure and temperature after installation.
2. The default high pressure alarm value is 44PSI (3bar) and the default low pressure alarm value is 29PIS (2bar). If the normal pressure value of the car tire exceeds this range, the display will sound an alarm, and changing the high and low pressure alarm values will solve the problem.
3. The operating instructions are in the manual. You can download and save the manual for use when needed.

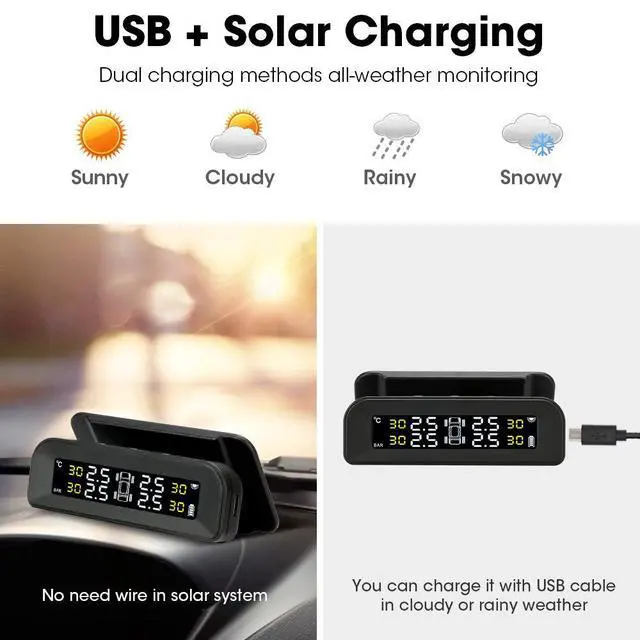

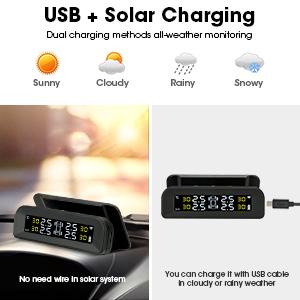

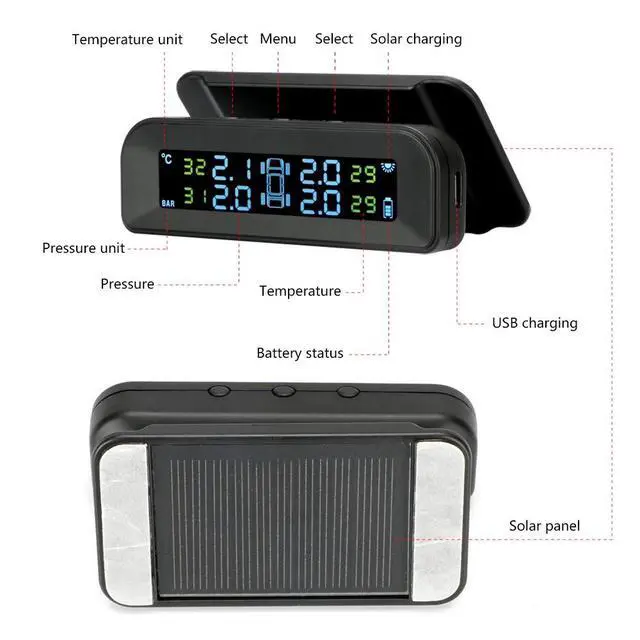

Solar and USB Charging
Two charging methods, supporting solar charging and USB charging, can keeps the equipment tire pressure monitoring system charged ,ensure that the tire pressure monitoring system can work continuously,and will not occupy the car cigarette lighter socket.

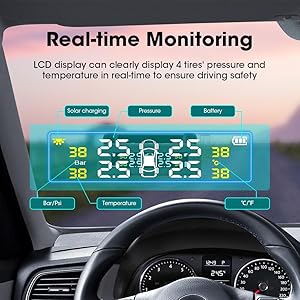

Real-Time Monitoring
Fast air leakage alarm, slow air leakage alarm, high pressure alarm and high temperature alarm, sensor failure alarm and sensor low battery alarm. With wireless transmission technology,when the tire pressure and temperature are abnormal, the buzzer warning will be issued immediately to remind you of the tire condition of the vehicle to ensure safe driving

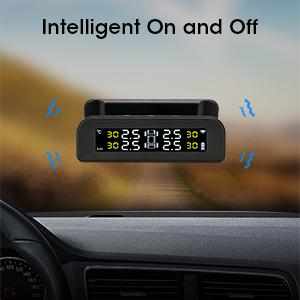

Vibration sensing
After the tire pressure monitoring system is opened, auto turn on when vibrate and auto turn off when no vibration for few minutes to enter sleep mode to save power.

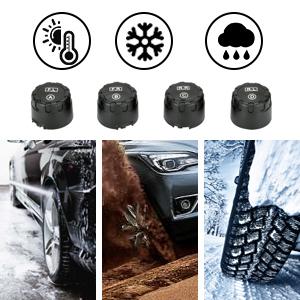

4 IP67 sensors, easy to install and receive real-time signals,which can be waterproof, dust and snow, monitor the tire temperature and pressure for you, ensure the safety of the driver and extend the life of the tire.

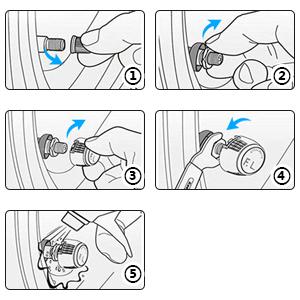

Easy Installation
Install the sensor in 5 minutes
1. Screw the valve cap
2. Screw in six angle nut
3. Rotate the relative tires accoring to the position of the sensor
4. Reverse rotating top sensor with nut wrench
5. Check if the air is leaking with soapy water

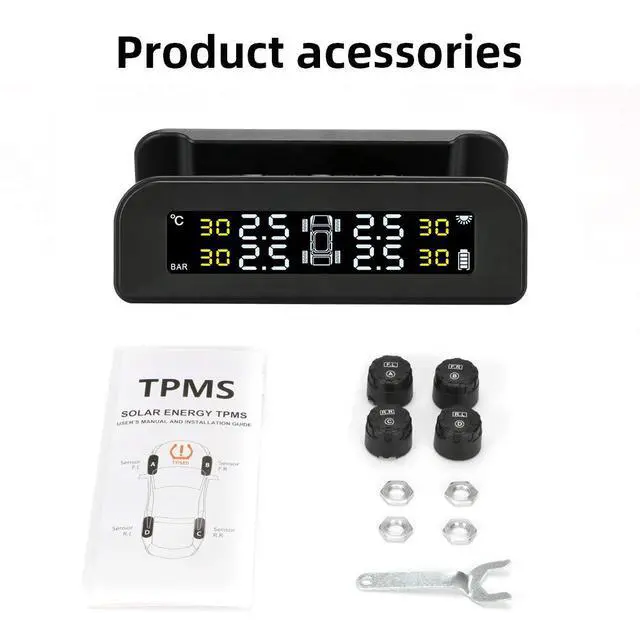

Package Includes:
1 x Jansite Tire Pressure Monitor
4 x Sensors
4 x Anti-lost nuts
1 x Portable tool
1 x User Manual
Common Problem:
- About anti-theft nuts:
We have replaced the copper alloy anti-theft nut to solve the problem of corrosion that some buyers have installed for a long time. If the anti-theft nut you received is aluminum alloy, you can ask us to send copper alloy anti-theft nuts for free.
The main function of the anti-theft nut is to lock the sensor to prevent the sensor from loosening and falling due to centrifugal force during driving.
- Sensor not working:
The sensor is easily interfered or damaged due to being exposed to the outside of the car. If the sensor does not work, please ask us directly to send new sensors, give us a chance to solve the problem.
- Display only 3 sensors or 1 sensor
Please note that the monitor supports pairing 5 tires, but only 4 sensors can be displayed at the same time, please do not pair the sensor to the fifth position (spare tire).
- Solar charging
Please use USB to charge for at least 3 hours before first use. When installing on the windshield, please make sure that the solar panel is not blocked by the dark solar film, otherwise it will not be able to charge with solar energy.
- Contact information:
The contact information is on the last page of the instruction manual or the letter on the website, and you will get a quick response within working days.
- Regarding Errors
TPMS primarily monitors pressure changes accurately and in real time. Unlike a barometer, a deviation within the normal range (3 PSI) is normal.

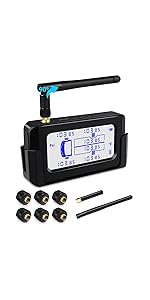

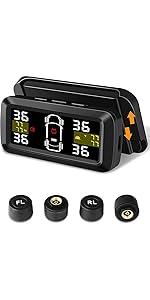

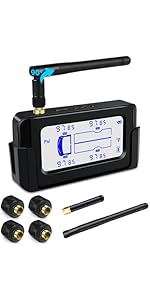

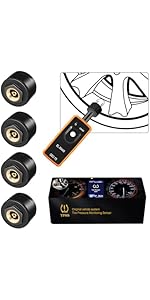

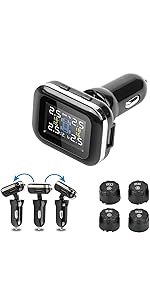

 Windshield Installation |  TPMS Sensor Set of 4 for GM 315Mhz |  2/4 Wheel Mode & Separate Setting Pressure Alarm Values |  Cigarette lighter powered TPMS |  6 Sensors TPMS for RV Trailers |  Tenpmas Tire Pressure Monitoring System Signal Booster Antenna 66ft 3.15'' Wi... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — no data | — no data | — no data |
| Pressure Range | 6 Bar / 87 PSI | no data | 6 Bar / 87 PSI | 6 Bar / 87 PSI | 9 Bar / 130 PSI | 9 Bar / 130 PSI |
| Sensor | External*4 | External*4 | External*4 | External*4 | External*6 (Supports up to 6 sensors) | External*4 (Supports up to 6 sensors) |
| Transmission Distance | Max dynamic working distance: 19.7ft | no data | Max dynamic working distance: 19.7ft | Max dynamic working distance: 19.7ft | 66ft (long-term high-speed driving) | 66ft (long-term high-speed driving) |
| Applicable Models | Small cars such as sedans, SUVs, pickup trucks, etc. (trailers and medium and large vehicles are not supported) | no data | Small cars such as sedans, SUVs, pickup trucks, etc. (trailers and medium and large vehicles are not supported) | Small cars such as sedans, SUVs, pickup trucks, etc. (trailers and medium and large vehicles are not supported) | RV/Travel Trailer/Truck/Fifth Wheel Motorhome | RV/Travel Trailer/Truck/Fifth Wheel Motorhome |
| Power Supply | Micro USB Charging/Solar Charging | no data | Type-C USB Charging/Solar Charging | Cigarette lighter power supply | Micro USB Charging/Solar Charging | Micro USB Charging/Solar Charging |
| Installation Method | Windshield/Dashboard | no data | Windshield/Dashboard | Cigarette lighter | Dashboard | Dashboard |
