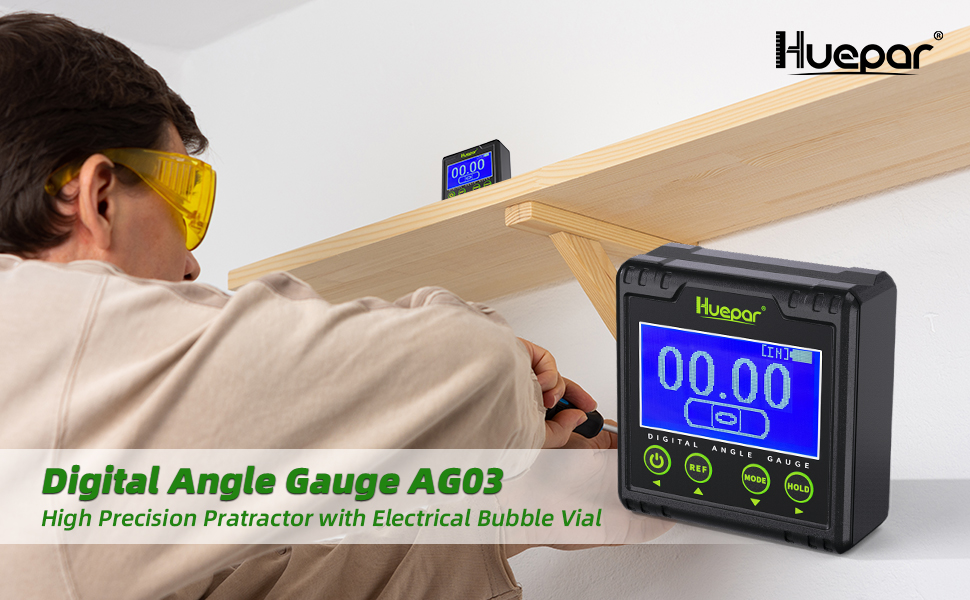

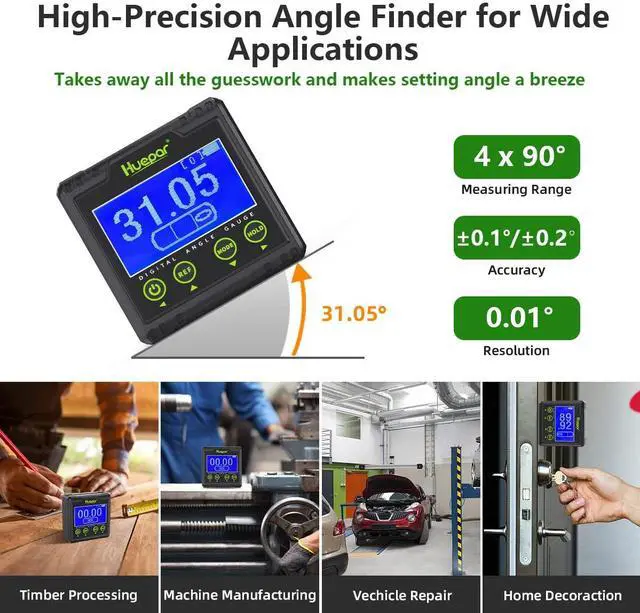

The Huepar Electronic Angle Gauge is compact and highly convenient for precise angle measurements including measuring absolute and relative angles. This bevel gauge is great for calculating in Helicopter/ Bevel Angle of Miter Saw/ Automobile Test and Repair.
Specifications:
- Measuring range: Single axis: 4 x 90° (0 ~ 360°) Dual axis: -40°~ 40°
- Measurement Units: degree(°),percentage(%), mm/m, in/ft(in Fraction), in/ft(in Decimal)
- Display: Upgraded LCD Display with Backlit
- Resolution: 0.01°
- Accuracy: Single axis: ±0.1°at 0° ~90° , ±0.2° at other angles; :Dual axis: ±0.2°
- Working Temperature: 32°F to 104°F (0°C to 40°C)
- Power Method: 2 x AAA batteries (included)
- Dimension: approx. 68 x 62 x 32mm(2.68x2.44x1.26inch) (L x W x H)

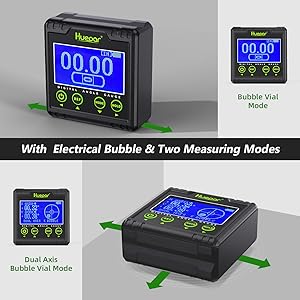

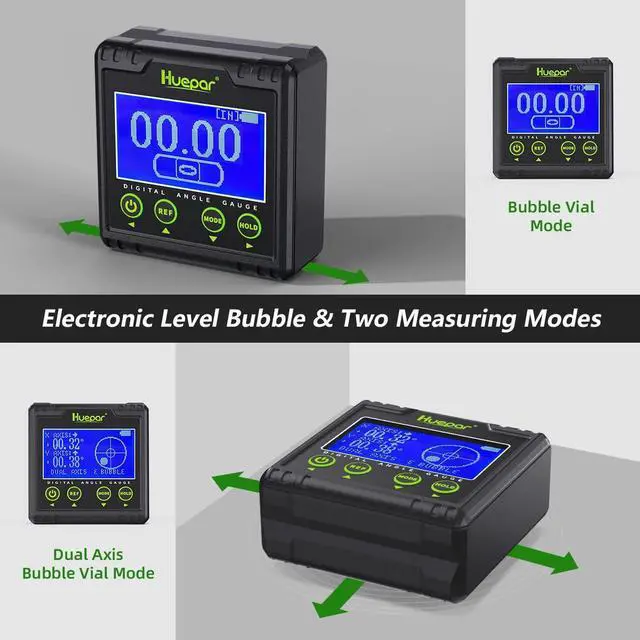

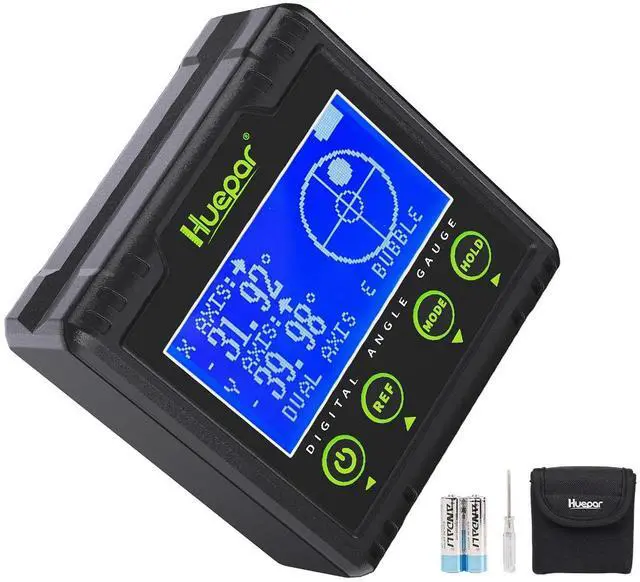

Two Measuring Modes&Electronic Bubble:

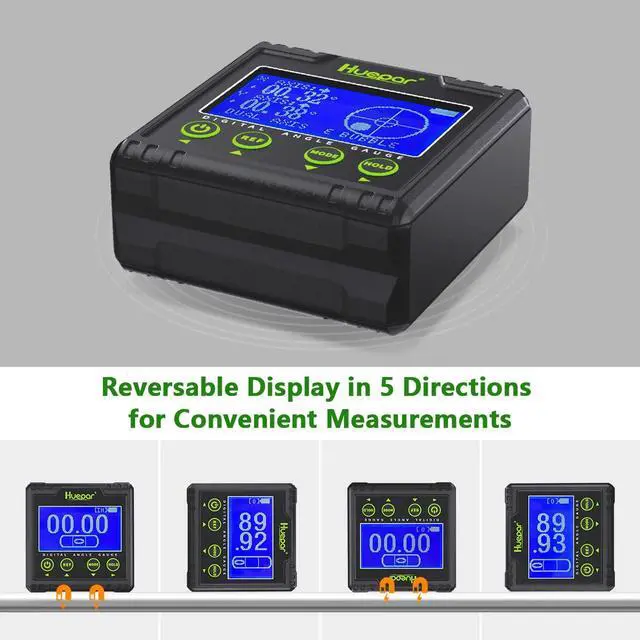

- Huepar digital angle finder comes with two measuring modes - Bubble Vial Mode and Dual Axis Bubble Mode, enabling the protractor to measure in five directions.
- The electronic bubble vial on display offers as indication when measuring for easier leveling work.
- This bevel gauge features high accuracy of 0.1°at 0° ~90° , ±0.2° at other angles with the resolution 0.01°. It is designed with a wide measuring range of 4*90°(0~360°).

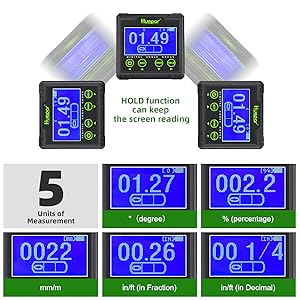

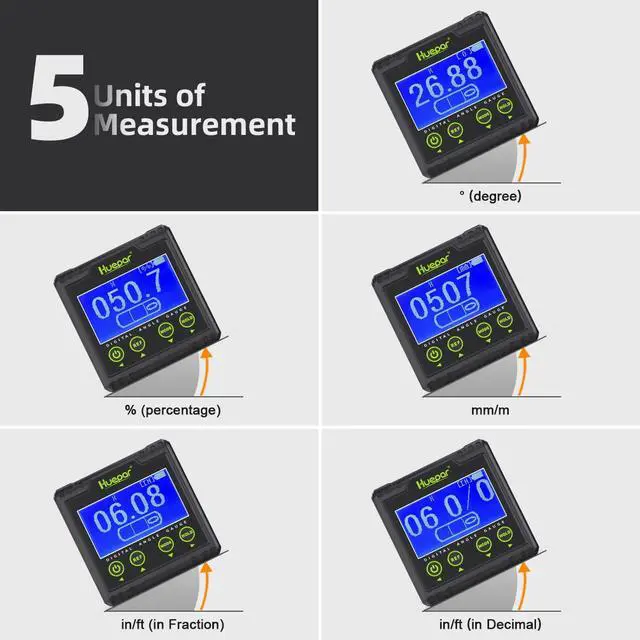

Five Units&Hold Function
- Huepar angle gauge offers five precise display units in degree(°),percentage(%), mm/m, in/ft(in Fraction), in/ft(in Decimal) to improve the measuring accuracy.
- The current measurement value can be held on the display by short pressing the HOLD switch.

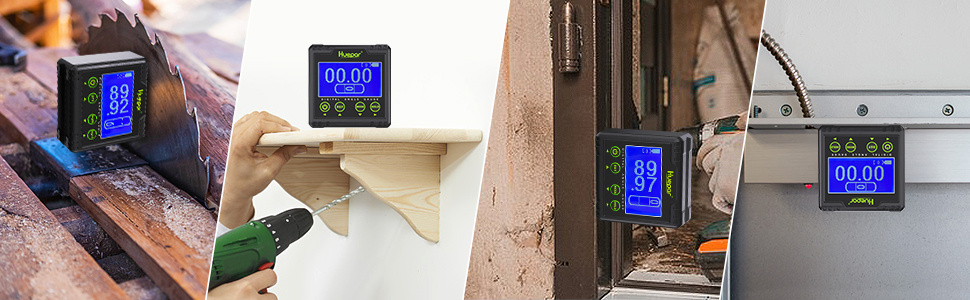

- This digital angle inclinometer provides convenience in woodworking, construction, machinery, telecommunications, automobile etc.
Hold&Zero Function
- The current measurement value can be held on the display by short pressing the HOLD switch.

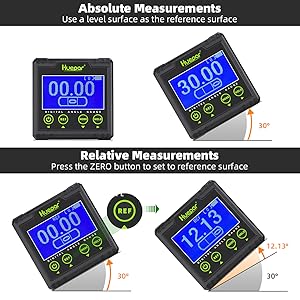

- The zero function enables users to set relative zero angle at any reference surface.

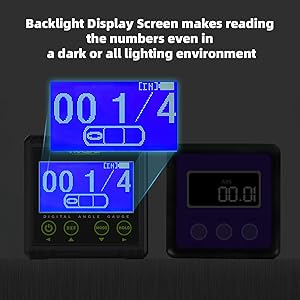

LCD with Backlit&Battery Indicator
- Large LCD display with backlit provides accurate, quick and clear readings even in dark environment.
- When the low battery icon shows on the display, it indicates that the battery is low and the batteries should be replaced.

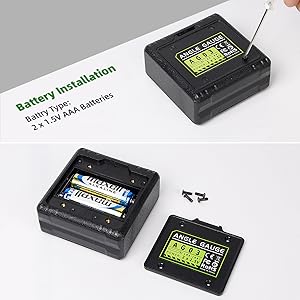

Battery Installation
- The angle gauge kit comes with a screwdriver.
- Users can install the battery easily with the included screwdriver.
- This digital level tool will automatically turn off after 5 minutes of no operation to save battery.

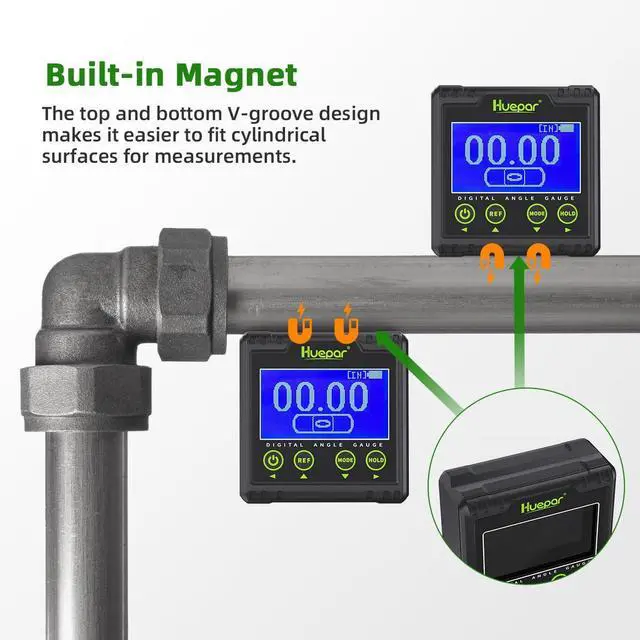

Strong Magnetic Base&V-Grooves
- With powerful magnetic V-groove bases at top and the bottom, this digital bevel gauge can be easily and firmly attached to miter saw, band saw, table saw blades, metal poles and even round pipes.
- This bevel gauge can be used on fences, tables, and other metal surfaces.
- Thanks to its strong magnet, there’s no need to worry about holding the tool in place while taking measurements.
Portable
In compact size, this angle gauge can fit into tight spots to get perfect measurements needed.
With handy design and a portable pouch, this sturdy precision tool can be taken to anywhere.

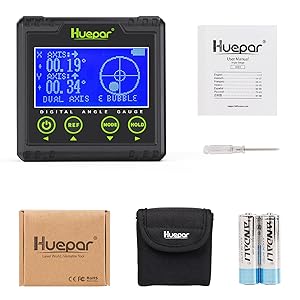

Package Contents
- 1 x Huepar Digital Angle Gauge
- 2 x AAA Batteries
- 1 x Screwdriver
- 1 x Portable Pouch with Belt Loop
- 1 x User Manual
