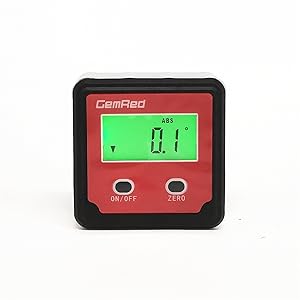

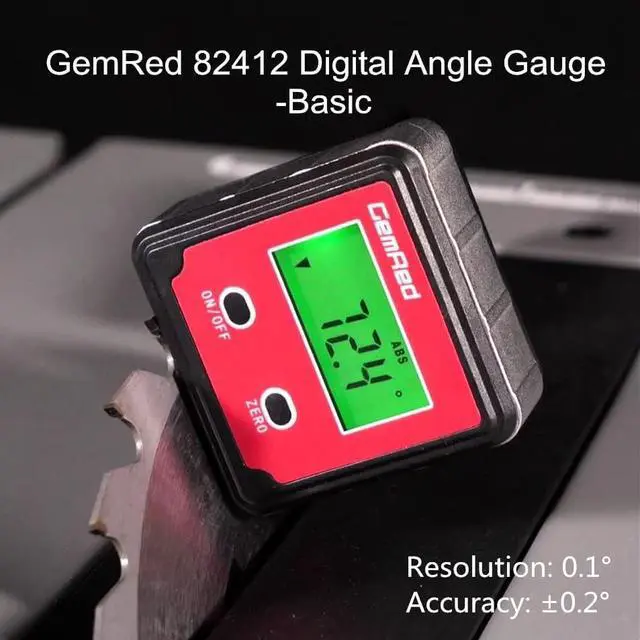

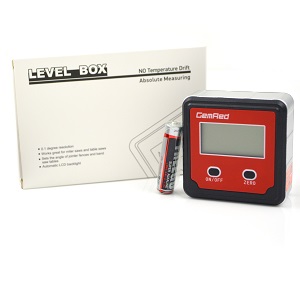

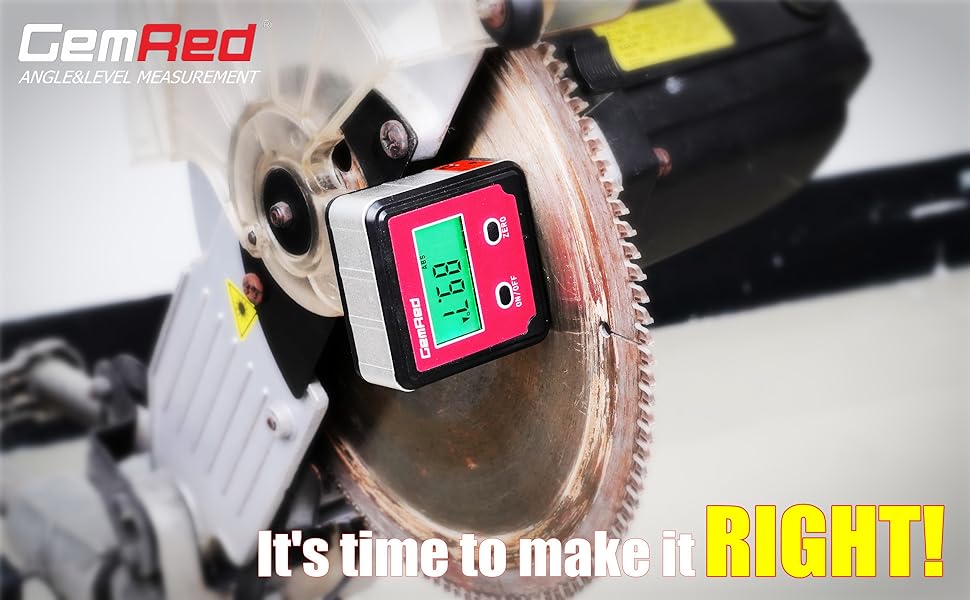

GemRed 82412-basic digital angle gauge
- Latest MEMS technology - fast and accurate measurements
- 2 Measure modes - absolute measurement (level mode) & relative measurement (incremental mode)
- Only 2 buttons - easy to use
- Large LCD with backlight- easy to read
- Small size - fit for various application
- Strong magnets bulit in the base
Applications

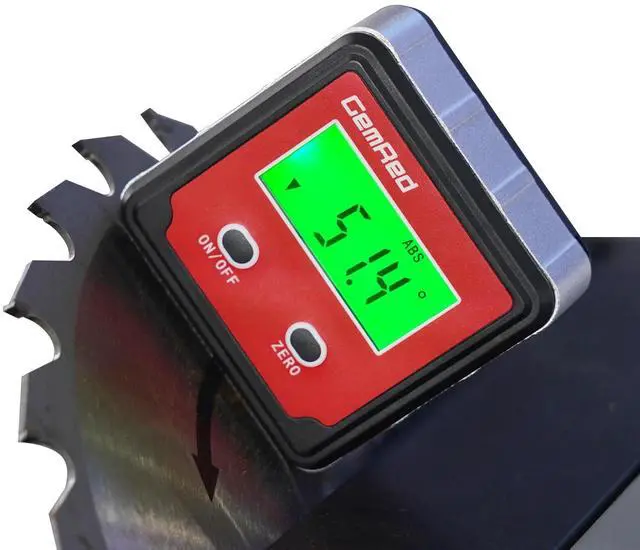

- Setting blade angle of Table Saw
- Setting blade angle of Miter Saws
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting workpiece angle for milling
- Drainage angles and run off slopes
- Grader and tractor work alignment
- Platform monitoring
- Working as a mini digital level

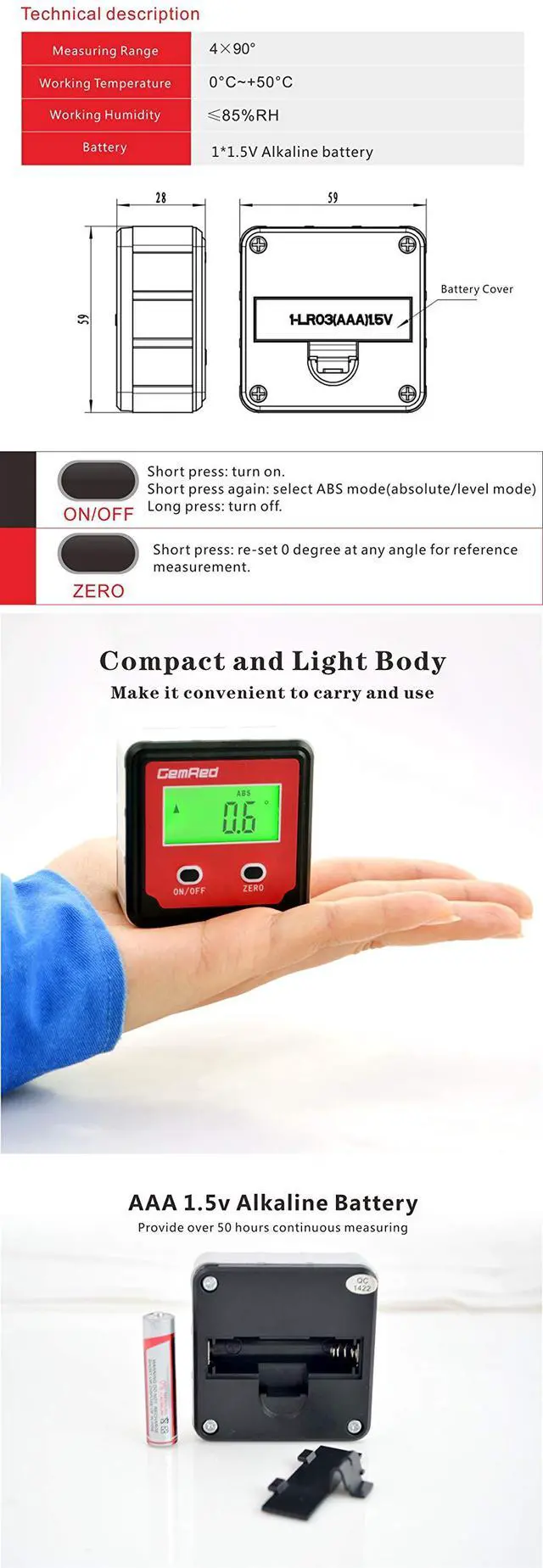

Product Specification
- Accuracy: 0.2 degrees
- Resolution: 0.1 degree
- Measuring range: 4*90degree
- Power: 1*AAA battery (included in package)
- Net Weight: 70g
- Powerful built-in magnets on the base
- LCD display with green backlight

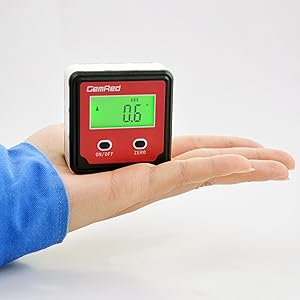

Portable and easy to use
With small size 60mm*60mm*30mm, you could carry by hand easily.
Simply switch between Absolute and Relative measuring mode.

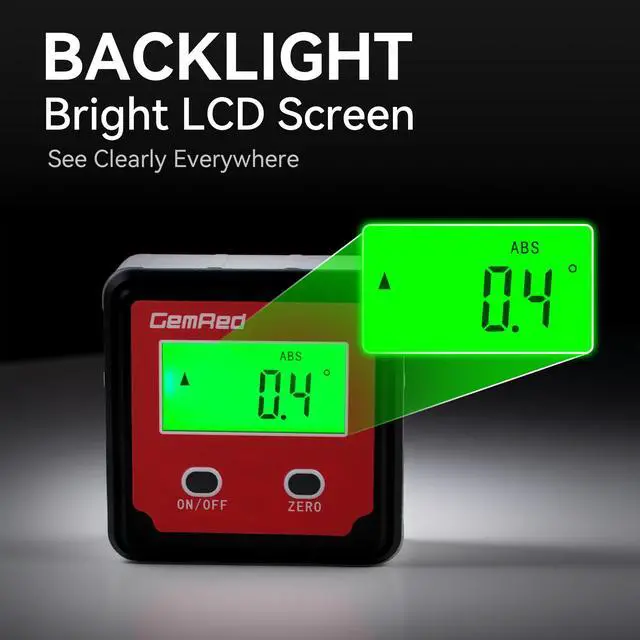

Green backlight for easy reading in the dark.

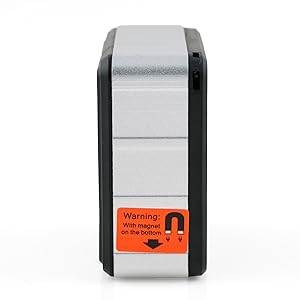

Hidden magnetic bottom
Magnets hidden make sure it's reliable for measuring meral surface and also avoiding the influence of absorbed metal dust for the accuracy.

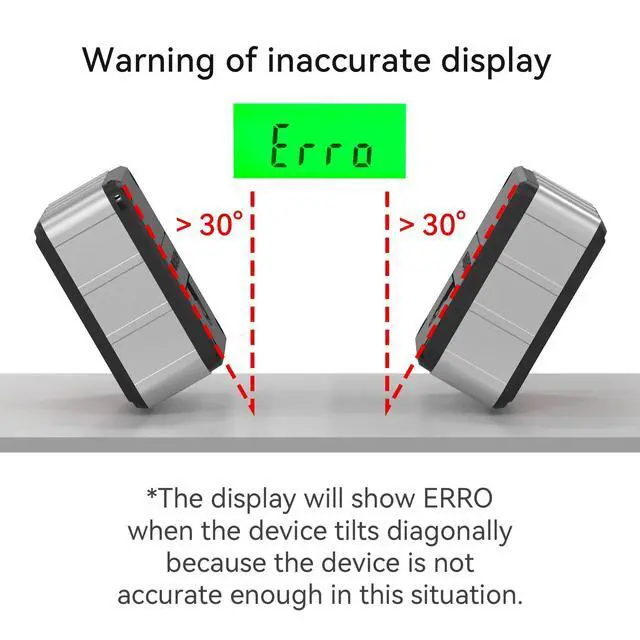

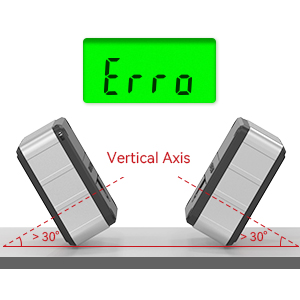

Inaccurate display warning
When the device tilts diagonally over 30 degrees, it will display ERRO instead of an angle. Because in this situation, this angle gauge is not accurate as it shuold be.

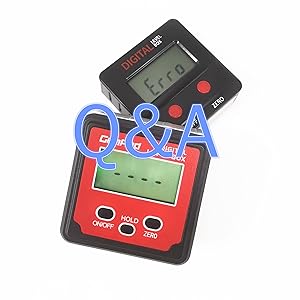

Frequently Asked Questions
1. Why it always show ERROR or ----(no readings)?
MEMS technology provides precise measuring result, but it will not accurate when angle gauge tilts diagonally over 30 degrees. So it tells ERROR or ---- to remind people to use it in a accurate way. Angle gauge with no ERROR indication will not give a correct measurement.
2. Do I need to recalibrate this angle gauge? How to recalibrate it?
GemRed angle gauges are well-calibrated from our factory and lab. You can use it out-of-box. If you want to recalibrate it, please refer to the video in the product page.
3. Does it has magnets on all four sides?
It only has magnets on the bottom. This angle gauge only work with the bottom. Other sides will not give accurate measurement.
4. What's the return policy for this angle gauge?
GemRed provides life-time after-sales services for its products.

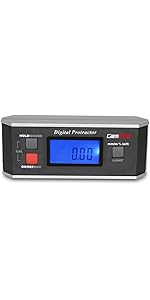

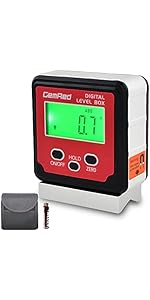

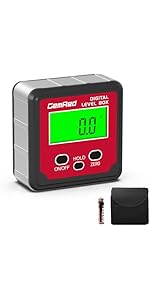

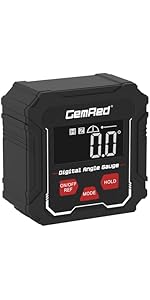

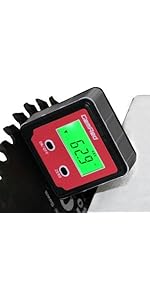

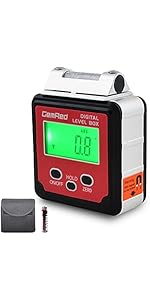

 GemRed 82412 Digital Angle Gauge (Green Backlight) |  2024 New Angle Gauge |  GemRed Digital Angle Gauge (Aluminum-with Vial & Hold) |  GemRed Digital Angle Gauge (Aluminum-with V-groove bottom & Hold) |  GemRed Digital Angle Gauge (Aluminum-with Hold Function) |  GemRed 82413 Digital Angle Gauge Inclinometer with Backlight and Magnetic Bas... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — | — no data |
| Dimension | 60*60*25mm | 60*60*28mm | 70*60*25mm | 69*60*25mm | 60*60*25mm | 162*60*33mm |
| Material | Aluminium & plastic | Plastic | Aluminium & plastic | Aluminium & plastic | Aluminium & plastic | Aluminium & plastic |
| Backlight | ? | VA display with backlight | ? | ? | ? | ? |
| Bubble vial | No | No | ? | No | No | No |
| Magnetic base type | Flat | V-groove magnetic bottom | Flat | V-groove magnetic bottom | Flat | V-groove magnetic bottom |
| ERROR indication | ? | ? | ? | ? | ? | ? |
| Accuracy | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | 0° and 90°: 0.1°; the rest: 0.2° |
| Resolution | 0.1° | 0.1° | 0.1° | 0.1° | 0.1° | 0.05° |
| Hold function | No | ? | ? | ? | ? | ? |
| Measuring unit | degree | degree | degree | degree | degree | degree; mm/m; %; in/ft |
GemRed 82412-basic digital angle gauge
- Latest MEMS technology - fast and accurate measurements
- 2 Measure modes - absolute measurement (level mode) & relative measurement (incremental mode)
- Only 2 buttons - easy to use
- Large LCD with backlight- easy to read
- Small size - fit for various application
- Strong magnets bulit in the base
Applications
- Setting blade angle of Table Saw
- Setting blade angle of Miter Saws
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting workpiece angle for milling
- Drainage angles and run off slopes
- Grader and tractor work alignment
- Platform monitoring
- Working as a mini digital level
Product Specification
- Accuracy: 0.2 degrees
- Resolution: 0.1 degree
- Measuring range: 4*90degree
- Power: 1*AAA battery (included in package)
- Net Weight: 70g
- Powerful built-in magnets on the base
- LCD display with green backlight
Portable and easy to use
With small size 60mm*60mm*30mm, you could carry by hand easily.
Simply switch between Absolute and Relative measuring mode.
Green backlight for easy reading in the dark.
Hidden magnetic bottom
Magnets hidden make sure it's reliable for measuring meral surface and also avoiding the influence of absorbed metal dust for the accuracy.
Inaccurate display warning
When the device tilts diagonally over 30 degrees, it will display ERRO instead of an angle. Because in this situation, this angle gauge is not accurate as it shuold be.
Frequently Asked Questions
1. Why it always show ERROR or ----(no readings)?
MEMS technology provides precise measuring result, but it will not accurate when angle gauge tilts diagonally over 30 degrees. So it tells ERROR or ---- to remind people to use it in a accurate way. Angle gauge with no ERROR indication will not give a correct measurement.
2. Do I need to recalibrate this angle gauge? How to recalibrate it?
GemRed angle gauges are well-calibrated from our factory and lab. You can use it out-of-box. If you want to recalibrate it, please refer to the video in the product page.
3. Does it has magnets on all four sides?
It only has magnets on the bottom. This angle gauge only work with the bottom. Other sides will not give accurate measurement.
4. What's the return policy for this angle gauge?
GemRed provides life-time after-sales services for its products.
GemRed 82412 Digital Angle Gauge (Green Backlight) | 2024 New Angle Gauge | GemRed Digital Angle Gauge (Aluminum-with Vial & Hold) | GemRed Digital Angle Gauge (Aluminum-with V-groove bottom & Hold) | GemRed Digital Angle Gauge (Aluminum-with Hold Function) | GemRed 82413 Digital Angle Gauge Inclinometer with Backlight and Magnetic Bas... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — | — no data |
| Dimension | 60*60*25mm | 60*60*28mm | 70*60*25mm | 69*60*25mm | 60*60*25mm | 162*60*33mm |
| Material | Aluminium & plastic | Plastic | Aluminium & plastic | Aluminium & plastic | Aluminium & plastic | Aluminium & plastic |
| Backlight | ? | VA display with backlight | ? | ? | ? | ? |
| Bubble vial | No | No | ? | No | No | No |
| Magnetic base type | Flat | V-groove magnetic bottom | Flat | V-groove magnetic bottom | Flat | V-groove magnetic bottom |
| ERROR indication | ? | ? | ? | ? | ? | ? |
| Accuracy | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | 0° and 90°: 0.1°; the rest: 0.2° |
| Resolution | 0.1° | 0.1° | 0.1° | 0.1° | 0.1° | 0.05° |
| Hold function | No | ? | ? | ? | ? | ? |
| Measuring unit | degree | degree | degree | degree | degree | degree; mm/m; %; in/ft |
