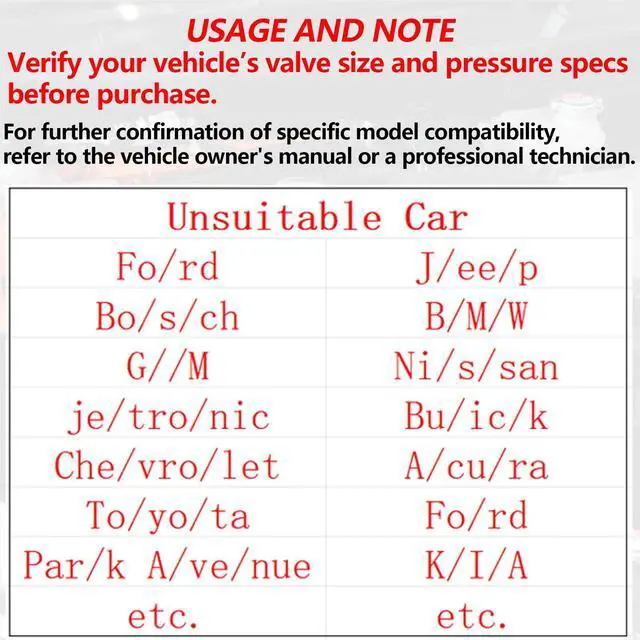

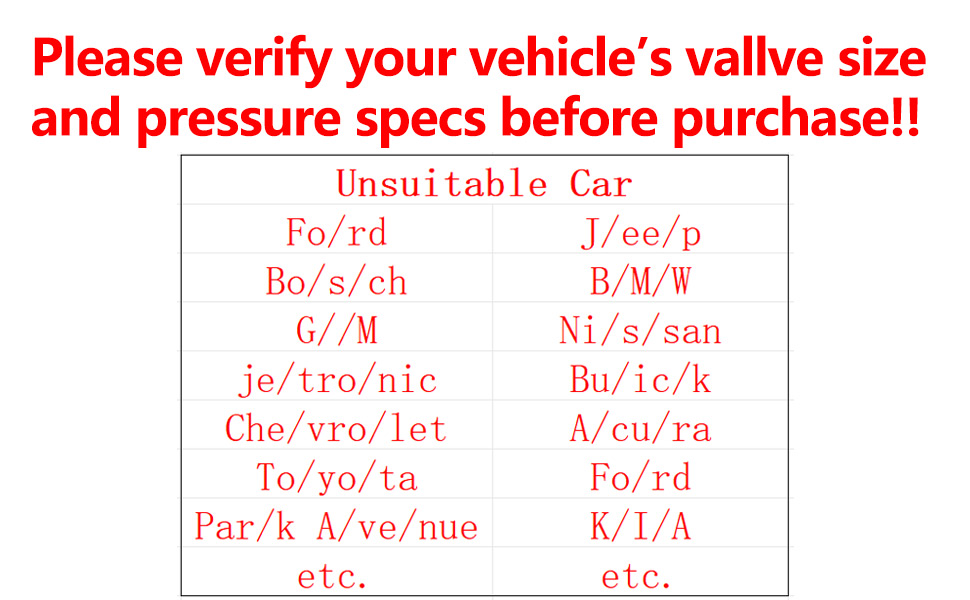

Compatibility Note
Excludes Fo/rd, K/I/A, Bo/s/ch, C/I/S Je/tro/nic, G//M Th/rot/tle Bo/dy Systems, A/cu/ra, J/ee/p, B/M/W, Ni/s/san, and To/yo/ta fuel systems, etc. Not compatible with small/non/standard S/chra/der vallves, high/pre/ssure direct in/ject/ed engines, or die//sel injection pumps, etc.
No S/chra/der vallve adaptor included — veri/fy your ve/hicle’s vallve size and pre/ssure sp/ecs before pur/chase.
The color of the accessories might differ, yet it has no impact on their usage.

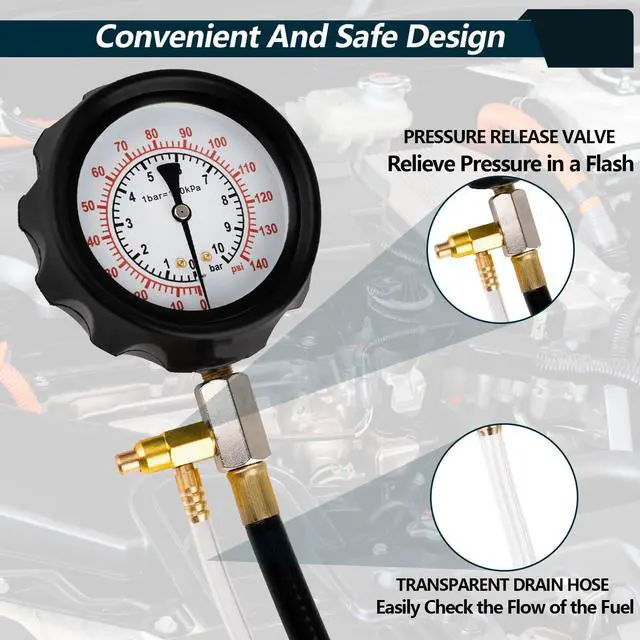

Convenient And Safe Design

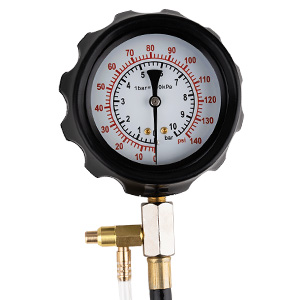

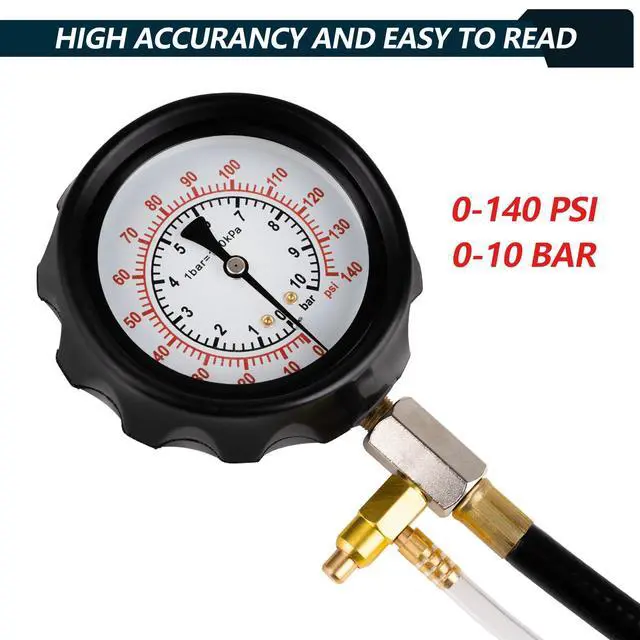

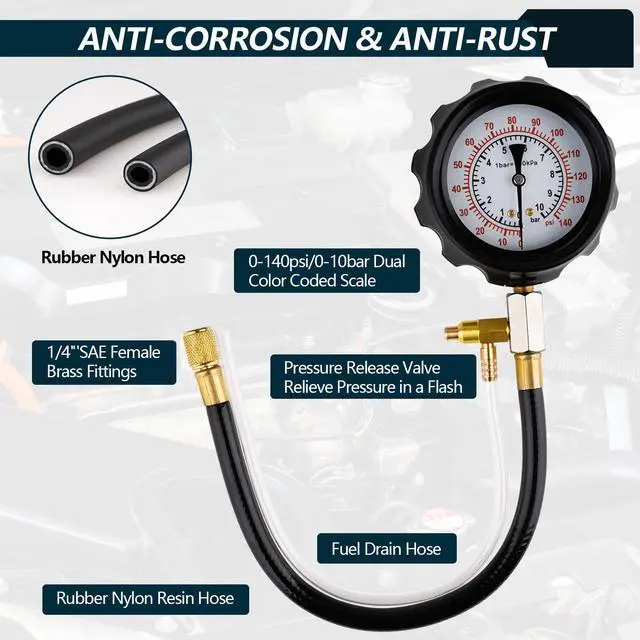

0-140psi/0-10bar Dual Color Coded Scale
Pressure Release Valve Relieve Pressure in a Flash
ANTI-CORROSION & ANTI-RUST

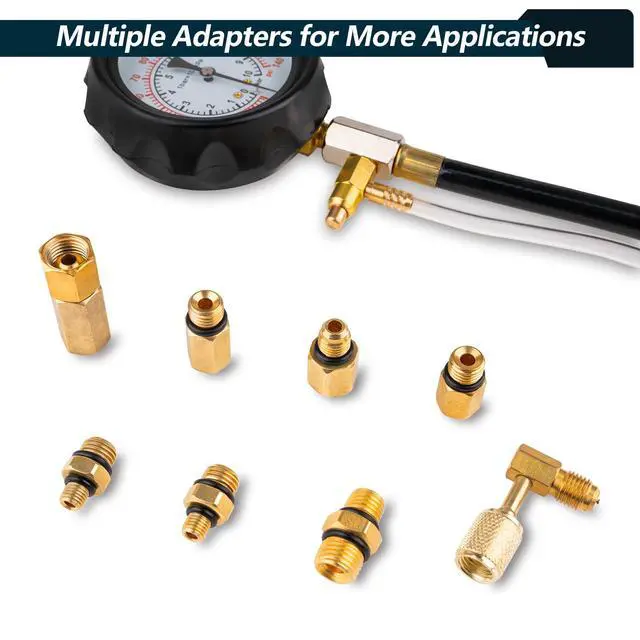

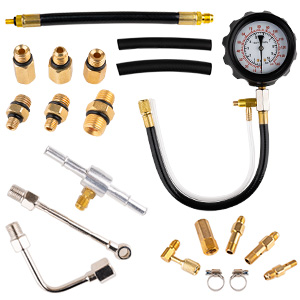

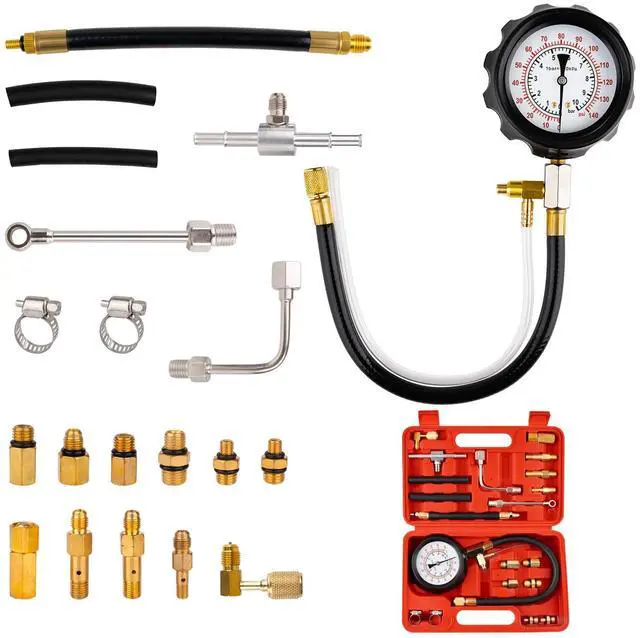

Multiple Adapters for More Applications

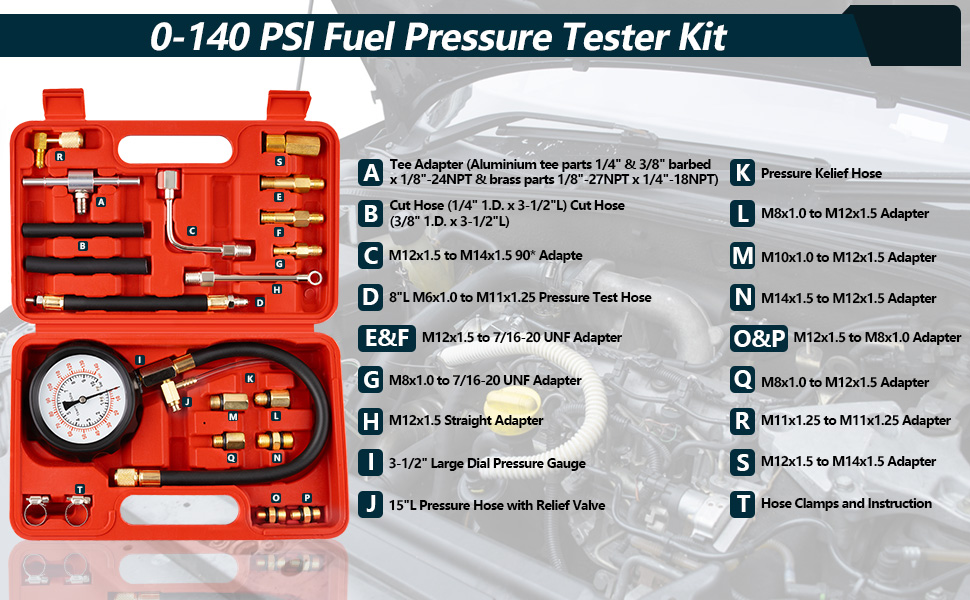

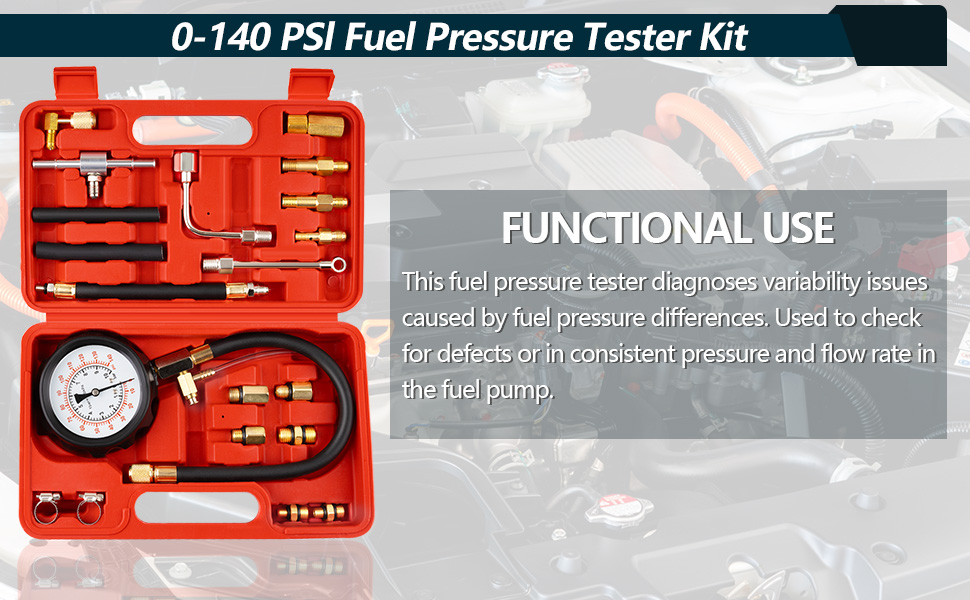

Necessary Fuel Oil Injection Pressure Tester Tool

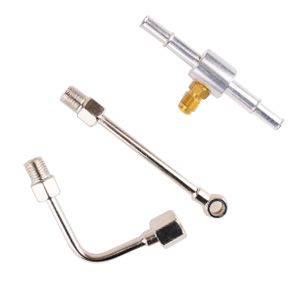

Tee Adapter
M12 x 1.5 Straight Adapter
M12x1.5 to M14 x 1.5 90°Adapter
To begin with, carefully remove the primary fuel pressure sensor installed on the engine lubricating oil circuit. Subsequently, install the fuel pressure tester in its place following the standard installation procedures to ensure proper connection and functionality.
Once the installation is complete, start the engine. It is crucial to operate the engine at the pre - specified speed. This speed has been determined to accurately represent the normal operating conditions for measuring the lubrication system's fuel pressure.
At this moment, the indication value displayed on the fuel pressure tester precisely represents the fuel pressure within the lubrication system. Make sure to record this value accurately for further analysis and diagnostic purposes.
Verify your vehicle’s vallve size and pressure specs before purchase.
