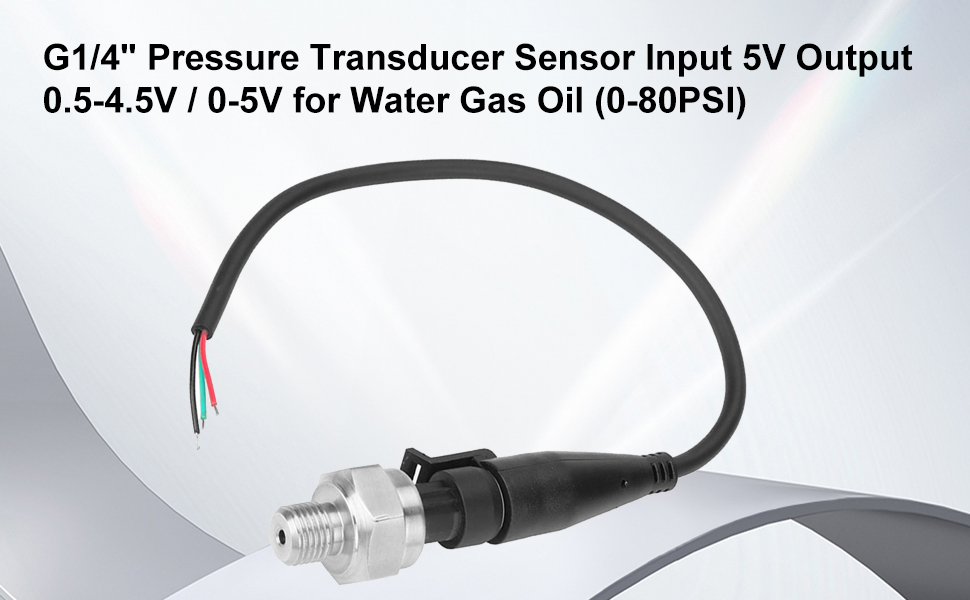

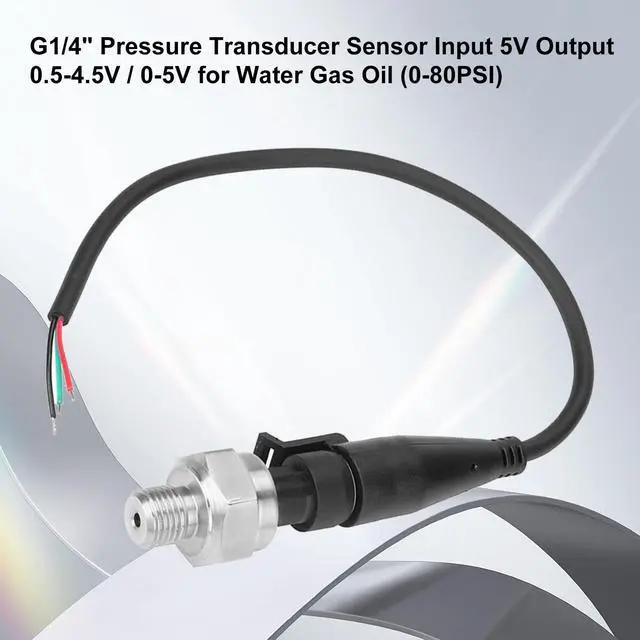

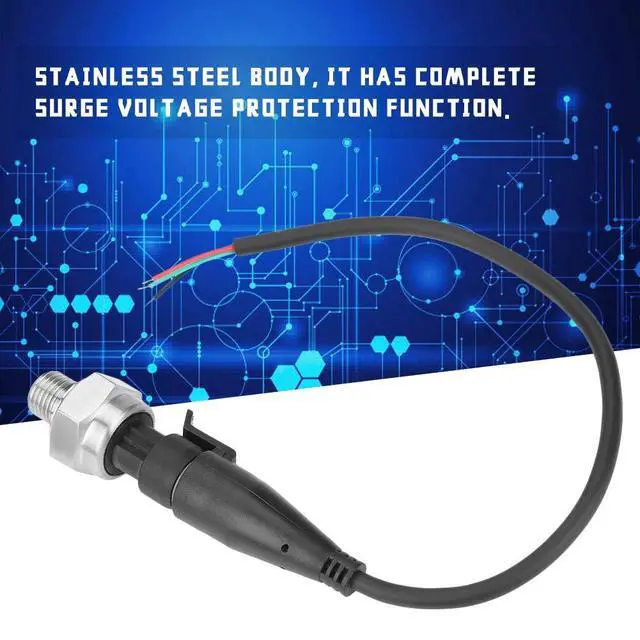

Description: This G1/4 pressure transducer sensor is widely used in oil tank, gas tank and diesel tank to detect oil, fuel, diesel, gas and water. It adopts precision compensation technology and sensitive components, stable and reliable. Stainless steel body, it has complete surge voltage protection function. Small and compact, easy to install and operate.

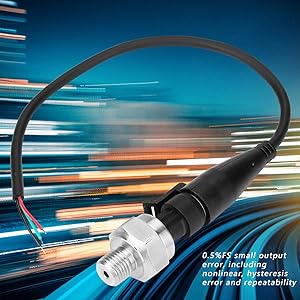

Very small offset (a few mV) and no shift
Very often they have had large 0 offsets and drifting because the chassis hasn't been isolated properly. This particular brand performed almost PERFECTLY. very small offset (a few mV) and no shift, when chassis is connected to ground. on 4 out of 4 samples. Well done
Link to a data sheet for this sensor
Q: Description looks like output can be either 0-5V or 0.5-4.5V, how is this selected?
Answer: 0.5 is 0psi 4.5 is the maximum (80psi) and is a linear curve .
The setting on my equipment is 0.5 to 3.5 and i just adjust the maximum to 3.5*80/4.5.
the wiring is red 5v, black 0v and the green is the sensor output(0.5v to 4.5v) hope this could help you.
Small output error
0.5%FS small output error, including nonlinear, hysteresis error and repeatability.
Specification:
 G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5-... |  G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5-... | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Output Signal Power Supply | (0-30PSI) | (0-200PSI) |
Description: This G1/4 pressure transducer sensor is widely used in oil tank, gas tank and diesel tank to detect oil, fuel, diesel, gas and water. It adopts precision compensation technology and sensitive components, stable and reliable. Stainless steel body, it has complete surge voltage protection function. Small and compact, easy to install and operate.
Very small offset (a few mV) and no shift
Very often they have had large 0 offsets and drifting because the chassis hasn't been isolated properly. This particular brand performed almost PERFECTLY. very small offset (a few mV) and no shift, when chassis is connected to ground. on 4 out of 4 samples. Well done
Link to a data sheet for this sensor
Q: Description looks like output can be either 0-5V or 0.5-4.5V, how is this selected?
Answer: 0.5 is 0psi 4.5 is the maximum (80psi) and is a linear curve .
The setting on my equipment is 0.5 to 3.5 and i just adjust the maximum to 3.5*80/4.5.
the wiring is red 5v, black 0v and the green is the sensor output(0.5v to 4.5v) hope this could help you.
Small output error
0.5%FS small output error, including nonlinear, hysteresis error and repeatability.
Specification:
| Material: | Stainless steel |
| Output Signal Type: | Analog sensor |
| Accuracy: | 1%FS |
| Thread: | G1/4inch |
| Wire: | Red: power, black: ground, green: signal |
| Size: | Shown as picture |
| Weight: | Approx. 74g/2.6oz |
| Pressure Range | (Optional) |
| Output Signal Power Supply | 0-10PSI 0.5--4.5V5V 0-30PSI0.5--4.5V5V 0-80PSI0.5--4.5V5V 0-100PSI0.5--4.5V5V 0-150PSI0.5--4.5V5V 0-200PSI0.5--4.5V5V 0-300PSI0.5--4.5V5V 0-500PSI0.5--4.5V5V |
