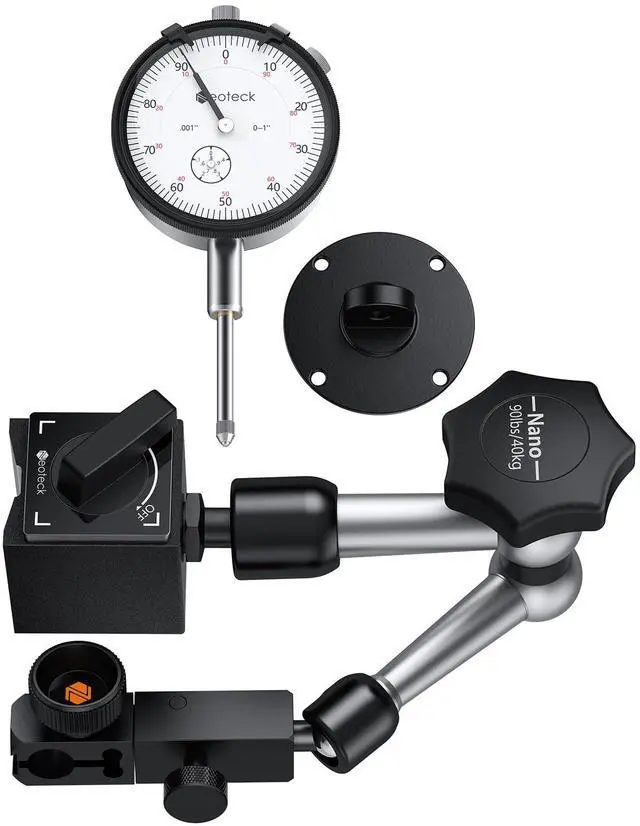

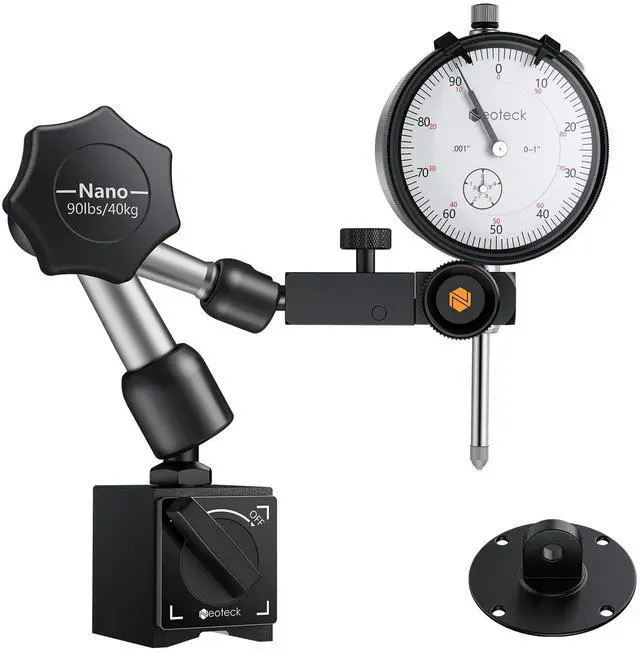

KEHIPI Dial Indicator 0-1/0.001 with 90lbs/40kg Magnetic Base,Imperial Dial Test Indicator Gauge Set for Lathe,3D Printer,CNC,Automobile,Laboratory

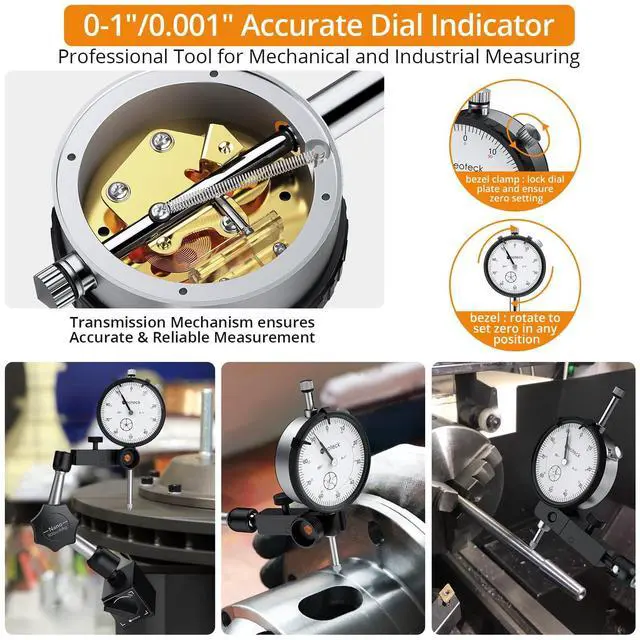

- Ultra-Precise 1"/0.001" Indicator: dial indicator boasts 0.001" resolution. Thanks to its refined internal design, it enables swift and exact measurements within its 1-inch span. Equipped with a high-precision metal limit switch, it guarantees secure positioning, thus upholding steadfast stability and pinpoint accuracy even in demanding industrial settings
- Precise Scribing & Easy Zero-Setting: dial test indicator has a high-contrast scale (1 rev = 100 divs, 0.01"/div). Its anti-glare markings work well in oily or dim places. The rotatable bezel lets you set zero freely, and the bezel clamp locks the dial to avoid unwanted changes
- Corrosion-Resistant Copper Sleeve Probe: Featuring a anti-corrosion copper sleeve,dial test gauge is built to withstand harsh conditions. Its 2.5MM (0.098") threaded contact point allows for easy attachment of extension rods, enhancing versatility. The rigid 9.5mm (0.37") shaft minimizes flexing, ensuring consistent accuracy for precise tolerance measurements on intricate workpieces

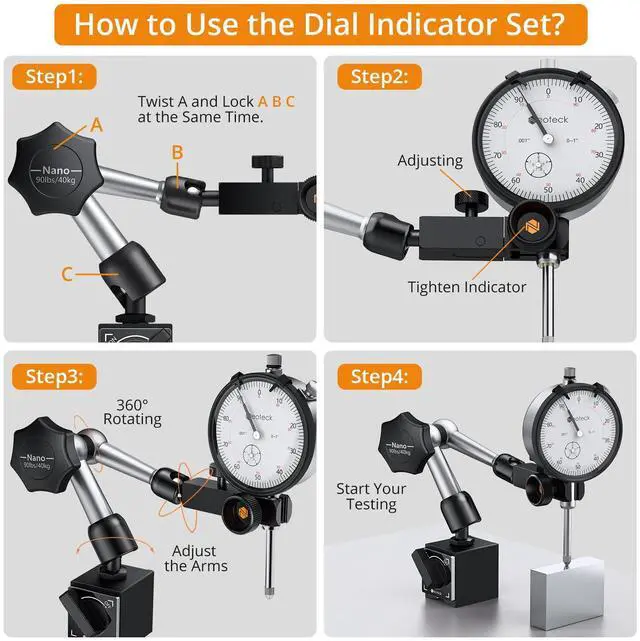

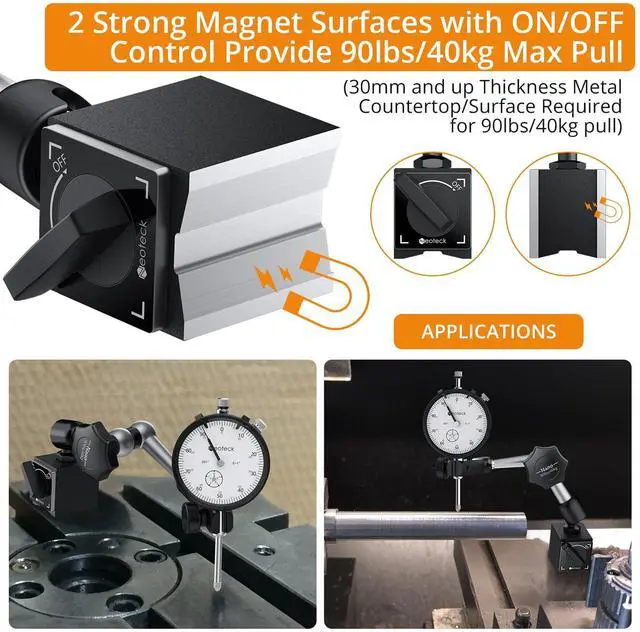

- 90lbs/40kg Powerful Magnetic Base:Featuring instant ON/OFF control, this powerful magnetic base securely attaches to vertical, overhead, and uneven metal surfaces (30mm required). Its 3-joint adjustable arm with 3/8" (9.52mm) clamp maintains multi-axis stability in complex setups, reducing frequent readjustments
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:

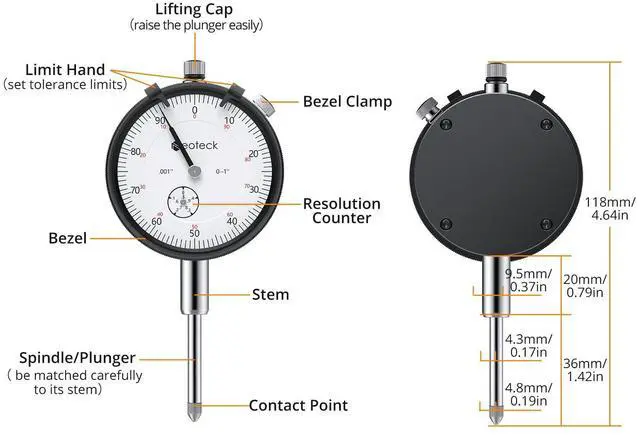

Dial Indicator:
Dividing value: 0.001inch
Range: 0-1inch
Resolution: 0.001inch
Magnetic Base:
Weight398g
Rally: 90lbs(40kg)
Length: About 8.6"(220mm)
MaterialSteel

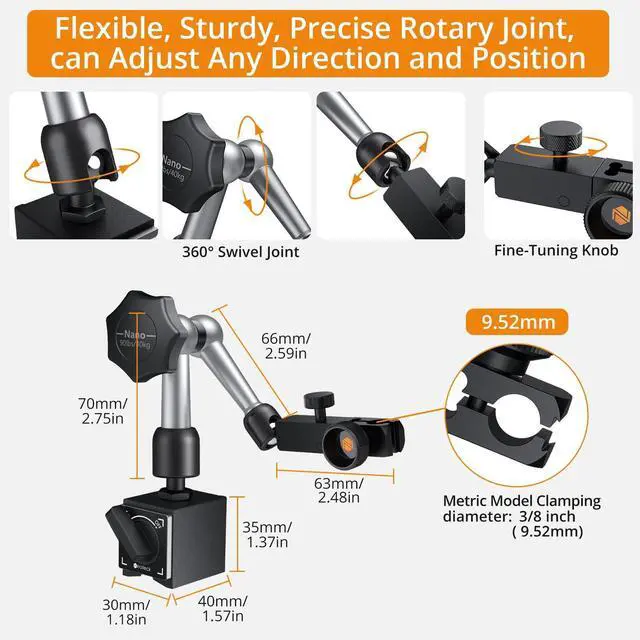

Arm Adjustment3 joints adjustable
Arm Dimensionlower arm 2.75"(70mm); upper arm 2.62"(66.7mm)
Clamping diameter(hole size 3/8 inch, 9.52mm)
Package Include:
1 x Dial Indicator
1 x Magnetic Base
1 x Rear Cover
1 x Instruction Manual
