UZ120 MMA WELDER
Merchant Video

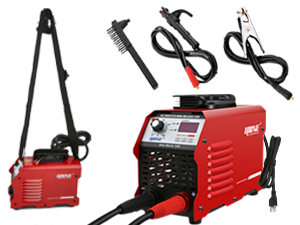

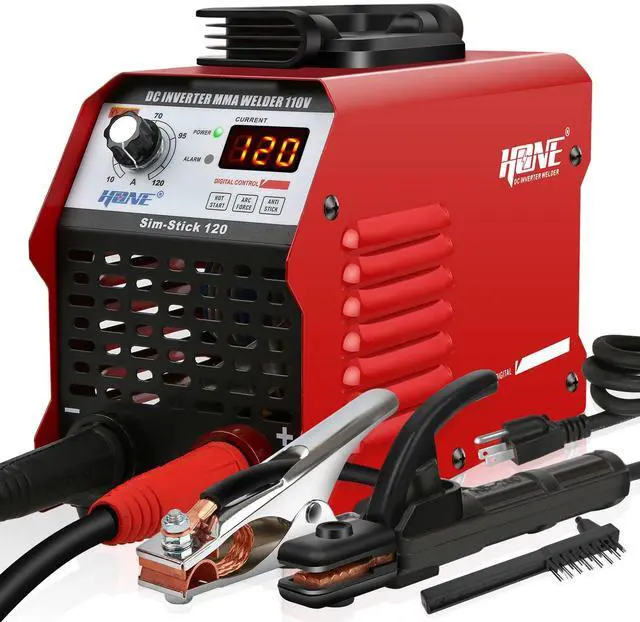

What's in box
- 1 piece x HONE DC110v welder
- 1 set x 8.2 ft Electrode holder
- 1 set x 8.2 ft Earth clamp
- 1 piece x Steel brush 7.2 inch
- 1 piece x Adjustable shoulder strap

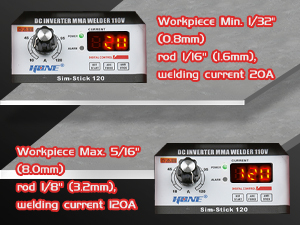

Real data you can't go wrong
- Workpiece thickness Min. 1/32 in (0.8mm) fits with welding rod 1/16.
- Workpiece thickness Max. 5/16 in (8.0mm) fits with welding rod 1/8 in.

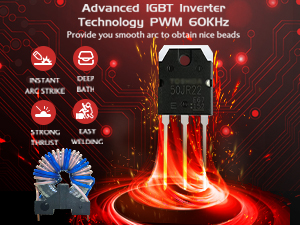

Advanced IGBT Technology
- Unique IGBT control mode improves the reliability of welding machine.
- Advanced main transformer supply high efficiency duty cycle and long life.

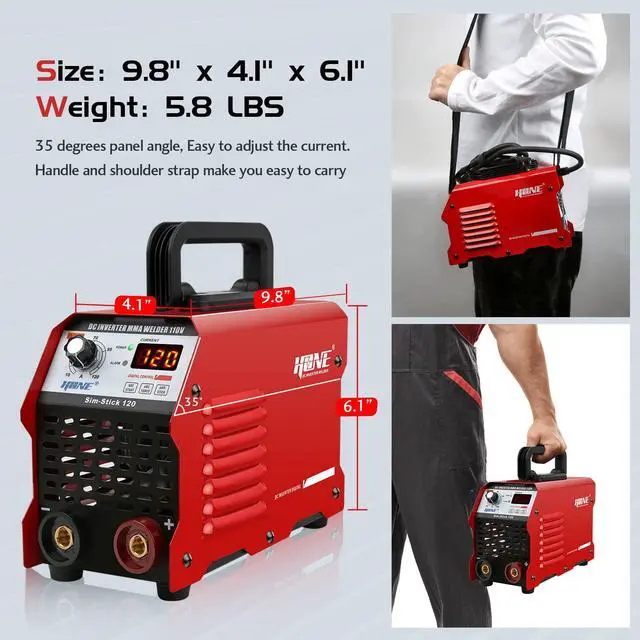

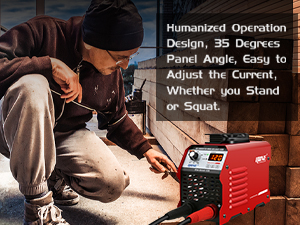

Humanized Operation Design

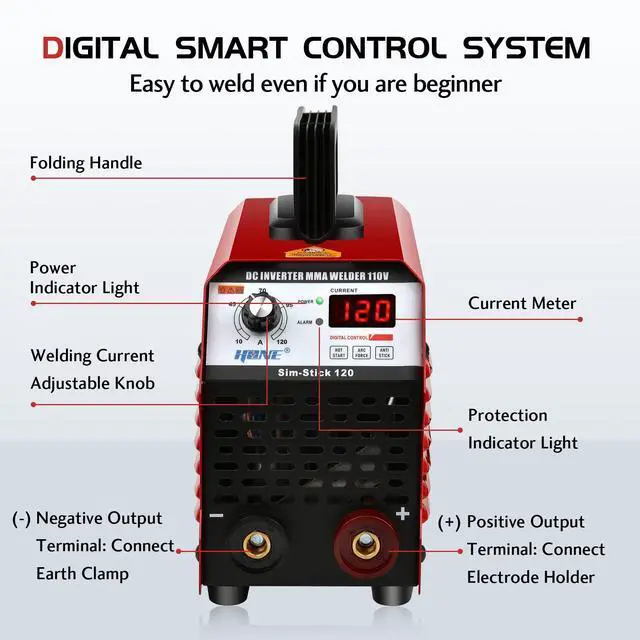

- 35 degrees panel angle design, easy to read current data, make you easy to adjust the current exactly, whether you stand or squat.

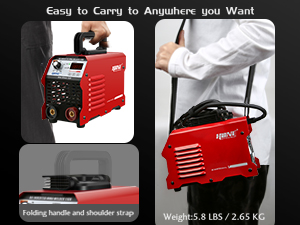

Portable Design, Easy to Carry
- Mini size and light weight. Portable carry with adjustable shoulder strap, it is convenient for welding indoors and outdoors.The weighs only 5.8Ibs.

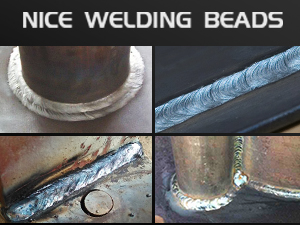

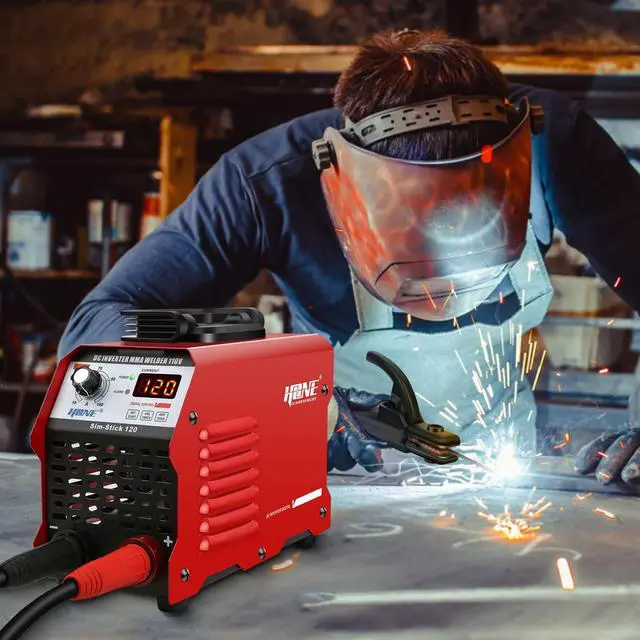

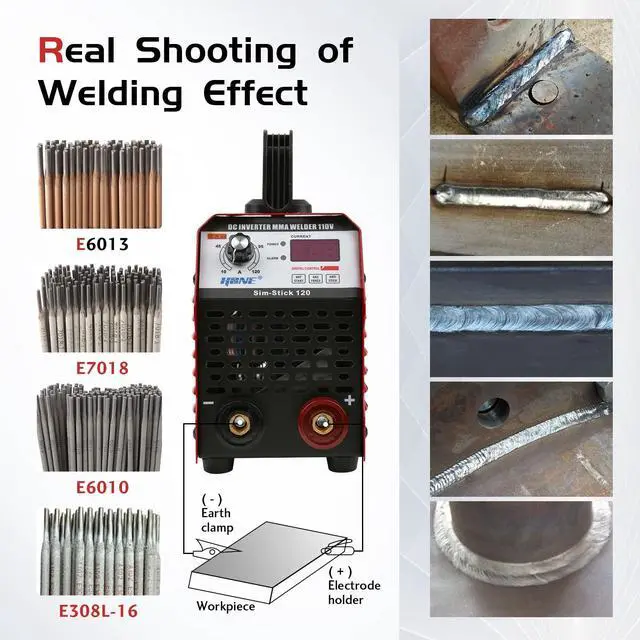

Perfect Welding Results
- The welding effects of the workpiece is full, flat and low spatter. It is an ideal stick welder for household and small workshop.

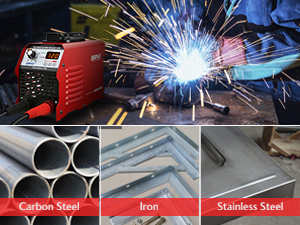

Multi-Application
- You can build and repair all kinds of projects, such as garden fences,metal shelf etc,welding mild steel, carbon steel, stainless steel and cast iron.

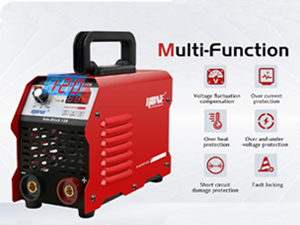

Multi Function

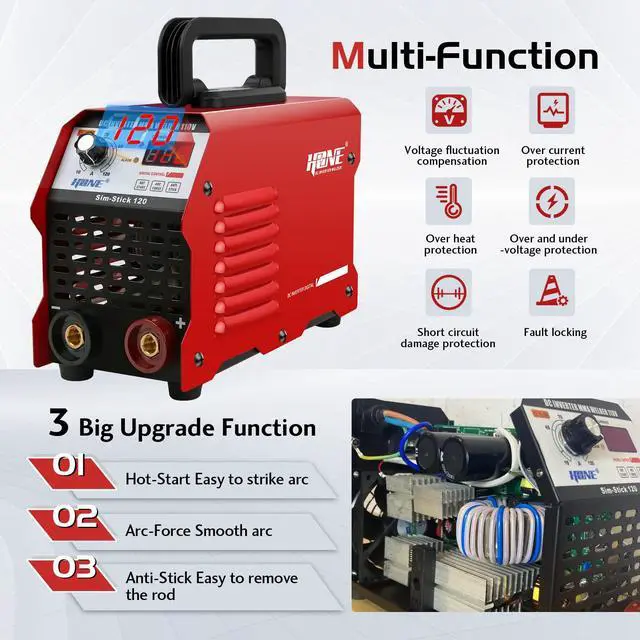

- Bulit-in smart Hot-start and Arc-force provide easy, quick and reliable arc start, and stable welding current.
UZ120 Features
- Hot-start makes the arc striking easier.
- Arc-force provide smoother welding.
- Anti-stick easy the electrode removal from the workpiece.
- Auto protection against over heat, over current, over-voltage, under-voltage and short circuit.
Outstanding Arc stability with low spatter and deep bath.
UZ120 ???? 2
Merchant VideoWhat amp outlet minimum for this welder?
You can use a 20 amp but you need to keep the power out less then 90.
"I am not good with visualizing the thicknesses listed; what is the thinnest this will weld? sheetmetal? pictures? thx "
Hello! The thinnest of workpiece can be welded is about 5/64” (2 mm), with welding rod 1/16” or 5/64” or 3/32”, using welding current about 50A.
Can this welder machine weld stainless material?
Yes, use E308L rod, you can also weld cast iron, mild carbon steel or sheet metal.
What size breaker do i need to run this welder?
If you use this stick welder 110v to weld 3/32-inch rod, usual 20amp breaker is okay, but we suggest you use 30amp breaker. It's best to use 40amp breaker if you use 1/8-inch rod with maxmium current.
SAFETY CAUTION:
- Wear eye, ear, and body protection equipment.
- Insulate yourself from welding machine and ground.
- Keep your head out of fumes and keep flammable materials away.
- Use ventilation or exhaust to remove fumes from the breathing zone.
- Do not touch electrically live parts or electrodes with skin or wet clothing.
- Avoid welding in the open air unless sheltered from sunlight and never let rain or water wet the machine.
Tips: If the welding machine fails to arc, it may be due to the acidity and alkalinity of the welding rods. You can try to exchange connections, avoid the wrong terminal connect. Also check your rods head, confirm the flux not cover iron tip.
Find Your Ideal Machine
 Sim-Stick 120 110V |  MMA140D 110V/220V |  Power-Stick185D 110V/220V |  FC140 - Mig Welder 110V | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
Multi-Function | ARC | ARC | ARC / Lift TIG | Flux core MIG / ARC / Lift TIG |
Power Supply | 1PH ~ AC110V±15% 50/60Hz | 1PH ~ AC110V/220V ±15% 50/60Hz | 1PH ~ AC110V/220V ±15% 50/60Hz | 1PH ~ AC110V±15% 50/60Hz |
Actual Welding Current | 10 ~ 120A | 10~120A (110V)/10~140A (220V) | 10~130A(110V)/10~185A(220V) | 20~140A(MIG&ARC)/10~140A(TIG) |
Electrode Diameter | 1/16 inch ~ 1/8 inch | 1/16 inch ~ 1/8 inch | 1/16 inch ~ 5/32 inch | 1/16 inch ~ 1/8 inch |
Electrode Type | E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 |
Our Prime
Stick Welder
High quality and affordable
UZ120 MMA WELDER
Merchant VideoWhat's in box
- 1 piece x HONE DC110v welder
- 1 set x 8.2 ft Electrode holder
- 1 set x 8.2 ft Earth clamp
- 1 piece x Steel brush 7.2 inch
- 1 piece x Adjustable shoulder strap
Real data you can't go wrong
- Workpiece thickness Min. 1/32 in (0.8mm) fits with welding rod 1/16.
- Workpiece thickness Max. 5/16 in (8.0mm) fits with welding rod 1/8 in.
Advanced IGBT Technology
- Unique IGBT control mode improves the reliability of welding machine.
- Advanced main transformer supply high efficiency duty cycle and long life.
Humanized Operation Design
- 35 degrees panel angle design, easy to read current data, make you easy to adjust the current exactly, whether you stand or squat.
Portable Design, Easy to Carry
- Mini size and light weight. Portable carry with adjustable shoulder strap, it is convenient for welding indoors and outdoors.The weighs only 5.8Ibs.
Perfect Welding Results
- The welding effects of the workpiece is full, flat and low spatter. It is an ideal stick welder for household and small workshop.
Multi-Application
- You can build and repair all kinds of projects, such as garden fences,metal shelf etc,welding mild steel, carbon steel, stainless steel and cast iron.
Multi Function
- Bulit-in smart Hot-start and Arc-force provide easy, quick and reliable arc start, and stable welding current.
UZ120 ???? 2
Merchant VideoUZ120 Features
- Hot-start makes the arc striking easier.
- Arc-force provide smoother welding.
- Anti-stick easy the electrode removal from the workpiece.
- Auto protection against over heat, over current, over-voltage, under-voltage and short circuit.
Outstanding Arc stability with low spatter and deep bath.
What amp outlet minimum for this welder?
You can use a 20 amp but you need to keep the power out less then 90.
"I am not good with visualizing the thicknesses listed; what is the thinnest this will weld? sheetmetal? pictures? thx "
Hello! The thinnest of workpiece can be welded is about 5/64” (2 mm), with welding rod 1/16” or 5/64” or 3/32”, using welding current about 50A.
Can this welder machine weld stainless material?
Yes, use E308L rod, you can also weld cast iron, mild carbon steel or sheet metal.
What size breaker do i need to run this welder?
If you use this stick welder 110v to weld 3/32-inch rod, usual 20amp breaker is okay, but we suggest you use 30amp breaker. It's best to use 40amp breaker if you use 1/8-inch rod with maxmium current.
SAFETY CAUTION:
- Wear eye, ear, and body protection equipment.
- Insulate yourself from welding machine and ground.
- Keep your head out of fumes and keep flammable materials away.
- Use ventilation or exhaust to remove fumes from the breathing zone.
- Do not touch electrically live parts or electrodes with skin or wet clothing.
- Avoid welding in the open air unless sheltered from sunlight and never let rain or water wet the machine.
Tips: If the welding machine fails to arc, it may be due to the acidity and alkalinity of the welding rods. You can try to exchange connections, avoid the wrong terminal connect. Also check your rods head, confirm the flux not cover iron tip.
Find Your Ideal Machine
Sim-Stick 120 110V | MMA140D 110V/220V | Power-Stick185D 110V/220V | FC140 - Mig Welder 110V |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Multi-Function | |||
| ARC | ARC | ARC / Lift TIG | Flux core MIG / ARC / Lift TIG |
| Power Supply | |||
| 1PH ~ AC110V±15% 50/60Hz | 1PH ~ AC110V/220V ±15% 50/60Hz | 1PH ~ AC110V/220V ±15% 50/60Hz | 1PH ~ AC110V±15% 50/60Hz |
| Actual Welding Current | |||
| 10 ~ 120A | 10~120A (110V)/10~140A (220V) | 10~130A(110V)/10~185A(220V) | 20~140A(MIG&ARC)/10~140A(TIG) |
| Electrode Diameter | |||
| 1/16 inch ~ 1/8 inch | 1/16 inch ~ 1/8 inch | 1/16 inch ~ 5/32 inch | 1/16 inch ~ 1/8 inch |
| Electrode Type | |||
| E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 | E6013, E7018, E6011, E6010 |
