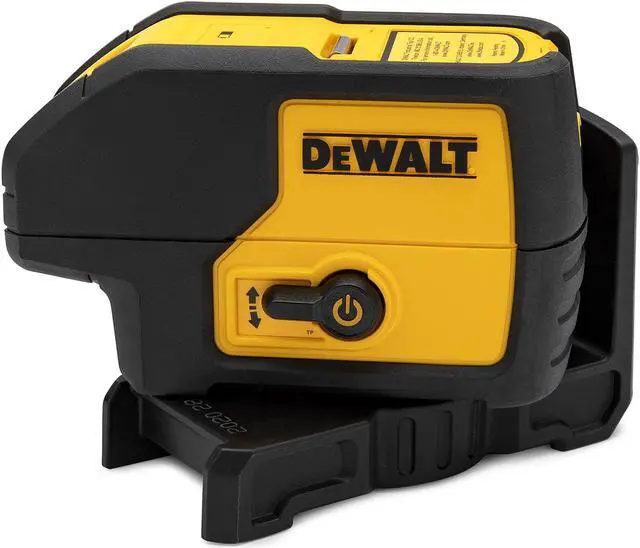

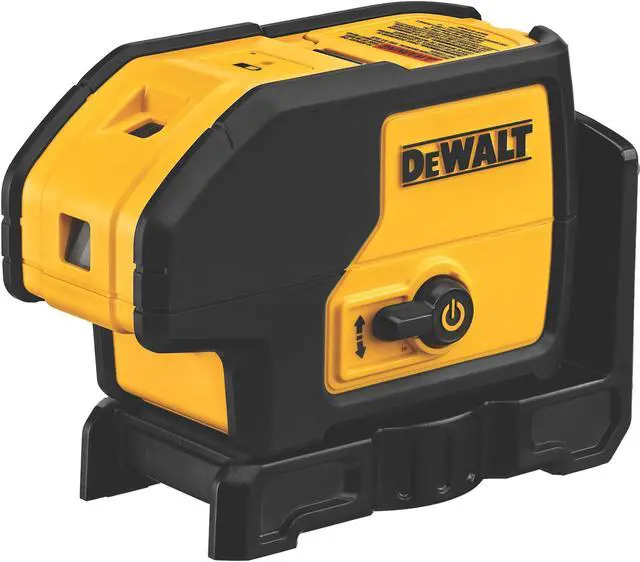

Dewalt DW083K Self-Leveling 3 Beam Laser Pointer

Be the first to review this product...
  • Accuracy of 1/4 in. @ 100 ft.
  • Single lever power switch locks pendulum in the off position
  • Built-in magnetic pivoting bracket
  • Integrated track clearance
  • Over-molded housing helps maintain calibration
  • Focused laser beam
  • Debris and water resistance with an IP54 rating
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
  • The DeWALT Self-Leveling 3 Beam Laser Pointer is a self-leveling unit accurate to 1/4 in. at 100 ft. The power lock system features a single lever on/off switch that locks the pendulum in the off position for added durability. The DW083K also features built-in magnetic pivoting brackets that mount easily in metal surfaces, and the integrated track clearance enables fast and accurate bottom and top track installation. The focused laser beam keeps dot size small over longer distances for improved accuracy and visibility. It also features an overmolded housing which helps to maintain calibration under jobsite conditions.


Features
  • Self-leveling point laser is accurate to 1/4 in. at 100 ft.
  • Class 2 Laser Product, < 10mW Power Output, Wavelength 630-680 nm
  • Single lever power switch locks pendulum in the off position for added durability

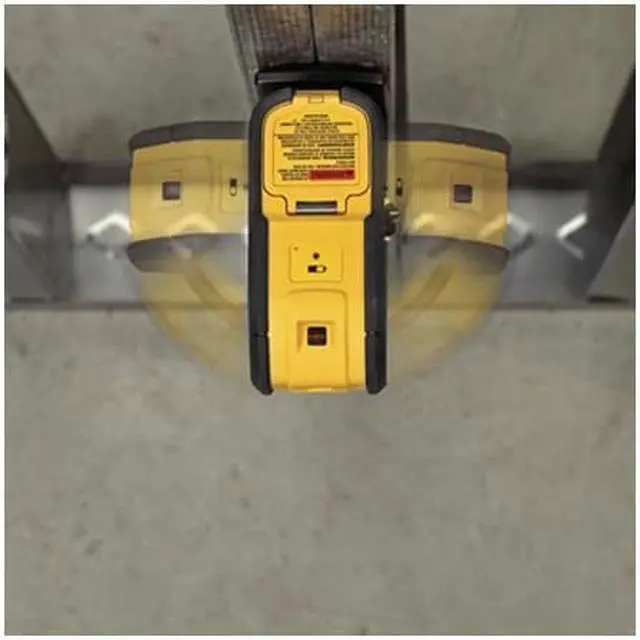

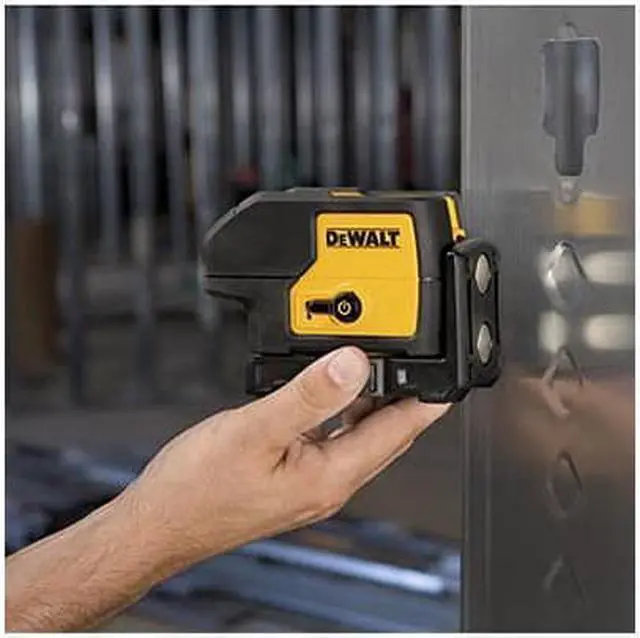

  • Built-in magnetic pivoting bracket mounts easily on metal surfaces

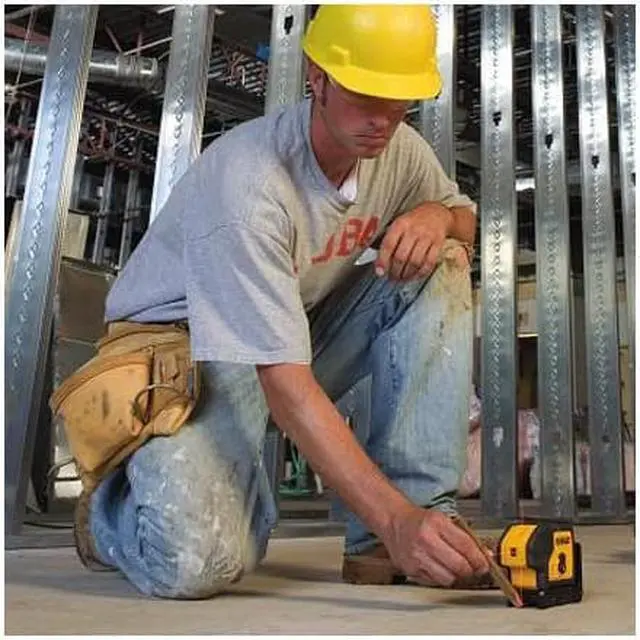

  • Integrated track clearance enables users for fast and accurate bottom and top track installation
  • Overmolded housing helps maintain calibration under jobsite conditions

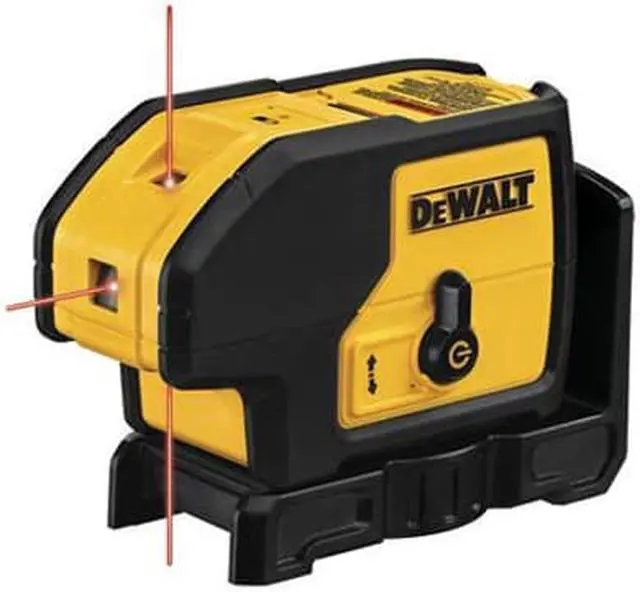

  • Focused laser beam keeps dot size small over longer distances for improved accuracy and visibility
  • Out of range sensor beam flashes when out of level

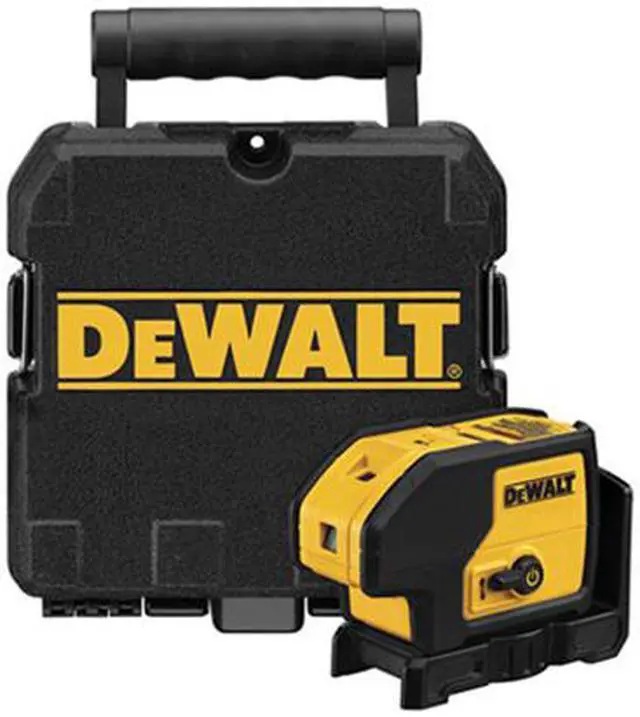

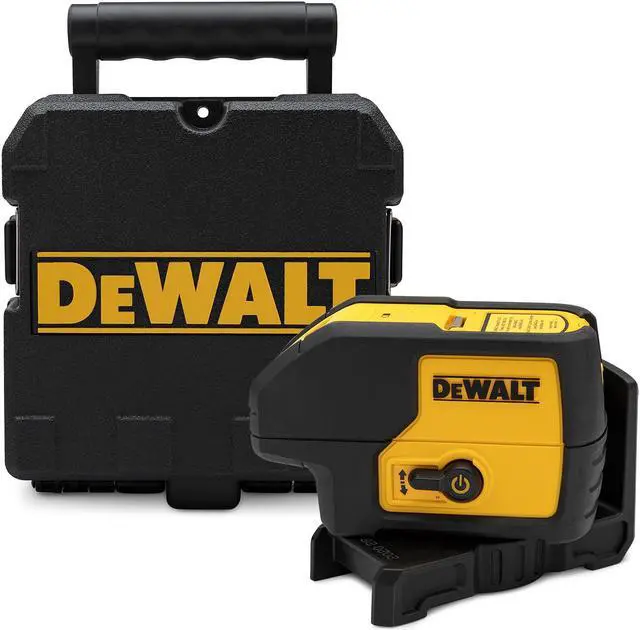

Includes
  • Self-Leveling 3 Beam Laser Pointer - DW083K
  • (4) AA Batteries
  • Kit Box


Specifications
  • Cordless: Yes
  • Length: 9.45 in.
  • Width: 4.33 in.
  • Height: 9.06 in.
  • Weight: 3.5 lbs.
  • Accuracy Margin (Horizontal): ±1/4 in
  • Accuracy Margin (Vertical): ±1/4 in
  • Accuracy Margin Distance (Horizontal): 100 ft
  • Accuracy Margin Distance (Vertical): 100 ft
  • Amperage:
  • Batteries Included: 4
  • Battery Amp Hour:
  • Battery Life (Approx. ): 40 Hours
  • Battery System:
  • Battery Type: Alkaline
  • Battery Warranty:
  • Bluetooth Compatibility: No
  • CSA Safety:
  • Case Included: Yes
  • Case Type: Hard
  • Charge Time:
  • Charger Included: No
  • ETL Safety:
  • Effective Range (Receiver): 100 ft
  • Effective Range (Visual): 100 ft
  • Laser Class: Class II
  • Laser Color: Red
  • Laser Diode: <1.5 mw, 635 nm
  • Operating Temperature (F).
    Run Time (Max. ): 20 Degrees F to 120 Degrees F
  • Power Source: Electric - Cordless
  • Protection Class: IP54
  • Self-Leveling Range: ±4 Degress
  • Tripod Thread: 1/4 in
  • UL Safety:
  • Voltage: 1.5V
  • Wifi compatibility: No
