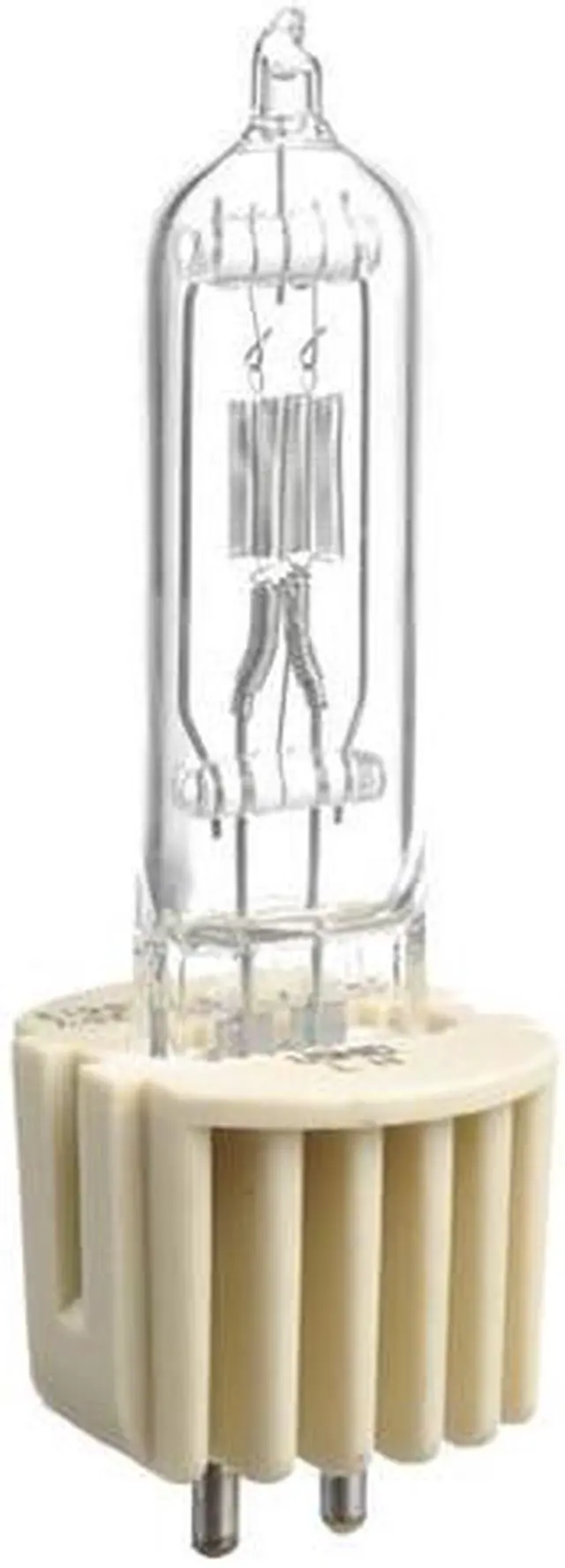

Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four fixtures, delivering up to 20% more lumensmeaning you get more light without changing the fixture.
Unlike competing HPL lamps, which have larger filament dimensions, Ushios innovative 6.0 mm x 9.5 mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency.
The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs.
DATA SPECIFICATIONSUSHIO Item Code1003184Product SeriesHPL
Prod. ID / ANSI CodeHPL-750/240V+DescriptionHPL-750/240V+, JS240V+-750WCN, 300 HourDescription 2750W 240V+Item TypeHalogenBaseHT/SNK
Voltage240Wattage750Burn PositionANY
Bulb ShapeT6Bulb FinishCLEAR
Color Temp (K) 3200Efficacy (lm/W) 28.7F ilament6-C8Front Glass CoverNOInitial Lumens (lm) 19750Luminous Flux (lm) 19750Life (hr) 300Diameter (mm) 18.35MOL (mm) 104Light Center Length (mm) 60.3C ase Qty10
Works with the following ETC Source Four fixtures:
Source Four jr: Rated up to 575W
Source Four jr Zoom: Rated up to 575W
Source Four: Rated up to 750W
Source Four Zoom: Rated up to 750W
Source Four PAR EA: Rated up to 750W
Source Four PAR MCM: Rated up to 575W
Source Four PAR Nel: Rated up to 750W

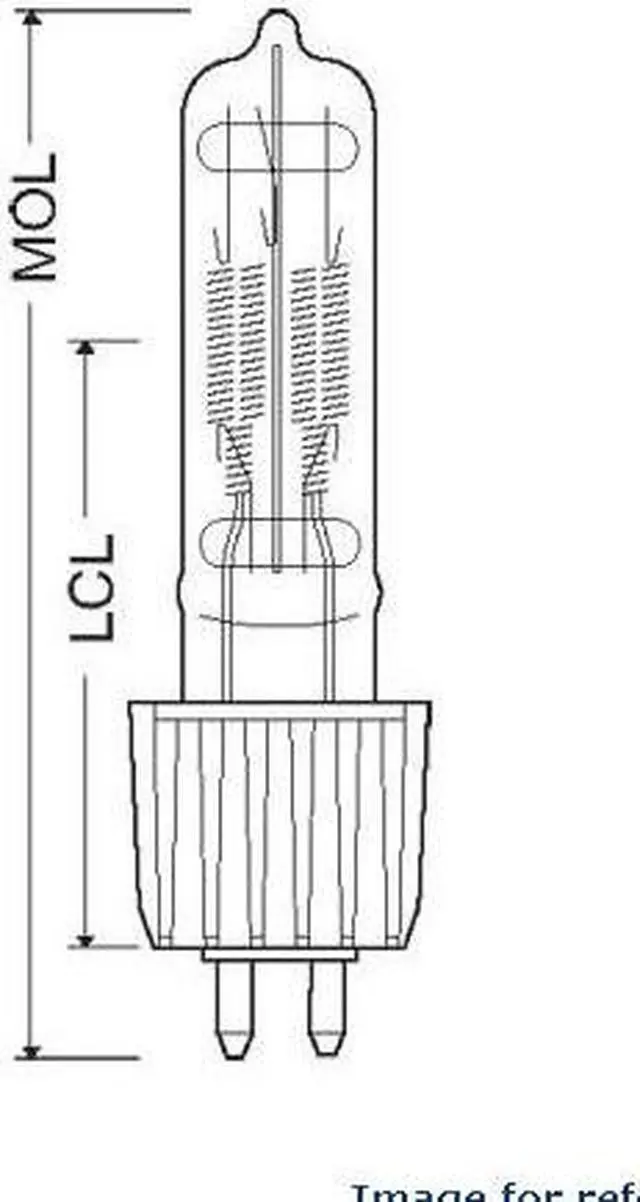

Dimensions: 104 mm x 60.3 mm x 18.35 mm
