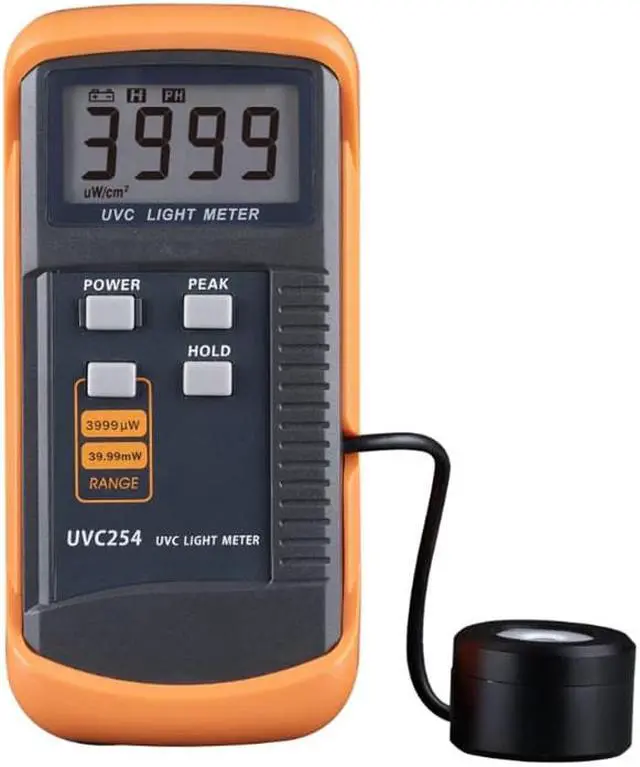

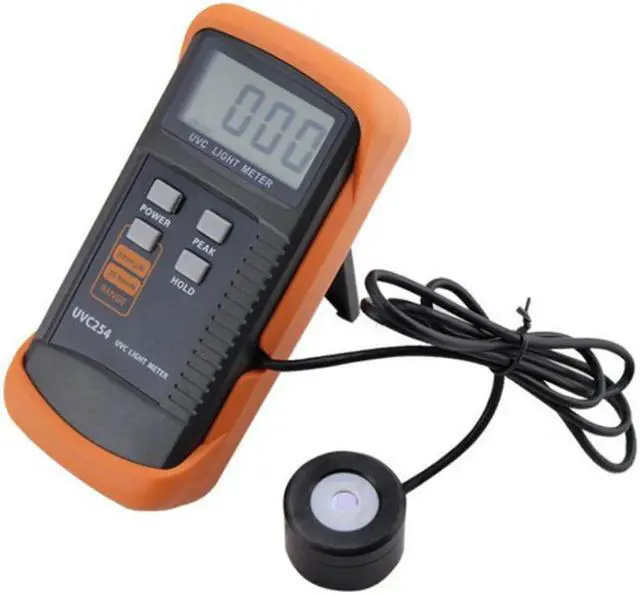

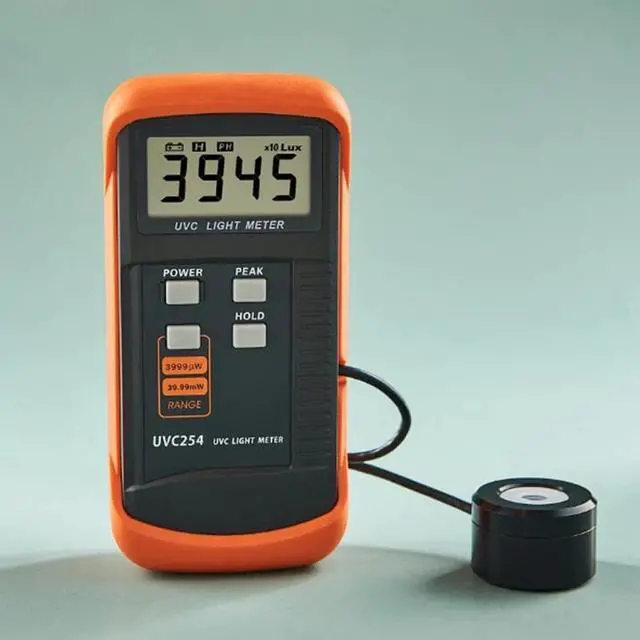

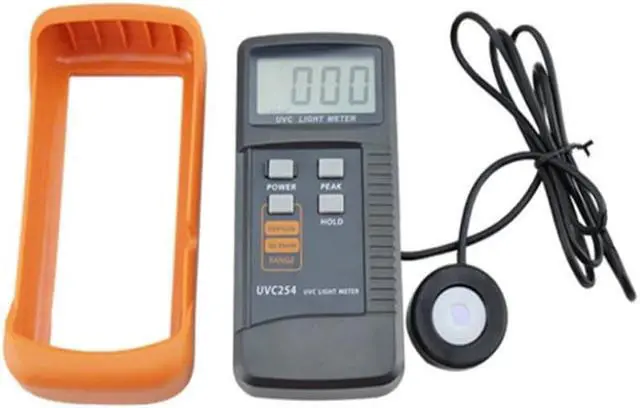

UVC Light Meter Narrow-band Spectrum 248nm-262nm Digital UV Radiation Intensity Detector Resolution:1uW/cm2 UV Meter

UVC Light Meter Narrow-band Spectrum 248nm-262nm Digital UV Radiation Intensity Detector Resolution:1uW/cm2 UV Meter

Description:Thank you for purchasing our company’s product. Please carefully read the manual before using the product, and the manual will instruct you to correctly operate and easily inspect and handle the instrument, thus fully giving play to its performance.

UVC lightmeter is a precision instrument and is operated correctly. The measured value will be slightly low with narrowed measuring range if it is operated improperly. It is suggested to seal the instrument and drying agent with tape when it is standby and replace the drying agent regularly. ThereforeUV sensor will be used for a long time.

Product Features:1. Professional and quality UV meter

2. Narrow-band spectrum248nm~262nm, 254nm peak wavelength

3. Large scale integrated circuit ensures high precision and stability

4. UV probe comprises of visible light insulation diaphragm, narrow-band optical filter and gallium arsenide sensor.

5. Shell of aluminium alloy probe is equipped with fixed screw holes, which facilitates to measure to properly install the probe with ease.

6. Width of measuring span, 1uW/cm2~39.99mW/cm2

Scope:The instrument is applicable to the measurement of UV radiation intensity in fields of sterilization, photoetching, water treatment, health care and breeding.

Technicalindex:Wavelength coverage: 248nm~262nm

Peak wavelength: 254nm

Irradiance measuring span: 3999uW/cm2, 39.99mW/cm2

Resolution ratio: 1uW/cm2

Parasitic light beyond ultraviolent band: <0.1%

Accuracy: ±5%+2 words

Sampling rate: 2.5 times per second

Humidity <80%RH
