ACDelco G12 Series Cordless Tools Family
One Battery Platform, Entire Tool Family
The ACDelco Brand has been around well over 100 years and its name has become synonymous with quality & reliability.
G12 Family

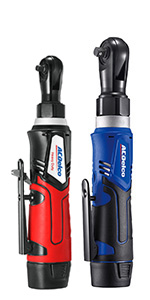

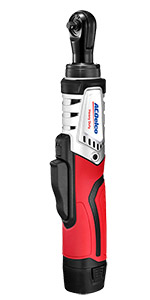

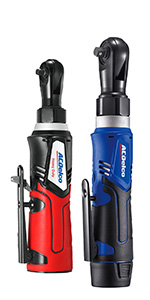

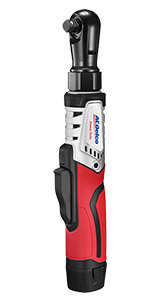

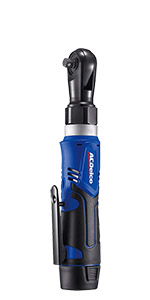

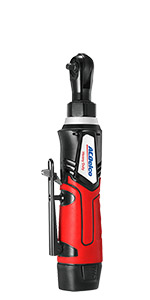

G12 Ratchet Wrench
Compact yet Powerful
G12 Platform
 ARW1207 |  ARW1210-2 |  ARW1209 |  ARW1218 |  ARW1210-3 | ARW1210-4P | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — |
| Platform | G12 | G12 | G12 | G12 | G12 | G12 |
| Drive Size (Square) | 1/4" | 1/4" | 3/8" | 3/8" | 3/8" | 1/2" |
| Max Torque (FT-LBS) | 30 | 45 | 45 | 40 | 65 | 70 |
| Brushless Motor | no data | ? | no data | no data | ? | ? |
| No Load Speed (RPM) | 240 | 0 to 195 | 170 | 250 | 0 to 195 | 0 to 195 |
| Length | 10.5" | 13" | 11.5" | 14.5 | 13" | 13" |
| LED Light | ? | ? | ? | ? | ? | ? |
| Variable Speed Trigger | no data | ? | no data | no data | ? | ? |
| Weight | 1.87 lbs | 3.08 lbs | 2.3 lbs | 2.75 lbs | 3.08 lbs | no data |
| Included Battery Pack | 1 | 1 | 1 | 1 | 1 | 1 |

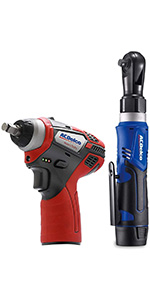

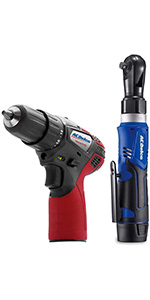

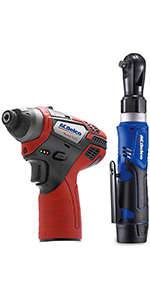

 K9 Combo |  K92 Combo |  K18 Combo |  K14 Combo |  K15 Combo |  K16 Combo | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Battery included | 1 | 2 | 1 | 1 | 1 | 1 |
| Tool #1 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Ext. Wrench ARW1218 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 |
| Features | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 40 ft-lbs. / 250 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light |
| Tool #2 | 1/4" Ratchet Wrench ARW1207T | 1/4" Ratchet Wrench ARW1207T | 1/4" Ratchet Wrench ARW1207T | 3/8" Impact Wrench ARI12104 | 1/4" Hex Impact Driver ARI12105 | 3/8" 2-Speed Drill Driver ARD12119 |
| Features | Max 30 ft-lbs. / 240 RPM / LED Light | Max 30 ft-lbs. / 240 RPM / LED Light | Max 30 ft-lbs. / 240 RPM / LED Light | Max 90 ft-lbs. / 0 to 2,400 RPM / 0 to 3,100 IPM | Max 82 ft-lbs. / 0 to 2,400 RPM / 0 to 3,100 IPM | Max 265 in-lbs. / 0-350 & 0-1,350 RPM / 18 + 1 Torque Settings |
 ARI12104 |  ARI12104-2 |  ARI12105 |  ARD12119 |  ARS1212 |  ARS1214 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — no data | — no data | — no data |
| Voltage (Platform) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) |
| Drive Size (Square) | 3/8" Square | 1/4" Square | 1/4" Hex | Up to 3/8" Chuck | 3" Pad | 3" Pad |

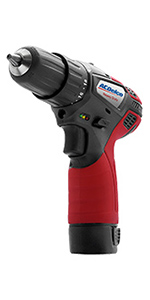

| Tool Type | Impact Wrench | Impact Wrench | Impact Driver | 2-Speed Drill Driver | Polisher | Polisher |
| Max Torque /Features | 90 ft-lbs torque / 0-2400 IPM | 80 ft-lbs torque / 0-2400 IPM | 82 ft-lbs torque / 0-2400 IPM | 265 in-lbs | 2-position handle | 2-position handle |
| LED Light / Power Indicator | ? | ? | ? | ? | ? | ? |
| No Load Speed (RPM) | 0-3100 | 0-3100 | 0-3100 | 0-350 / 0-1350 | 0-2800 | 0-2800 / 0-7600 |
| Included Battery Pack | 2 | 2 | 2 | 2 | 2 | 2 |
ACDelco G12 Series Cordless Tools Family
One Battery Platform, Entire Tool Family
The ACDelco Brand has been around well over 100 years and its name has become synonymous with quality & reliability.

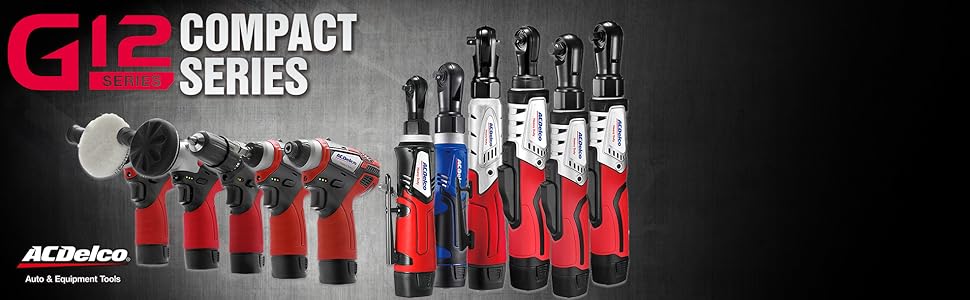

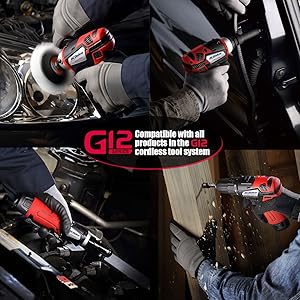

G12 Series Full Range of Tools

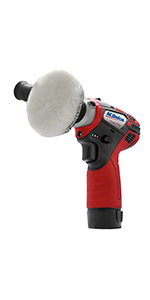

G12 Series Compact Tools are designed with power & compact size in mind. The family includes a wide range of tools: drill driver, impact driver, impact wrench, polisher/sander, ratchet wrench (DC Motor & Brushless), all share a common slim 12V Li-ion battery platform.

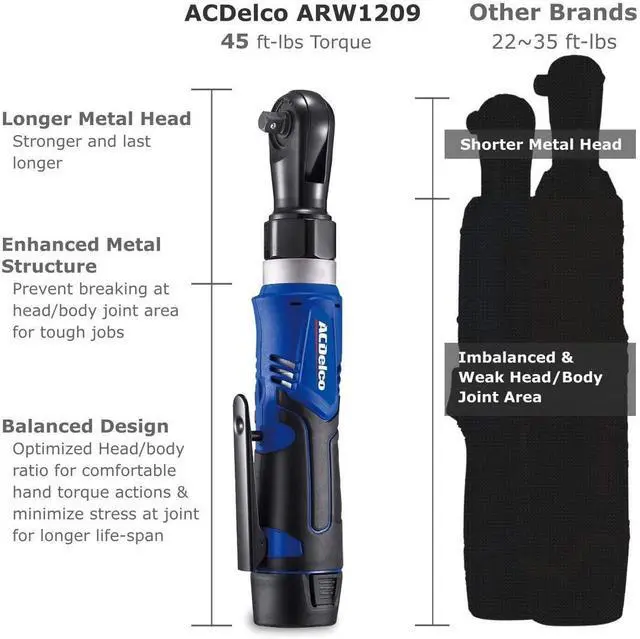

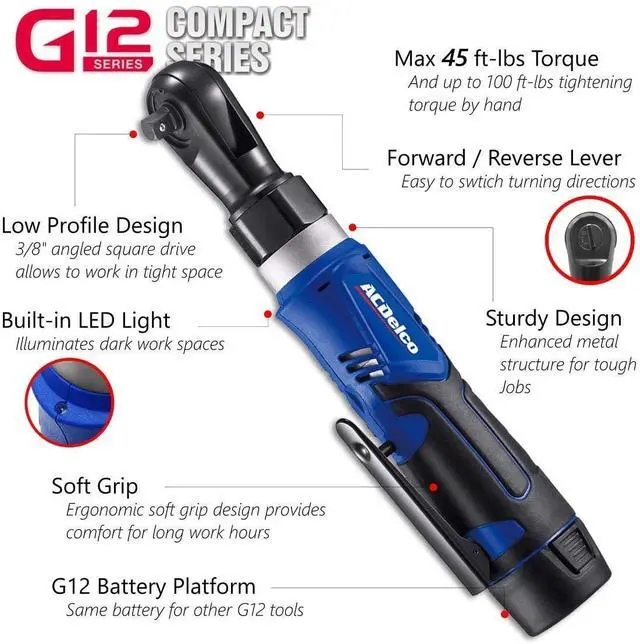

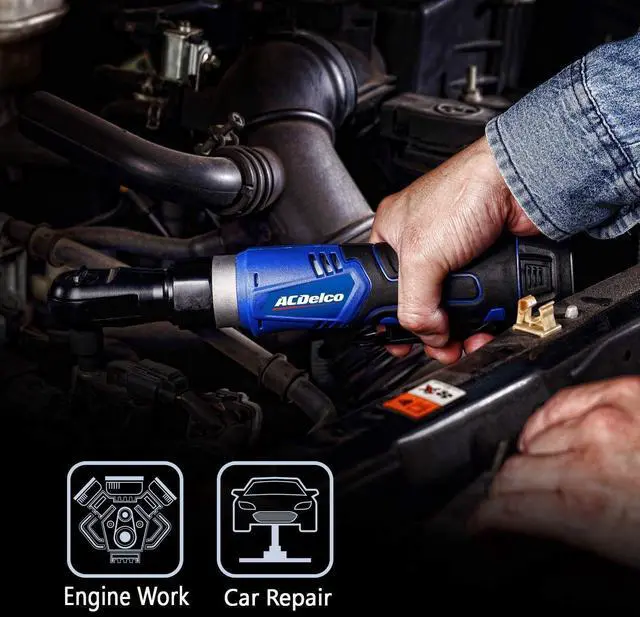

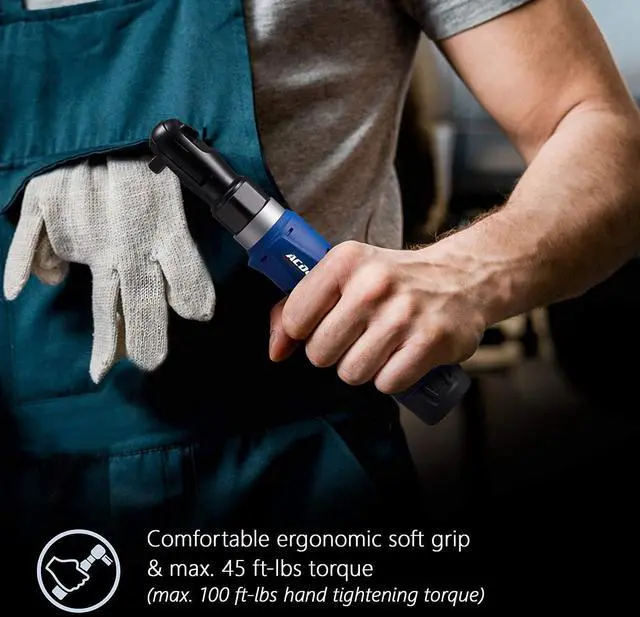

Lightweight, Powerful, Versatile, and Ergonomic Soft Grip Design Ratchet Wrenches

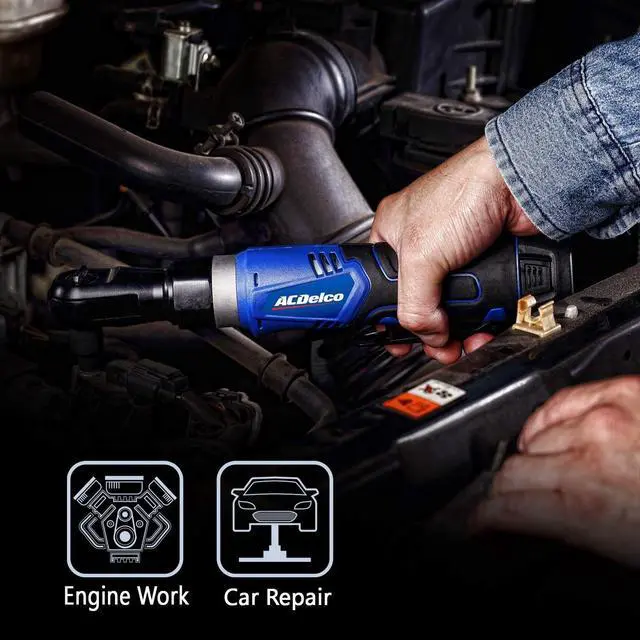

Cordless Ratchet Wrench comes in handy for professional mechanics to save repeating arm/wrist movement. ACDelco Ratchet features:
- Longer Metal Head: Stronger and last longer.
- Enhanced Metal Structure: Prevent breaking at head/body joint for tough jobs (max. 100 ft-lbs. for 3/8" anvil)

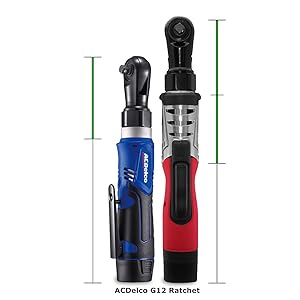

- Balanced Design: Optimized head/body ratio for comfortable holding & minimize stress at joint.
- For stubborn bolts, we recommend to use Impart Wrench to break loose

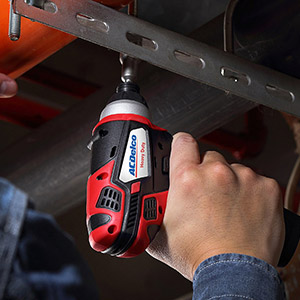

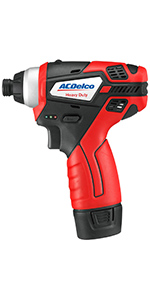

Compact and Yet, Powerful
With less than 6" in size, the our impact driver is packed with a powerful 82 ft-lbs. max torque engineered with tough materials for easy and fast removal work.

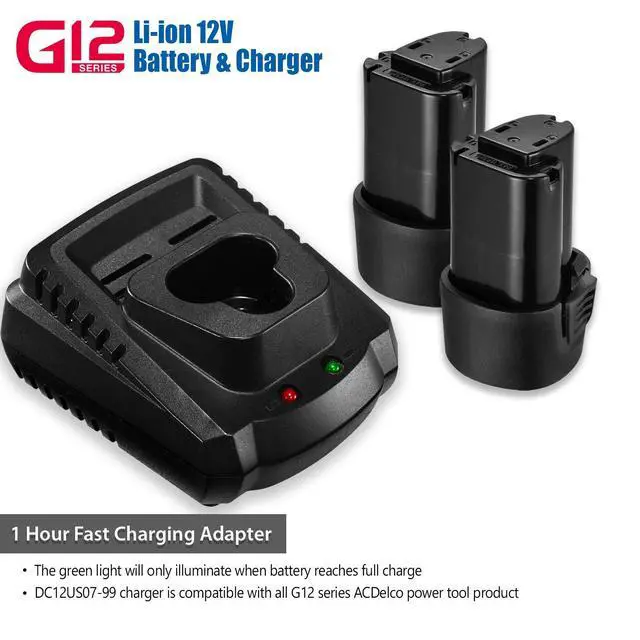

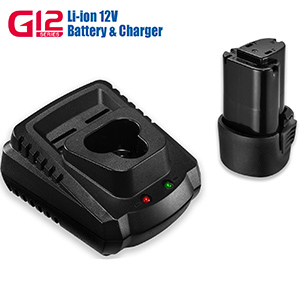

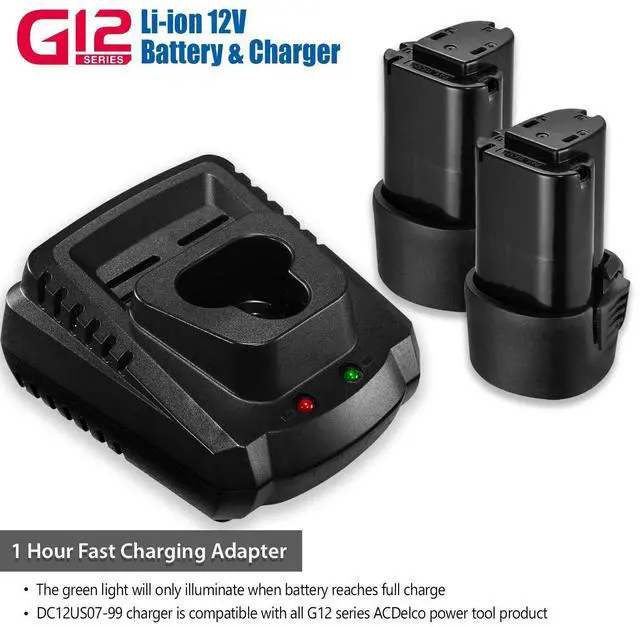

G12 Battery Platform
A single battery interchangeable with every G12 tool. includes impact wrench/driver, drills, polishers, ratchet wrench... and more to come
ARW1207 | ARW1210-2 | ARW1209 | ARW1218 | ARW1210-3 | ARW1210-4P | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — |
| Platform | G12 | G12 | G12 | G12 | G12 | G12 |
| Drive Size (Square) | 1/4" | 1/4" | 3/8" | 3/8" | 3/8" | 1/2" |
| Max Torque (FT-LBS) | 30 | 45 | 45 | 40 | 65 | 70 |
| Brushless Motor | no data | ? | no data | no data | ? | ? |
| No Load Speed (RPM) | 240 | 0 to 195 | 170 | 250 | 0 to 195 | 0 to 195 |
| Length | 10.5" | 13" | 11.5" | 14.5 | 13" | 13" |
| LED Light | ? | ? | ? | ? | ? | ? |
| Variable Speed Trigger | no data | ? | no data | no data | ? | ? |
| Weight | 1.87 lbs | 3.08 lbs | 2.3 lbs | 2.75 lbs | 3.08 lbs | no data |
| Included Battery Pack | 1 | 1 | 1 | 1 | 1 | 1 |
K9 Combo | K92 Combo | K18 Combo | K14 Combo | K15 Combo | K16 Combo | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Battery included | 1 | 2 | 1 | 1 | 1 | 1 |
| Tool #1 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Ext. Wrench ARW1218 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 | 3/8" Ratchet Wrench ARW1209 |
| Features | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 40 ft-lbs. / 250 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light | Max 45 ft-lbs. / 170 RPM / LED Light |
| Tool #2 | 1/4" Ratchet Wrench ARW1207T | 1/4" Ratchet Wrench ARW1207T | 1/4" Ratchet Wrench ARW1207T | 3/8" Impact Wrench ARI12104 | 1/4" Hex Impact Driver ARI12105 | 3/8" 2-Speed Drill Driver ARD12119 |
| Features | Max 30 ft-lbs. / 240 RPM / LED Light | Max 30 ft-lbs. / 240 RPM / LED Light | Max 30 ft-lbs. / 240 RPM / LED Light | Max 90 ft-lbs. / 0 to 2,400 RPM / 0 to 3,100 IPM | Max 82 ft-lbs. / 0 to 2,400 RPM / 0 to 3,100 IPM | Max 265 in-lbs. / 0-350 & 0-1,350 RPM / 18 + 1 Torque Settings |
ARI12104 | ARI12104-2 | ARI12105 | ARD12119 | ARS1212 | ARS1214 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — no data | — no data | — no data |
| Voltage (Platform) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) | 12V (G12) |
| Drive Size (Square) | 3/8" Square | 1/4" Square | 1/4" Hex | Up to 3/8" Chuck | 3" Pad | 3" Pad |
| Tool Type | Impact Wrench | Impact Wrench | Impact Driver | 2-Speed Drill Driver | Polisher | Polisher |
| Max Torque /Features | 90 ft-lbs torque / 0-2400 IPM | 80 ft-lbs torque / 0-2400 IPM | 82 ft-lbs torque / 0-2400 IPM | 265 in-lbs | 2-position handle | 2-position handle |
| LED Light / Power Indicator | ? | ? | ? | ? | ? | ? |
| No Load Speed (RPM) | 0-3100 | 0-3100 | 0-3100 | 0-350 / 0-1350 | 0-2800 | 0-2800 / 0-7600 |
| Included Battery Pack | 2 | 2 | 2 | 2 | 2 | 2 |
