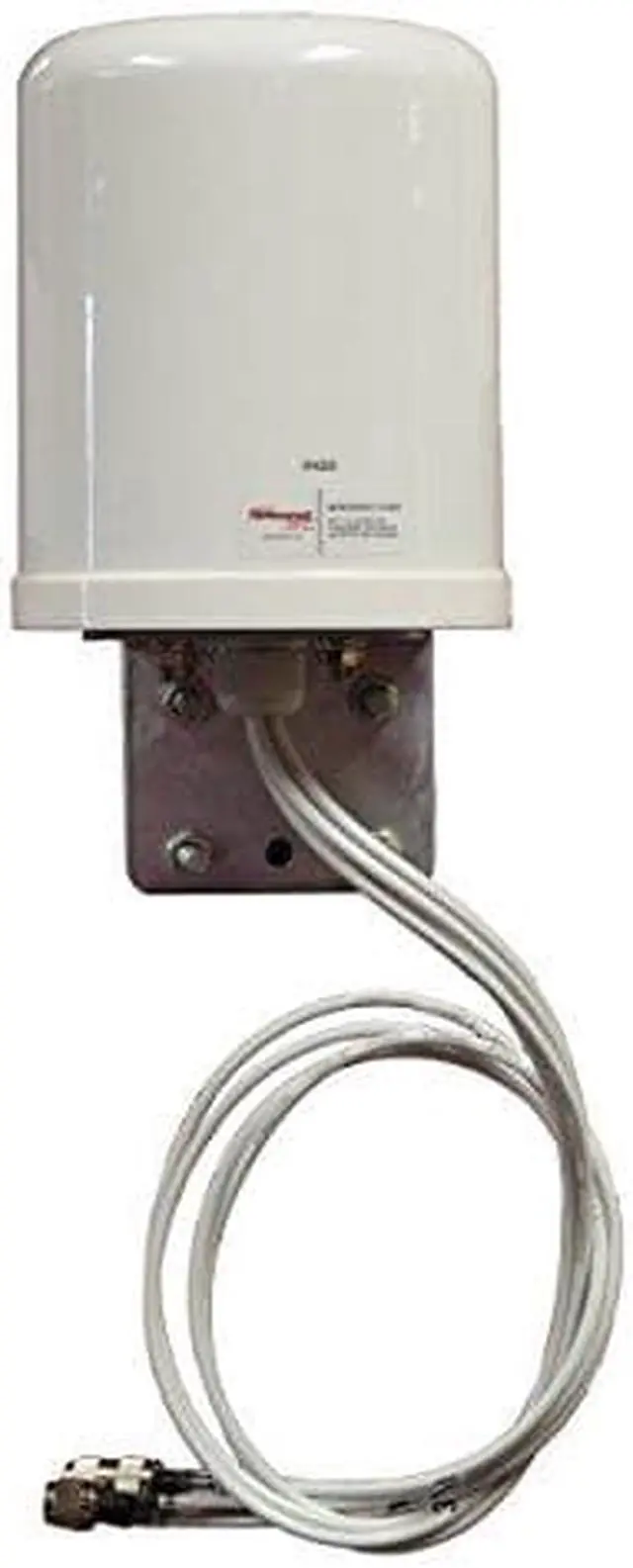

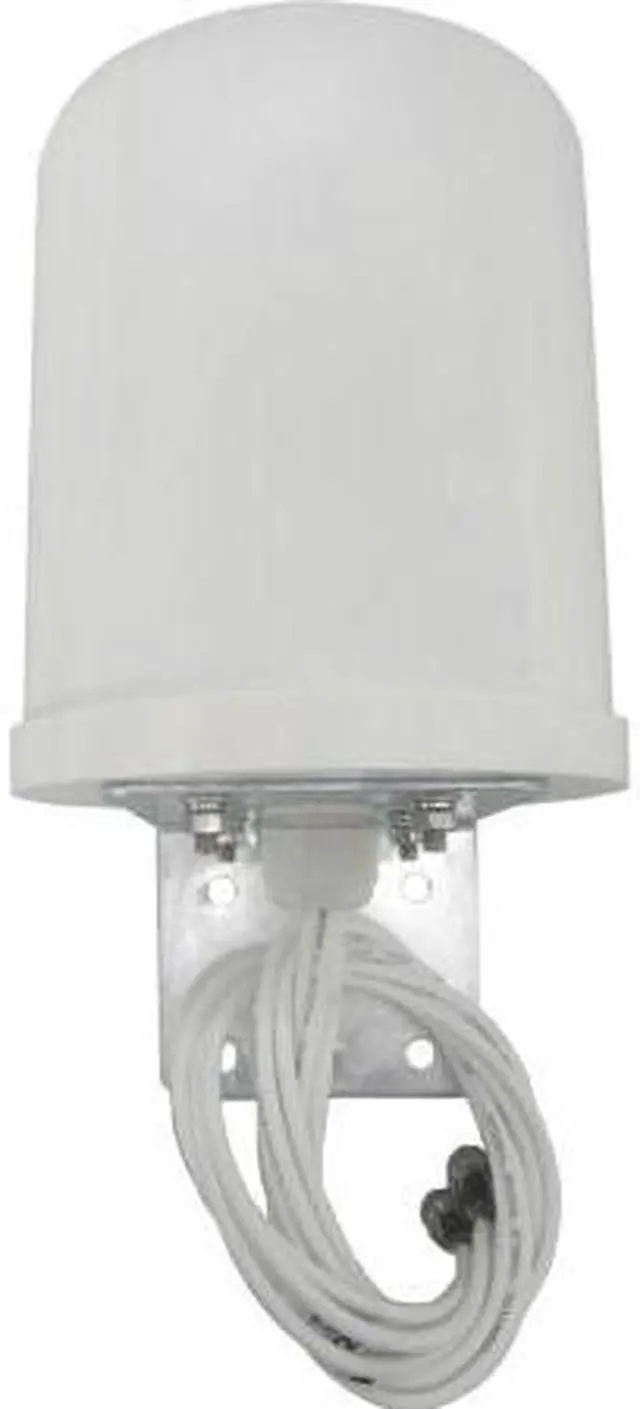

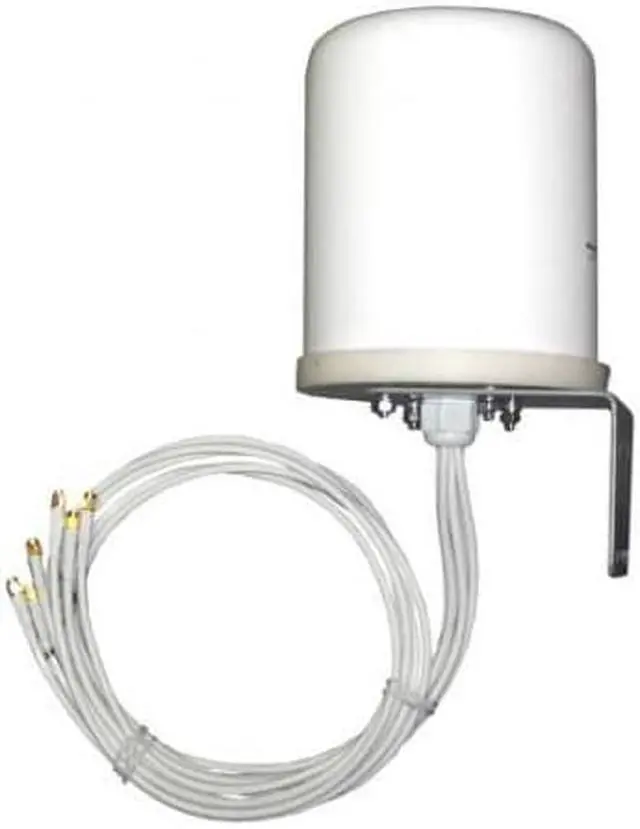

Ventev - M6060060MO1D43602 - 2.4/5 GHz 6 dBi Omni Outdoor WiFi Antenna 4 RPTNC, ( Each )

Ventev''s 2.4 /5 GHz 6 dBi outdoor omnidirectional Wi-Fi antenna is designed to operate with Cisco''s latest access points. The antenna''s materials and construction makes it perfectly suited for warehouse, manufacturing, and outdoor environments where it must withstand moisture, wind, sun, and dust. The 4 dual-band leads deliver exceptional performance while simplifying connection to the access point. An L-bracket with mounting hardware is included to support mast and/or wall mounting. Every Ventev antenna is RoHS compliant, and is covered by Ventev’s two-year warranty program. For more information, contact a regional sales executive at or.

ventev. com/infra. DETAILSMFG PART NUMBERM6060060MO1D43602TESSCO SKU577629Weight 3.60 lbsDimensions 5.9 ' x 7.0 'Operating Temp-40° – +158°Warranty2 YearsANTENNA SPECIFICATIONSGeneral Frequency 2.4 /5GHzGain6dBiHorizontal Beamwidth360°Vertical Beamwidth45°/20°Antenna TypeOmnidirectionalNumber of Ports/Leads/Pigtails4ConnectorRPTNC PlugLength of Lead36'ApplicationIndoor/OutdoorMounting StyleWall/MastDownloadsDatasheetDownload Cisco Solutions Partner, Certified Aruba Networks PartnerVentev also partners with Adtran, Aerohive, Meru/Fortinet, Motorola/Extreme and Samsung to provide an ecosystem of products for any wireless network. About Us ContactPartnersInternationalQuality AssuranceNEWSVentev Awarded Patent for Innovative T-Bar Bracket for Aruba 500 Series Access PointsVentev Partners with Cisco for IoT Design-In ProgramVentev Provides Customers with Performance Data for Antennas Prior to DeploymentView All ©Copyright 2020 Ventev Wireless Infrastructure.

All Rights Reserved. See Our Privacy Policy And Terms Of Use. Back Maximum Rated Wind Velocity 134 mile/h Polarization Vertical Type of Hardware Included L-Bracket for mast and mount Gain dBd 3.85 dBd Qty/ Uom 1 Each Maximum Power 10 W Connector Placement Pigtail Gain dBi 6 dBi Type of Jumper Included 4 x 3' cables Item Length 8 in Jumper Included Yes Item Height 8 in Specific Frequency 2.4 - 2.5 GHz, 5.15 - 5.85 GHz RF Connectors RP TNC Male Item Width 6 in Item Weight 3.74 lb
Maximum VSWR 1.5: 1, 2.0: 1
