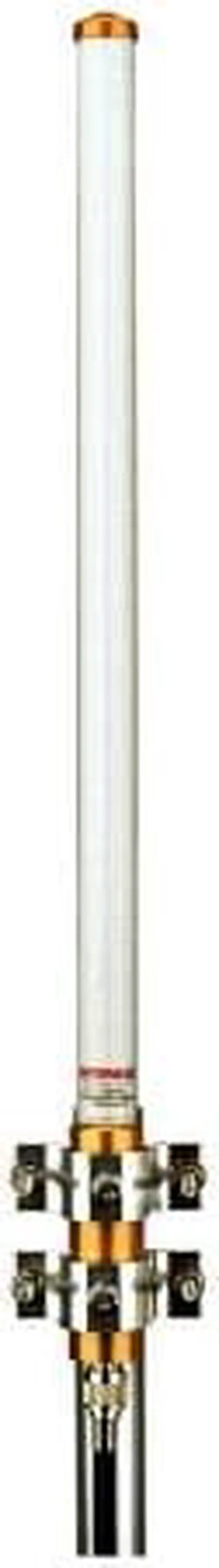

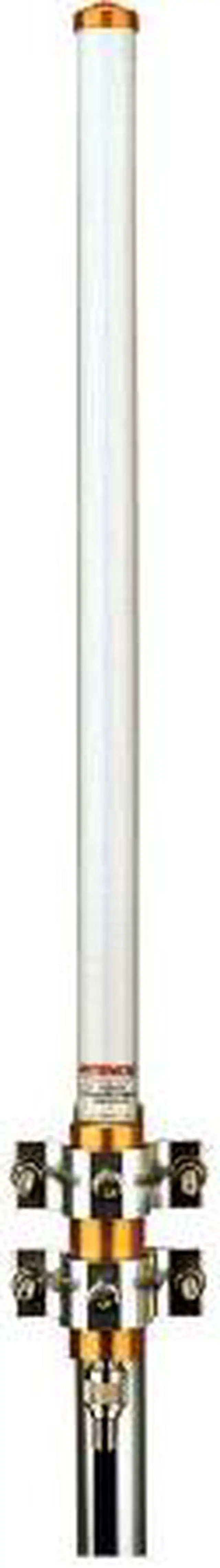

Laird Technologies - FG4603 - Laird Technologies FG4603 OMNI, FG, 460-470MHz, 100W

Fiberglass base station antennas feature industry leading design components that perform in extreme conditions The FG16397 quad-band omnidirectional base station antenna incorporates a collinear design that is enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve that allows for greater freedom in mounting. The antenna’s high quality and well-focused beam provides the best efficiency with highest gain.

Maximum Rated Wind Velocity 125 mile/h
Maximum VSWR 2.0: 1 RF Connectors N Female Gain dBd 3 dBd Maximum Power 100 W Polarization Vertical Type of Jumper Included Not Specified Specific Frequency 460-470 MHz Item Weight 4 lb Gain dBi 5.15 dBi Item Length 44 in Jumper Included No Type of Hardware Included None Qty/ Uom 1 Each Lightning Protection DC Ground
