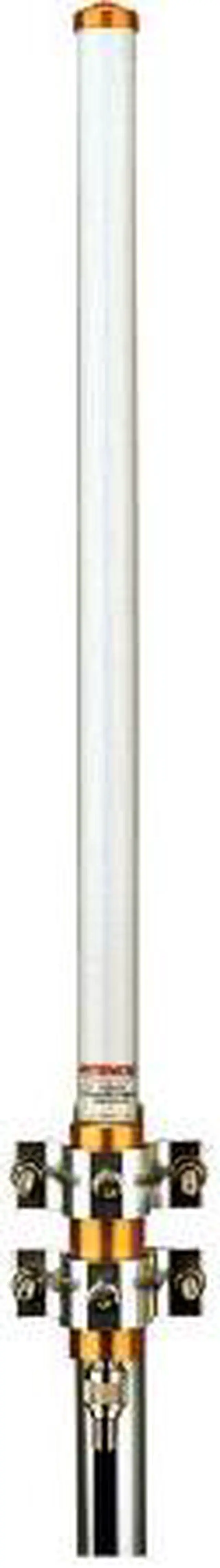

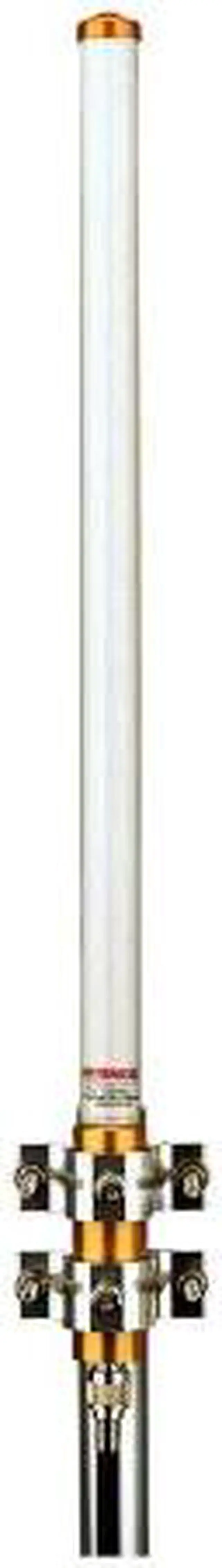

Laird Technologies - FG4505 - Laird Technologies FG4505 omni base 5db ant 450-470MHz

Fiberglass base station antennas feature industry leading design components that perform in extreme conditions The FG16397 quad-band omnidirectional base station antenna incorporates a collinear design that is enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve that allows for greater freedom in mounting. The antenna’s high quality and well-focused beam provides the best efficiency with highest gain.

Maximum Rated Wind Velocity 100 mile/h
Maximum VSWR 2.0: 1 RF Connectors N Female Gain dBd 5 dBd Maximum Power 100 W Polarization Vertical Type of Jumper Included Not Specified Specific Frequency 450-460 MHz Item Weight 4 lb Item Length 76 in Gain dBi 7.15 dBi Type of Hardware Included None Jumper Included No Qty/ Uom 1 Each Lightning Protection DC Ground
