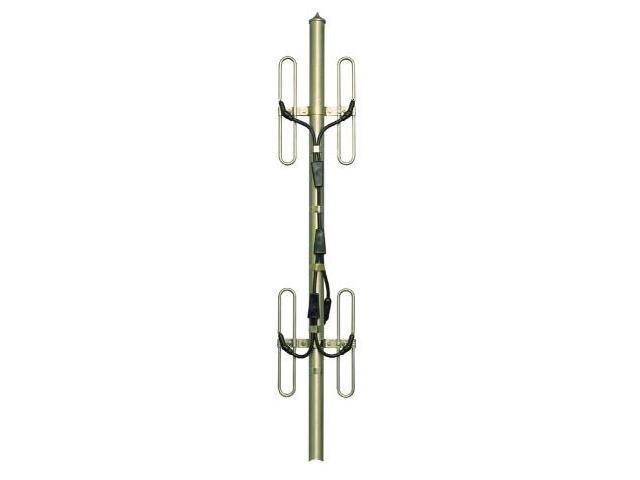

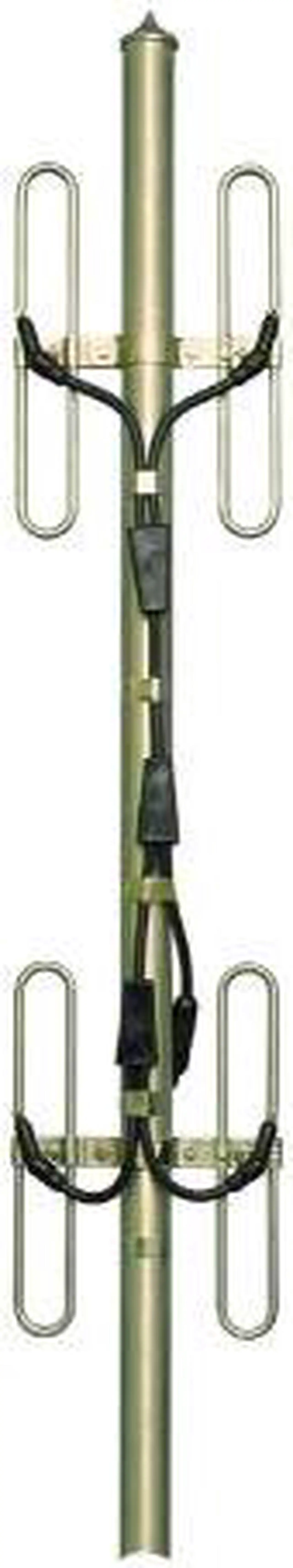

CommScope - DB404-B - Andrew Omni Exposed Dipole Antenna, 450-470 MHz, 360 Horizontal Beamwidth, Fixed Electrical Tilt

Specifications General Specifications Antenna Type Omni Band Single band Color Silver Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket Performance Note Outdoor usage Radiator Material Aluminum RF Connector Interface N Male RF Connector Location End of flexible lead RF Connector Quantity, low band 1 RF Connector Quantity, total 1 Dimensions Length 1524 mm | 60 in Electrical Specifications Impedance 50 ohm Operating Frequency Band 450 – 470 MHz Polarization Vertical Electrical Specifications Frequency Band, MHz 450–470 Gain, dBi 5.9 Beamwidth, Horizontal, degrees 360 Beamwidth, Vertical, degrees 27 VSWR | Return loss, dB 1.5 | 14.0 Input Power per Port, maximum, watts 250 Mechanical Specifications Wind Speed, maximum 161 km/h | 100.041 mph Packaging and Weights Net Weight, without mounting kit 6.4 kg | 14.11 lb Regulatory Compliance/Certifications Agency Classification CE Compliant with the relevant CE product directives ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system ROHS Compliant CHINA-ROHS Below maximum concentration value REACH-SVHC Antenna Pattern Omnidirectional Polarization Vertical Qty/ Uom 1 Each Maximum Power 250 W Gain dBd 3.8 dBd Gain dBi 5.9 dBi
Maximum VSWR 1.5: 1 Jumper Included Yes Horizontal Beamwidth 360 deg Maximum Rated Wind Velocity 100 mile/h Item Weight 14 lb Vertical Beamwidth 27 deg Connector Placement Pigtail Tuned Frequency (MHz) 450-470 RF Connectors N Male Type of Hardware Included Pipe Mount ( 1.25 - 3.5 in) Item Length 60 in Specific Frequency 450-470 MHz Lightning Protection DC Ground
