Ventev - M6100110MP1D41806 - 2.4/5GHz 10/11dBi Wi-Fi Patch (H:40/24/V:28/18) Antenna with 4 N-Style Connectors

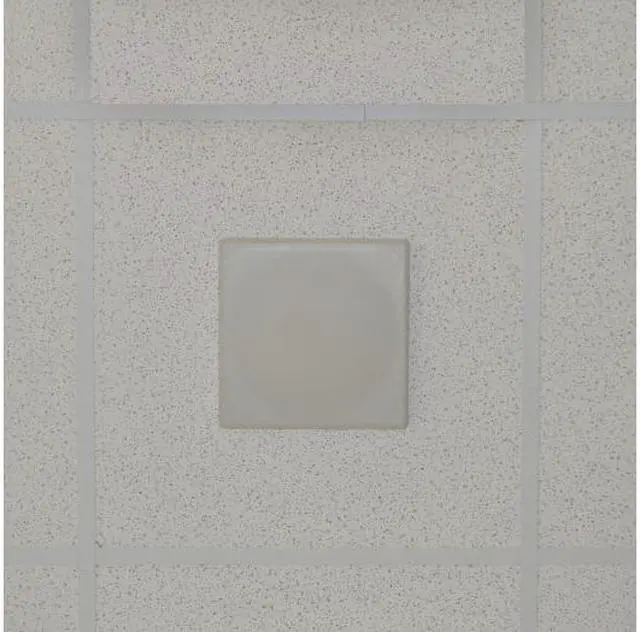

Ventev''s High-Density 2.4 /5 GHz 10/11 dBi Ceiling Mount Wi-Fi Antenna is the first in the market with an inconspicuous in-ceiling tile mount. The subtle design camouflages the Wi-Fi access point for improved aesthetics and increased security. The antenna comes with four N-Style Jack connectors. With dual-band leads, each cable supports both 2.4 and 5 GHz, making it an ideal antenna to support demanding indoor applications in next generation wireless communication system. DETAILSMFG PART NUMBERM6100110MP1D41806TESSCO SKU567653Weight 4.40 lbsDimensions 10.3 ' x 10.3 ' x 1.4 'Warranty2 YearsANTENNA SPECIFICATIONSGeneral Frequency 2.4 /5GHzGain10/11dBiHorizontal Beamwidth40°/24°Vertical Beamwidth28°/18°Antenna TypePatchNumber of Ports/Leads/Pigtails4ConnectorN-Style JackApplicationIndoorMounting StyleCeilingDownloadsDatasheetDownload Cisco Solutions Partner, Certified Aruba Networks PartnerVentev also partners with Adtran, Aerohive, Meru/Fortinet, Motorola/Extreme and Samsung to provide an ecosystem of products for any wireless network.

About Us ContactPartnersInternationalQuality AssuranceNEWSVentev Awarded Patent for Innovative T-Bar Bracket for Aruba 500 Series Access PointsVentev Partners with Cisco for IoT Design-In ProgramVentev Provides Customers with Performance Data for Antennas Prior to DeploymentView All ©Copyright 2020 Ventev Wireless Infrastructure. All Rights Reserved. See Our Privacy Policy And Terms Of Use. Back Gain dBi 10 dBi, 11 dBi Vertical Beamwidth 18 deg, 28 deg Item Height 1.4 in Qty/ Uom 1 Each Horizontal Beamwidth 40 deg, 24 deg Item Length 10.3 in Item Weight 4.4 lb RF Connectors N Female Antenna Mounting Style Ceiling Item Width 10.3 in Polarization Vertical, Horizontal Maximum Power 20 W Jumper Included No Specific Frequency 2400-2500 MHz, 5150-5850
MHz Maximum VSWR 1.8: 1
