Wideband 0.1 3000MHz RF SWR Bridge VSWR Measurement Directional Coupler Module Antenna Analyzer Reflection Return Loss Test Board High Frequency HF VHF UHF Amateur HAM Radio Network Testing
- Operating frequency: 0.1 - 3000 MHz
- Return loss: greater than 35 dB
- Connector: SMA
- Circuit board size: 45x90mm
- Weight: 28 grams
- Ultra-Wideband 0.1-3000MHz Coverage: Engineered for comprehensive RF network analysis, this bridge operates flawlessly from 0.1 MHz up to a massive 3000 MHz (3 GHz). It perfectly covers all essential HF, VHF, and UHF bands for versatile amateur radio testing.
- Laboratory-Grade Precision (>35dB): Achieve exceptional measurement accuracy with a return loss strictly greater than 35 dB. This superb directivity guarantees highly reliable VSWR readings and minimizes signal reflection errors during critical antenna tuning.
- Universal SMA Connectivity: Equipped with industry-standard, premium SMA connectors to ensure low-loss and secure signal transmission. It pairs seamlessly with your existing Vector Network Analyzers (VNA), spectrum analyzers, and 50-ohm RF test cables.

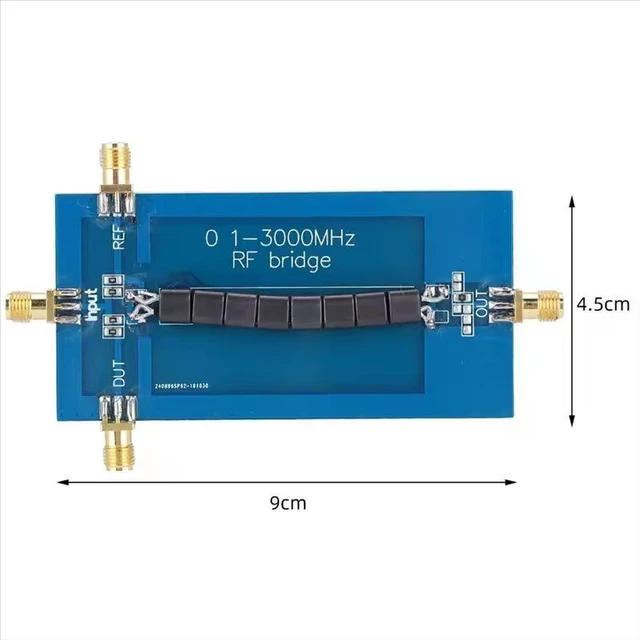

- Ultra-Compact & Portable Design: Meticulously laid out on a highly efficient 45 x 90 mm printed circuit board and weighing a mere 28 grams. This lightweight footprint saves valuable lab workbench space and is incredibly easy to carry for outdoor field diagnostics.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description:
Precision RF Testing Unlocked: Wideband 0.1-3000MHz SWR Bridge Module
Elevate your antenna tuning and RF network analysis with our high-precision VSWR Measurement Directional Coupler. Engineered specifically for HAM radio operators, DIY electronics enthusiasts, and RF technicians, this bridge provides exceptional accuracy across a massive frequency spectrum. Whether you are analyzing antenna resonance, tuning RF filters, or measuring return loss, this compact module is the ultimate reliable addition to your lab workbench.
Key Features:
- Ultra-Wide Frequency Spectrum: Engineered to operate flawlessly from 0.1 MHz all the way up to 3000 MHz (3 GHz). This immense bandwidth perfectly covers HF, VHF, UHF, and higher frequency bands for comprehensive RF network testing.
- Exceptional Measurement Accuracy: Boasting a high directivity with a return loss of greater than 35 dB. This ensures highly accurate VSWR (Voltage Standing Wave Ratio) readings and minimizes signal reflection errors during your most critical diagnostic tests.
- Universal SMA Connectivity: Equipped with premium, industry-standard SMA connectors. This guarantees seamless, low-loss connections with your existing Vector Network Analyzers (VNA), spectrum analyzers, and standard 50-ohm RF cables.
- Compact & Portable Footprint: Measuring a highly efficient 45 x 90 mm and weighing a mere 28 grams. This extremely lightweight PCB design takes up virtually zero space on your test bench and is incredibly easy to pack for outdoor field testing.
- Reliable Build Quality: Features a neatly routed circuit board designed for optimal high-frequency signal integrity, making it a robust tool for long-term amateur radio tuning and professional laboratory diagnostics.
Technical Specifications:
- Operating Frequency Range: 0.1 - 3000 MHz (0.1 - 3 GHz)
- Return Loss:
