HUBBELL WIRING DEVICE-KELLEMS HBL69W76 Watertight Flanged Locking Receptacle,
- The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

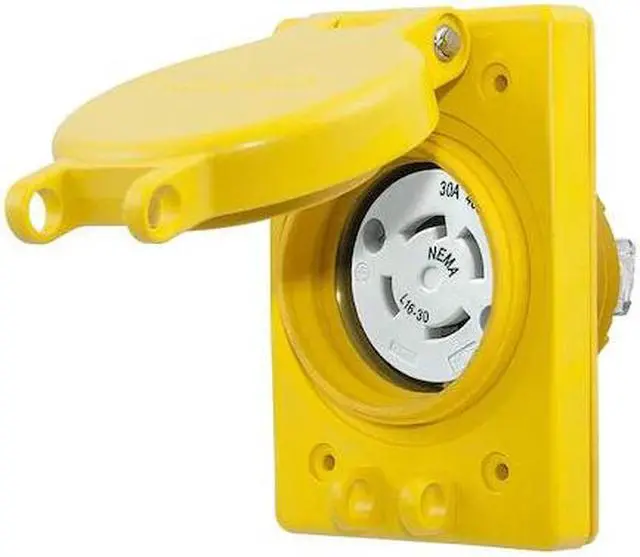

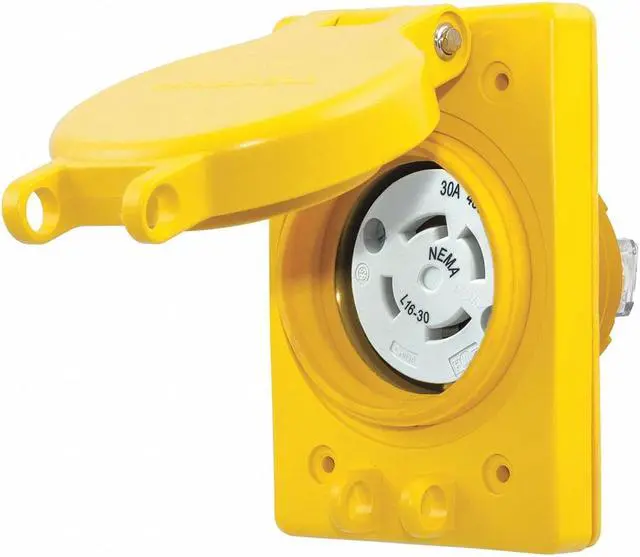

The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for installation in environments requiring watertight and impact-resistant connections. Rated for 30 amps and 480V AC, this three-pole, four-wire receptacle includes a locking configuration (NEMA L16-30R).
Key Features of the HUBBELL 30A Watertight Locking Receptacle:
- Amperage/Voltage: Rated for 30 A at 480V AC, three-phase
- NEMA Configuration: L16-30R with polarized design
- Enclosure Ratings: Meets the following enclosure ratings: NEMA Types 4, 4X, 6, 6P, and 12; IP69K
- Material Construction: PBT body with thermoplastic elastomer housing and insulation; stainless steel hardware
- Corrosion Resistance: Includes metallic components with corrosion resistance
- Wire Accommodation: Accepts #18 AWG to #8 AWG wire sizes via screw terminals
- Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)
- Mount Type & Flange Shape: Flush mount with rectangular flange
- Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements
