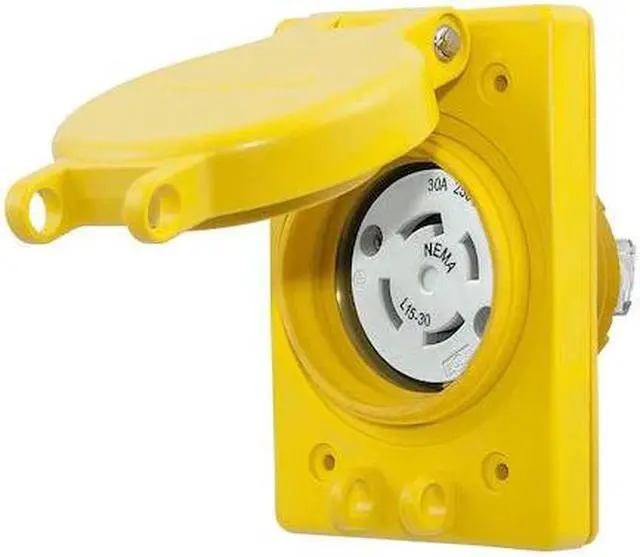

HUBBELL WIRING DEVICE-KELLEMS HBL69W75 Watertight Flanged Locking Receptacle,

The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for industrial applications requiring watertight and impact-resistant connections. This receptacle features a flip-up cover and is constructed with thermoplastic elastomer housing and nickel-plated brass contacts to provide durability in demanding environments. It supports three-phase power at 250V AC, accommodates wire sizes from #18 AWG to #8 AWG, and meets multiple NEMA enclosure ratings for protection against moisture, dust, and corrosion.

Key Features of the HUBBELL 30A Watertight Locking Receptacle:

• Amperage/Voltage: Rated for 30 A at 250V AC with three poles and four wires (NEMA L15-30R configuration).


• IP69K rated; provides ingress protection as specified by the rating


• Material Construction: Thermoplastic elastomer housing with nylon components; nickel-plated brass contacts


• Cord Accommodation: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals.


• NEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, 6P, and 12 standards


• Mounting Style: Flush mount design with rectangular flange; includes flip-up cover


• Operating Temperature Range: -40°F to +140°F (-40°C to +60°C continuous operation).


• Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements.
